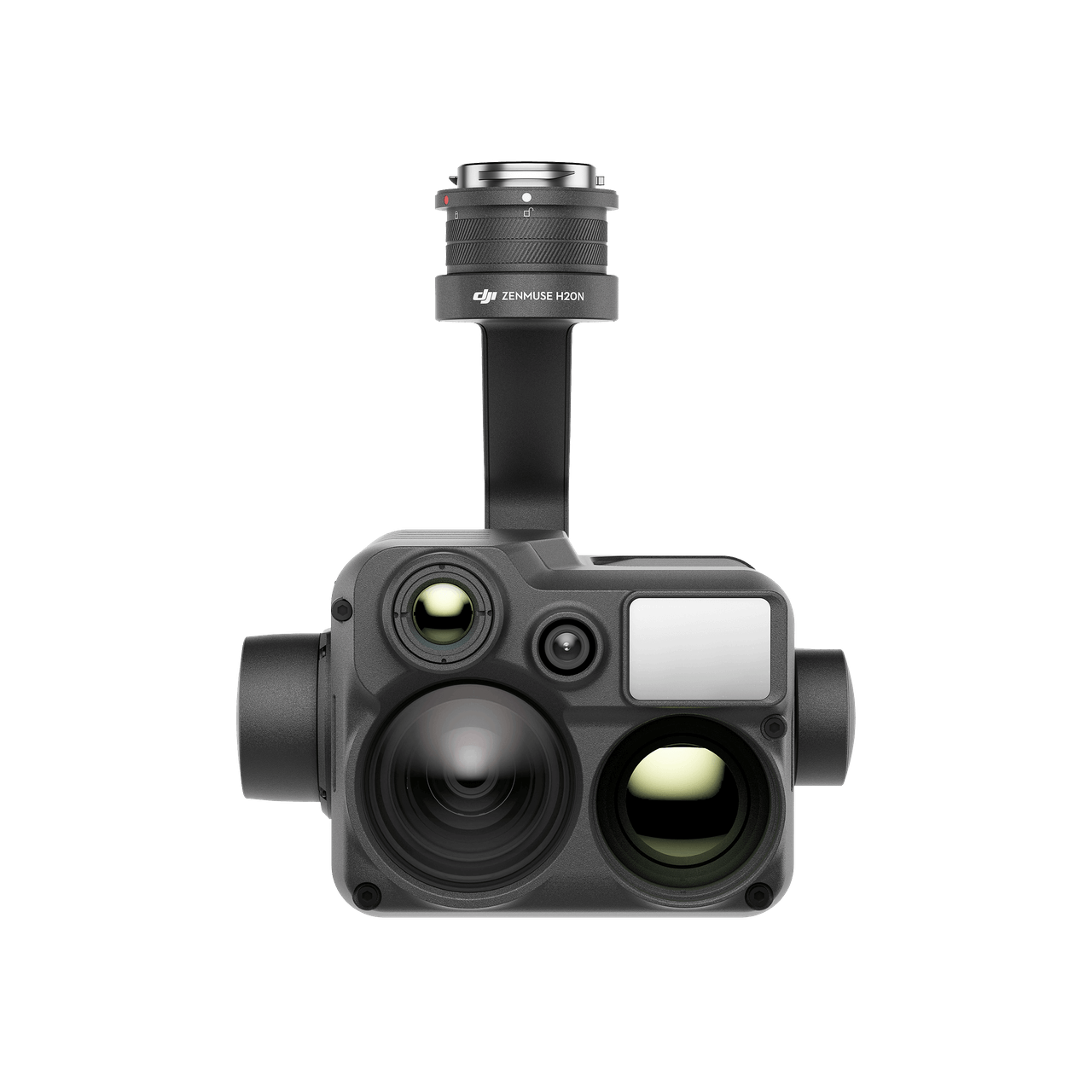

The Zenmuse H20N integrates starlight sensors1 into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.
AED 30,966.00
The Zenmuse H20N integrates starlight sensors1 into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.
Starlight Night Vision
640×512 Dual Thermal Cameras 2×, 8× Optical Zoom

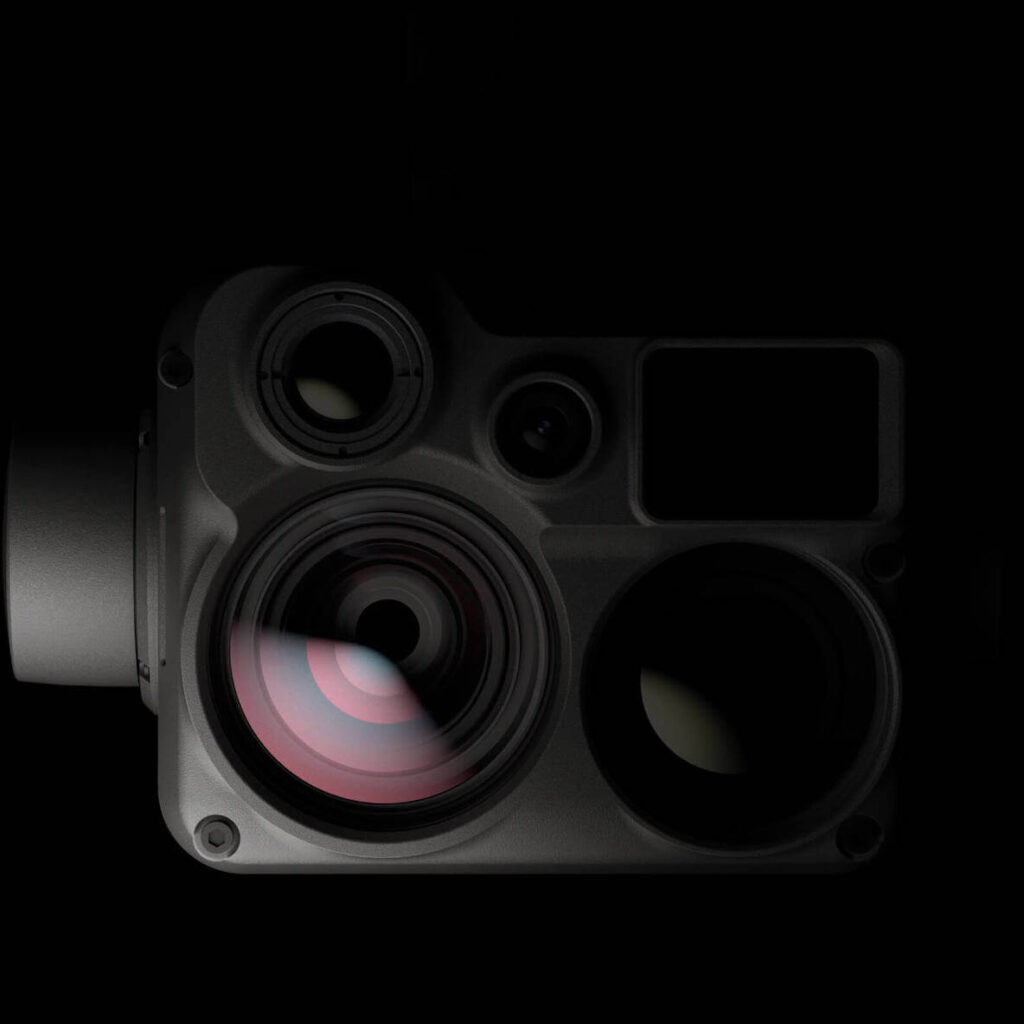

20× Hybrid Optical Zoom

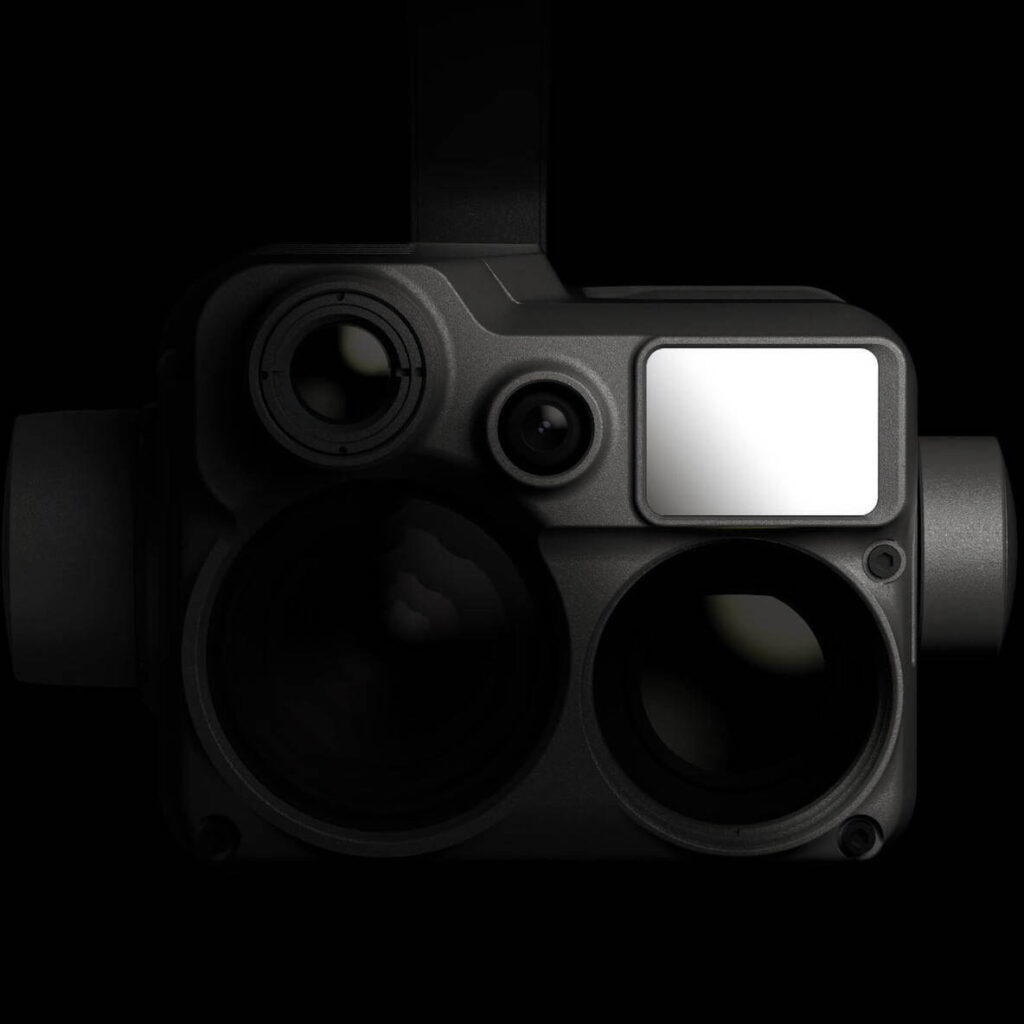

Laser Rangefinder 1200 m Max Range
Synchronized Split-screen Zoom
Intelligent Night Scene Enhancement
IP44 Rating
-20°C to 50°C Operating Temperature

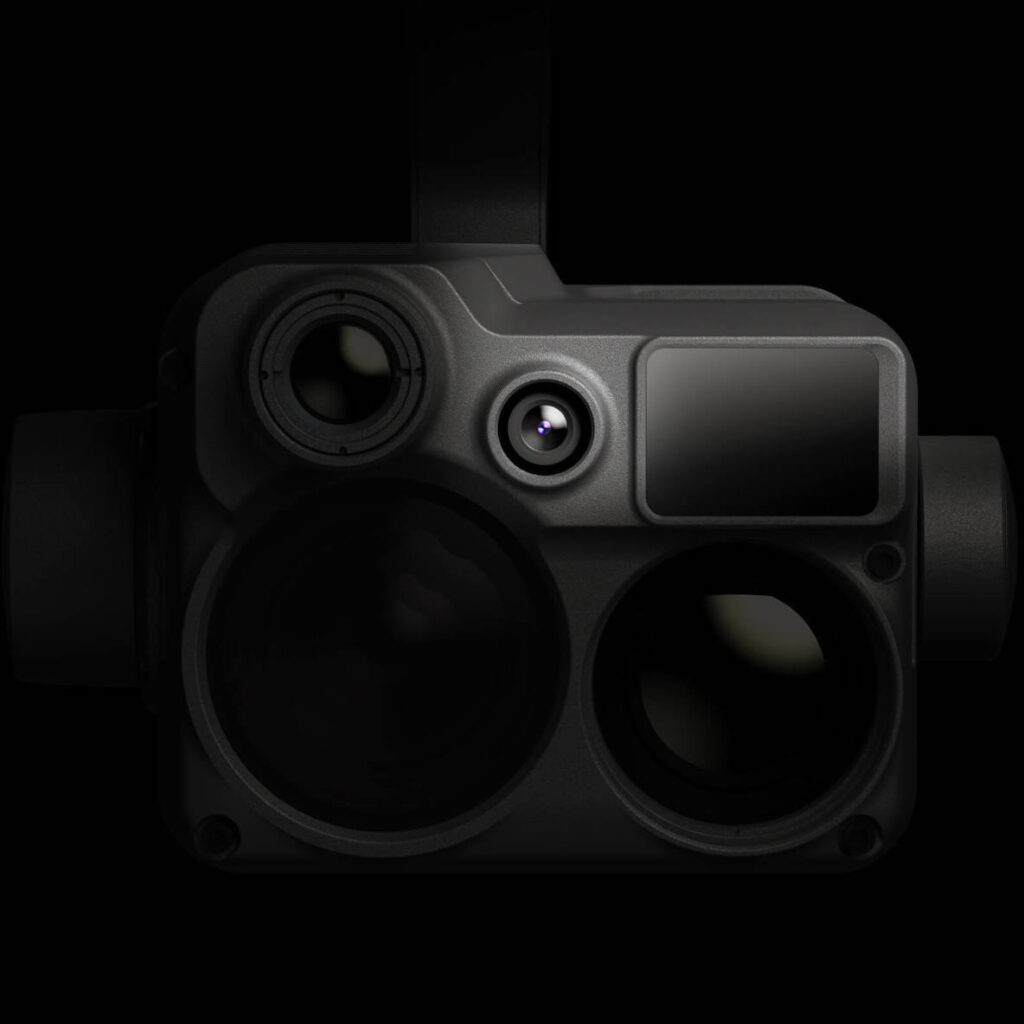

The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.

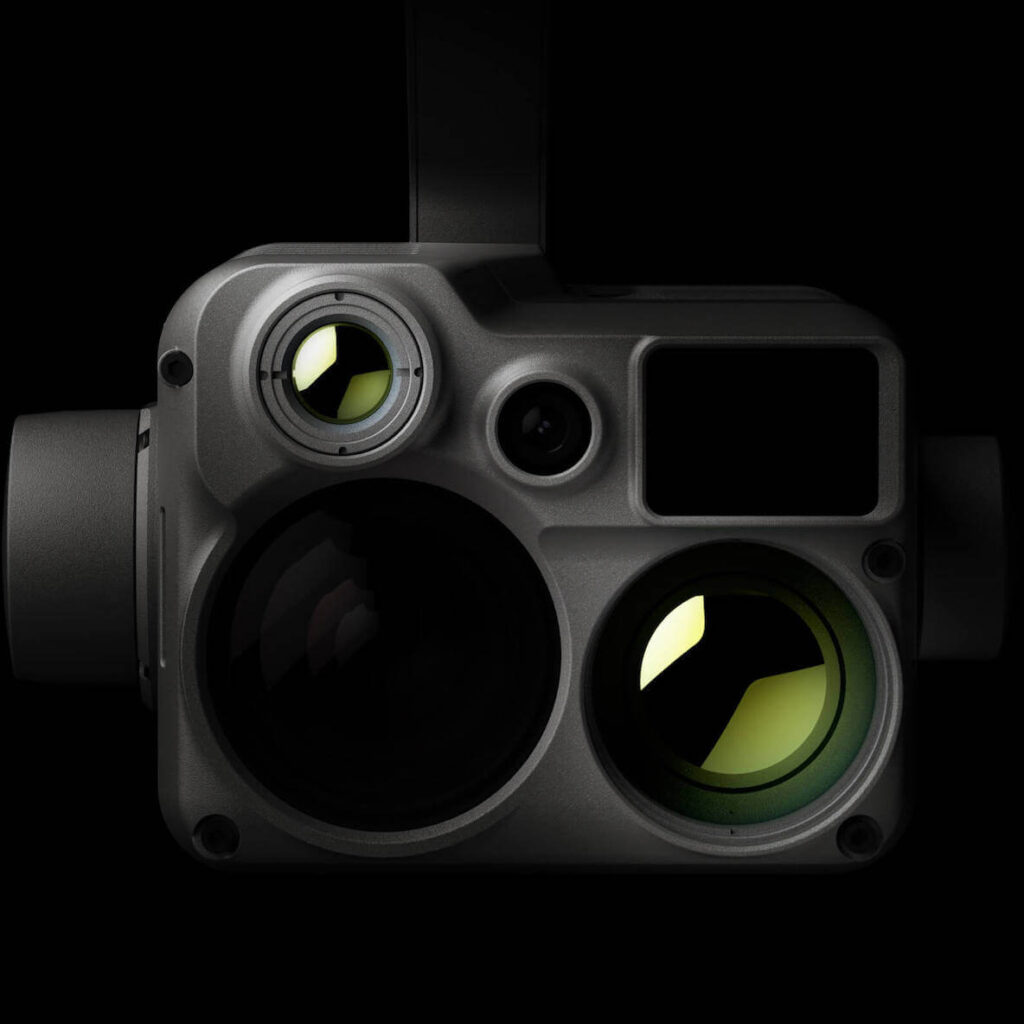

Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.
H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.
Adjust the colors applied to the thermal data based on the mission requirements.
Visualize a specific band of temperatures to highlight your targets.
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.
Images captured by the Zenmuse H20N are in R-JPEG format with embedded temperature information. By importing these images into the DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
| Product Name | Zenmuse H20N |
| Dimensions | 178x135x161 mm |
| Weight | 878±5 g |
| Protection Rating | IP44 |
| Laser Safety | Class 1M (IEC 60825-1:2014) |
| Supported Aircraft | Matrice 300 RTK |
| Angular Vibration Range | ±0.01° |
| Mount | Detachable |
| Controllable Range | Pan: ±320° Tilt: -120° to +60° |
| Mechanical Range | Pan: ±330° Tilt: -132.5° to +68° Roll: -90° to +60° |
| Max Control Speed | Pan: 90°/s Tilt: 90°/s |
| Sensor | 1/1.8″ CMOS; Effective Pixels: 4M |
| Lens | Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm) Aperture: f/1.6-f/11 Focus: 1 m to ∞ (wide); 8 m to ∞ (tele) |
| Focus Mode | MF/AF-C/AF-S |
| Exposure Mode | Manual, Auto |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Spot Metering, Average Metering |
| AE Lock | Supported |
| Electronic Shutter Speed | Photo: 8-1/8000 s Video: 1/30-1/8000 s Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s |
| ISO Range | Video: 100-102400 Photo: 100-102400 |
| Video Resolution | 2688×1512@30fps 1920×1080@30fps 1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off) 1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On) |
| Video Format | MP4 |
| Video Caption | Supported |
| Max Image Size | 2688×1512 |
| Photo Format | JPEG |
| Sensor | 1/2.7″ CMOS; Effective Pixels: 2M |
| Lens | DFOV: 73.6° Focal Length: 4.5 mm (equivalent: approximately 29 mm) Aperture: f/2.8 Focus: 1 m to ∞ |
| Exposure Mode | Auto |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Spot Metering, Average Metering |
| AE Lock | Supported |
| Electronic Shutter Speed | Photo: 0.8-1/8000 s Video: 1/30-1/8000 s Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s |
| ISO Range | Video: 100-102400 Photo: 100-102400 |
| Video Resolution | 1920×1080@30fps 1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off) 1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On) |
| Video Format | MP4 |
| Video Caption | Supported |
| Max. Image Size | 1920×1080 |
| Image Format | JPEG |
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | DFOV: 12.5° Focal Length: 44.5 mm (equivalent: approximately 196 mm) Aperture: f/1.2 Focus: 45 m to ∞ |
| Equivalent Digital Zoom | 16x, 32x |
| Video Resolution | 640×512@30fps |
| Video Format | MP4 |
| Image Resolution | 640×512 |
| Image Format | R-JPEG* (16 bit raw included) |
| Pixel Pitch | 12 μm |
| Spectral Band | 8-14 μm |
| Noise Equivalent Temperature Difference (NETD) | ≤50 mK @ f/1.0 |
| Temperature Measurement Method | Spot Meter, Area Measurement |
| Scene Range | -20° C to 150° C (High Gain) 0° C to 500° C (Low Gain) |
| Temperature Alert | Supported |
| FFC | Auto/Manual |
| Palette | White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot |
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | DFOV: 45.5° Focal Length: 12 mm (equivalent: approximately 53 mm) Aperture: f/1.0 Focus: 5 m to ∞ |
| Equivalent digital zoom rate | 4x |
| Video Resolution | 640×512 @ 30 fps |
| Video Format | MP4 |
| Image Resolution | 640×512 |
| Image Format | R-JPEG (16 bit raw included) |
| Pixel Pitch | 12 μm |
| Spectral Band | 8-14 μm |
| Noise Equivalent Temperature Difference (NETD) | ≤50 mK @ f/1.0 |
| Temperature Measurement Method | Spot Meter, Area Measurement |
| Scene Range | -20° to 150° C (High Gain) 0° to 500° C (Low Gain) |
| Temperature Alert | Supported |
| FFC | Auto/Manual |
| Palette | White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot |
| Wavelength | 905 nm |
| Maximum Power | 3.5 mW |
| Single Pulse Width | 6 ns |
| Measuring Accuracy | ± (0.2 m + target distance x 0.15%) |
| Measuring Range | 3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity) |
| Safety Regulation Level | Class 1M |
| Accessible Emission Limit (AEL) | 304.8 nJ |
| Reference Aperture | 18mm length, 18mm width (20.3mm diameter if equivalent to circular) |
| Max Laser Pulse Emission Power Within 5 Nanoseconds | 60.96 W |
| Supported microSD Cards | Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB |
| Supported File System | exFAT |
| Operating Temperature | -20° to 50° C (-4 to 122°F) |
| Storage Temperature | -20° to 60° C (-4 to 140°F) |
