Share 102S V3 PSDK

SHARE PSDK 102S V3 is a professional aerial photogrammetry camera applicated to diverse surveying utilities with high efficiency with 3-axis stabilized gimbal. Used for a variety of scenarios of 2D&3D surveying, proximal photogrammetry, single model, high-rise model, and imitating flight mission.

Inquire Now

      I agree* with the privacy policy and the processing of personal data


    * - required fields

    Features

    Not Only Basically Enhancing Stability,
    But Also Support Muilt-Angle Picturing

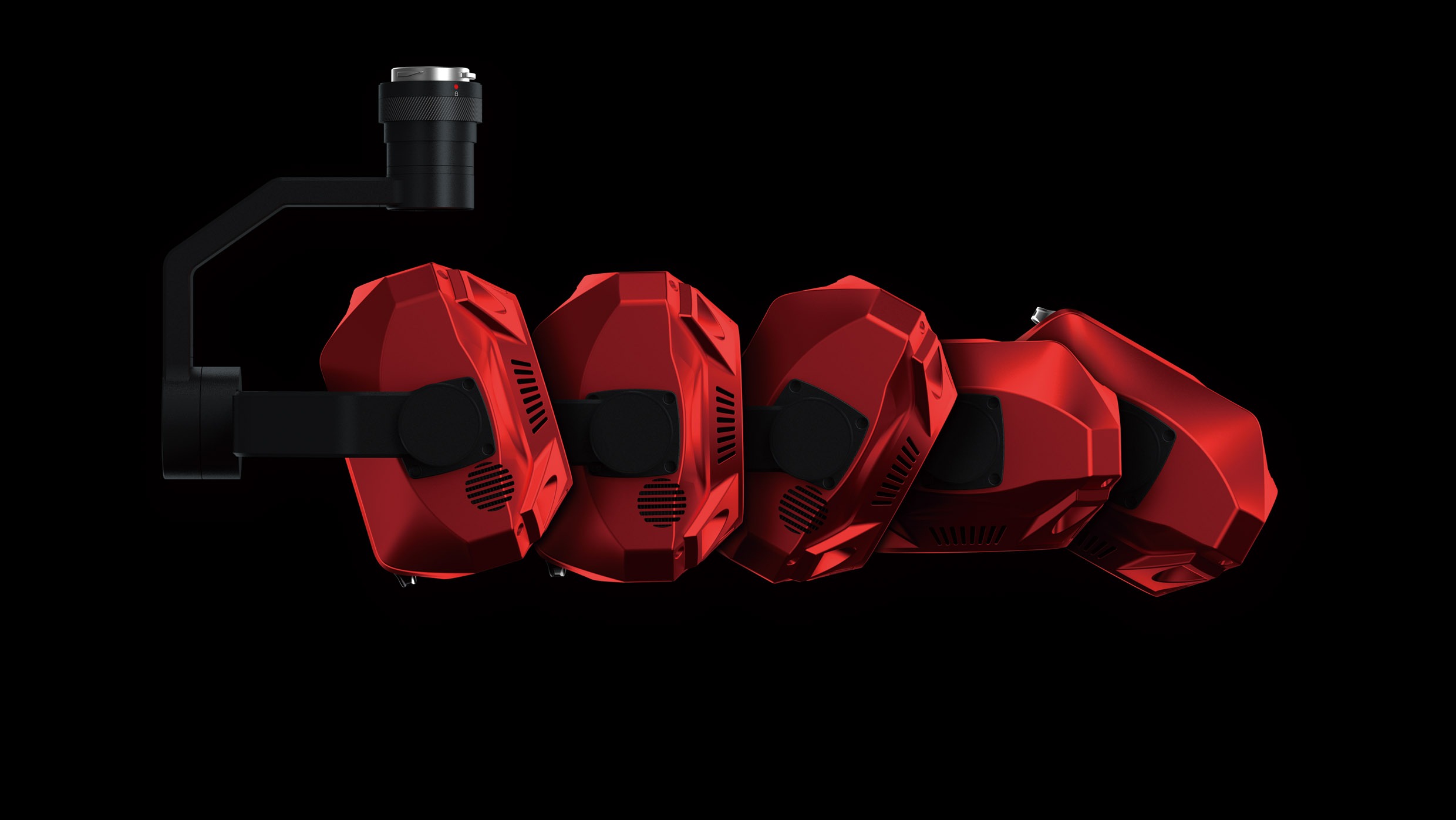

    The intelligent 3-axis gimbal can guarantee the stability of camera, realizing the high overlap between original data and the calculated aerial triangulation. The pitching angle can be freely adjusted within 180 degree , enables users to view more details of oblique photography

    Freely Adjust Camera Parameters,
    Over 125 Megapixel Image Sensors

    Self-developed S-OPG mapping image control system enable users to freely adjust camera parameters according to different weather and light, extending the working time to 9 hours The camera is embedded with five 25.16 megapixel image control sensors, showing excellent performance from pixel integration to image quality.

    Super Durable S-GS Global Shutter,
    Prolonging Working Life by 3 Time

    The self-developed S-GS global shutter can stabilize image at high speed flies clearly, improving capturing efficiency and quality. KIMOTO high speed shading blade with double structure is integrated to reduce the friction coefficient,prolonging the working life by 3 times and shortening the shooting interval to 0.5s/time.

    Excellent Optical Quality

    Multi-layer enhanced nano coating and LD low-dispersion lens are used to correct aberration to acheive altra high resolution. The front len is coated with fluor in compound, which is waterproof, oil-proof, stain-proof, protecting the lens module effectively.

    Abundant and Clear Screen Display,
    Visualized Camera Information

    The camera is equipped with a new upgraded OLED HD color screen, which can display the camera status and parameter settings in a real-time way, including body temperature, RAM, shutter life, and other useful information. It is intuitive and easy for user operation.

    Instantly Triggering and Writing POS into Photos

    Image Free Control

    TimeSync 2.0 synchronization algorithm is incorporated deeply, synchronizing time at microsecond-level , recording five-view centimeter-level position information independently and accurately, and writting POS data into photos instantly . Highly mature image free control technology is an individual operation new weapon in Aerial surveying.

    Highly Compatibility with Diverse Load

    Being Applicable For Mainstream UAV Mounting Platform

    12-50V mounting platform power supply can achieve synchronously operation in the voltage tolerance range. The gimbal can be quickly disassembled,different mounting interfaces, letting camera be applied to other VTOL UAVs and Fixed-wing UAVs.

    Terrain-Following Flight,
    Unlocking a New Attitude of Oblique Photography

    The three-axis stabilized gimbal can adjust the camera attitude based on the terrain to ensure that the camera shooting angle is always vertical to the ground to give full play to the extreme performance of UAV and camera and improve the operation efficiency.

    Macro-photogrammetry,
    Providing a Solution of Elevation and Slope Fine Modeling

    Thanks to the self-developed S-ML mapping lens , the minimum top-down view focus distance can reach 10 meters ,by combining adjustable gimbal,the camera can realize 2mm ultra-high resolution 3d data acquisition for high-precision tasks in elevation or inclined surfaces within the focus range with fine texture and structural characteristics.

    Specification

    Size
    120*120*83mm;171*192*185mm(with Gimbal)

    Weight
    610g;1100g(with Gimbal)

    Working Temperature
    -20℃-65℃

    Storage Temperature
    -20℃-50℃

    Absolute Precision
    Plane precision:3cm, height precision:5cm, groundresolution-3cm,flight speed 15m/s, forward overlap 80%, side overlap 70%;

    Camera Power Supply
    Two interfaces, external: DC12-50V

    Effective Pixels
    Single lens≥ 25 million pixels, total 125 million pixels

    Sensor
    size:23.1×15.4mm(APS-C)

    Pixel Size
    3.76μm

    Image Size
    6144×4096px

    Data Storage
    Photo/POS file with GPS information and camera parameter Information

    Focal Lens
    Oblique:35mm,normal incidence:25mm

    Oblique Angle
    45 Degree

    ISO Interval
    50-200,50-400,50-640,50-800,50-1000,50-1600

    Shutter Speed
    1/500,1/640,1/800,1/1000,1/1250

    Aperture Size
    F5.6

    Storage Capacity
    1280GB

    Shooting Interval
    ≥0.5S

    Stable System
    3-axis (Pitch,roll,yaw)

    Installation Method
    DJI SKYPORT Interface

    Gimbal Rotating Range
    Pitch:-120°~+45°;Roll:±45°;Yaw:±160°
