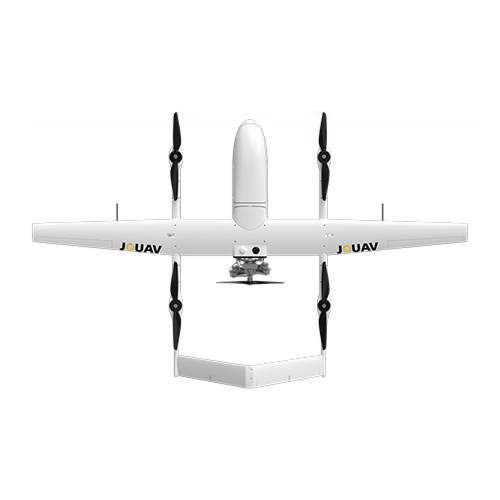

JOUAV CW-80E

Designed for the toughest challenges, the CW-80E drone offers unmatched performance with a 25kg payload capacity, up to 10 hours of flight time, and exceptional long-range capabilities. This extra-large drone is perfect for large-scale operations like mapping, surveillance, and emergency response.

Max Flight Time- 480 min
Cruising speed – 100 km/h
Max Service Ceiling – 5000 m
Max Payload – 25 kg

3Dsurvey Software

Price on request

Agisoft Metashape professional version

Price on request

DJI Terra

Price on request

Drone Aerial Photogrammetric Survey Specialist

Price on request

Drone Data Process and Modeling Specialist

Price on request

M300 Commercial Drone Flight Specialist

Price on request

Category

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Features

    25kg Max Payload
    25kg Max Payload

    Handle heavy loads with ease, from professional camera equipment to critical cargo.

    10hr Flight Time
    10hr Flight Time

    Extend your mission duration and cover vast distances.

    6000m Max Altitude
    6000m Max Altitude

    Perform tasks in areas with high elevations, such as mountainous regions or plateaus.

    IP54 Rating
    IP54 Rating

    Weatherproof design for operation in challenging conditions.

    90-120km/h Optimal Cruise Speed
    90-120km/h Optimal Cruise Speed

    Rapidly cover ground and complete tasks efficiently.

    100/200km Video Transmission
    100/200km Video Transmission

    Maintain a clear and reliable video feed at long distances.

    -20° to 55°C Operating Temperature
    -20° to 55°C Operating Temperature

    Perform reliably in extreme temperatures.

    13.9-17.1m/s Wind Resistance
    13.9-17.1m/s Wind Resistance

    Maintain stability and control in windy environments.

    Supporting Software

    JOUAV provides one-stop UAV products, including the supporting software needed for the task. You can use these software to plan a flight path, control and manage the drone, track and identify targets, and see video and geo-data information from the drone in real time.

    FlightSurv

    FlightSurv Drone Mapping software
    Cloud-based drone mapping software for flight planning, data collection, processing, and analysis.

    Learn More

    Eagle Map

    Eagle Map Drone Surveillance Software
    An intuitive software solution to deploy drones’ security and surveillance operations.

    Learn More

    Jocloud

    Jocloud
    Intelligent unattended system management platform

    Learn More

    Technical Specifications

    Hardware
    Max Payload
    25kg
    IP Rating
    IP54
    Operating Temperature
    -20° to 55°C

    Flight Performance
    Endurance
    10hr
    Cruising Speed
    90-120km/h
    Wind Resistance
    13.9-17.1m/s
    Ceiling
    6000m
    Video Transmission
    100/200km

    * All performance data in the foregoing pages are theoretical values obtained by JOUAV® internal laboratories through tests carried out under particular conditions. For more information on the specific testing conditions, refer to the aforementioned product details. Actual performance may vary owing to differences in individual product configuration, software versions, application conditions, and environmental factors. All data is subject to actual usage.
