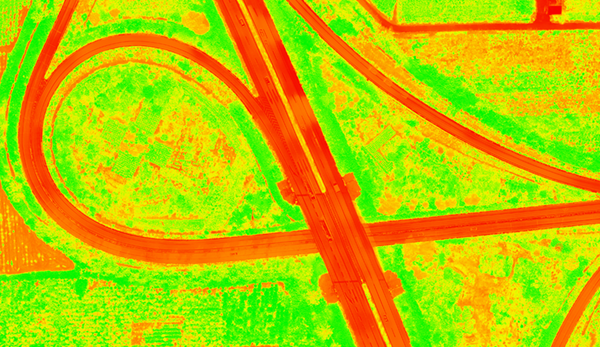

Vegetation index was constructed based on the fingerprint spectrum of vegetation to complete the spatial distribution and area statistics of target vegetation in the designated area, and to provide quantitative vegetation canopy density data for scientific research and production inagriculture, forestry and grass, ecology and
By using vegetation factors such as NDVI and LAI, quantifying the consistency of vegetation canopy status at different spatial scales, and using characteristic spectra of vegetation in different health states to quantitatively assess ve-getation growth,which can prov-ide data support for irrigation, fe-rtilization, plant protection, yield evaluation and other work.

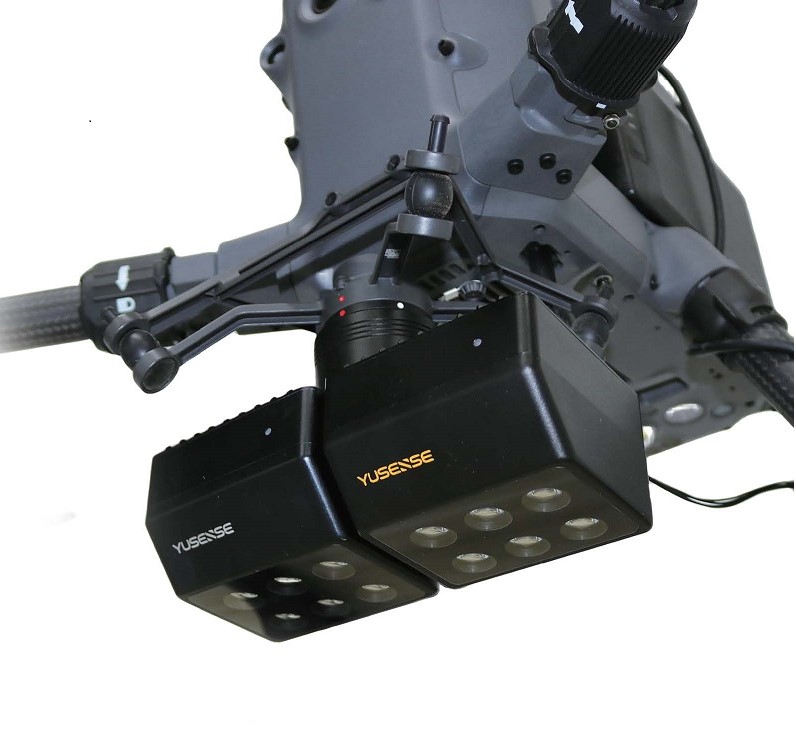

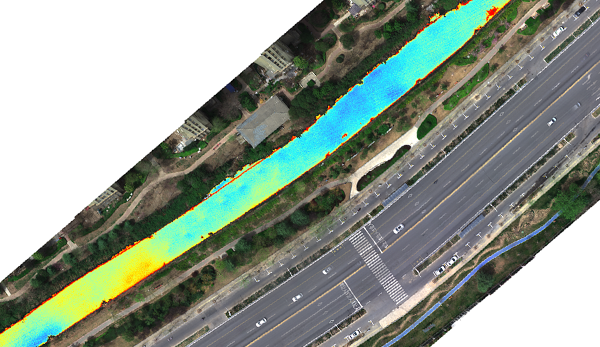

MS600 Dual expands the number of blue-green bands, provides more refined data information for water body detection, especially provides more abundant inform-ation data for the inversion of tot-al nitrogen, total phosphorus, am-monia nitrogen, COD and other p-arameters, and helps to improve the inversion accuracy of water quality chemical parameters.
| Band configuration | Twelve multispectrum channels |
| Target surface size | 1/3″ |
| Effective pixels | 1.2Mpx |
| Shutter type | Global shutter |
| Quantitative figures | 12bit |
| Viewing Angle | 49.5°×38.1° |
| GSD | 8.65cm@h120m |
| Image size | 110m×83m@h120m |

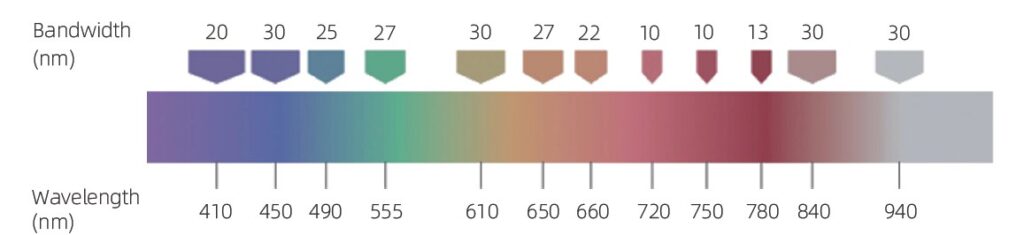

| Spectral band | V2 [1]:450nm@30nm,555nm@27nm、 660nm@22nm,720nm@10nm、 750nm@10nm, 840nm@30nm Dual[2] :410nm@20nm, 490nm@25nm， 610nm@30nm,650nm@27nm， 780nm@13nm, 940nm@30nm |
| Optical window | Sapphire optical window |
| Size | ≤165mm×85mm×100mm |
| Weight | ≤660g |
| Installation interface | 8×M3 |
| Power supply mode [3] | 12V |
| Power consumption | ≤20W@12V |
| Image format | 16 bit original TIFF & 8 bit reflectance JPEG；RGB: 8bit JPEG (including GPS and ambient light information) |
| Storage medium | Standard with 64GB，A maximum of 128GB is supported（The transfer speed of the SD card needs to be U3 or higher） |
| Data processing software | Yusense Map、Yusense Map Plus |
| Control method | WIFI (WEB interface access)/Ethernet/UART |
| Shoot trigger | External trigger, Timed trigger, Overlap rate trigger, Cascade trigger |
| Frequency of taking[4] pictures | 1Hz |
| Operating ambient temperature |
-10℃~+50℃(Relative wind speed≥1m/s） |
| Storage Environment |
-30℃~+70℃ |
| Environmental humidity | RH(%)≤85%(Non condensation) |
| Product certification | CE、FCC、RoHS |
[1] Standard wavelength, The following 19 wavelengths are allowed to be assembled and customized: Panchromatic Band、410nm @ 20nm、450nm @ 30nm、 490nm @ 25nm、530nm @ 27nm、555nm @ 27nm、570nm @ 32nm、610nm @ 30nm、650nm @ 27nm、 660nm @ 22nm、680nm @ 25nm、720nm @ 10nm、720nm @ 15nm (high pass)、750nm @ 10nm、780nm @ 13nm、 800nm @ 35nm、840nm @ 30nm、900nm @ 35nm、940nm @ 30nm 、(tolerance ± 5 nm).
[2] MS600 DualDoes not support band customization.
[4] Test results of storage media with data transmission speed rating of U3 and above (read and write speed ≥ 60MB/s).
