SHARE 100M A10

  • 102MP medium-format sensor (IMX461) for ultra-high-resolution imaging
  • 110mm ultrasonic motor-driven autofocus lens with 7-element design
  • LiDAR-assisted focusing with centimeter-level accuracy within 10 meters
  • 0.1mm resolution image capture from 3 meters to infinity
Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Download brochure
    Features
    Specs

    Features

    Tailored for IndTustrial Inspection

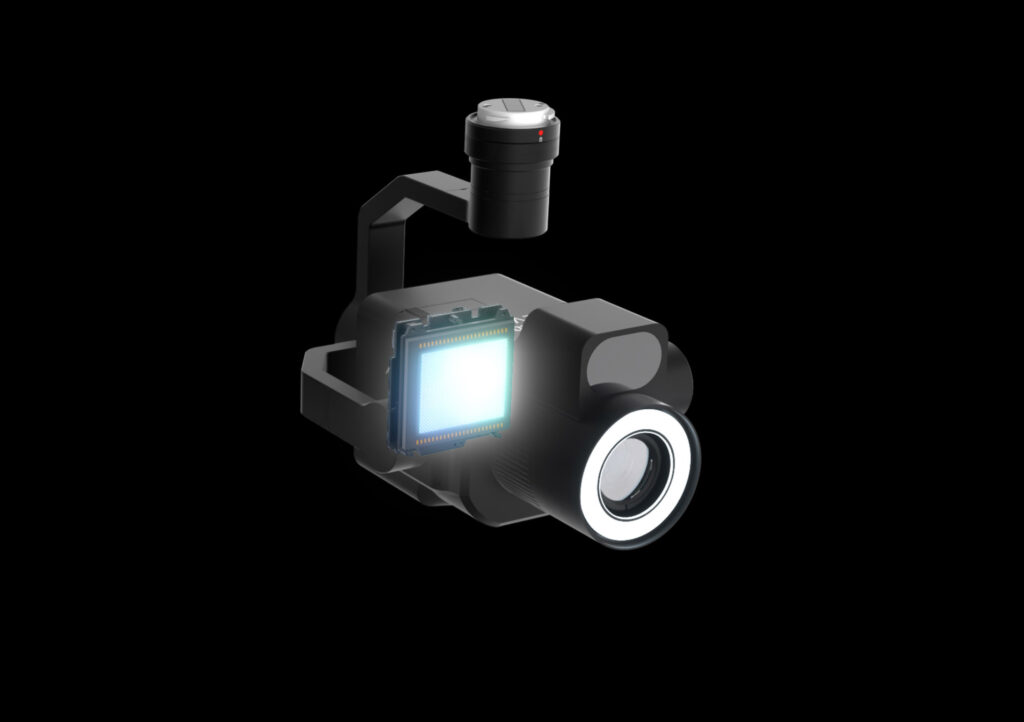

    The SHARE 100M A10, equipped with the IMX461 medium-format image sensor, boasts 102 million effective pixels and an autofocus lens with integrated LiDAR and ring fill lighting, making it ideal for inspection tasks.

    110mm Autofocus Lens

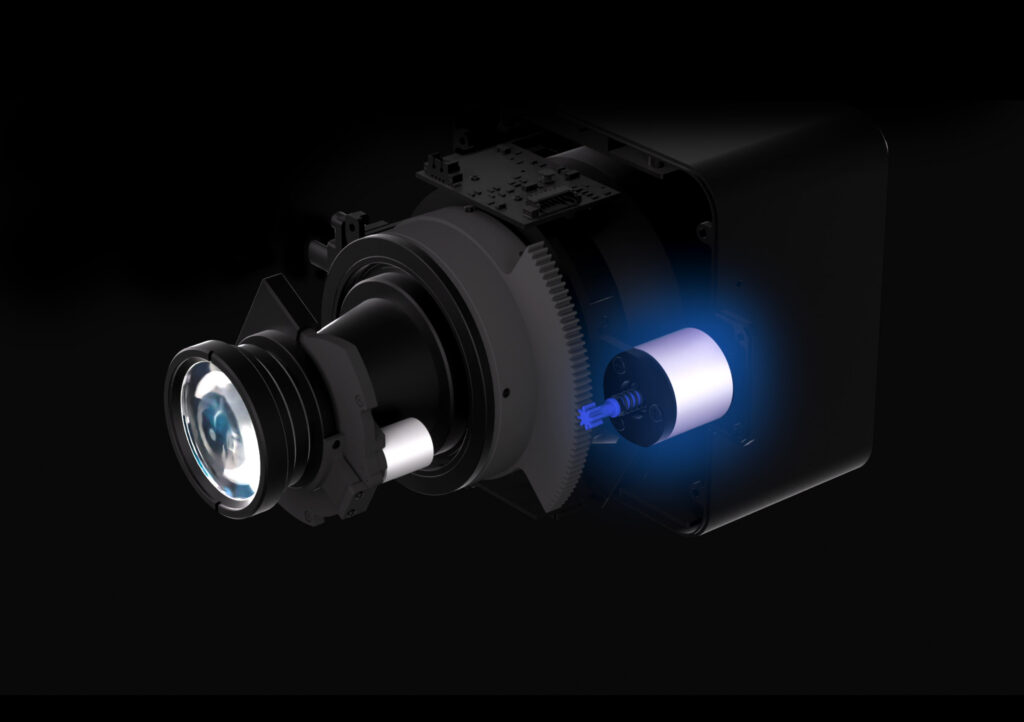

    With a 110mm focal length, the SHARE 100M A10 features an ultrasonic motor-driven autofocus system for faster and more precise focusing.

    7-Element Lens Design

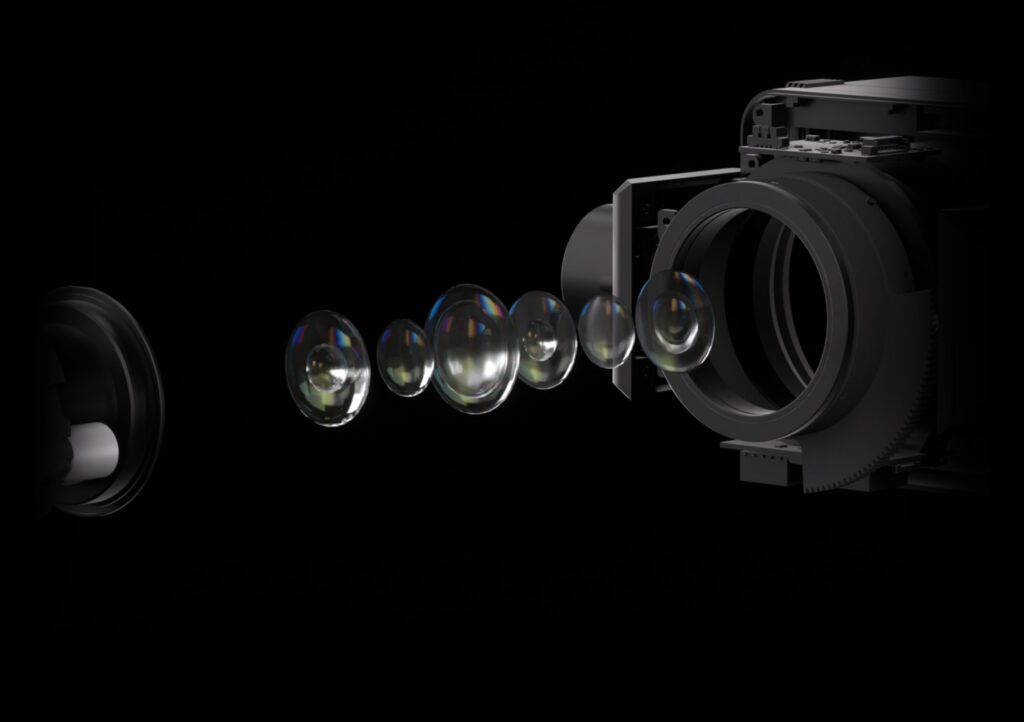

    The lens structure includes 7 elements with glass aspherical lenses, ensuring high imaging sharpness and near-zero distortion for stable image quality.

    0.1mm Resolution Image Capture

    SHARE 100M A10 supports a focusing range from 3 meters to infinity. At the minimum focusing distance, it captures images with 0.1mm resolution, ideal for complex inspection tasks like bridges and buildings.

    Focus-Assisting LiDAR

    The LiDAR provides centimeter-level distance measurement accuracy within a 10-meter range at a frame rate of 100Hz, providing rapid response and precise focusing assistance.

    Front Ring Fill Lighting

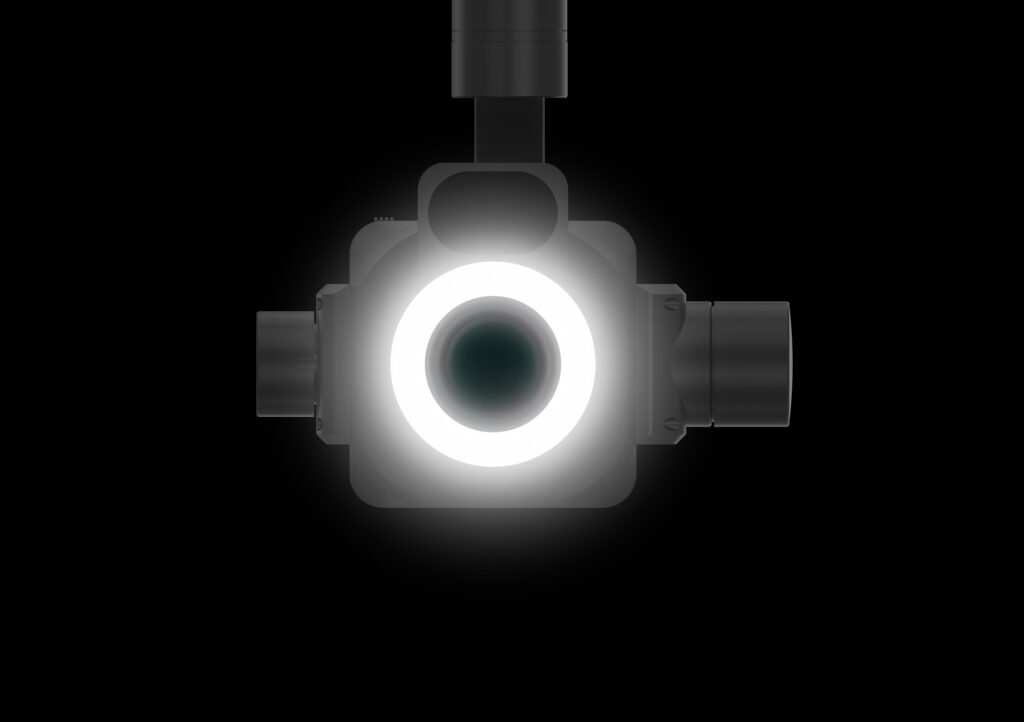

    The built-in ring fill lighting adjusts brightness based on ambient light conditions, providing supplementary lighting in low-light environments to ensure proper exposure.

    Supports Deep Customization

    The camera includes control and parameter adjustment interfaces, enabling direct trigger photo capture via electrical signals. Combined with inspection software, it supports customized inspection solutions to meet various application needs.

    Specs

    Parameter Specification
    Dimensions & Weight 161 × 184 × 236 mm; 1270 g
    Supported Aircraft DJI M350 RTK; multiple fixed-wing and multi-rotor drones
    Camera Interface DJI SkyPort; Universal Interface
    Effective Pixels 102 million pixels
    Sensor Specifications Sensor size: 43.8 × 32.9 mm; Pixel size: 3.76 μm
    Lens Focal Length 110 mm
    Autofocus Range 3 m to infinity
    Parameter Adjustment Adjustable ISO, white balance, color mode, shutter speed, and settings via Bluetooth
    Image Format JPG, JPG + DNG, DNG
    Video Format MP4; 4K (3840 × 2160), 30 fps
    Storage Capacity Dual 256 GB integrated storage modules with Type-C interface
    Data Transfer Speed Over 300 MB/s
