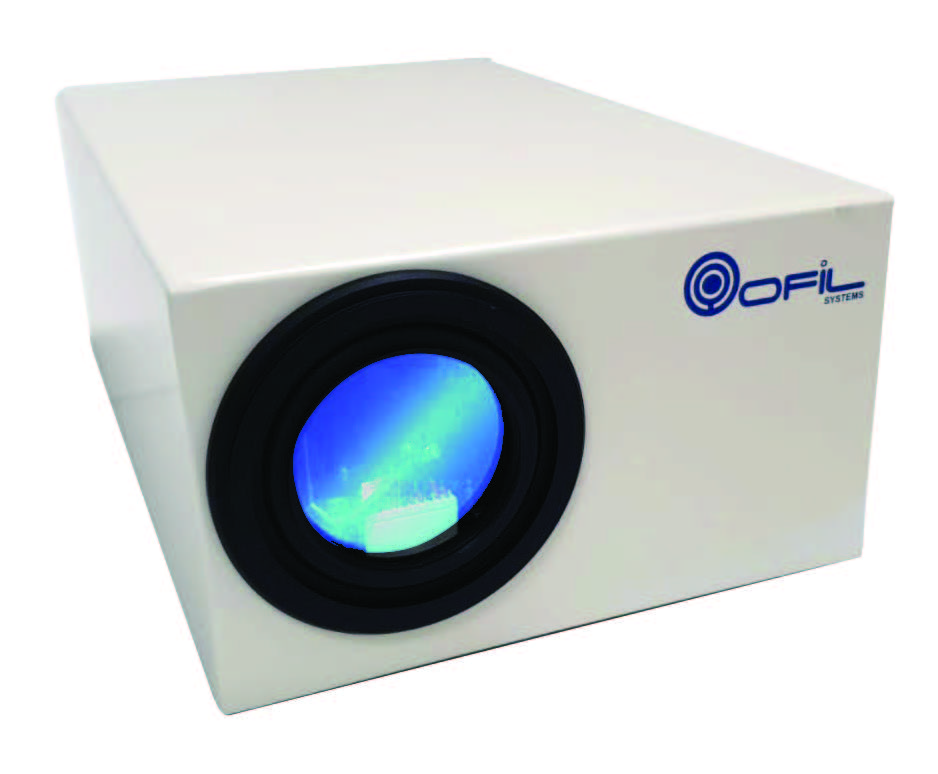

OFIL DayCor® UV Eyelite

In the world of critical electrical systems, the growing demand for power, aging infrastructure, and overloading of grids are leading to an increasing number of failures. The need for reliable solutions to ensure uninterrupted power supply and to efficiently manage the health of the electrical grid has never been more critical.

Features

In the world of critical electrical systems, the growing demand for power, aging infrastructure, and overloading of grids are leading to an increasing number of failures. The need for reliable solutions to ensure uninterrupted power supply and to efficiently manage the health of the electrical grid has never been more critical.

Spotting the Invisible: The Role of Corona Partial Discharge (PD) and Arcing Detection Identifying corona PD and arcing is crucial in preventing power system failures. Early detection enables timely interventions to avoid costly and disruptive outages, maintaining system stability and performance.

DayCor® UV Eyelite HD

Solar Blind UV Camera is a camera core for OEM integration, specifically designed to detect and pinpoint corona PD – a major but often unseen hazard to electrical equipment.

It’s compact, lightweight, has high sensitivity, precise fault pinpointing, high-definition imaging and powerful zoom for precise corona PD detection.

The camera has an IP65 environmental protection rating, ensuring it delivers optimal performance even in challenging weather conditions. It is easy to integrate via its API.

DayCor® Technology Inside

Experience unmatched clarity and performance with OFIL’s proprietary DayCor® technology. This camera sees the unseen by detecting corona PD and arcing, utilizing solar blind UV technology that operates in full daylight, unaffected by solar radiation. It captures a spectral range of UVC 240-280nm, ensuring superior detection capabilities.

Product Key Features

High Sensitivity:

Best-in-class sensitivity to PD detection at 1pC @ 15m, certified by Eurotest lab.

Easy to Integrate:

Quickly connect and control through API, ONVIF support, customizable UV thresholds for setting alerts.

Precise Pinpointing:

Ensures accurate fault localization.

HD Resolution:

720p video for detailed imaging.

Pan & Tilt Compatibility:

Supports versatile positioning options for optimal coverage and fault detection.

Non-Destructive Testing:

Allows for safe inspections from a distance of up to 100 meters

Interface:

Ethernet.

Environmental Protection IP65:

Offers robust protection against dust ingress and low-pressure water jets.

DayCor Inside:

Embedded with proprietary DayCor technology for superior performance.

Integrated Precision, Unmatched Clarity.

Applications

Vehicle Mounted Inspection of Transmission & Distribution Lines

Continuous Monitoring of Substations & HV Components

Robot-Mounted Installations | Fixed Installations | PTZ Systems

Train mounted inspection of railways overhead lines

Integration in OEM systems

Product Accessories

Specs

UV – OPTICAL PROPERTIES
Minimum Discharge Detection 1pC @ 15 m
Minimum UV Sensitivity 2.0×10-18 watt/cm2
Fields of View H: 8° V: 6°, Synchronized with visible channel, optic & digital, continuous
Focus Full manual and auto focus for both channels
UV Zoom 4x Digital, Slaved to the visible channel
Spectral Range 240-280nm
UV Frames Integration ON/OFF
VISIBLE – OPTICAL PROPERTIES
UV/Visible Overlay Accuracy Deviation < 1 miliradian
Minimum Visible Light Sensitivity 0.06 Lux
Video Standard HD, 720p ,1280 X 720
Fields of View H: 8° V: 6°, Synchronized with UV channel, optic & digital, continuous
Focus Range 1.5m | 4.92ft Automatic & manual
Visible Zoom 4x Digital
UV & Visible Channels Display Modes Combine UV & Visible, UV only, Visible only
DATA OUTPUT
Video Out Standard Streaming Format
Video Compression Standard
HD 720p
Real Time Streaming Protocol – RTSP H.264
I/O & CONTROLS
I/O Interfaces 1GB Ethernet bi-directional
ENVIRONMENTAL
Storage and Operation Temp -20°C up to +55°C | -4°F up to +131°F, fan less
IP Rating IP 65
PHYSICAL CHARACTERISTICS & POWER SOURCE
Weight 2.1 Kg | 4.6 lb
Dimensions L28.1 x W16.6 x H9.2cm | 11” x 6.5” x 3.6”
Nominal Power Consumption 12V DC, 36W
Vibration and Shock ETSI EN 300 019-2-5 V3.0.0 (2002-12), IEC 60068-2-64
LED Indicators OnOff
Mounting interface Standard M5 (x4) screw fixture, on the bottom cover
ACCESSORIES
Connect – Remote Control Desktop Software, Stabilizing Damper Mounting Plate
