Features

Payload Weight (In grams)
745 g
At 120m AGL, GSD of
7.7 CM
Number of Bands
10
Capture Rate of
3 Per Second
Features

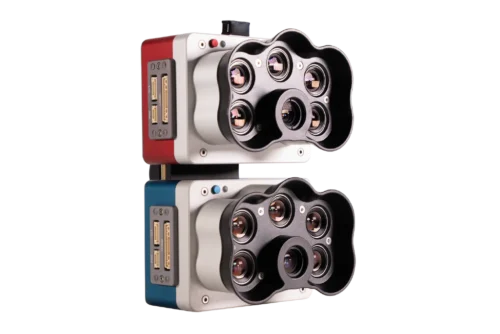

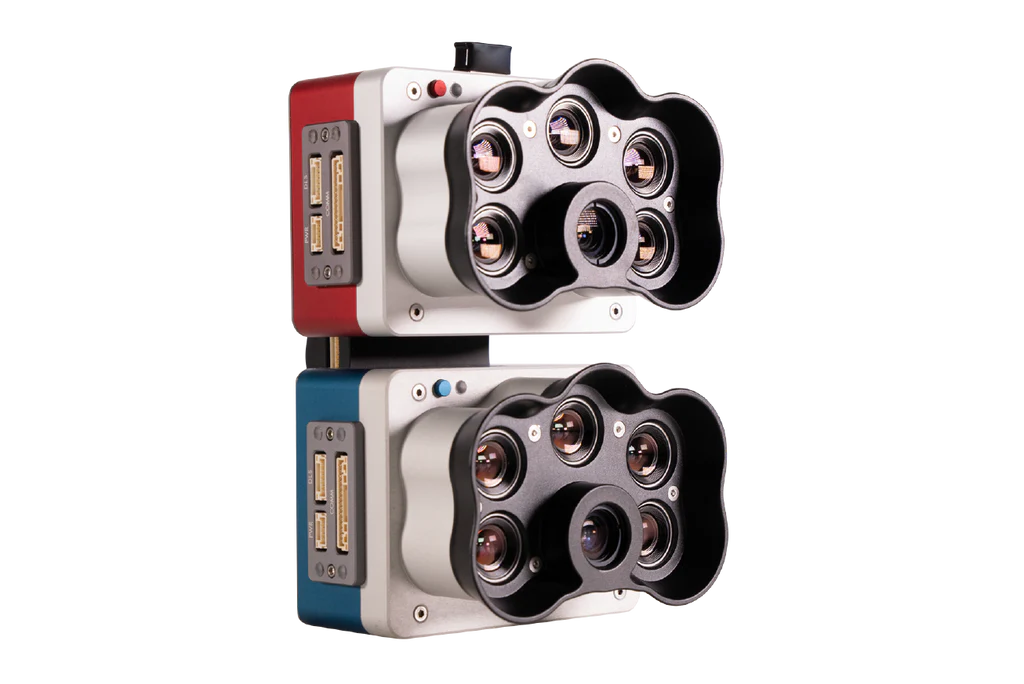

- The Micasense RedEdge-P DUAL has 10 multispectral bands, each with a resolution of 1.6 megapixels.
- It utilizes pan-sharpening technology to achieve a high spatial resolution of 2 cm or 0.8 inches per pixel.
- The device also features a coastal blue band that can analyze water vegetation and identify weeds.
- It has a double radiometric calibration system that uses a light sensor and calibration reflectance panel to ensure reliable data even in varying light conditions.
- All 10 lenses have a global shutter for distortion-free image capture, and the device’s narrow bands provide enhanced data accuracy.
- With a fast capture rate of 3 raw DNG images per second, the device can synchronize the capture of all 10 bands and automatically trigger and geotag images for efficient flight times and easy post-processing.
Benefits
- Get high-resolution images similar to those captured by Landsat and Sentinel satellites.
- Monitor shallow water areas using the coastal blue band.
- Analyze chlorophyll efficiency in detail and detect weeds.
- Carry out dependable time-series analysis even in different lighting conditions.
- Utilize machine learning and AI techniques to perform early-stage crop counting.
- Produce unseen insights through various outputs and indices, including RGB, NDVI, NDRE, OSAVI, NIT, CIR, and DSM.
- Use existing equipment, such as DJI Matrice 300 and a variety of post-processing and flight planning software.

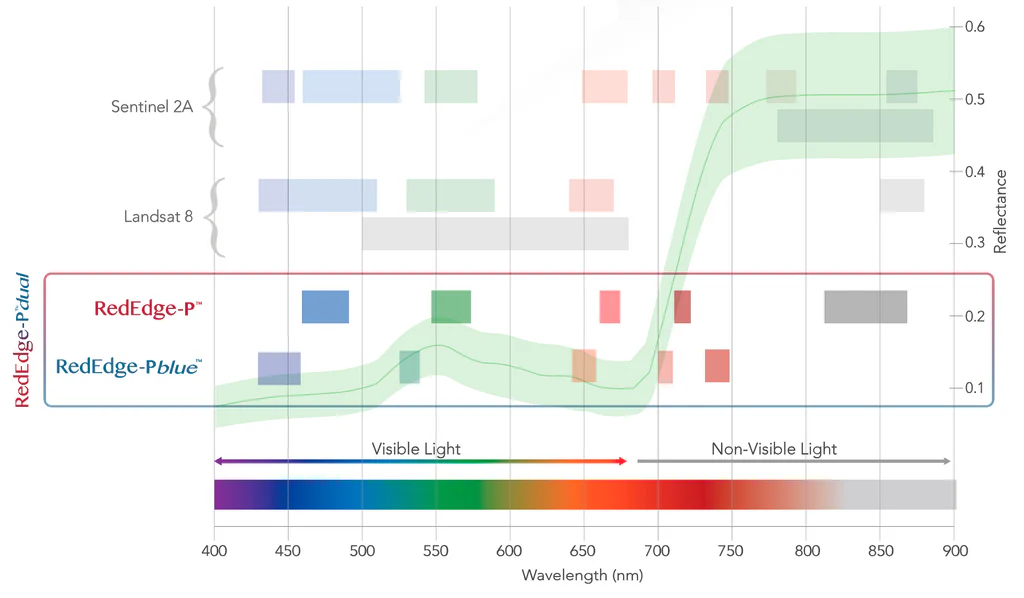

RedEdge-P Dual Comparison with Landsat 8 and Sentinel 2A Satellites

Made in The USA
MicaSense series sensors are manufactured in the U.S. (NDAA compliant) and employed at academic, private and government institutions worldwide since 2014.
Applications

Two Cameras, One Workflow
Correlate drone and satellite data
The RedEdge-P dual bands cover Landsat 8 and Sentinel-2 satellite bands (~10 m / 32 ft per pixel) at an enhanced spatial resolution of 2 cm / 0.8 in. It enables the use of many indices already created using satellites.


Perform AI applications
The RedEdge-P dual‘s panchromatic band enables high-resolution RGB and multispectral imagery for machine learning applications, such as early-stage crop counting.
