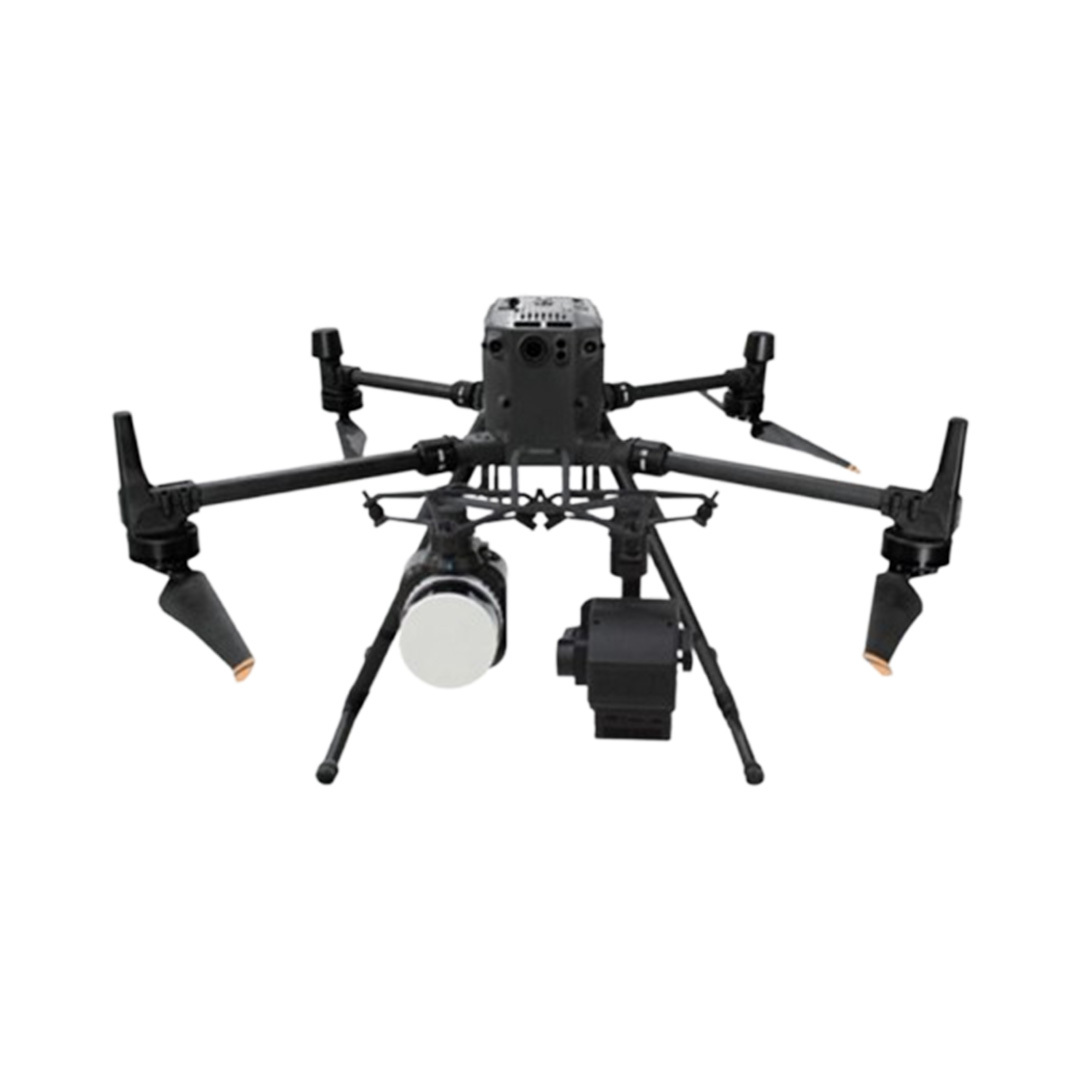

The FS62-UCR series Lidar UAV hyperspectral system is a multifunctional unmanned aerial vehicle detection device that integrates lidar and hyperspectral imaging to obtain lidar and hyperspectral image data.
The FS62-UCR series Lidar UAV hyperspectral system is a multifunctional unmanned aerial vehicle detection device that integrates lidar and hyperspectral imaging to obtain lidar and hyperspectral image data.
The main functions include: hyperspectral imaging, with a spectral range of 400-1700nm; a multi-threaded lidar with a ranging distance of up to 300m; an ultra-clear preview camera; a built-in control system in the host; high-precision inertial navigation and solid-state storage. It is suitable for being carried by various drones.
| Product model | FS62-UCR |
| Spectral splitting method | Transmission grating spectral splitting |
| Spectral range | 900-1700nm |
| Spectral bands | 1024 |
| Spectral resolution | 6.5nm |
| Slit width | 25um |
| Spectral efficiency | 60,00% |
| Stray light | 0.5% |
| Spatial pixel count | 1280 |
| Pixel size | 5um*5um |
| Imaging speed | Full band 70fps |
| Detector | InGaAs |
| SNR (Peak) | 600/1 |
| Camera output interface | USB3.0 |
| Camera lens interface | C-Mount |
| Built-in embedded data acquisition and processing unit | Embedded processor with 512GB SSD storage |
| Heat dissipation method | Internal air cooling |
| Spectral camera size | 135*82*100mm(L*W*H) |
| Accessories | Reflectance calibration plate |
| Focal length of spectral camera lens | 25mm |
| Field of view of spectral camera lens |
＞25° |
| Measurement accuracy of lidar system |
5cm |
| Lidar ranging distance | 300m |
| Lidar scanning field of view angle |
40.3° (vertical) * 360° (horizontal) |
| Lidar point frequency | 640,000 points/second (single echo) 1,280,000 points/second (double echo) 1,920,000 points/second (triple echo) |
| Lidar built-in camera pixel | 26 million (6252*4168) |
| Lidar lens focal length | 16mm |
| Flight platform | DJI M350 RTK / M300 RTK. |
| Aircraft size | Unfolded state, without blades: length * width * height 810*670*430 mm Folded state, with blades: length * width * height 430*420*430 mm |
| Aircraft weight | Empty aircraft without battery: about 3.77 kg. Empty aircraft with battery: about 6.47 kg |
| Maximum takeoff weight of aircraft |
9.2kg |
| Fastest ascent speed of aircraft |
6m/s |
| Maximum horizontal flight speed of aircraft |
23m/s |
| Longest flight time | 55 minutes (measured in a windless environment and under no-load conditions by flying forward at a speed of approximately 8 meters per second until the remaining battery power is 0%. For reference only. The actual usage time may vary due to different flight methods, accessories, and environments) |
| Operation mode | Easy to operate. No professional drone operator is required. Single-person operation can be realized |
| Observation mode | Real-time observation of the aircraft sampling location, hyperspectral image, and spectral data through the ground station. Function |
| Correction mode | reflectance correction, and area correction support batch processing |
| Data format | Compatible with spe format, hdr format, and scp format |
| Application software | FIGSPEC UAV, FIGSPEC Merage mosaic software, FIGSPEC Studio application software, image analysis software |
