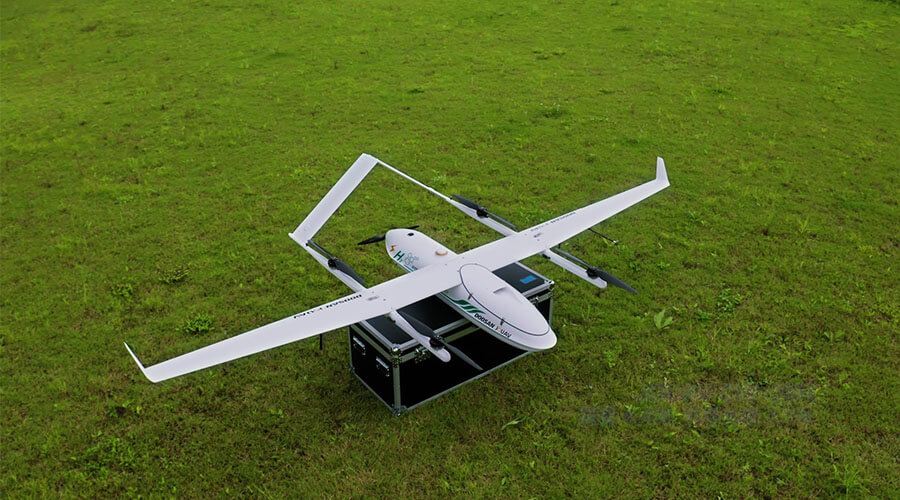

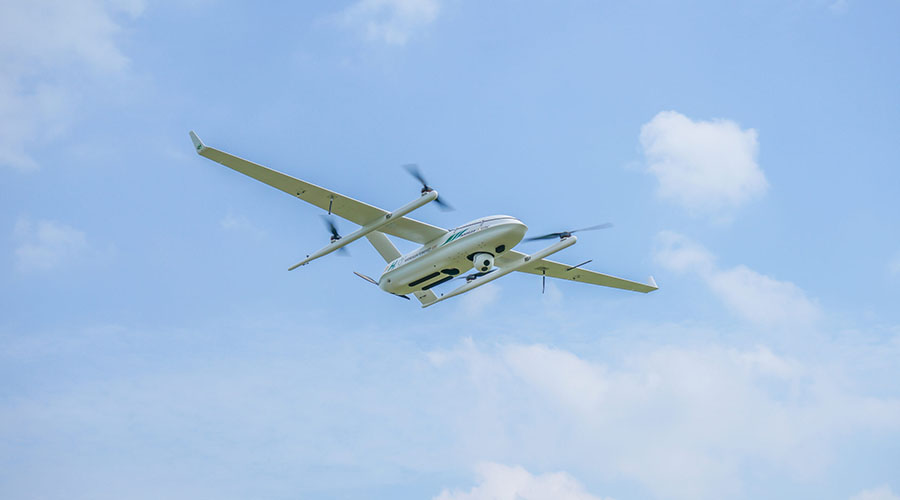

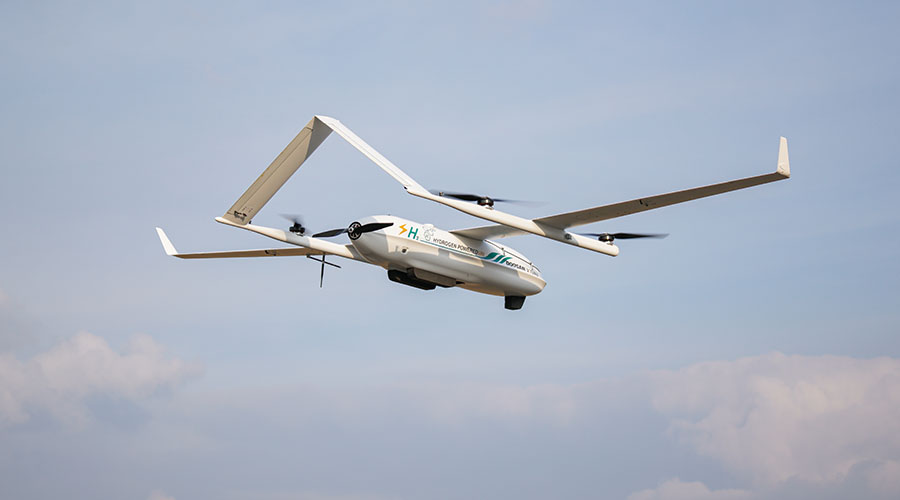

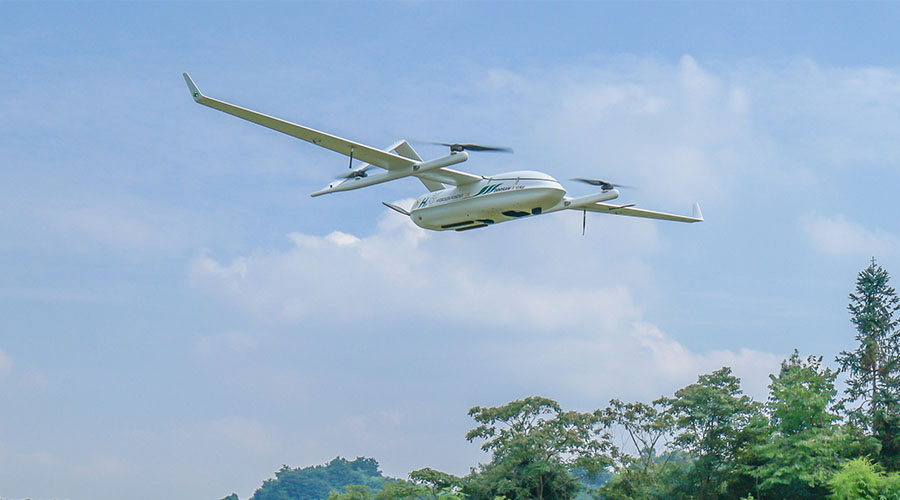

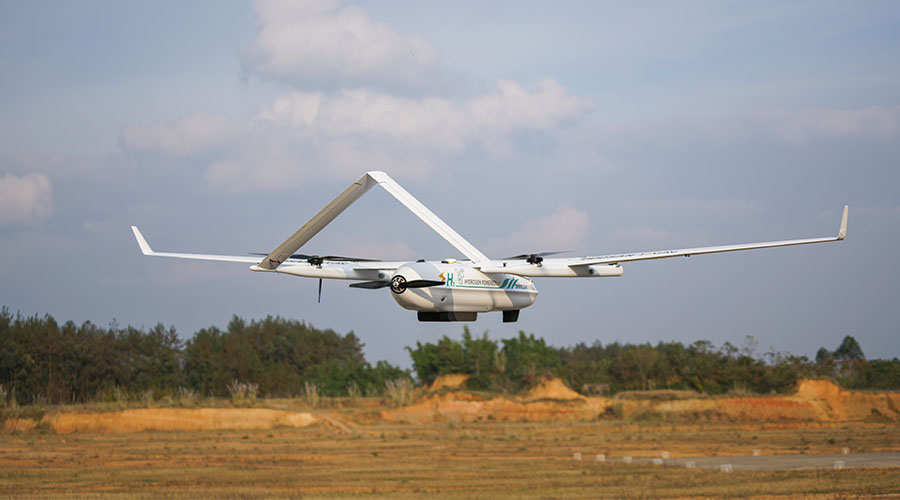

CW-25H hydrogen-powered VTOL fixed-wing UAV system is a globally game-changing solution joint development and co-production by JOUAV and Doosan Mobility Innovation.
CW-25H deploy the new generation of DM15 lightweight fuel cell system which adopt the integrated design of fuel cell power system, hydrogen tanks, and power management system all in one to achieve high stability and reliability and play leading roles in industrial development in the segmentation field.
Max Flight Time- 330 min
Cruising speed – 80 km/h
Max Service Ceiling – 6000 m
Max Payload – 4 kg
The CW-25H can fly up to 330 minutes or 435km range. It is suitable for all long—distance inspections and large—area surveying & mapping.
CW-25H has low noise and no vibration during power generation. It is quieter than regular drones and suitable for maritime and border inspections.
CW-25H also support a variety of intelligent payloads, software and remote controller, which can be very easy to achieve automatic task execution.
It passed various rigorous tests, including 150m Drop Test, Shot Test, Fire Test, and Extreme Pressure Test. It has proven to be very safe and stable in real use.
Based on the tests, we have gained global certifications such as TPED in Europe, DOT in USA, KC in Korea, and WorkSafe in Australia.
With its VTOL, Heated & Drained Pitot Tube and Hydrogen Fuel Cell System, the CW-25H can work in wide range conditions.
We provides hydrogen charging and distribution services. Customers only need to replace the hydrogen tank to continue their tasks.
There is no need for regular maintenance and replacement of parts during the use of the fuel cell, which saves more time and costs.
JOUAV provides one-stop UAV products, including the supporting software needed for the task. You can use these software to plan a flight path, control and manage the drone, track and identify targets, and see video and geo-data information from the drone in real time.
* All performance data in the foregoing pages are theoretical values obtained by JOUAV® internal laboratories through tests carried out under particular conditions. For more information on the specific testing conditions, refer to the aforementioned product details. Actual performance may vary owing to differences in individual product configuration, software versions, application conditions, and environmental factors. All data is subject to actual usage.
Inquire price for JOUAV CW-25H
