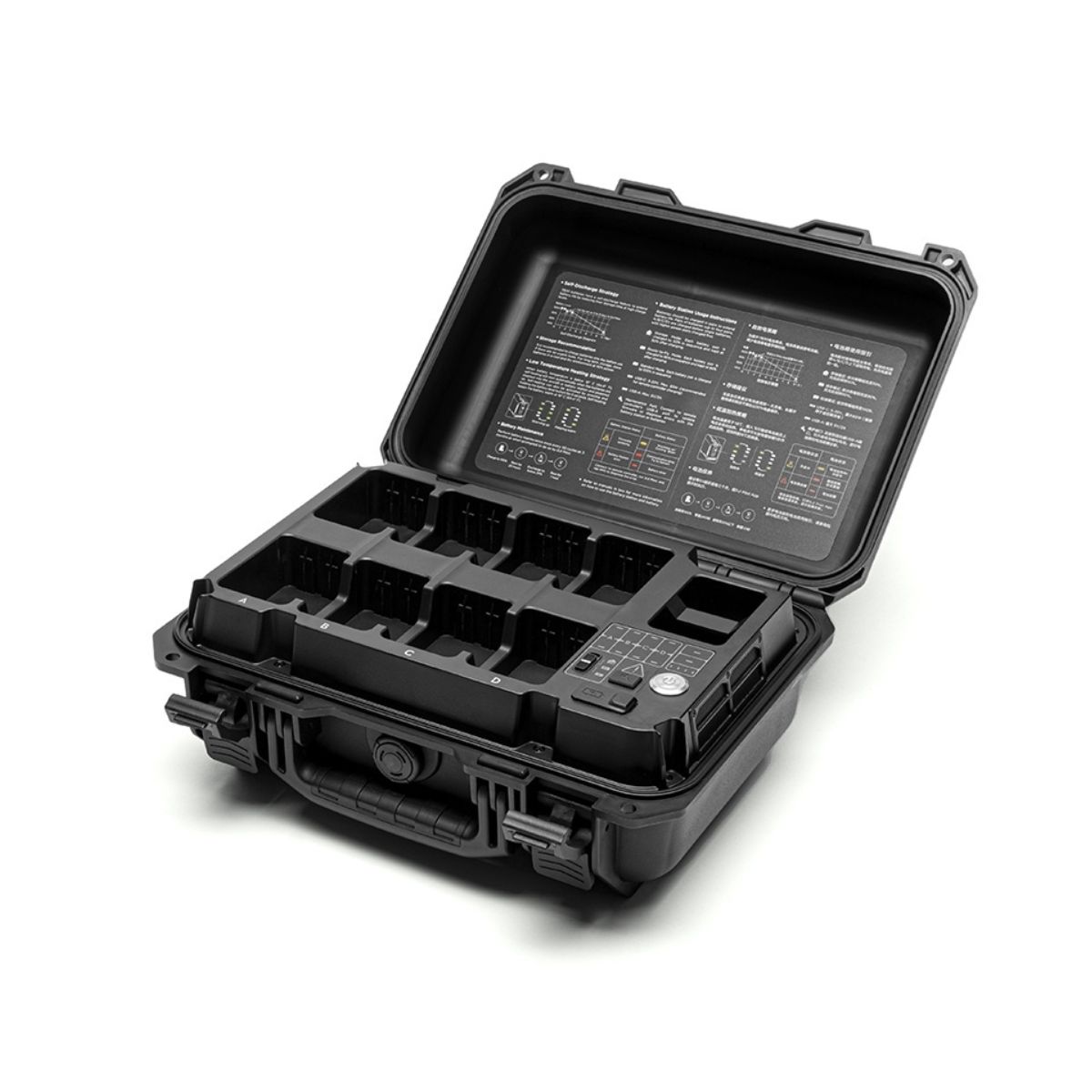

The BS30 Smart Charging Station has eight ports for TB30 batteries, two ports for WB37 batteries, one USB-C service port, and one USB-A charging port and one USB-C charging port. The station can charge two TB30 and one WB37 batteries simultaneously.
AED 3,196.00
A smart, portable solution with multiple charging modes to meet your mission needs. Capable of charging four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, pairs are charged one at a time, with one pair taking just 30 minutes to charge from 20-90%.
Charging modes
In the Box:
| Model | CSX320-550 |
| Dimensions | 353×267×148 mm |
| net weight | 3.95 kg |
| Compatible batteries | TB30 WB37 |
| Entry | 100-240VAC, 50/60Hz |
| Exit | TB30 battery port: 26.1V, 8.9A (supports up to two outputs simultaneously) WB37 battery port: 8.7V, 6A |
| Output power | 525W |
| USB-C port | Maximum output power 65W |
| USB-A port | Maximum output power 10W (5V, 2A) |
| Power consumption (without charging the battery) | < 8W |
| Power output (during battery warm-up) | approx. 30W |
| Working temperature | -20° to 40°C |
| Degree of protection [1] | IP55 (with properly closed cover) |
| Charging time [2] | Approx. 30 min (charges two TB30 batteries between 20%-90%) Approx. 50 minutes (charging two TB30 batteries from 0%-100%) |
| Protective functions | Backflow protection Short-circuit protection overvoltage protection Over current protection Temperature protection |
Inquire price for DJI BS30 Intelligent Battery Station Matrice 30
