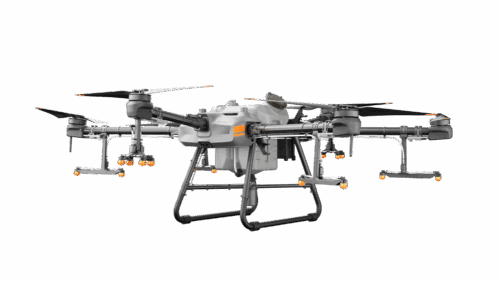

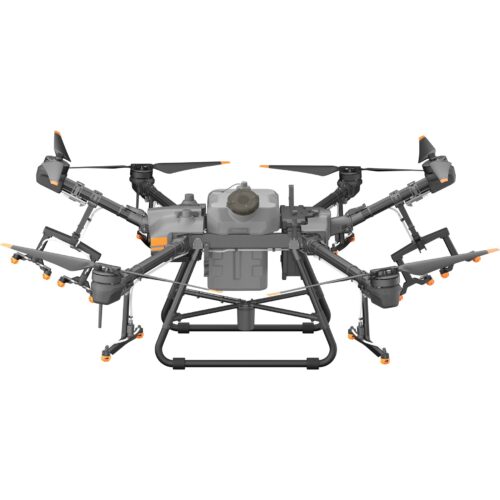

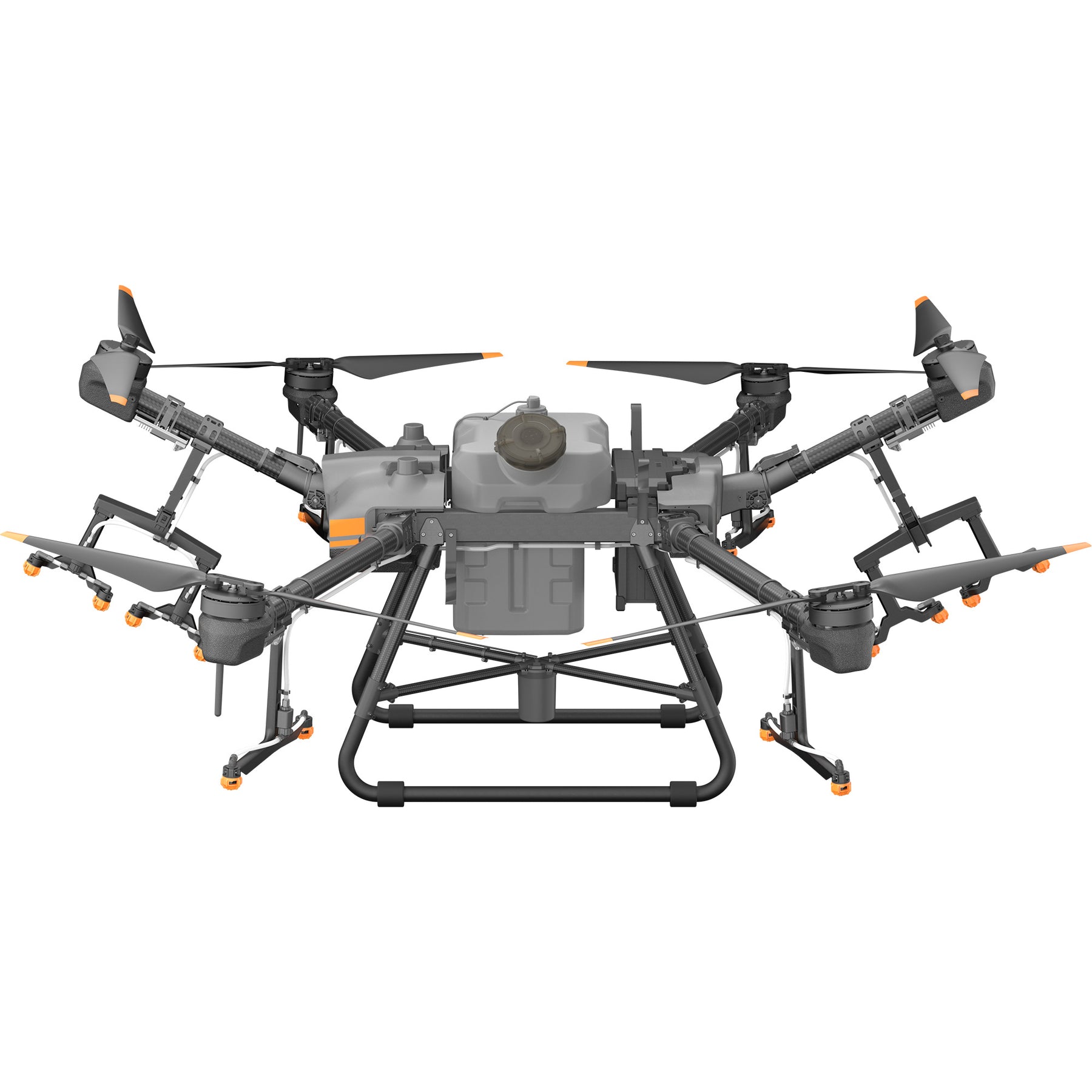

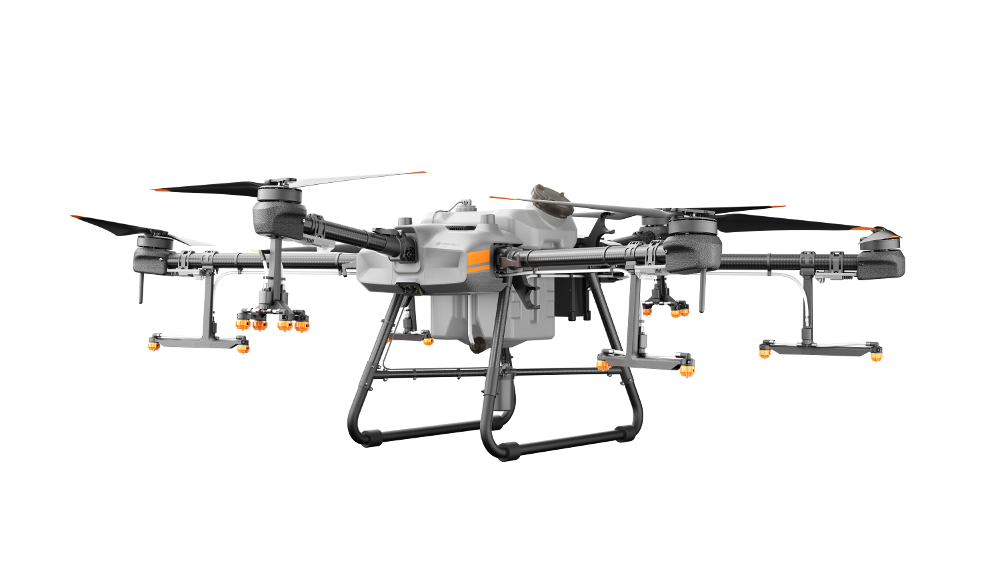

DJI Agras T30

With a 30 liter spraying tank, the DJI Agras T30 takes aerial spraying efficiency to new heights. A revolutionary transforming body enables more effective spraying, especially for fruit trees. Using DJI digital agriculture solutions, the T30 helps reduce fertilizer use and increase yield with effective, data-driven best practices.

3Dsurvey Software

Price on request

Agisoft Metashape professional version

Price on request

DJI Terra

Price on request

Drone Aerial Photogrammetric Survey Specialist

Price on request

Drone Data Process and Modeling Specialist

Price on request

M300 Commercial Drone Flight Specialist

Price on request

Category

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Features

    30L Spray Tank
    Spherical Radar System
    IP67 Water and Dust Resistance
    Dual FPV Cameras for Monitoring
    High Precision Operation
    Smart Agriculture Cloud Platform

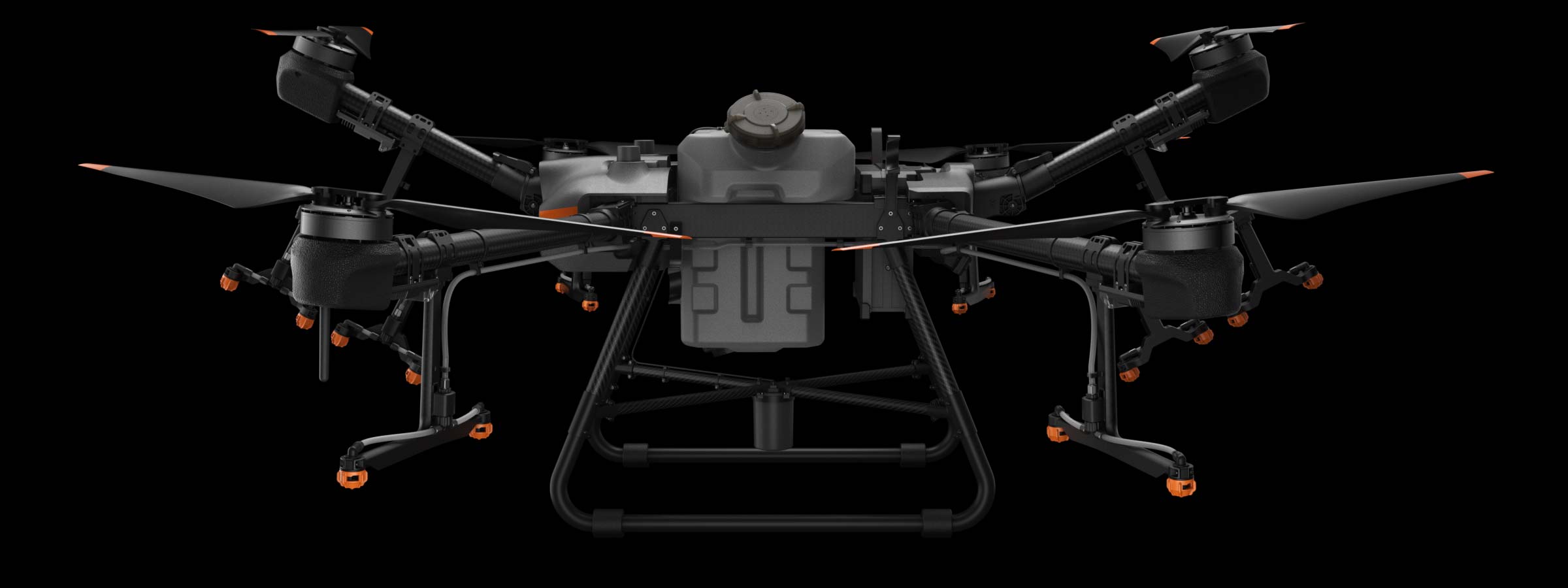

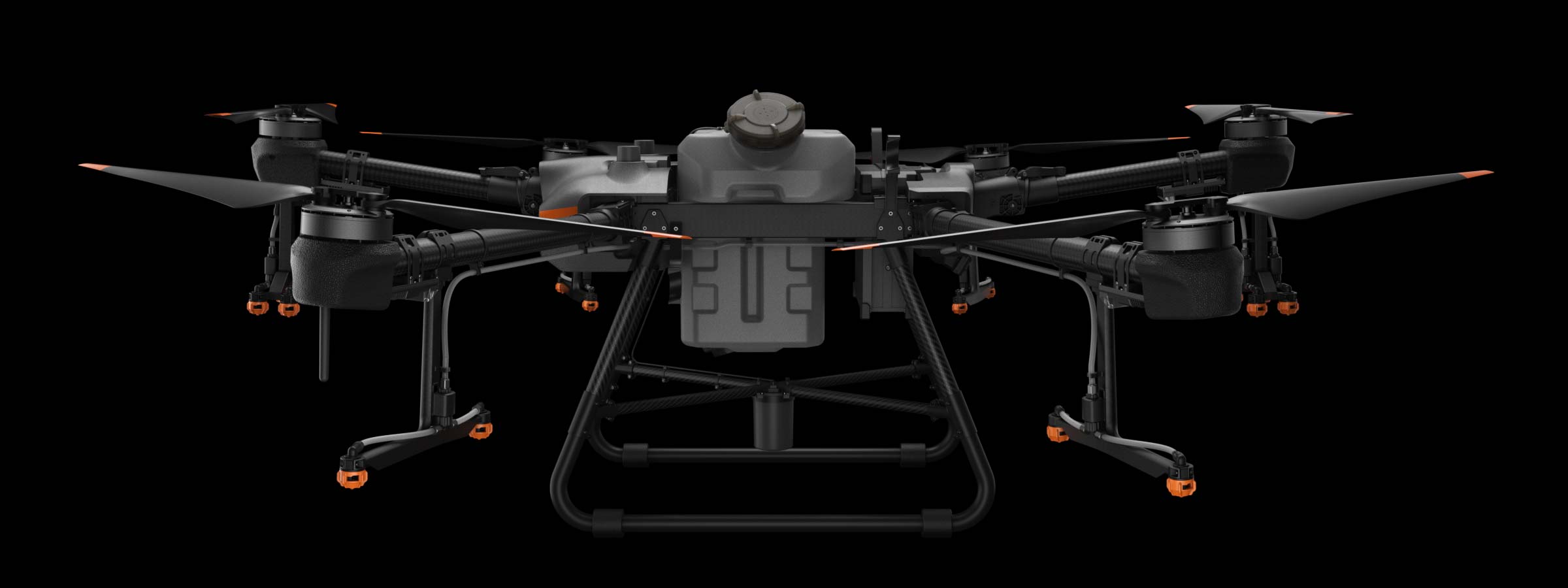

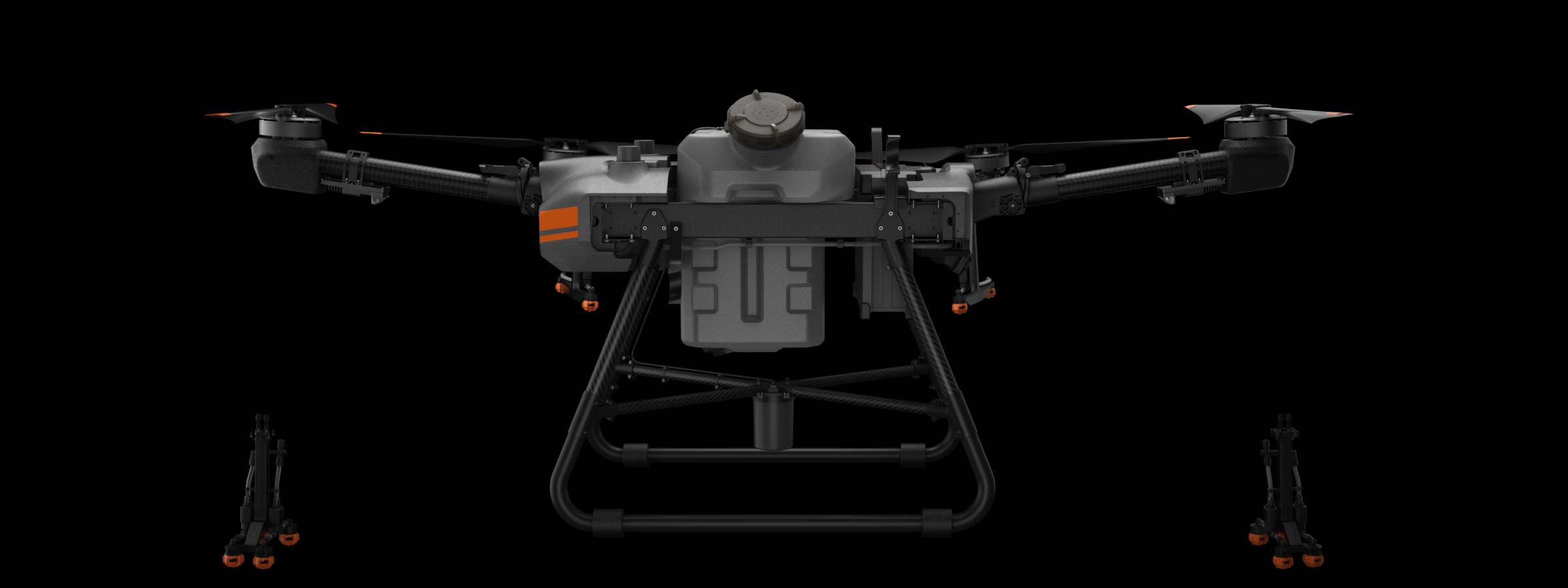

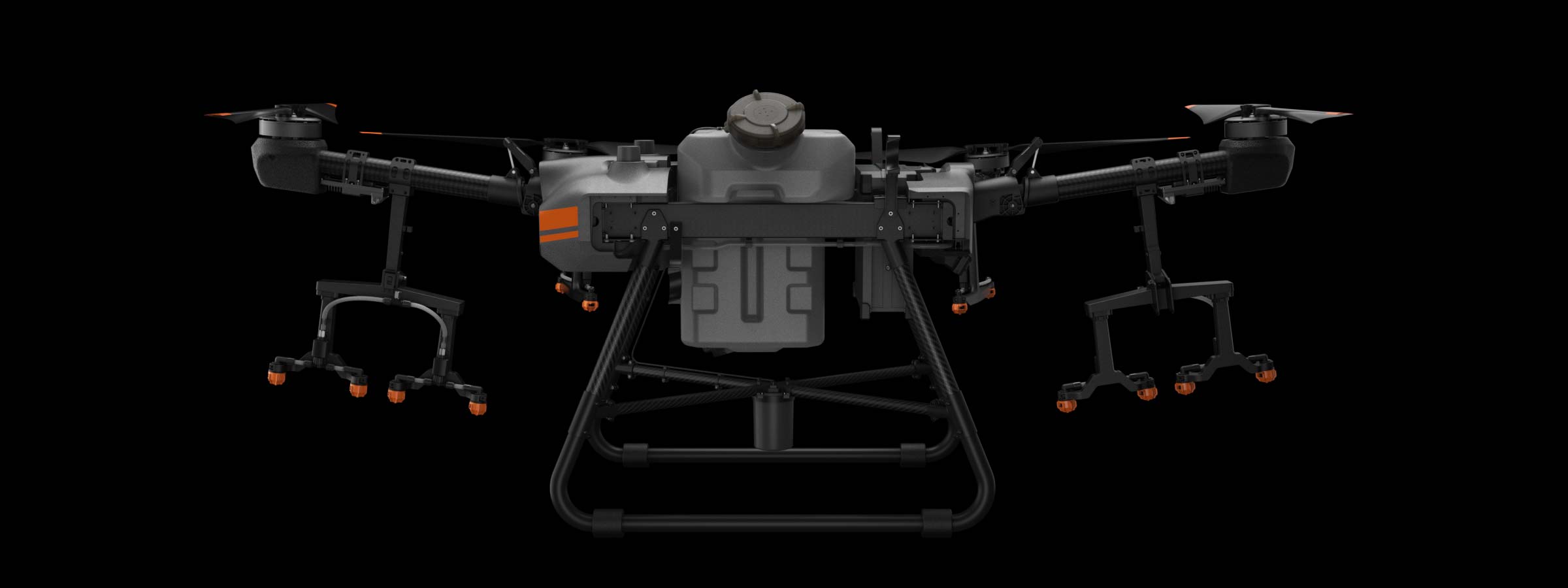

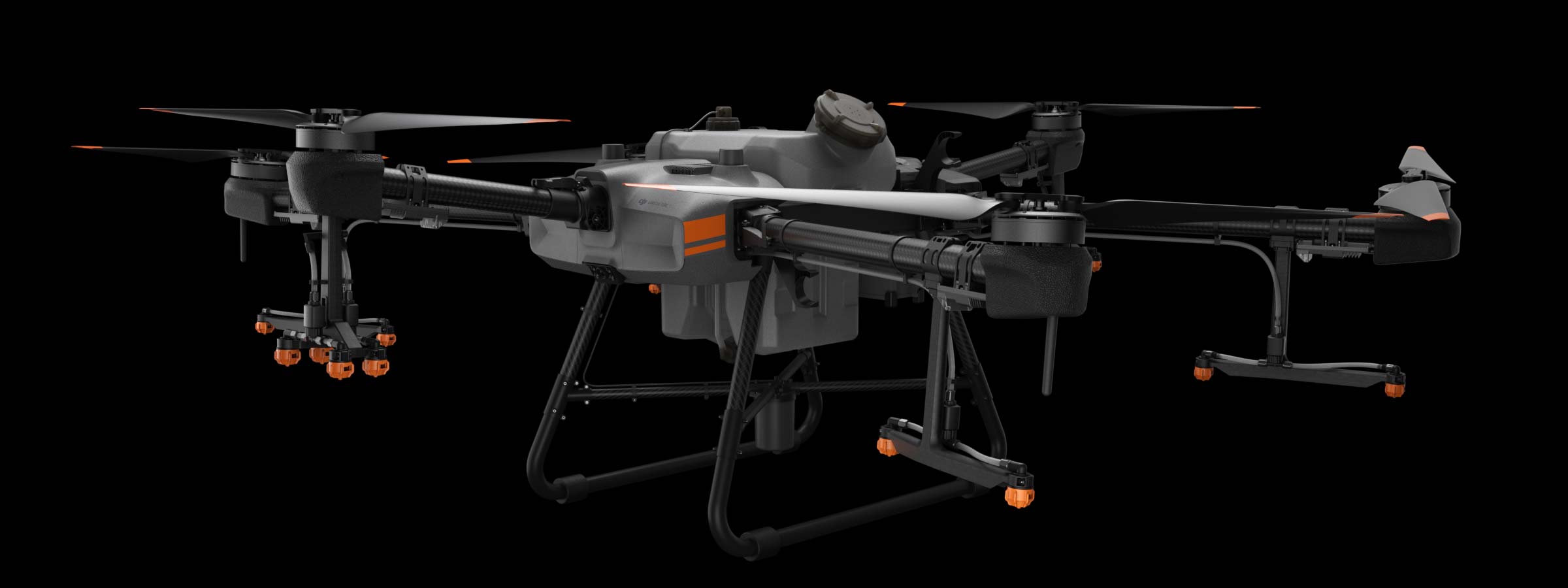

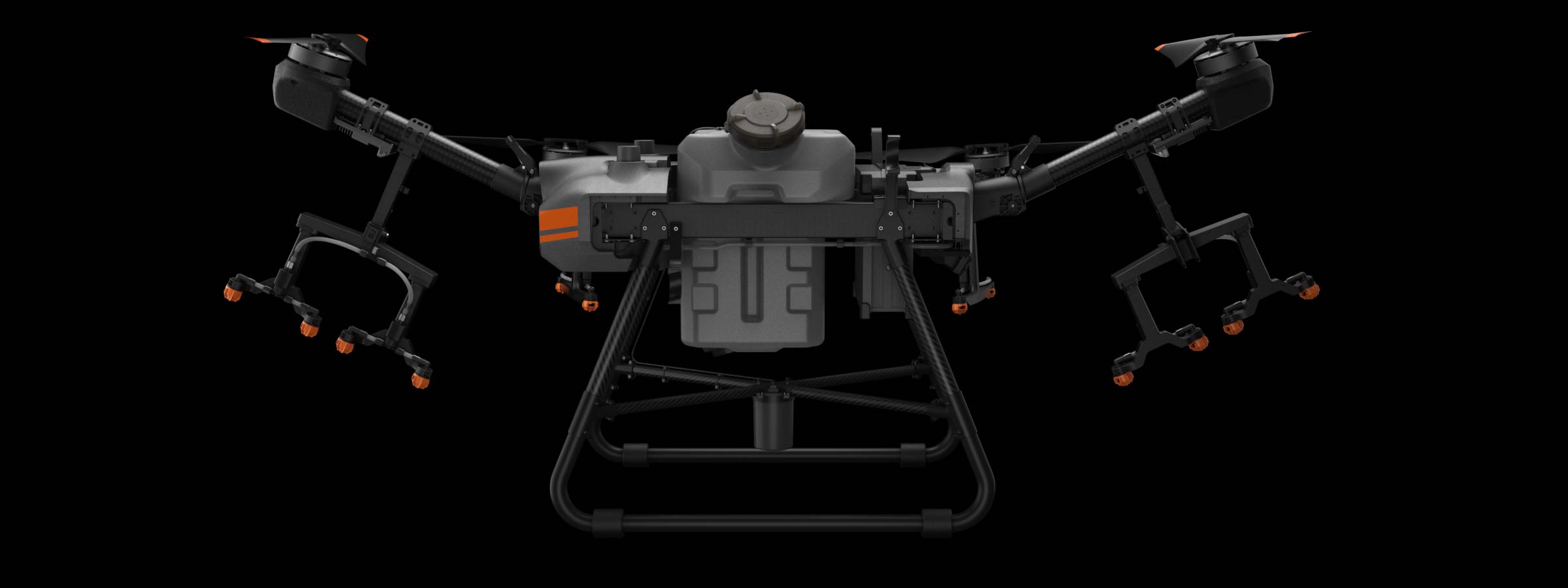

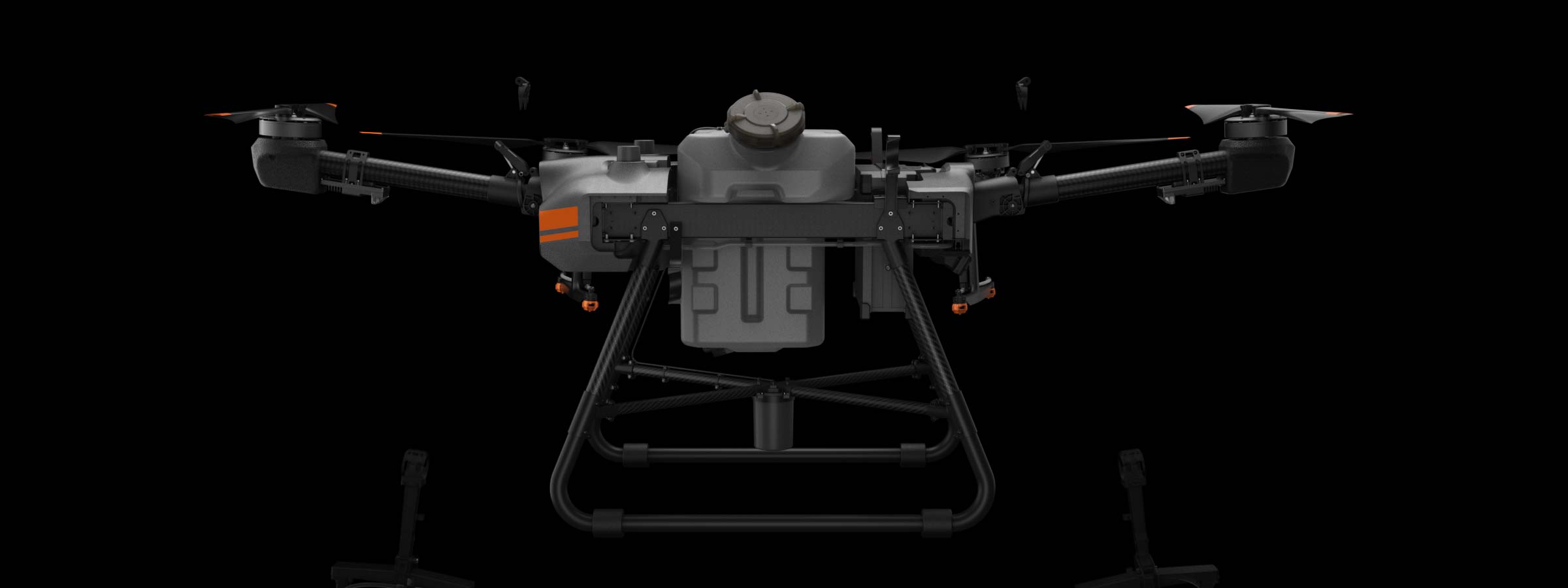

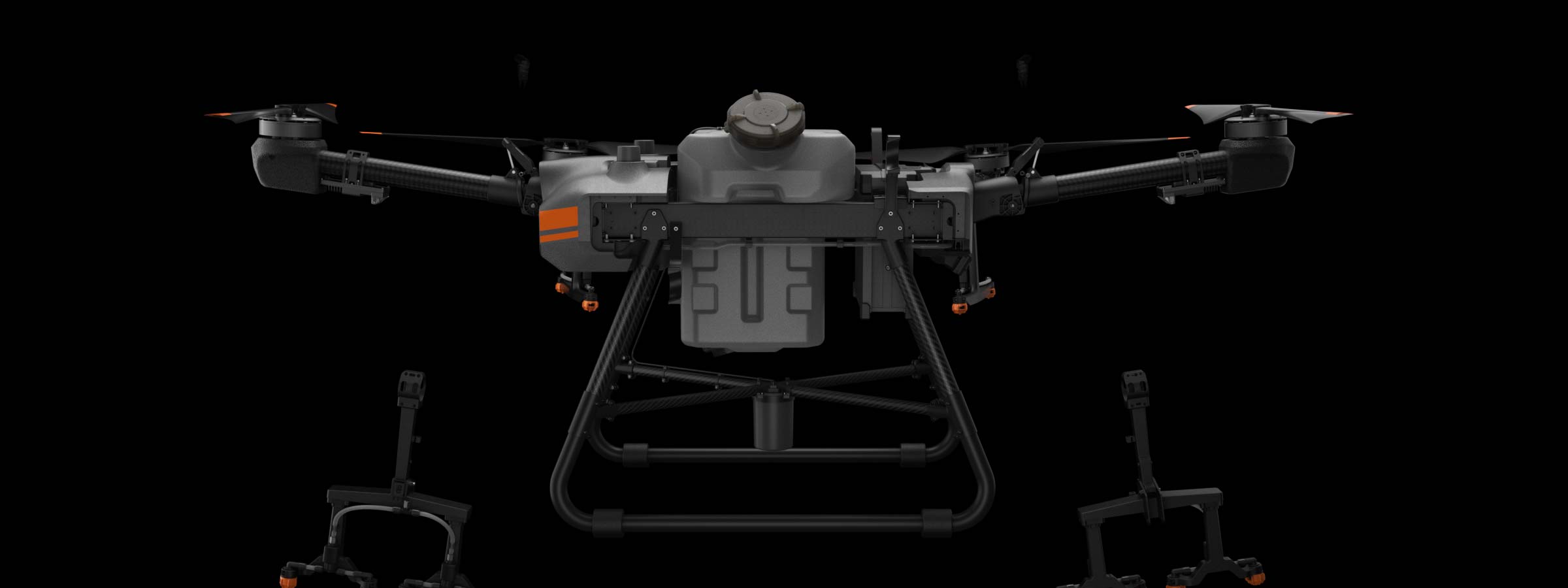

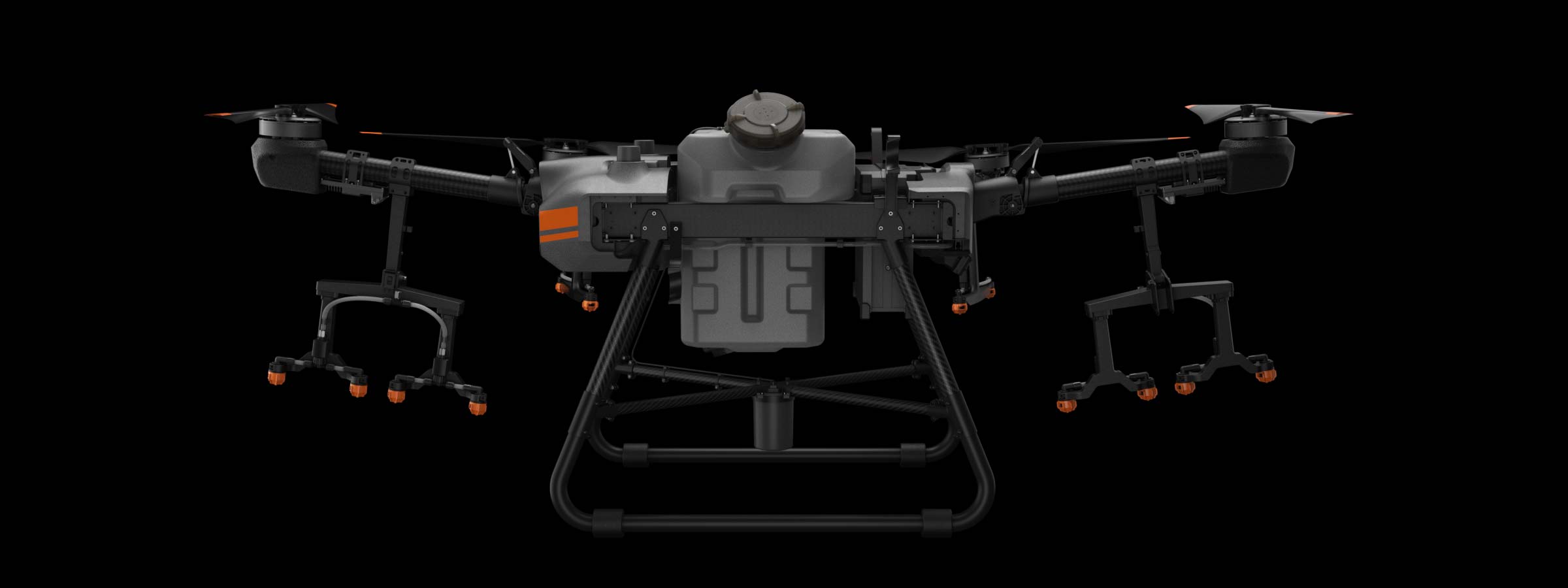

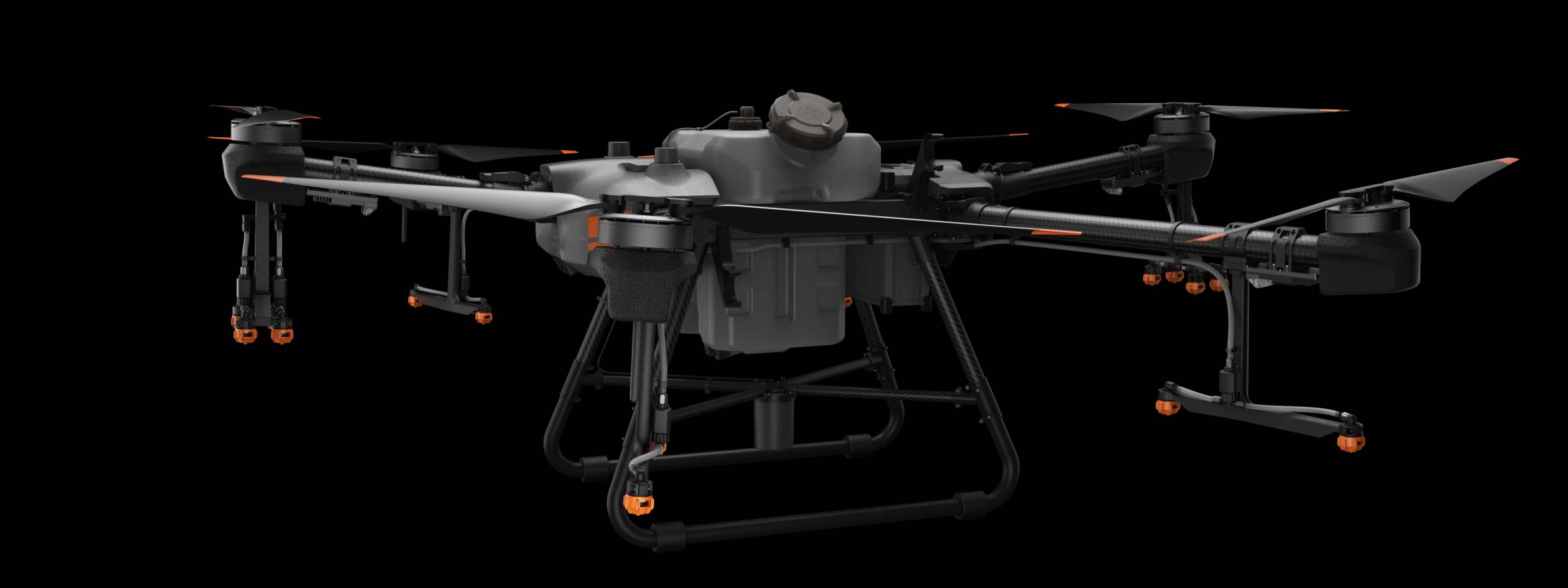

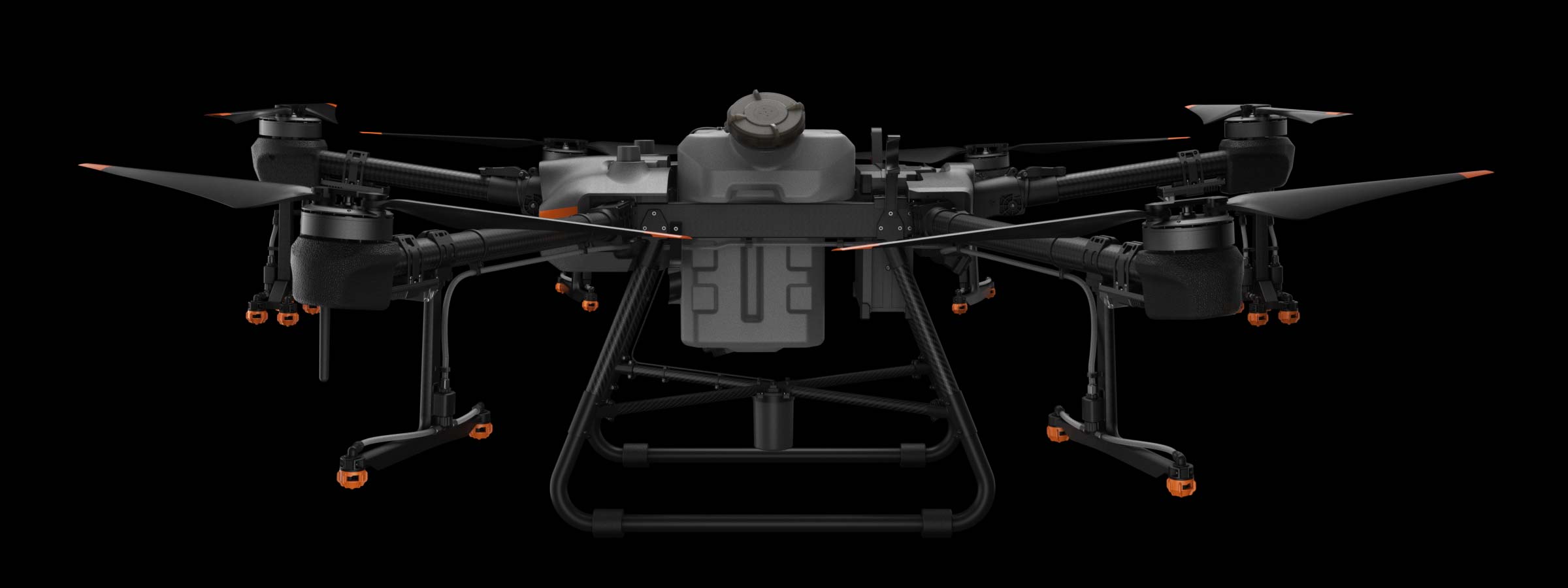

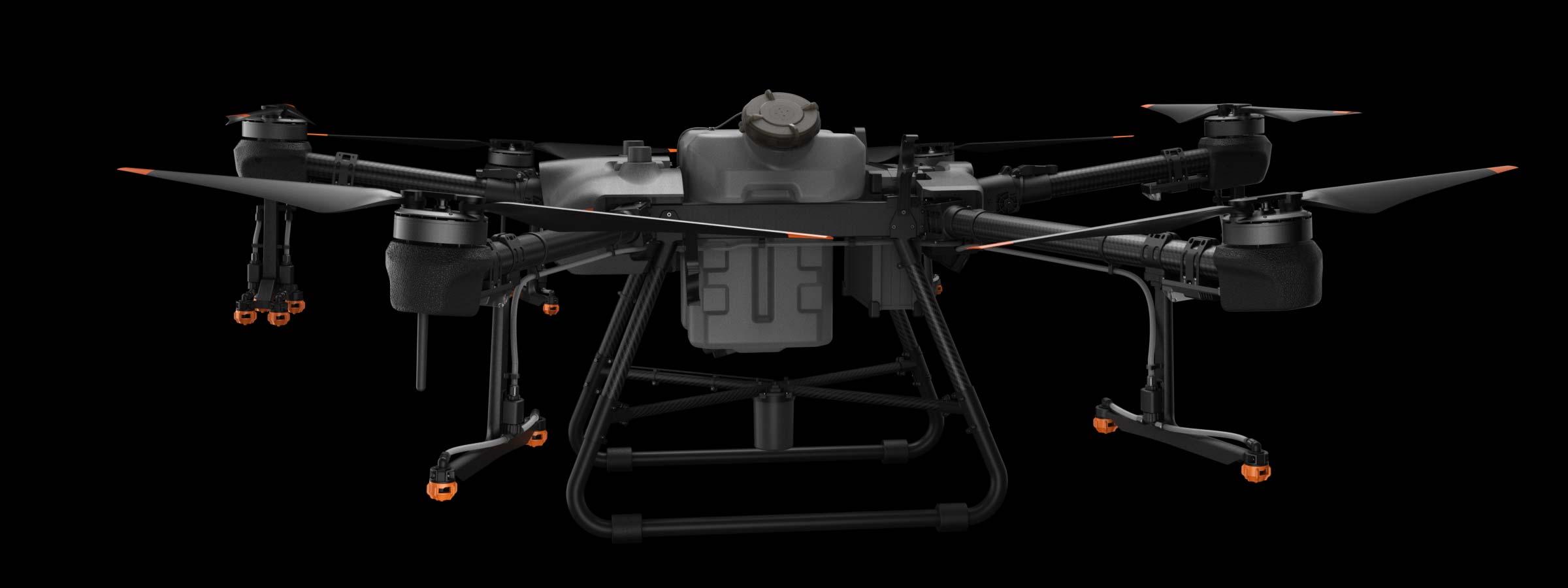

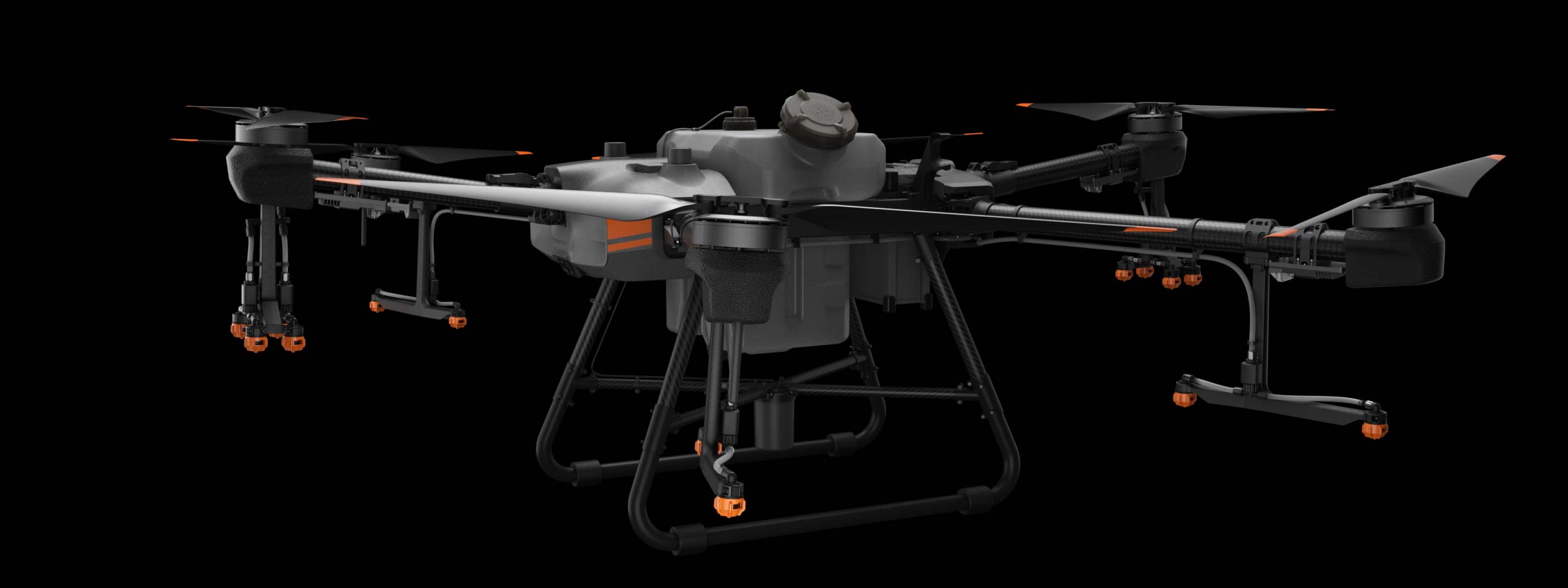

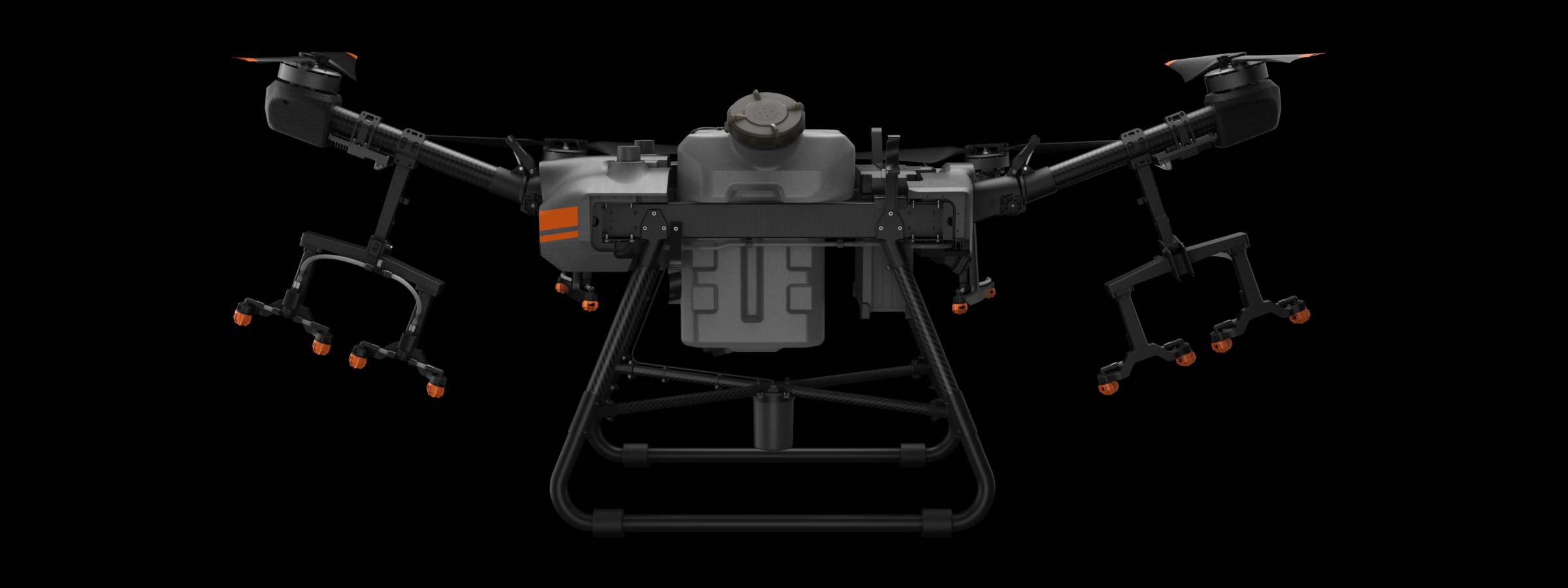

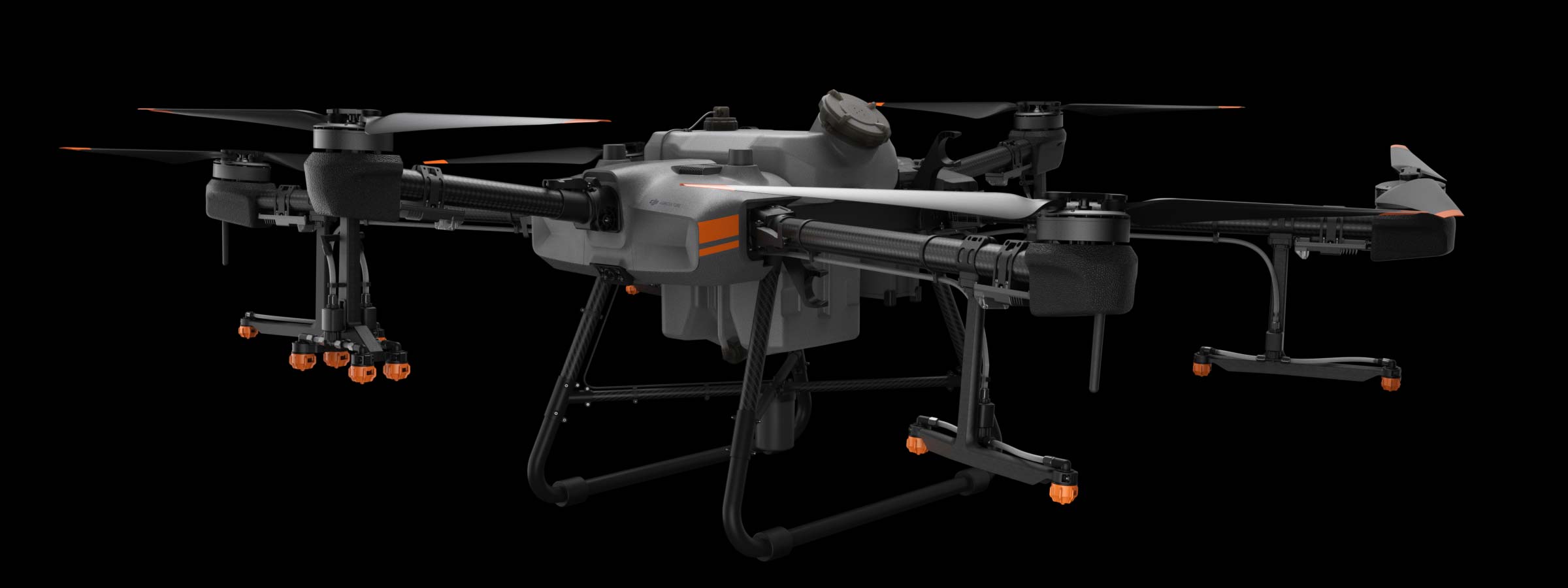

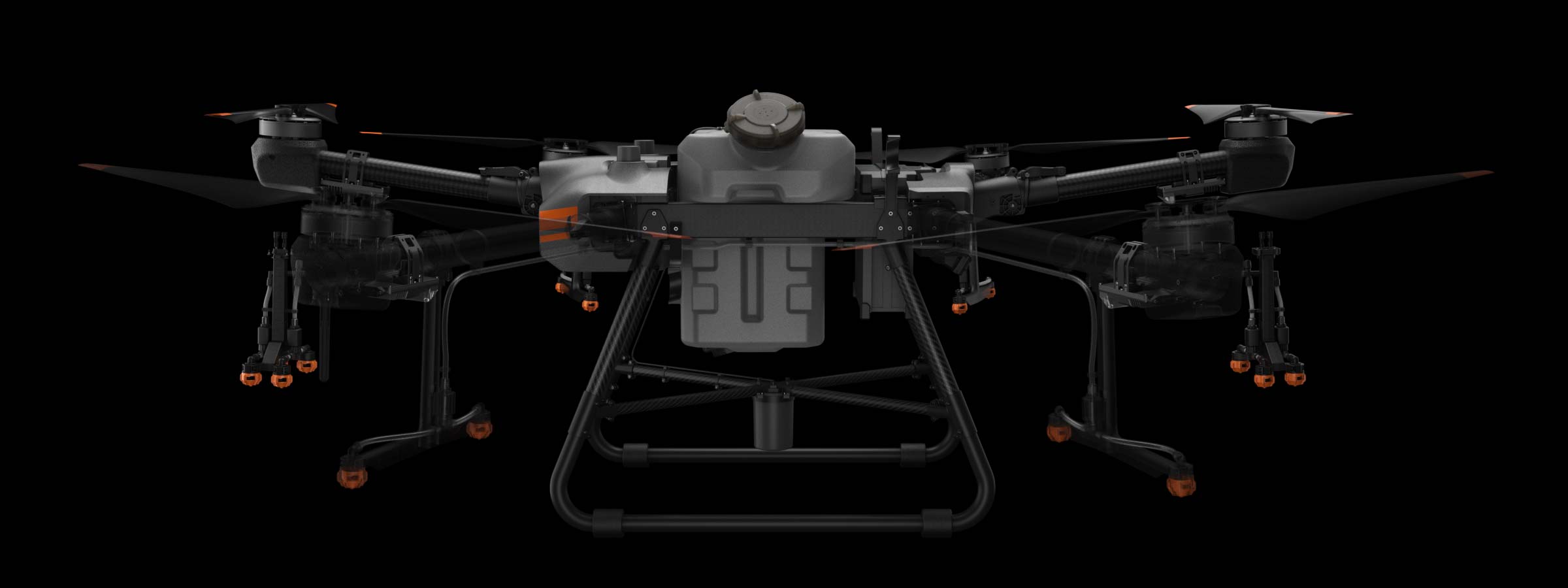

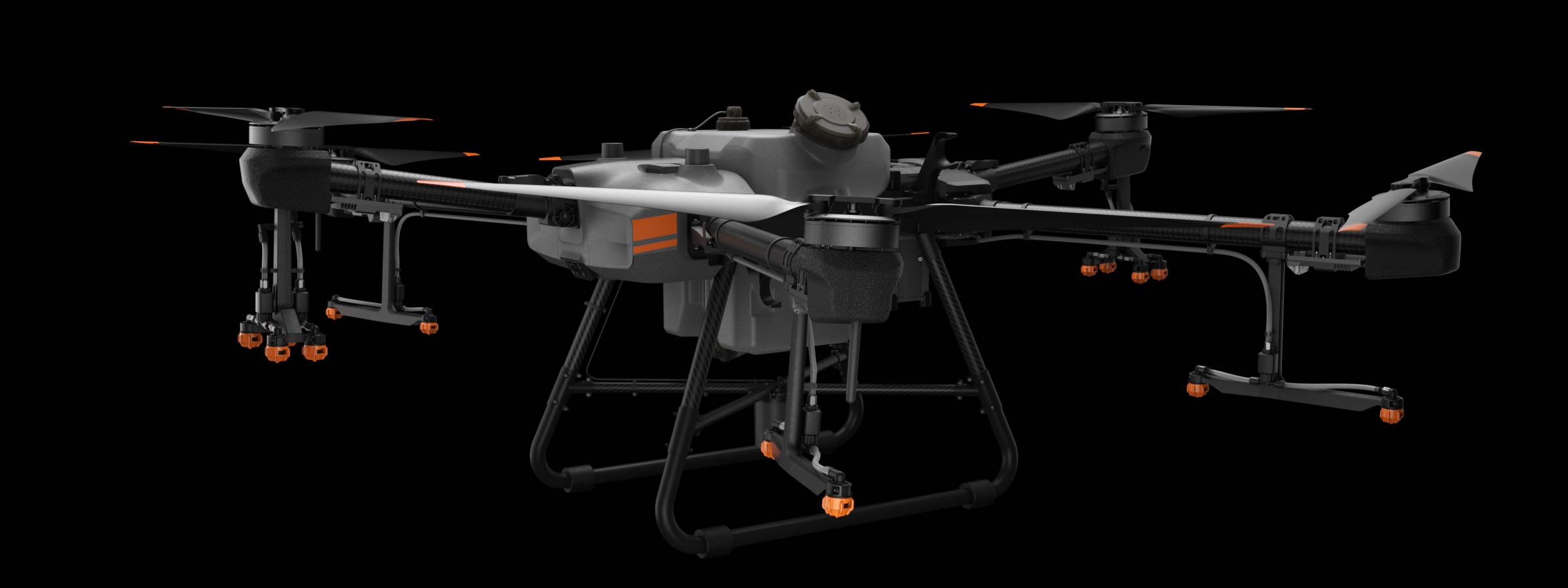

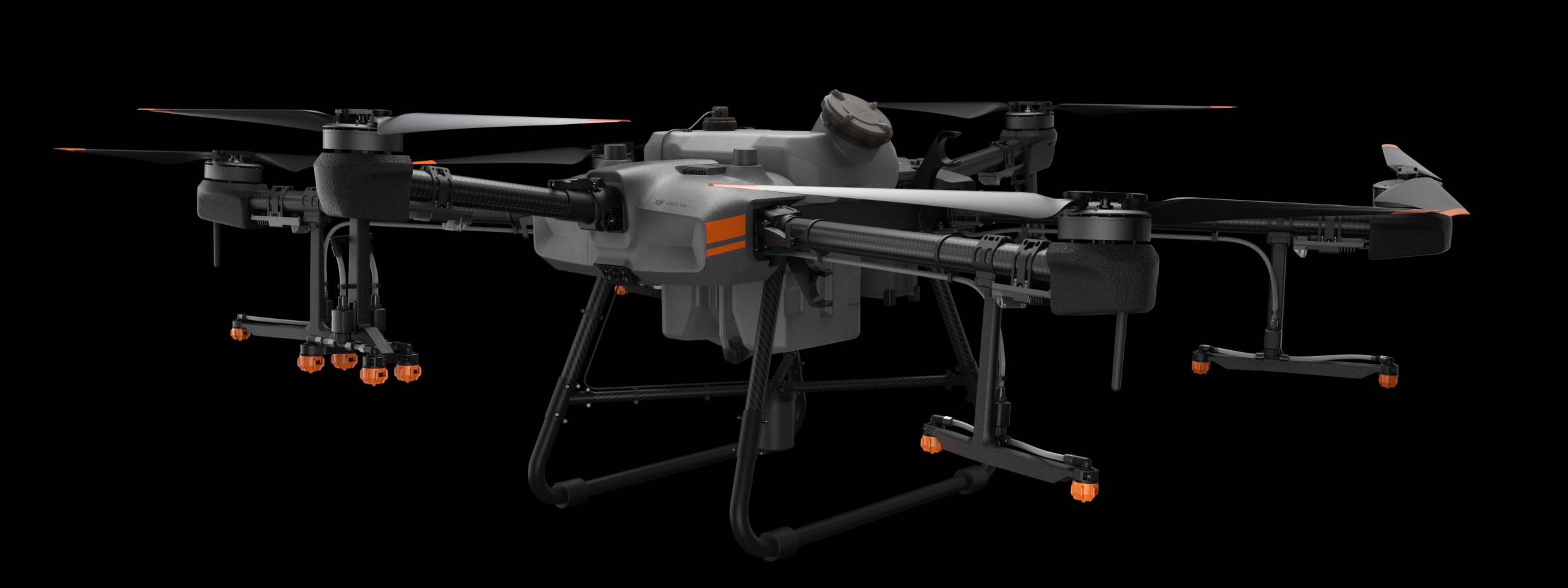

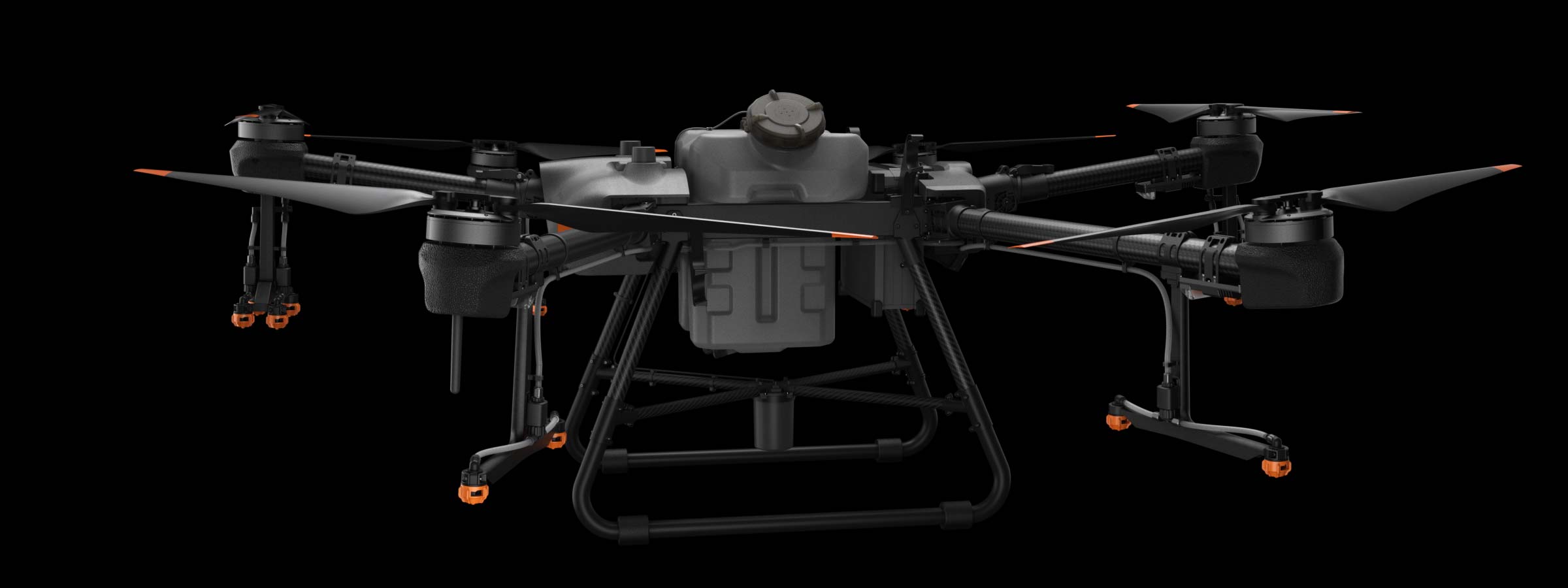

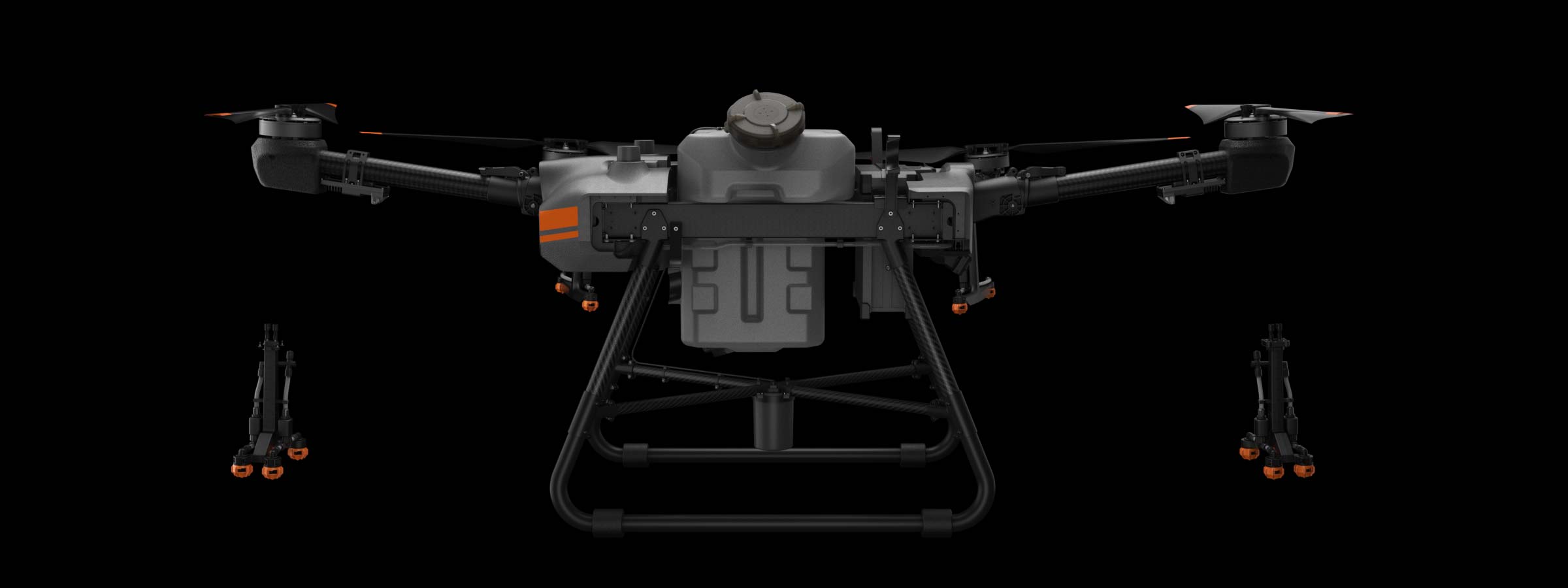

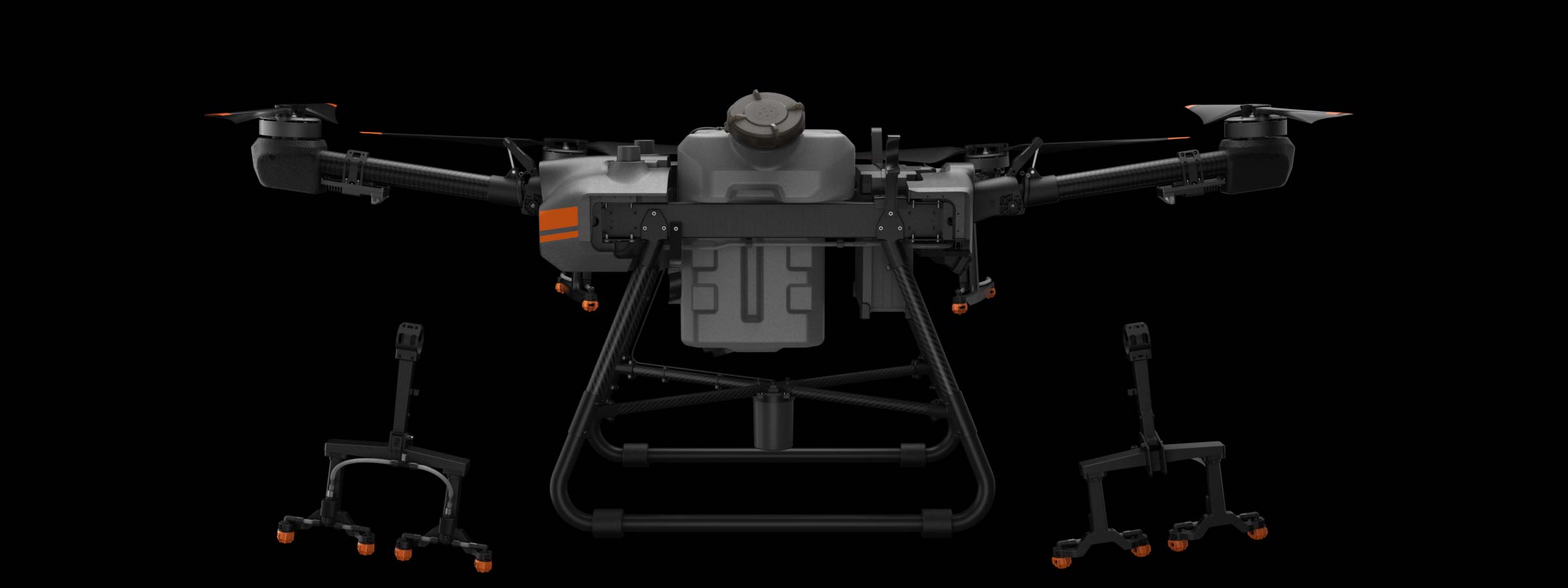

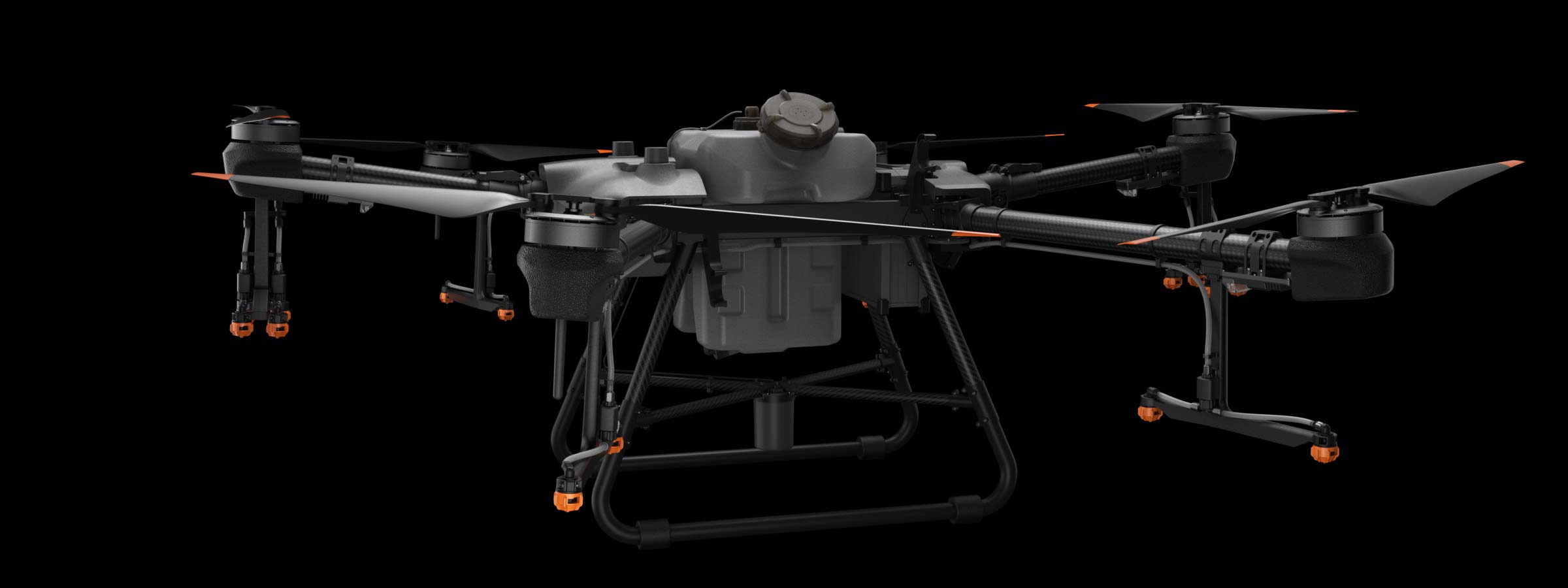

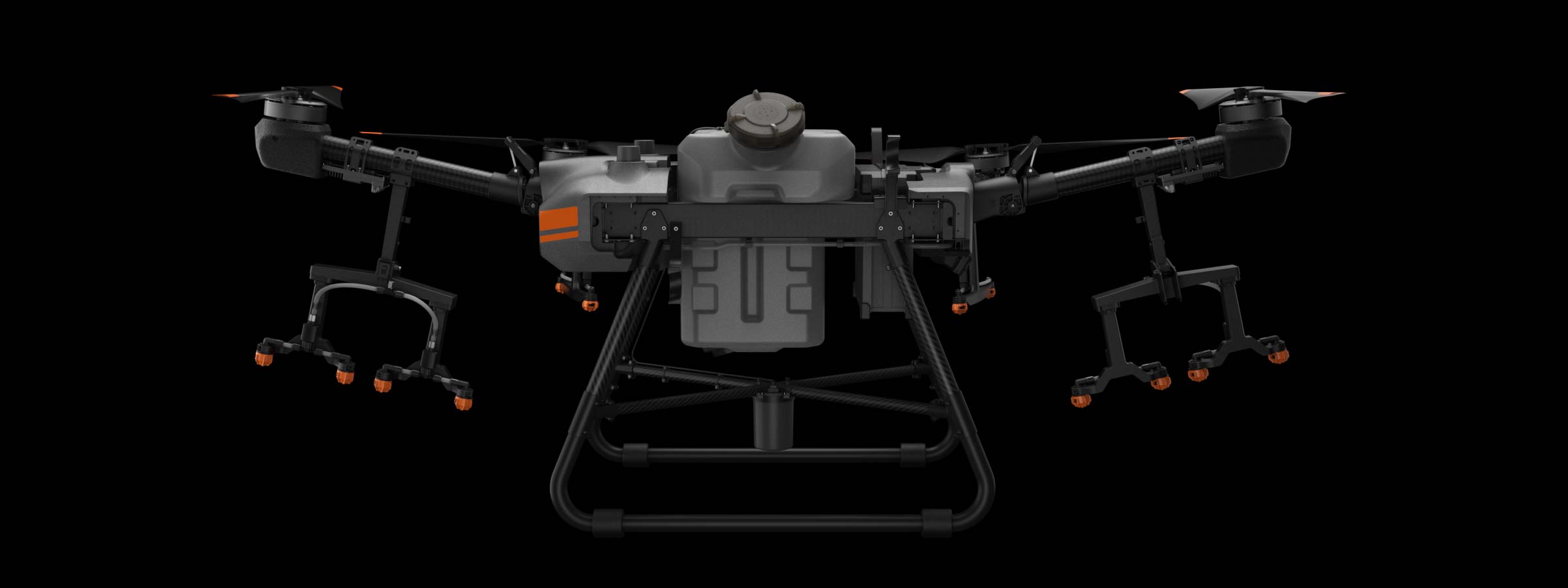

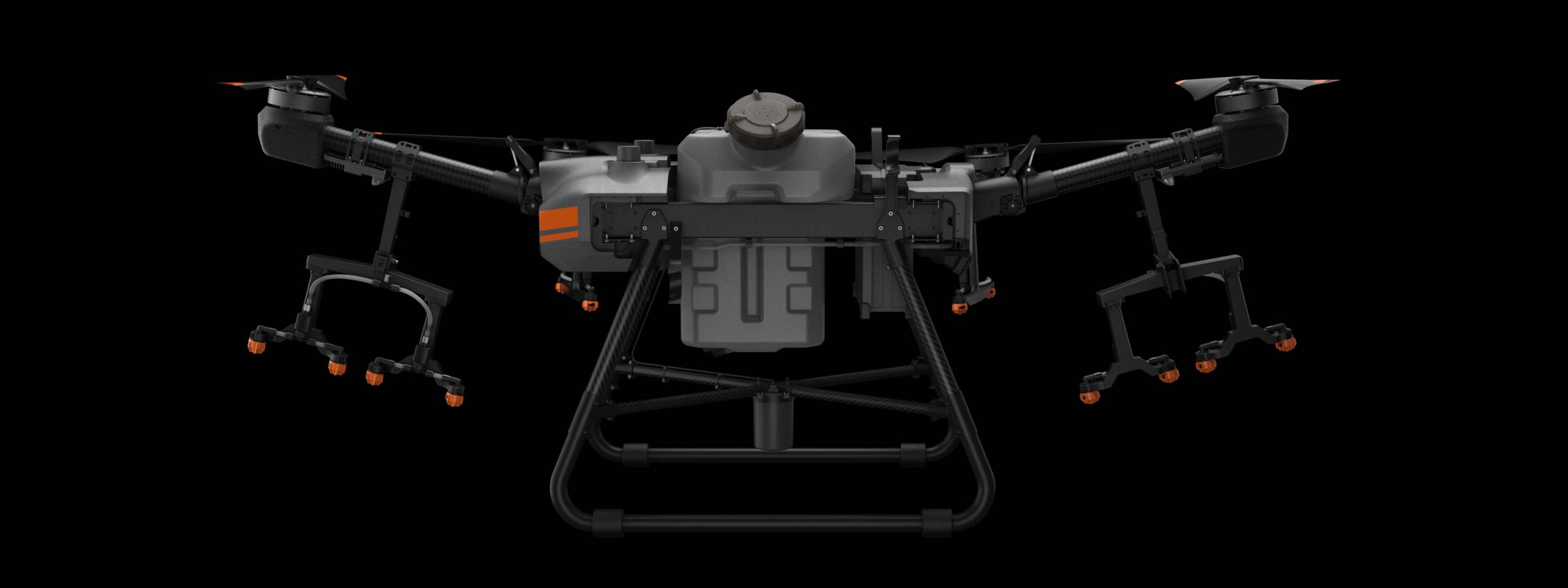

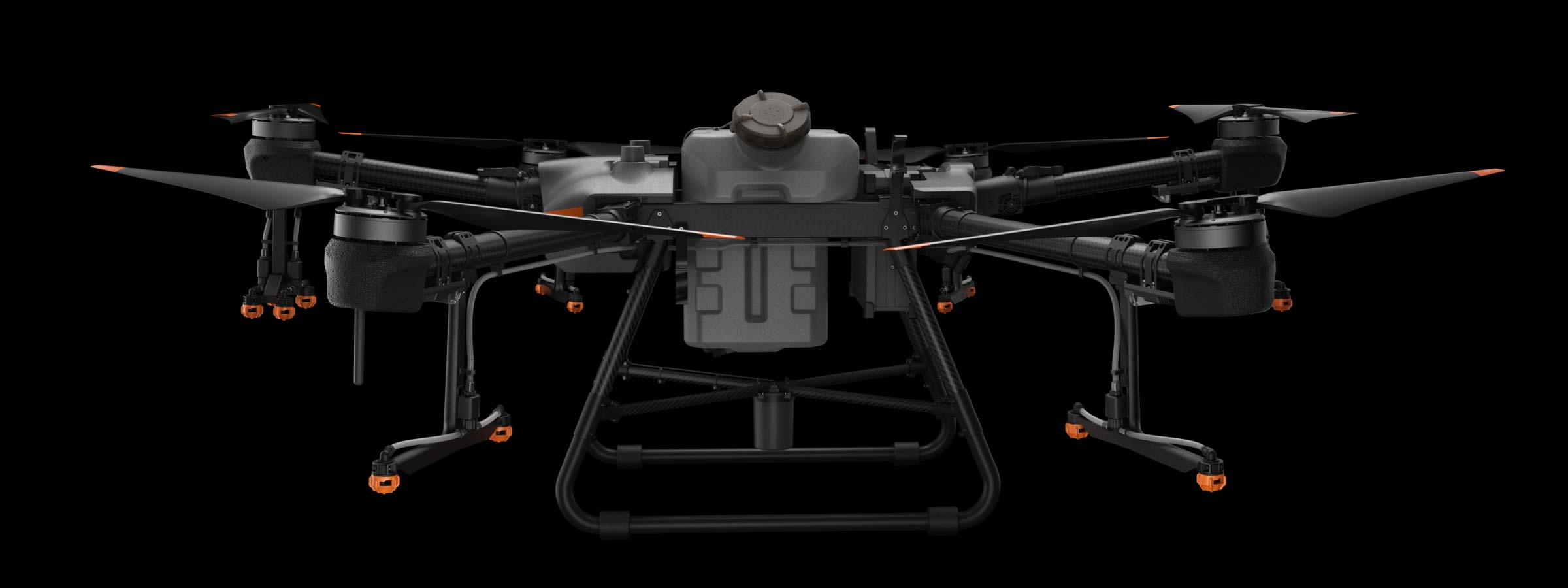

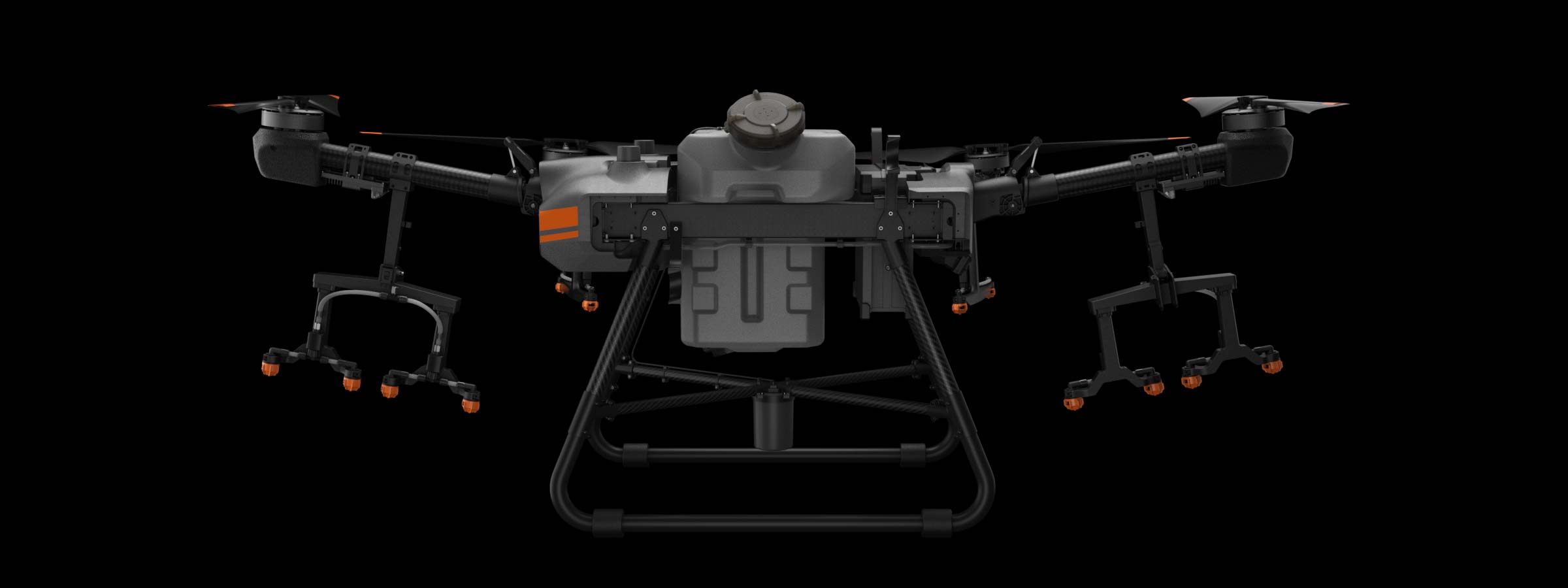

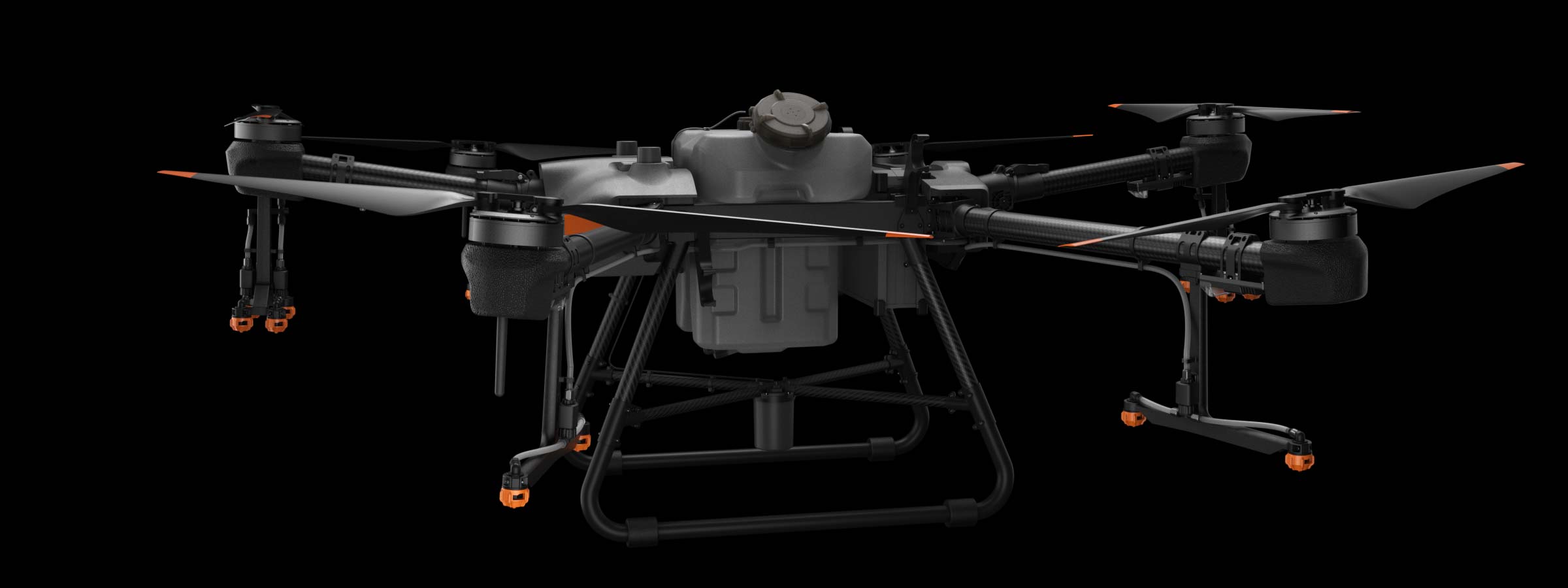

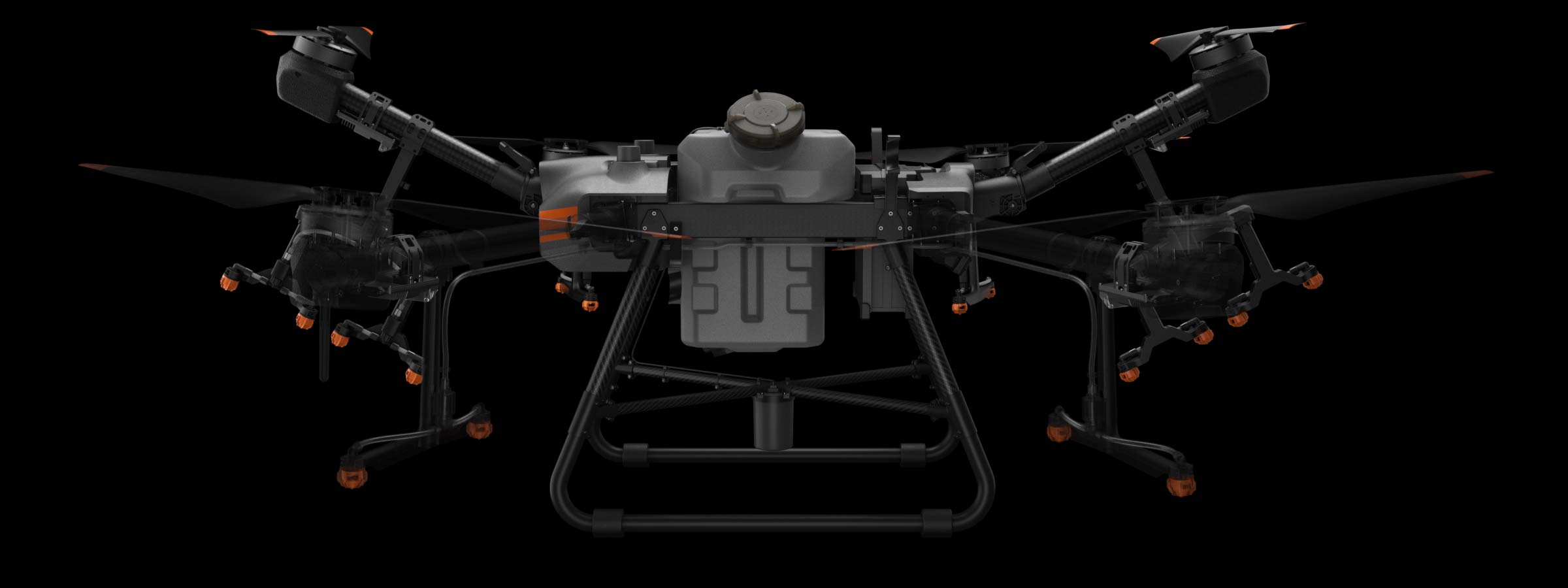

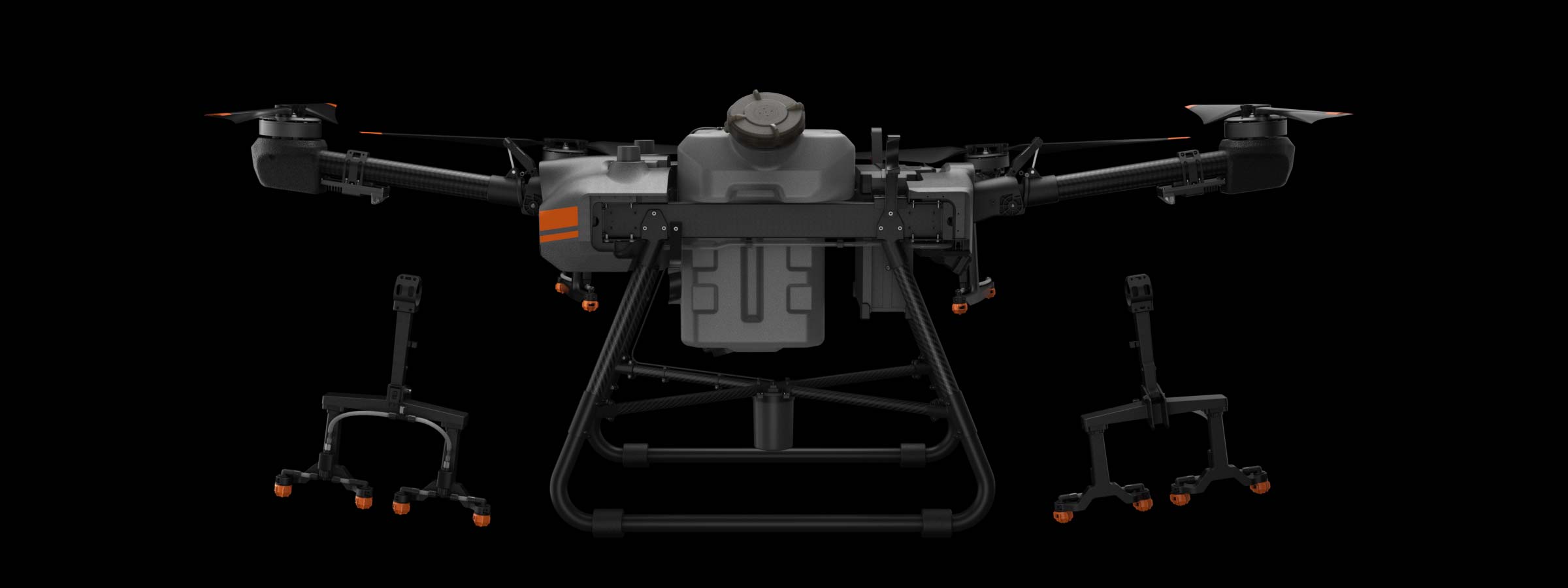

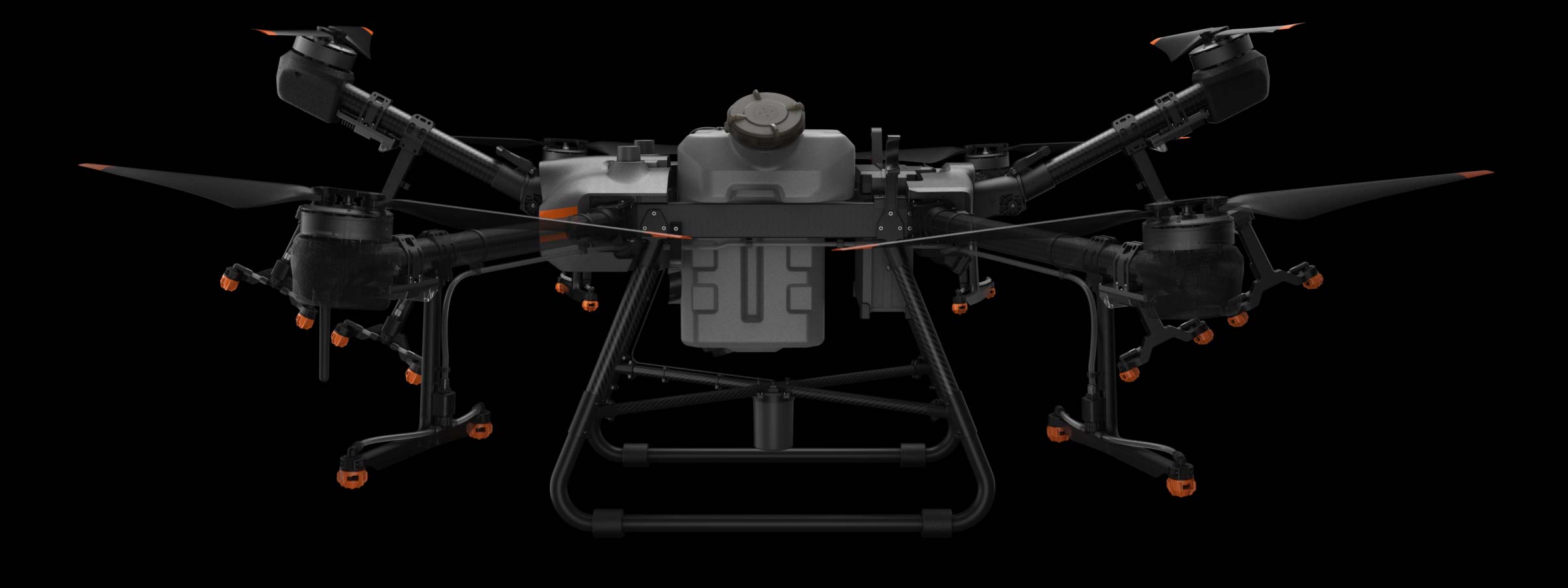

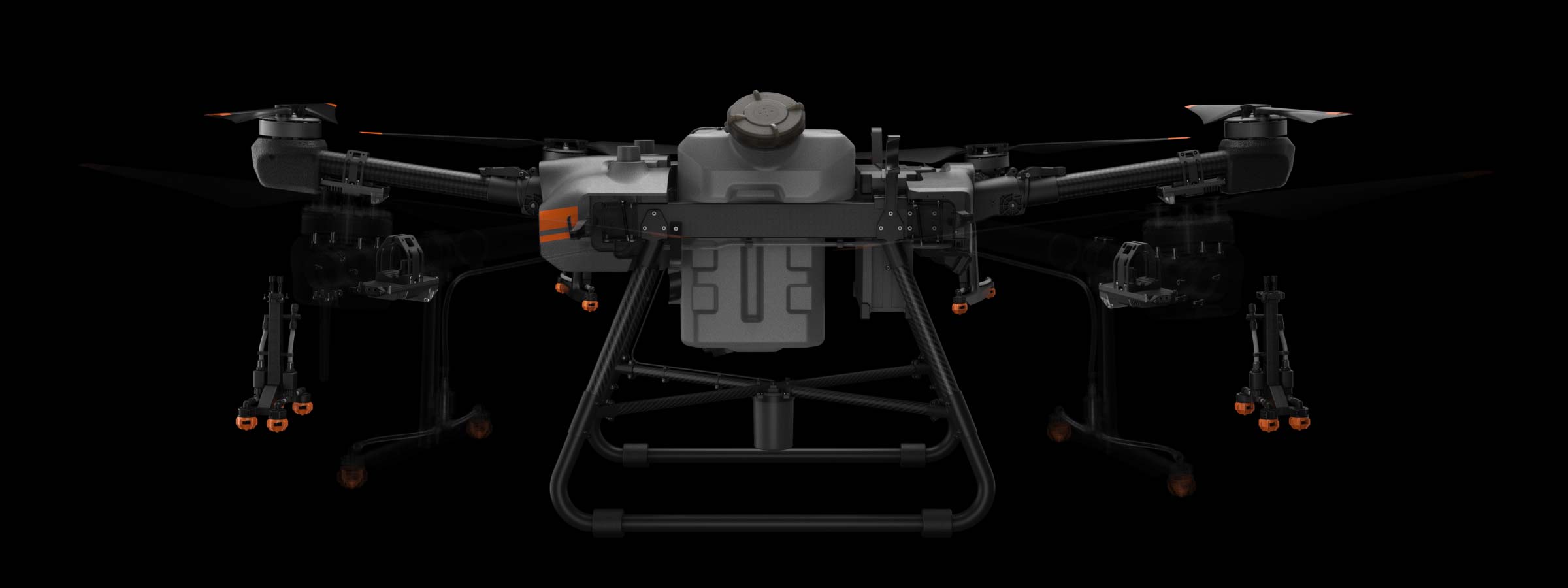

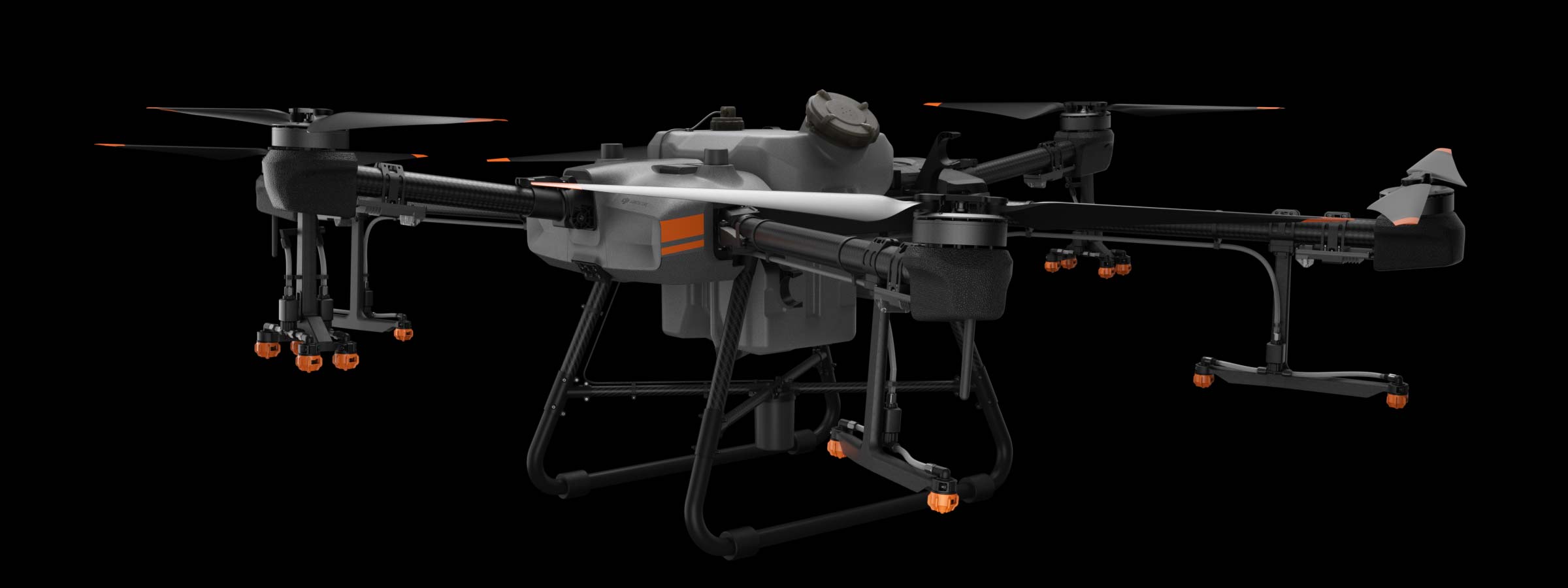

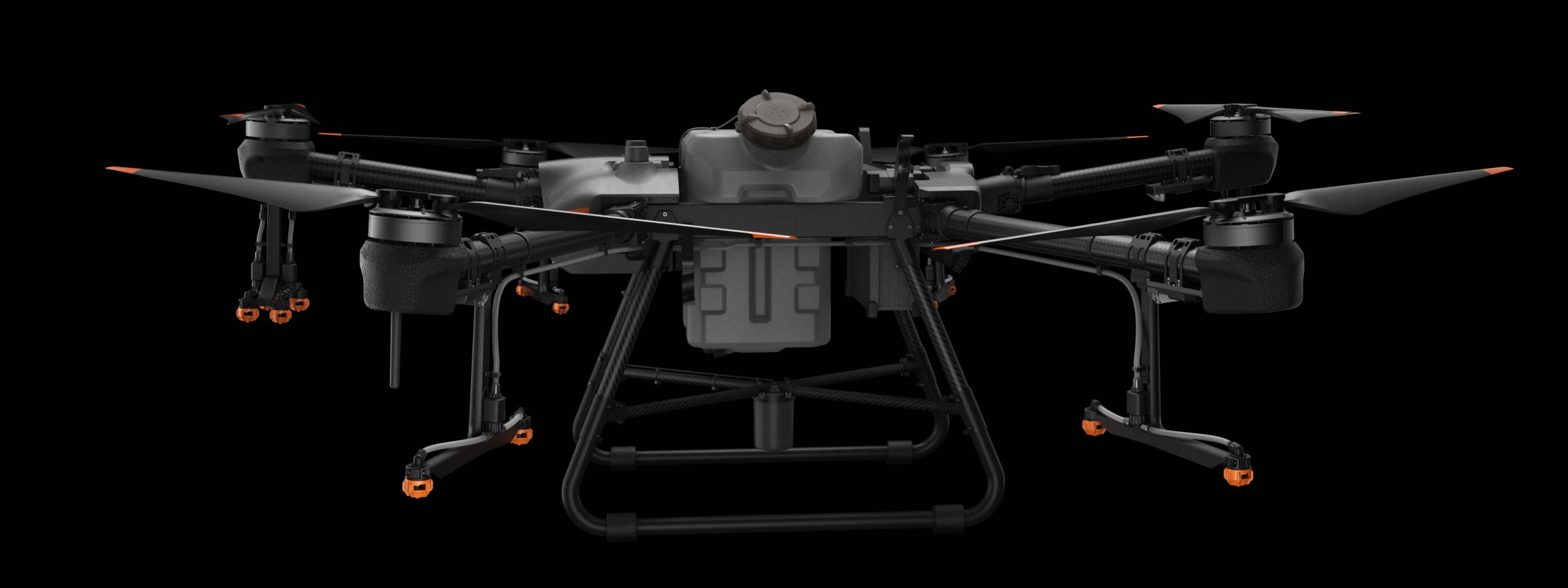

    Branch-Targeting Technology for Thorough Penetration

    With revolutionary branch-targeting technology and adjustable arms, the Agras T30 penetrates thick canopies with oblique spraying, ensuring an even application of liquid pesticides and doubling the number of droplets. [1] With the help of the Smart Agriculture Cloud Platform and cloud-based mapping, users can manage a 3D digital orchard, making it easy to get started with digital agriculture.

    16 spray nozzles provide extensive coverage with even distribution, strong penetration, and exceptional drift prevention.

    A 16-nozzle layout further improves droplet penetration. Eight sets of solenoid valves enable independent variable frequency control and spraying in turn. The horizontally opposed six-cylinder double plunger pump design provides strong spraying power and a high flow rate of up to 8 liters per minute.

    40 Acres per Hour

    Equipped with a large 30kg spray tank, the Agras T30 has a spray width of 9 meters, and field spraying efficiency of 40 acres/hour, 33.3% more than its previous generation. [2]

    Eliminate Blind Spots with a Spherical Radar System

    The spherical radar system perceives obstacles and surroundings in all environments, weather conditions, and viewing angles, regardless of dust and light interference. Automatic obstacle avoidance and adaptive flight functions help ensure safety during operation.

    Dual FPV Cameras for Improved Awareness

    Equipped with dual FPV cameras, the Agras T30 provides clear front and rear views and lets you check flight status without needing to turn the aircraft mid-flight. And a bright searchlight doubles the aircraft’s night vision capabilities, creating more nighttime operation possibilities.

    Designed for Long Term Service

    The Agras T30 control module has a fully enclosed structure for added durability. All critical components have three layers of protection and are IP67 rated. Ideal for long term use of pesticides and fertilizers, and to resist dust and corrosion.

    Flexible folding for convenient transportation

    The Agras T30 can be folded by 80%, making it easier to transport. This folding mechanism uses quick-snap locking, redundancies, and an in-app alert to help ensure safe operation.

    Autonomous Operation with Optimal Route Planning

    The new intelligent route mode independently plans the best route for each operation. A gauge indicates the remaining liquid payload amount and estimated time until refill in real-time, letting operators strike the perfect balance between payload and battery life. The aircraft also supports automatic edge sweeping for extensive spray coverage and easier aerial operation.

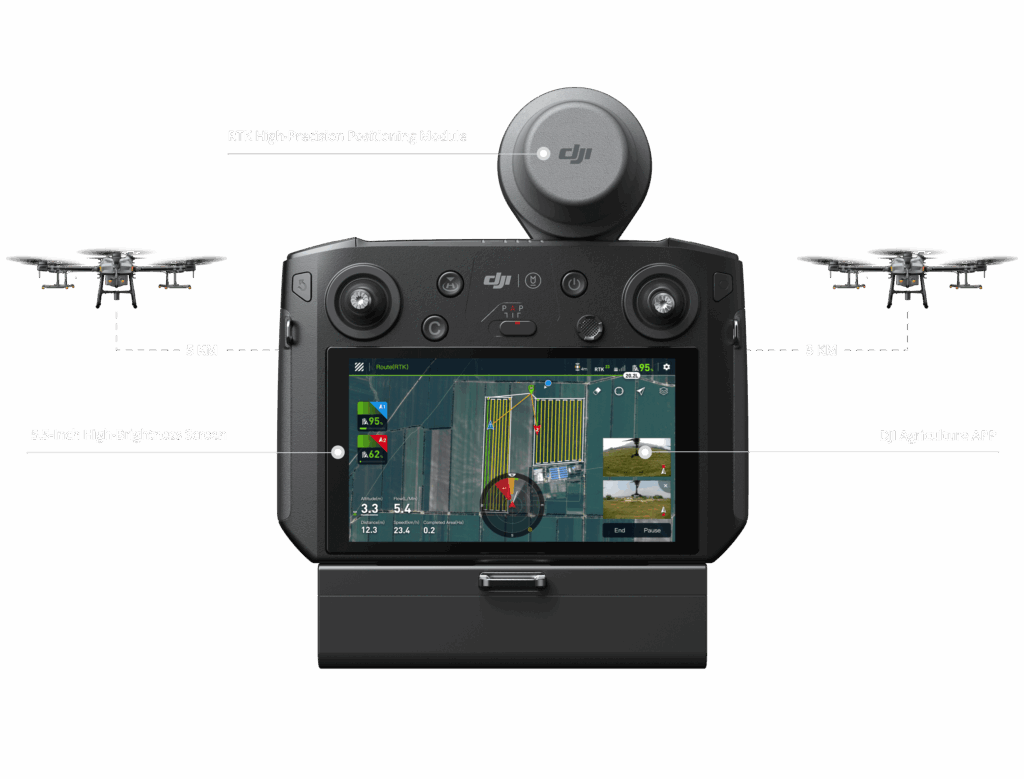

    Ultrabright Screen Ultimate Control

    An updated remote controller supports stable image transmission from up to 5 km away, 67% more than the previous generation. [3] A bright 5.5-inch screen delivers clear visuals , even in harsh lighting conditions. For increased productivity, one remote controller can operate multiple drones at once. The standard RTK high-precision positioning module implements centimeter-level operation planning. Additional enhancements include stronger signaling, anti-interference, and operational stability. The new DJI Agriculture app provides a smooth user experience and more intuitive operation.

    Two Batteries + Charger for Continuous Operation

    1,000 cycles for 4,942 acres

    With fewer supporting components needed, the Agras T30 is easier to transport. A newly designed intelligent battery is covered by warranty for 1,000 charges and 4,942 acres of flight; this ultra-long service life significantly reduces operating costs. The charging station and smart charging hub can fully charge a battery in 10 minutes, allowing for continuous operation with just two batteries and one charger. The standard safety box helps ensure battery safety and easy equipment storage.

    DJI Agras T30 Intelligent Flight Battery

    The 29,000mAh Intelligent Flight Battery has a product guarantee of 1,000 cycles. [4] It supports instant charging without the need for cooldown, circuit board-level potting protection, and resistance from water and corrosion.

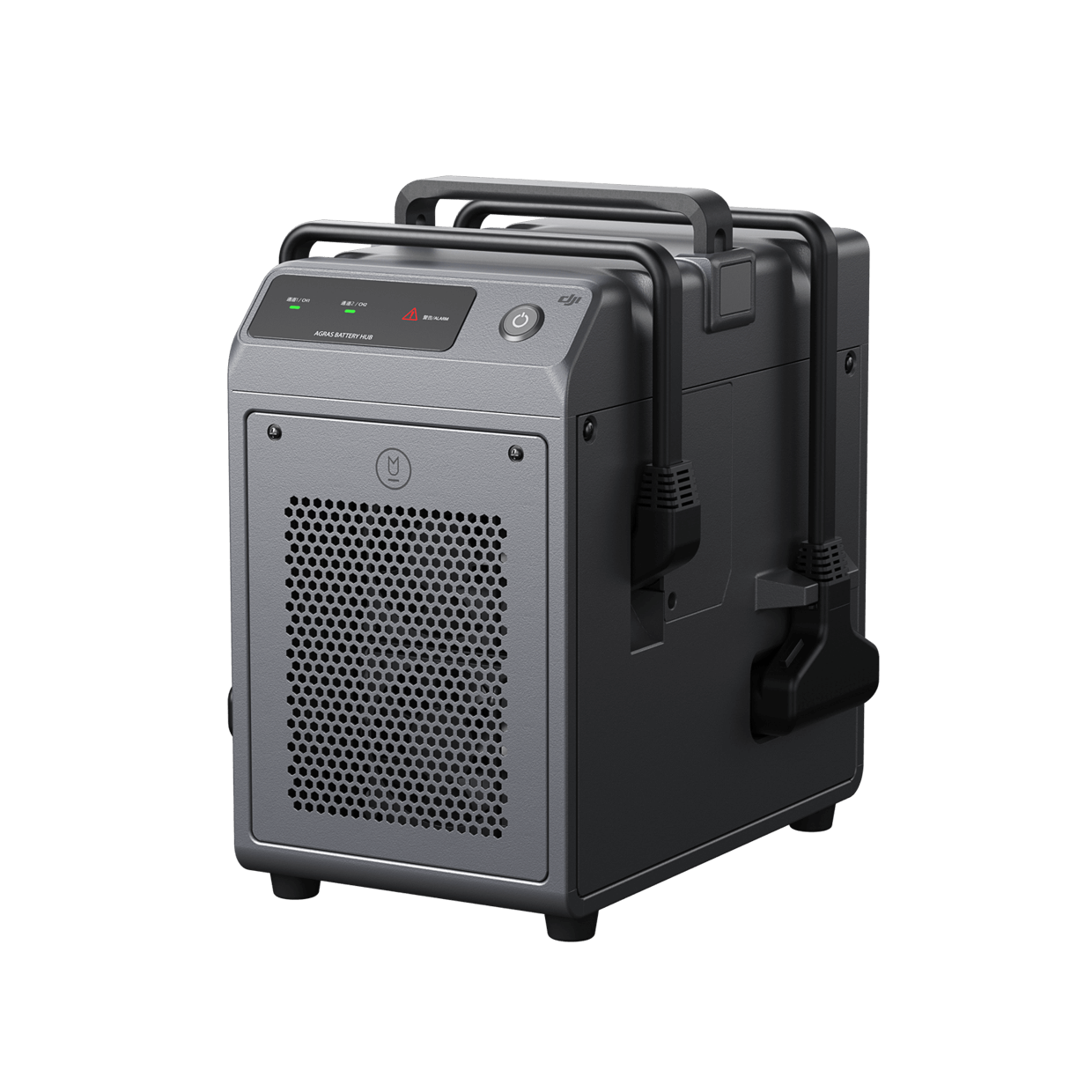

    DJI Agras T30 Intelligent Battery Station

    The T30 Battery Station provides 7,200 watts of charging power and can charge a battery in 10 minutes. It also has a backup power system and supports dual-channel alternated charging with power adaptation and safer operation.

    T30 Spreading System 3.0 Large-capacity, Washable, and Corrosion-Resistant

    This updated spreading system has a capacity of up to 40L [5] a spreading width of up to 7 meters, [6] and an hourly spreading capacity of 1 ton. [7] This system also supports real-time weight monitoring and has an anti-rotation sensor, allowing more accurate refill alerts. The T30’s overall water-resistance rating of IP67 rating makes it washable and corrosion-resistant ideal for spraying of fertilizers, seeds, and feed. When used with digital agriculture solutions, the Agras T30 implements variable spreading, reducing fertilizer use while increasing yield.

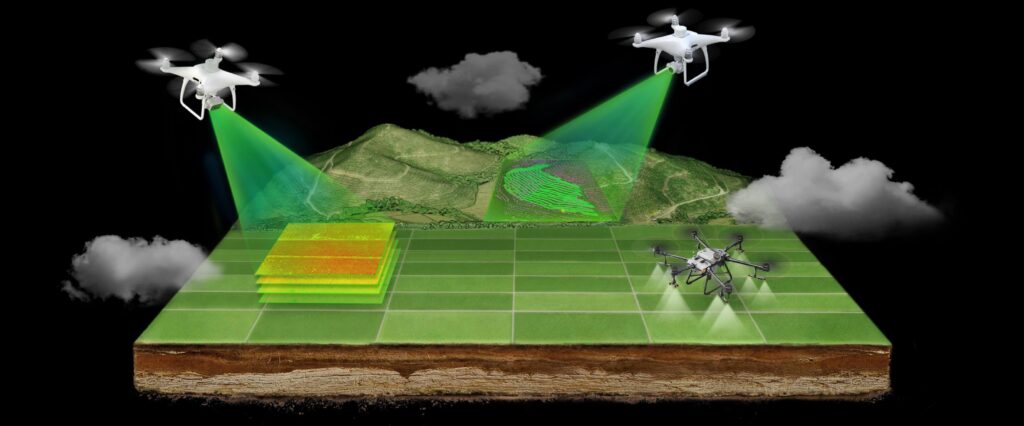

    Cloud-Based 3D Farming: Digital Agriculture is Here

    With the Smart Agriculture Cloud Platform, users can perform cloud-based mapping of orchard and farmland scenarios to generate smart flightpaths. This platform is equipped with an AI recognition system to patrol fields, identify growth, monitor disease or pests, and monitor agricultural conditions efficiently. Pairing this system with the DJI P4 Multispectral allows users to apply solutions based on specific variables according to an automatically-generated farmland prescription map.

    Specs

    Feature

    Hourly work efficiency 40 acres
    High-precision radar √ Spherical Omnidirectional Radar System
    Remote control planning accuracy √ (RTK/GNSS)
    Pipe air exhaust √ One button Air Discharge
    3D operation planning by the AI smart engine
    High-precision flowmeter √ (Dual-channel electromagnetic flowmeter with an error of ±2%)
    Level gauge Continuous level gauge (with real-time pesticide load detection and intelligent supply-point prediction)
    Maximum spray flow
    • 7.2L/min (with the XR11001 nozzle)
    • 8L/min (with the XR110015 optional nozzle)
    Pesticide tank installation method Fixed pesticide tank
    Battery installation method Removable batteries
    Single remote control for multiple drones √ (Single remote control for up to three drones)
    D-RTK technology
    Top-view radar module
    Flight laser function
    Intelligent endurance/return function
    Intelligent supply-point prediction
    Front-view FPV
    Rear-view FPV
    Coordinated turning function
    Branch targeting technology

    Drone parameters

    Total weight (without batteries) 26.4 kg
    Maximum take-off weight 78 kg (near sea level)
    Maximum thrust-to-weight ratio 1.70 @ takeoff weight of 66.5 kg
    Hovering precision (with good GNSS signal) With D-RTK enabled:
    ±10 cm (horizontal) and ±10 cm (vertical)
    With D-RTK disabled:
    ±0.6m (horizontal) and ±0.3m (vertical) (with the radar function enabled: ±0.1m)
    RTK and GNSS frequency bands
    • RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5
    • GNSS: GPS L1, GLONASS F1, and Galileo E1
    Maximum power consumption 11,000 W
    Hovering power consumption 10,000 W (@ takeoff weight of 66.5 kg)
    Hovering endurance
    • 20.5min (@29,000 mAh & takeoff weight of 36.5 kg)
    • 7.8min (@29,000 mAh & takeoff weight of 66.5 kg)
    Maximum pitch angle 15°
    Maximum operating flight speed 7 m/s
    Maximum level speed 10 m/s (with good GNSS signal)
    Maximum tolerable wind speed 6 m/s
    Maximum flight altitude 4,500m
    *Reduce the pesticide load by 12% for each increase of 1,000 meters in altitude.
    Recommended operating ambient humidity < 93%
    Recommended operating ambient temperature 0℃ to 45℃

    Chassis parameters

    Maximum rotor distance 2,145 mm
    Dimensions
    • 2,858 mm × 2,685 mm × 790 mm (with arms and blades unfolded)
    • 2,030 mm × 1,866 mm × 790 mm (with arms unfolded and blades folded)
    • 1,170 mm × 670 mm × 857 mm (with arms folded)

    Power system – Motor

    Stator size 100×18 mm
    KV value 77 rpm/V
    Maximum pull 18.7 kg/rotor
    Maximum power 3,600 W/rotor
    Weight 756 g

    Power system – Propellers

    Diameter × pitch 38×20 inch
    Weight (with a single blade) 106 g

    Power system – ESC

    Maximum operating current (continuous) 60 A
    Maximum operating voltage 60.9 V (14S LiPo)

    FPV cameras

    View angle (FOV) Horizontal: 129°, vertical:82°
    Resolution 1,280×720 15-30 fps

    FPV searchlights

    Maximum light intensity 13.2 lux @ 5-meter direct light

    Spraying system – Operation tank

    Operation tank volume 30L at full load
    Operating load 30 kg at full load

    Spraying system – Nozzles

    Nozzle model SX11001VS (standard)
    SX110015VS (optional)
    Fruit tree drones: TX-VK04 (optional)
    Nozzle quantity 16
    Maximum spray flow SX11001VS: 7.2L/min
    SX110015VS: 8L/min
    TX-VK4:3.6 L/min
    Atomized particle size SX11001VS : 130 – 250 μm
    SX110015VS : 170 – 265 μm
    TX-VK4: 110 – 135 μm
    (depending on the actual operating environment, spray flow, and other factors)
    Maximum effective spray width 4-9 m (with 12 nozzles and a distance of 1.5 to 3 meters to crops)

    Spraying system – Water pump

    Water pump model Plunger pump
    Operating voltage 60 V
    Maximum flow 4 L/min ×1

    Spraying system – Flowmeter

    Flow measurement range 0.25 – 20 L/min
    Flow measurement error < ±2%
    Measurable liquid Conductivity > 50 μS/cm, typical liquids: Tap water or aqueous organic or inorganic pesticides

    Omnidirectional obstacle avoidance radar

    Model RD2424R
    Operating frequency SRRC/NCC/FCC: 24.05 – 24.25 GHz
    MIC/KCC/CE: 24.05 – 24.25 GHz
    Operating power consumption 12 W
    Equivalent isotropic radiated power (EIRP) SRRC: < 13 dBm; NCC/MIC/KCC/CE/FCC:< 20 dBm
    Height maintenance and terrain adaptation Height measurement range: 1-30 m
    Height-maintenance range: 1.5-15 m
    Maximum slope in mountain mode:35°
    Obstacle avoidance system Perceivable distance: 1.5-30 m
    View angle (FOV): Horizontal: 360°, vertical: ±15°
    Conditions of use: The relative altitude of the drone must be greater than 1.5 m and the speed less than 7 m/s
    Safety distance: 2.5 m (the distance between the tip of the propeller and the obstacle after the drone decelerates to a hover)
    Obstacle avoidance direction: Horizontally omnidirectional obstacle avoidance
    Water-resistance rating IP67

    Top-view radar

    Model RD2414U
    Operating frequency SRRC/NCC/FCC:24.05 – 24.25 GHz
    MIC/KCC/CE:24.05 – 24.25 GHz
    Overhead obstacle avoidance Perceivable distance: 1.5-10 m
    View angle (FOV): 80°
    Conditions of use: During take-off, landing, and climbing when the relative distance between the drone and the object above is greater than 1.5 m
    Safety distance: 2 m (the distance between the highest point on the top of the drone and the obstacle after the drone brakes and hovers stably)
    Obstacle avoidance direction: Above the drone
    Water-resistance rating IP67
    Equivalent isotropic radiated power (EIRP) SRRC:< 13 dBm; NCC/MIC/KCC/CE/
    FCC:< 20 dBm
    Operating power consumption 4 W

    Battery

    Model BAX501-29,000mAh-51.8V
    Weight Approximately 10.1 kg
    Discharge rate 11.5C
    Water-resistance rating IP54 with board-level potting protection
    Capacity 29,000 mAh
    Voltage 51.8 V

    Remote control

    Model RM500-ENT
    Operating frequency of the Ocusync Industry Edition 2.4000 – 2.4835 GHz
    5.725 – 5.850 GHz
    Effective signal range at the Ocusync Industry Edition operating frequency (without interference and blockage) SRRC: 5 km; MIC/KCC/CE: 4 km; FCC: 7 km
    (measured when the operating height of the drone is 2.5 m)
    EIRP of the operating frequency of the Ocusync Industry Edition 2.4 GHz
    SRRC/CE/MIC/KCC: 18.5 dBm;
    FCC: 29.5 dBm;
    5.8 GHz
    SRRC: 20.5 dBm;
    FCC: 28.5 dBm
    CE:12.5 dBm
    Wi-Fi protocols Wi-Fi Direct, Wireless Display, and 802.11a/g/n/ac
    Supports 2 × 2 MIMO Wi-Fi
    Wi-Fi operating frequency 2.4000 – 2.4835 GHz
    5.150 – 5.250 GHz
    5.725 – 5.850 GHz
    Wi-Fi EIRP 2.4 GHz
    SRRC/CE: 18.5 dBm; FCC/MIC/KCC:20.5 dBm;
    5.2 GHz
    SRRC/FCC/CE/MIC: 14 dBm; KCC: 10 dBm;
    5.8 GHz
    SRRC/FCC: 18 dBm; CE/KCC: 12 dBm;
    Bluetooth protocol Bluetooth 4.2
    Bluetooth operating frequency 2.4000 – 2.4835 GHz
    Bluetooth EIRP SRRC/MIC/FCC/CE/KCC:6.5 dBm
    Positioning GPS+GLONASS dual mode
    Display screen 5.5-inch screen with a resolution of 1920×1080, brightness of 1,000 cd/m², and Android OS
    Operating memory (RAM) 4GB LPDDR4
    Storage space (ROM) A microSD card with 32 GB and extensible storage space for up to 128 GB, transfer speed rated as UHS-I Speed Grade 3
    HDMI HDMI 1.4
    Supported drones T30 and T10 agricultural drones
    Operating power consumption 18 W
    Operating ambient temperature -10℃ to 40℃
    Storage ambient temperature -30℃ to 60℃ (within 1 month)
    -30℃ to 45℃ (more than 1 month and less than 3 months)
    -30℃ to 35℃ (more than 3 months and less than 6 months)
    -30℃ to 25℃ (more than 6 months)
    (with built-in batteries charged to 40% to 60%)
    Charging ambient temperature 5℃ to 40℃

    Built-in batteries of the remote control

    Built-in batteries 18650 lithium-ion battery (5,000 mAh at 7.2V)
    Battery life 2 hours
    Charging method Use a standard 12V/2A USB fast charger
    Charging time 2.5 hours (use the 12V/2A USB fast charger when the remote control is powered off)
    Power supply current/voltage of the remote control USB-A port 5 V / 1.5 A

    External smart battery of the remote control

    Model WB37-4,920mAh-7.6V
    Battery type 2S LiPo
    Capacity 4,920 mAh
    Voltage 7.6 V
    Capacity 37.39 Wh
    Charging ambient temperature 5℃ to 40℃
    Battery life 2 hours

    Charging assistant of the remote control external smart battery

    Model WCH2
    Input voltage 17.3 – 26.2 V
    Output voltage and current 8.7V and 6A
    Operating ambient temperature 5℃ to 40℃

    Power adapter of the external smart battery charging assistant

    Model A14-057N1A
    Input voltage 100 – 240V and 50/60 Hz
    Output voltage 17.4 V
    Rated power 57 W

    T30 Spreading System 3.0

    Spreading system weight 3.9kg
    Maximum opening area 44.6 cm²
    Applicable materials Solid dry particles with a diameter of 0.5 to 5 mm
    Spreading tank volume 40L
    Maximum load of the spreading tank 35kg
    Water-resistance rating IP67
    Input voltage Power: 60V
    Control:15V
    Maximum power 60V@250W
    15V@50W
    Recommended operating ambient temperature 0℃ to 40℃
    Dimensions 560×435×320mm
    Maximum rotation speed 1,300 RPM

    T30 smart charging manager

    Dimensions 300×280×230 mm
    Total weight 11.5 kg
    Input voltage 100-264 Vac
    Output voltage 40-60 V
    Rated power 7,200
    Charging current 120 A
    Charging time Fully charges a battery in 9 to 12 minutes
    Charging voltage accuracy +/-0.1 V
    Charging current accuracy +/-1 A
    Output channel quantity 2
    Protection functions Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection
    Charging ambient temperature -20℃ to 45℃
    Charging safety AC wire protection, power wire protection, and charge connector protection

    Notes

    The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

    Others

    Guaranteed software updates until
