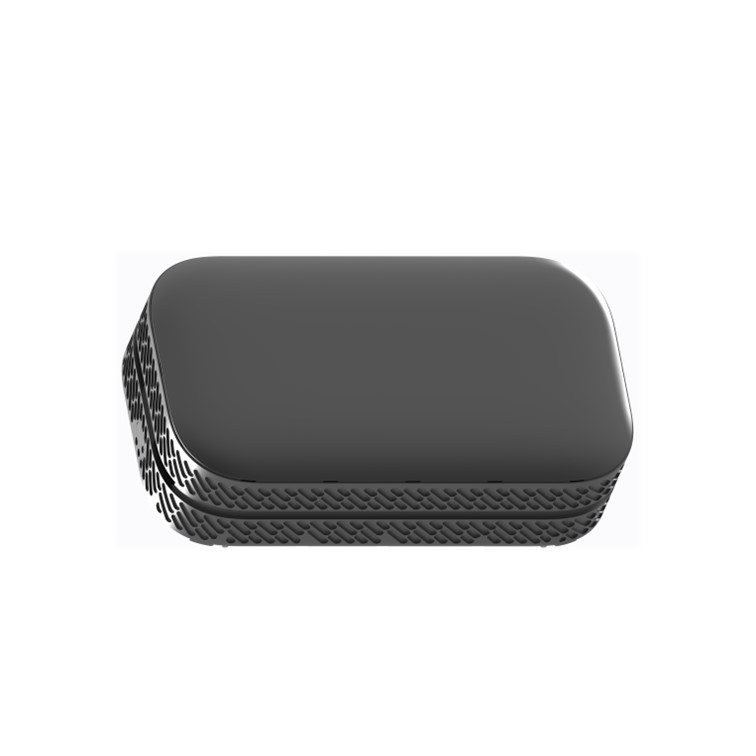

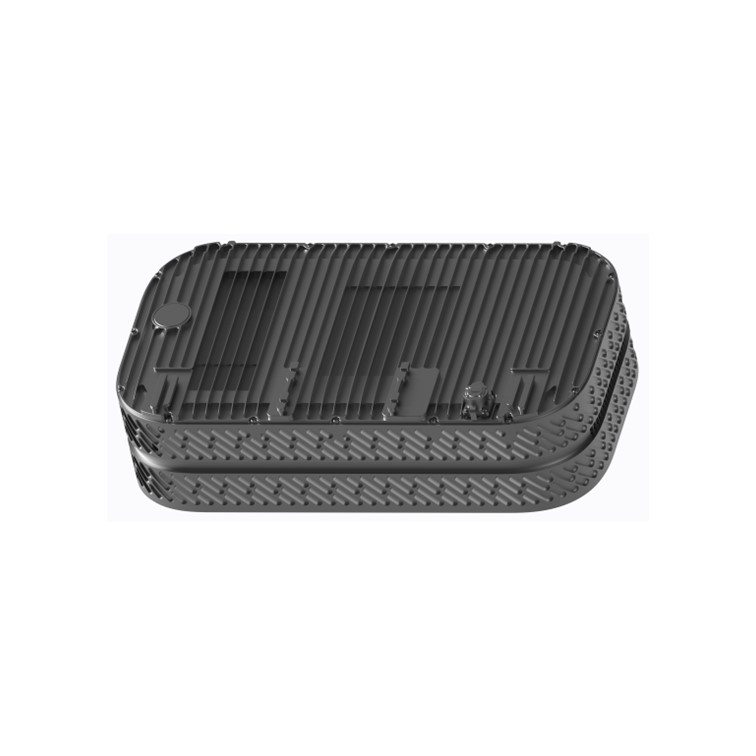

Drone-Mounted IMSI Catcher IMSIX02

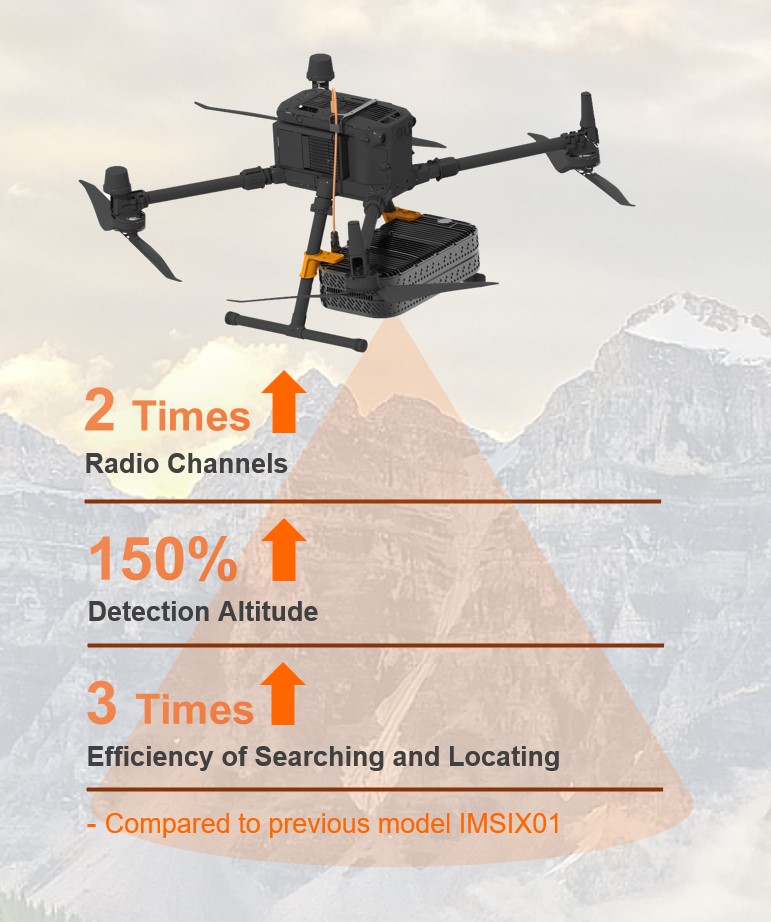

IMSIX02 is an advanced airborne cellular intelligence solution built on the DJI M350 RTK. It can search, track, and locate mobile phones by identifying their IMSI numbers. Compared to its predecessor, IMSIX01, it offers three times higher search and locating efficiency and a 50% increase in detection altitude. Additionally, its enhanced automatic sensing of public networks and auto-configuration of network parameters significantly improve ease of use for mission operators.

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Features

    The drone-mounted IMSI Catcher IMSIX02 is an advanced airborne cellular intelligence solution built on the DJI Matrice 350 RTK platform. It can search, track, and locate mobile phones by identifying their IMSI numbers. Compared to its predecessor, IMSIX01, it offers three times higher search and locating efficiency and a 50% increase in detection altitude. Additionally, its enhanced automatic sensing of public networks and auto-configuration of network parameters significantly improve ease of use for mission operators.

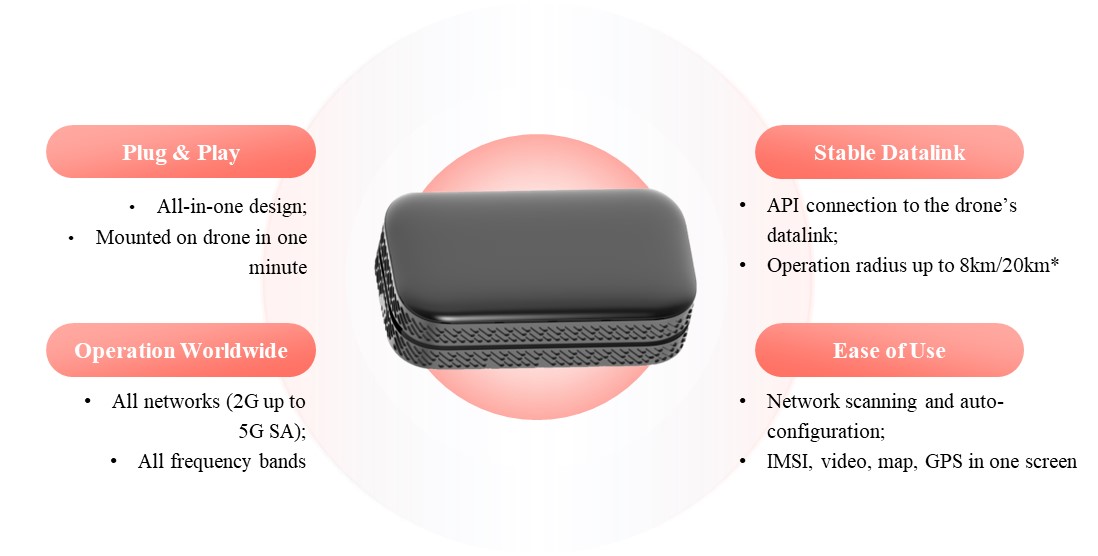

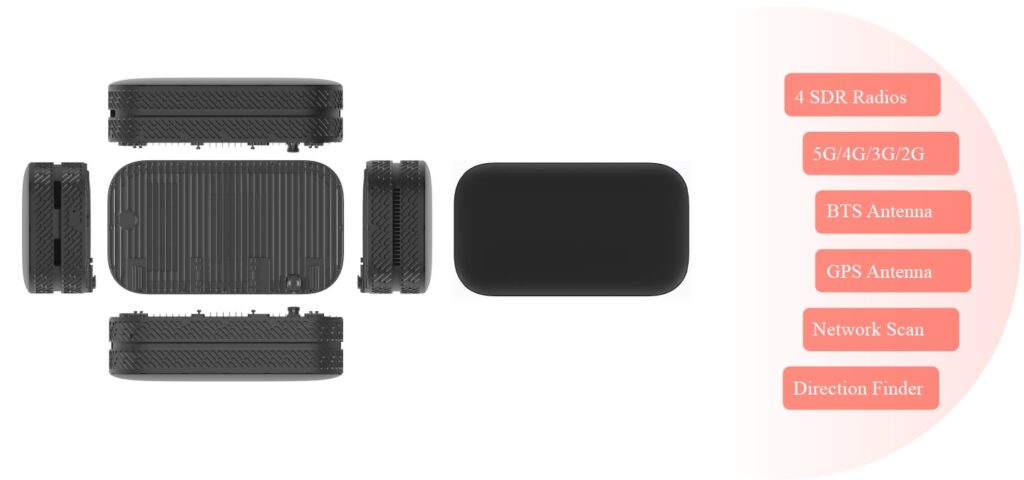

    The IMSI Catcher, powered by software-defined radio, supports multiple telecommunication standards, including GSM (2G), WCDMA (3G), LTE (4G), 5G NSA, and 5G SA, ensuring adaptability to network evolution over the next decade. Designed as a highly integrated, plug-and-play system, it can be mounted on the drone within a minute, enabling rapid deployment without the need for time-consuming installation or complex calibration procedures.

    Seamlessly integrated with the DJI drone’s data transmission system, the airborne IMSI Catcher ensures uninterrupted operation within a radius of up to 8km (CE/SRRC/MIC) / 20 km (FCC)*. The software application (APP) runs on the drone’s remote controller or an Android tablet, logging all detected data with GPS and timestamping for post-mission analysis.

    Engineered for global deployment, the system’s hardware supports networks and frequency bands in almost every country. Its intelligent software autonomously detects public networks in any region, enabling the identification of both domestic and international roaming users.

    *According to DJI specifications, the maximum distance is under the condition of “unobstructed, free of interference” environment.

    Key facts

    400 meters

    Max Detection Height

    5 km

    Max Operation Distance

    could be Customized

    Compatibility to Different Drones

    26mins

    Max Operating Time
    One pair of batteries

    50℃

    Max Operating Temperature

    5days

    Training Time

    Application Scenario

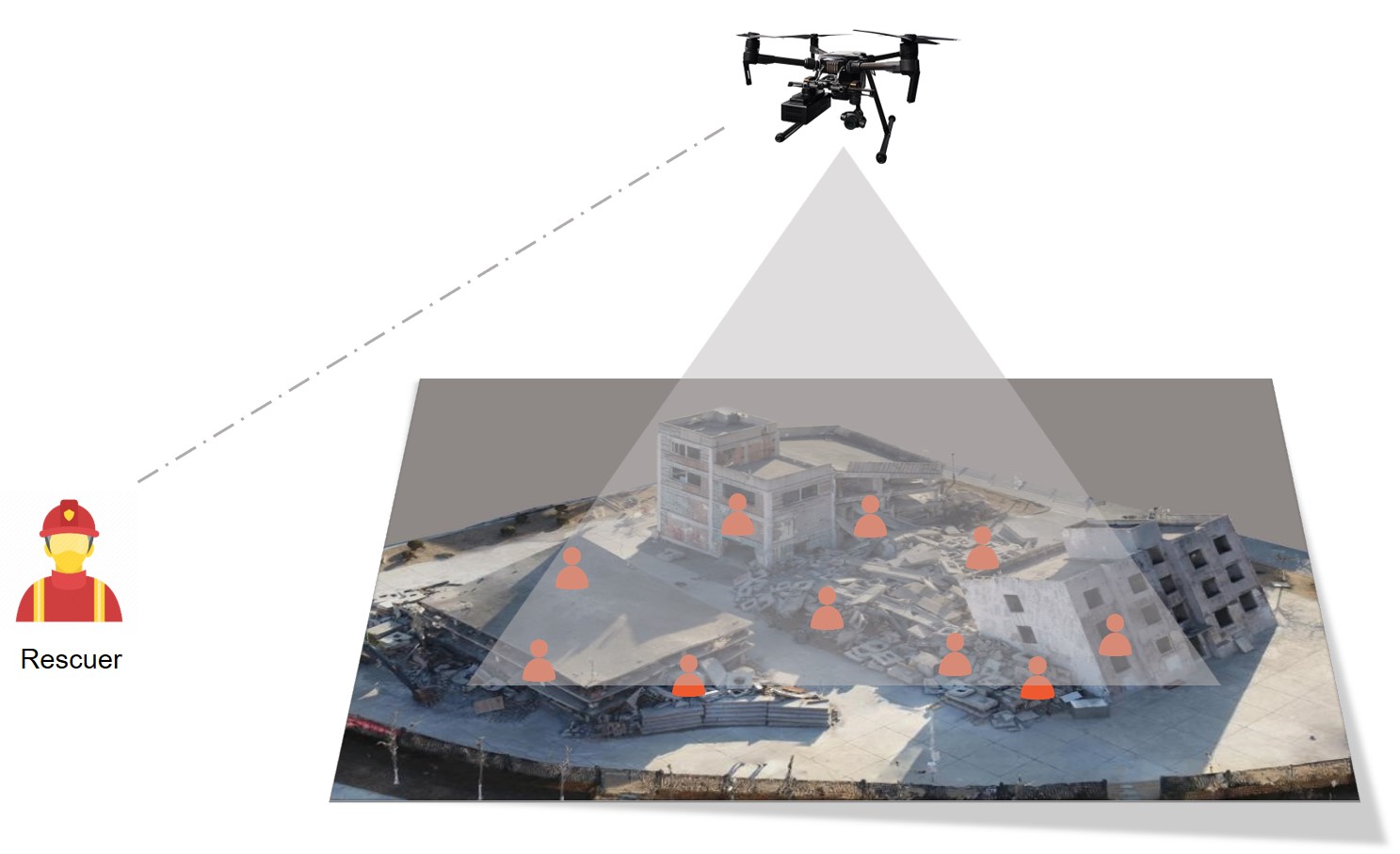

    Search and Rescue

    Search

    Search and locate missing persons efficiently in a big area; Reach further, higher and wilderness.

    Detection

    Detect visible and invisible targets, at day and night, in all kinds of weather conditions.

    Save

    Save time of searching with mobility and speed, and thus save lives.

    Result

    Show the presence, number and location of targets; Support subsequent emergency rescue.

    Earthquake
    Firefighting
    Forest
    Mountain

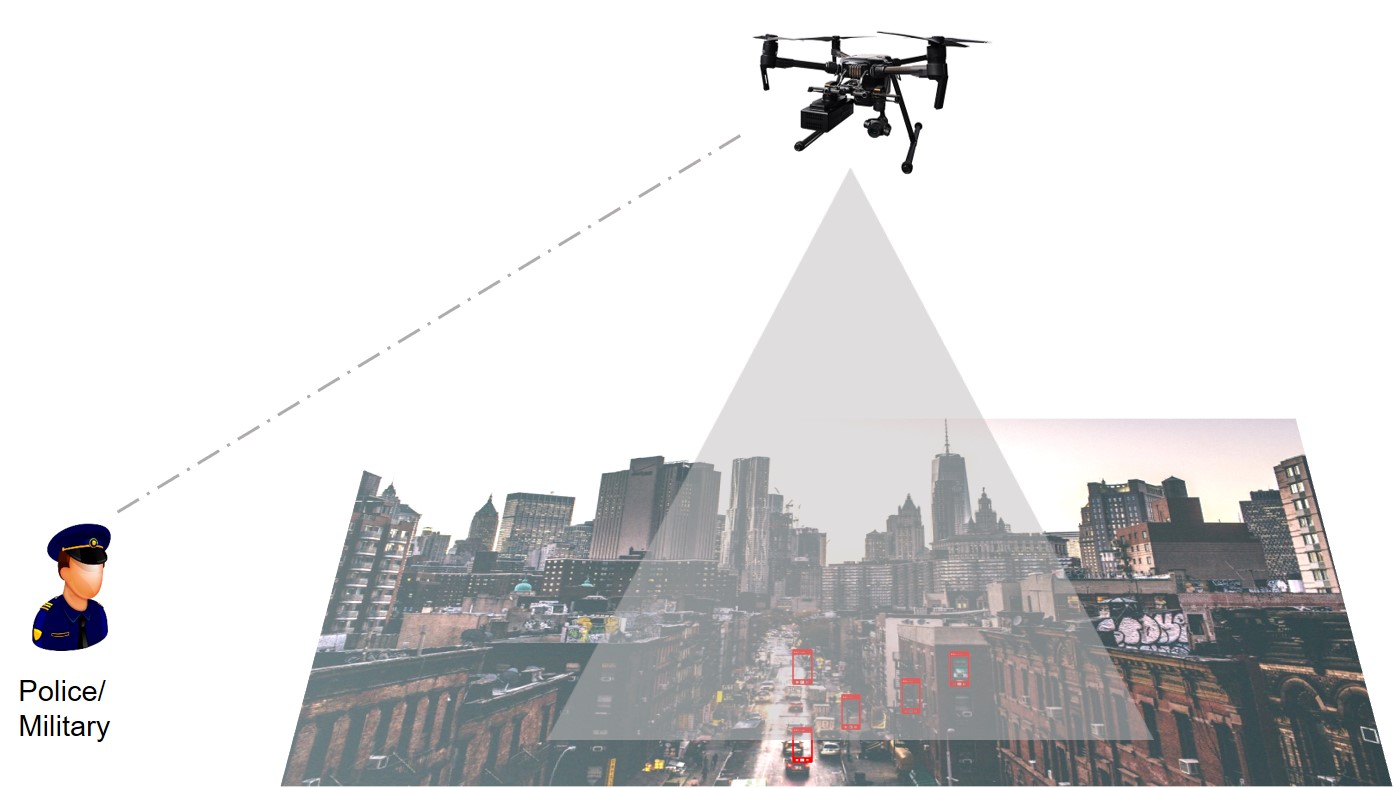

    Law Enforcement Surveillance

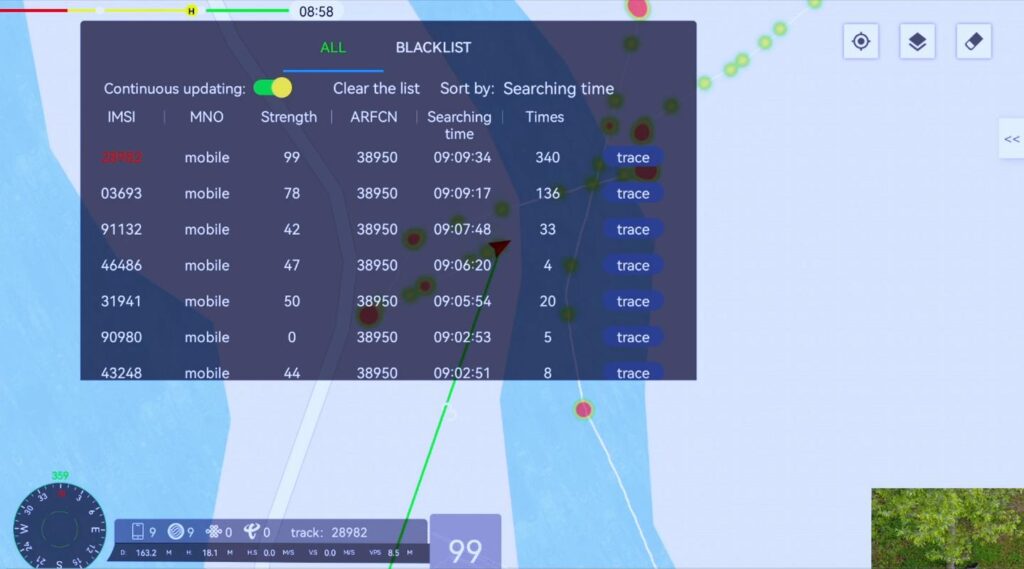

    IMSI Search Result

    Flight control, map, image & video, mission setting and IMSI search results are all displayed in one screen.

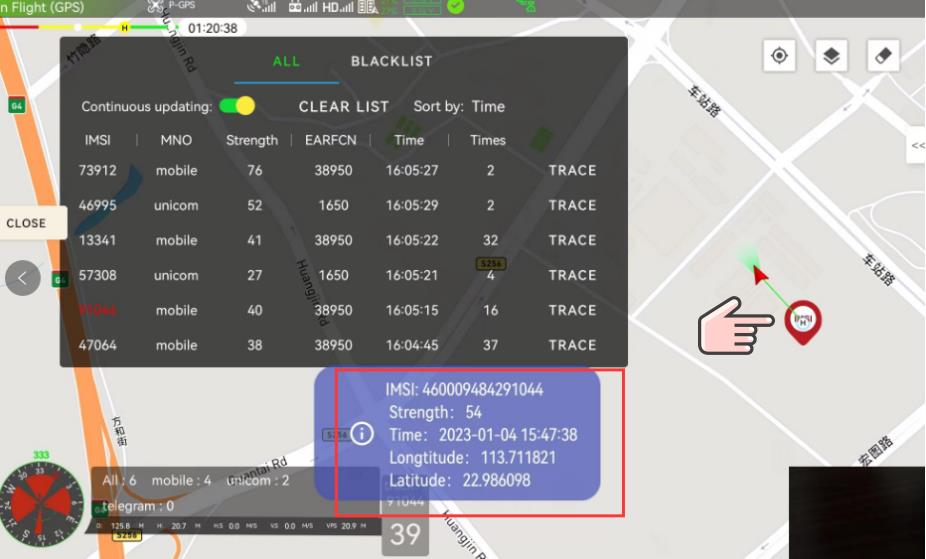

    Geolocation Result of Target

    GPS location of the target is measured and shown on screen.

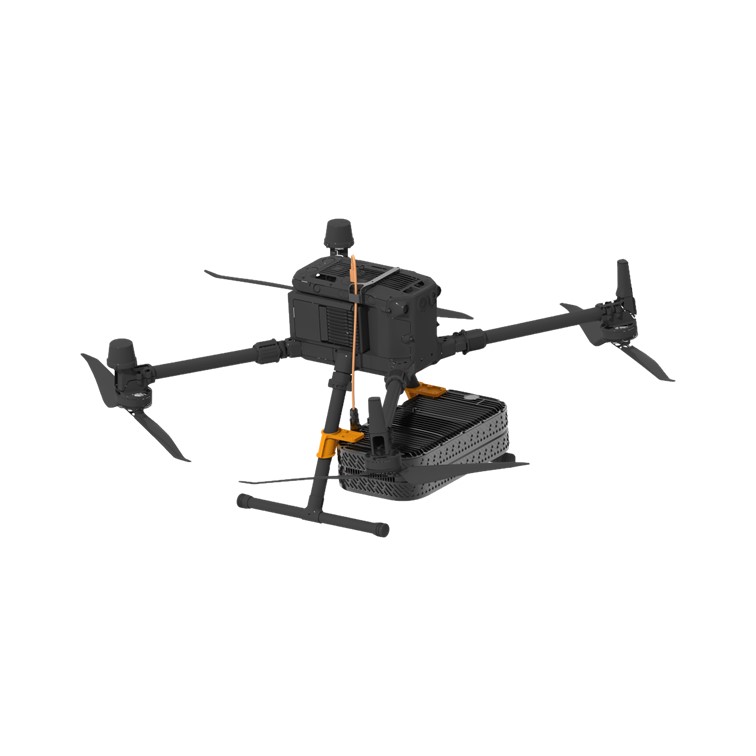

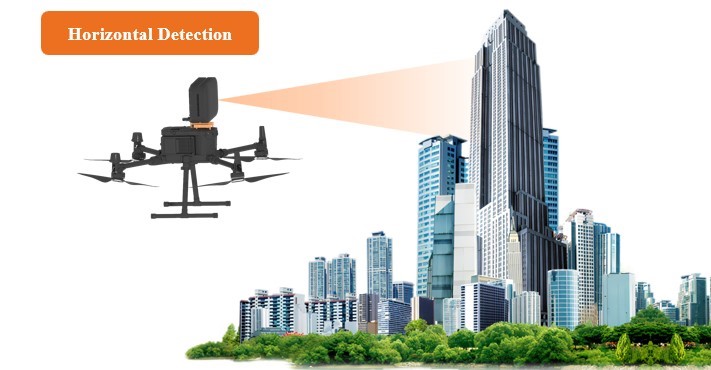

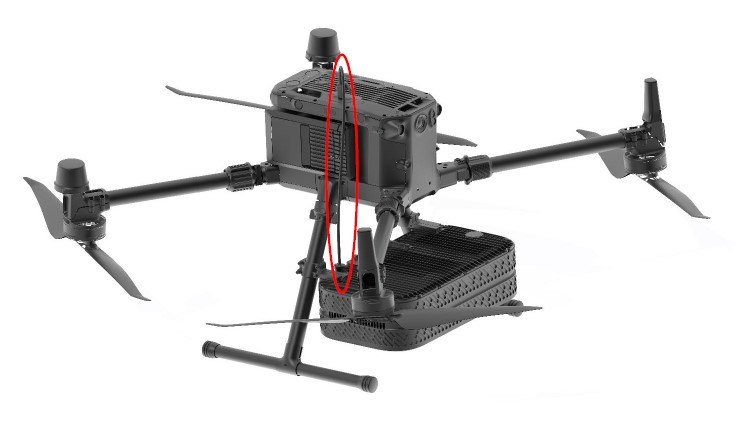

    Two mounting options

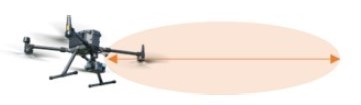

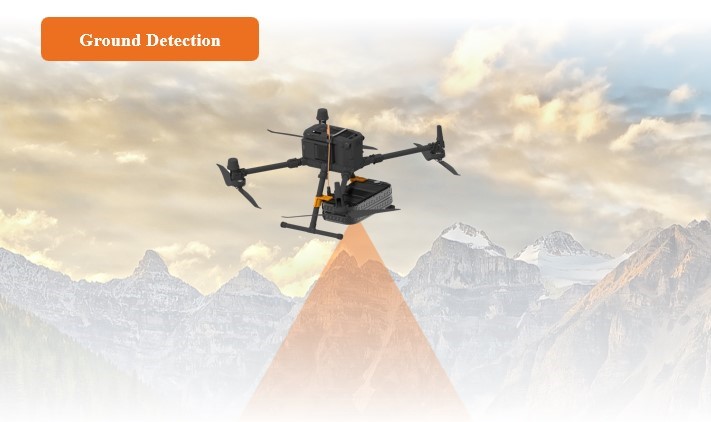

    To accommodate various user requirements across different application scenarios, the airborne IMSI Catcher offers two mounting options. It can be installed beneath the drone’s belly for searching and locating targets from the air to the ground. Alternatively, it can be mounted on top of the drone with the antenna facing horizontally, enabling effective target detection and location in high-rise buildings within metropolitan areas.

    Specs

    Items Parameters
    Frequency Bands 700-2690MHz, 3300-3800MHz
    Network Standards 2G, 3G, 4G, 5G SA&NSA, FDD&TDD
    Radio Channels 4 (simultaneous)
    Radio Power/Channel 2W
    Detection Height Up to 400m
    Detection Range Up to 560m diameter under the drone
    Max Operation Distance Up to 5km in actual environment
    Number of Phones Detected 800 terminals/min
    Endurance Up to 26 mins per pair of batteries
    Weight 2.5kg
    Required UAV DJI Matrice 350RTK
    Linking to Command Center Supported (roadmap)
    Operating Temperature -10~50℃
