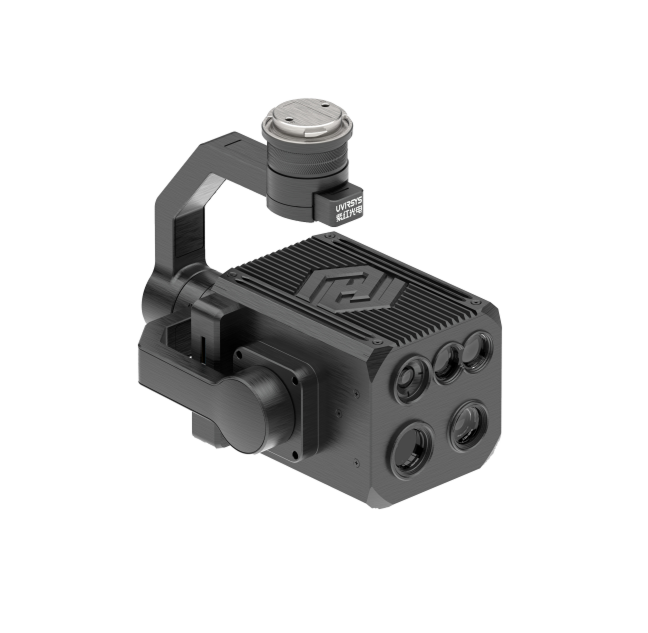

UVIRSYS ZH580-UAV-S

UVIRSYS ZH580-UAV-S

The ZH580-UAV-S is a drone carried multi-spectral imaging system with high integration of UV, IR, visible and laser, which has characteristics of integrated design, lightweight, multi-spectral and quick-handling. Developed based on the PSDK platform, through the high-precision special pan-tilt quickly docking M300RTK and other mainstream drones. Images were fused by high-precision image registration to obtain the exact location of corona discharge, temperature anomaly, missing damage and other defects. ZH580-UAV-S is very suitable for UAVS transmission and distribution lines, railway lines, substations, forest fire prevention, operation and maintenance services and other industries.

Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Download brochure
    Features
    Specs

    Features

    Standard Pan-Tilt
    Stable gimbal platform

    High Integration
    All-in-one system

    Individual Operation
    Standalone functionality

    Joint Diagnosis
    Collaborative analysis

    Quality Service
    Professional support

    Multi-Spectral Payload
    • Standard Pan-Tilt & Excellent Shock-Resistance
    • High Integration of UV, IR, VIS & Laser
    • Individual Operation & Quality and Efficiency
    • 4-in-1 Multi-Spectral Joint Diagnosis
    • Secured Equipment & Good After-Sale Service
    • Drone Pilot and UV Photography Certificate

    Specs

    ZH580-UAV-S

    Dimension
    118 × 83 × 58mm
    Weight (Without Pan-Tilt)
    550g
    Weight (With Pan-Tilt)
    900g
    Protection Class
    IP54
    Accessories
    Pan-tilt, Mainframe, 64G card, Micro SD, Manual, Carrying case

    UV Properties

    Spectral Range
    240–280nm
    Discharge Sensitivity
    1Pc @10m
    RIV Sensitivity
    3.6 dBμV(RIV) @1MHz @10m
    UV Sensitivity
    3.0×10⁻¹⁸ watt/cm²
    FOV
    20° × 11.2°
    Gain
    0–100%

    VIS Properties

    FOV
    9°–52°
    Sensitivity
    0.1 Lux
    Sensor Size
    20 × 30mm
    Digital Zoom
    10×

    Display & Output

    Display Mode
    UV, IR, VIS, UV+VIS, UV+IR, UV+IR+VIS
    Overlay Accuracy
    ≤1mrad
    Display Control
    UAV flight control
    Resolution
    1280 × 720
    Threshold Alarm
    Photon number, temperature reading settings
    Image Format
    JPG & RAW
    Video Format
    MP4 / H.264
    Corona Colors

    Red
    White
    Blue
    Yellow
    Cyan
    Green
    Magenta

    Status Information

    Mode
    Gain
    Counting
    Color
    Temperature
    Alarm

    IR Properties

    Band
    8–14μm
    Temperature Range
    -20°C ~ +550°C
    Pixel & Size
    640 × 512 / 12μm
    FOV
    46° × 37°
    Focus
    Fixed Focus
    Digital Zoom
    1–4×

    Drone

    Options
    Optional
    Dimensions (Unfold)
    810 × 670 × 430mm
    Dimensions (Fold)
    430 × 420 × 430mm
    Weight
    3.6kg / 6.3kg (with two batteries)
    Maximum Load
    2.7kg
    Flight Altitude
    5000m
    Wind Speed
    15m/s
    Flight Time
    55 min
    IP Rating
    IP45
    Operation Temp
    -20°C ~ +55°C
    Humidity
    ≤90%RH
