Features

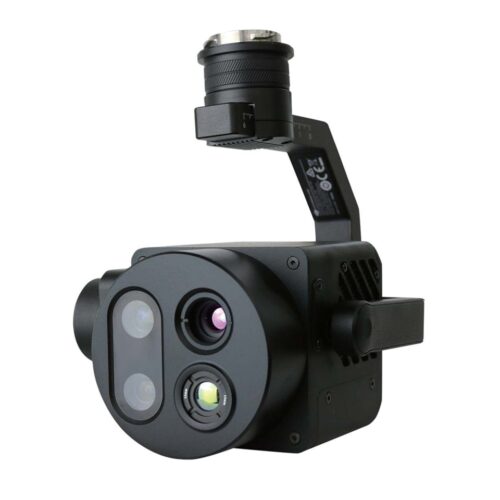

7-band multispectral camera Ysense AQ300 Pro
- 5 multispectral+1 SWIR+1 LWIR channels
- Multi-spectral channel 1.3 Mpx
- DJI X-Port power supply, 64G TF card
- Fastest 0.5s synchronous imaging in all bands
- Multiple trigger modes for timing, and overlap ratio Customized for DJI M300/M350 RTK UAV,Plug and play On-board real-time spectrum inversion and video output
- It meets the application needs of agricultural monitoring, ecological environmental protection, emergency search and rescue, camouflage identification and other industries.
Product advantages
- Direct output of LWIR temperature data
- SWIR transmits through smoke and is sensitive to water content
- Acquire multi-source, multi-temporal and multi-modal remote sensing image
- Multi-spectral, short wave infrared support band or filter form customization
Typical application
Vegetation moisture monitoring
Shortwave infrared can sensitively detect the moisture content of plant leaves, and comprehensively evaluate the growth health of crop canopy combined with the calculation results of spectral factors and vegetation index, which provides a more directional data basis for field management.
Investigation of water environment
With reference to the surface water evaluation standard, the classification index was constructed by using the spectral characteristics, and the spatial distribution of eutrophication, black and odorous water, thermal sewage and other domestic and industrial waste-water pollution was characterized by combining with the long-wave infrared temperature data, which provided data support for the investigation of pollution sources and the assessment of water environment.
Emergency rescue
Based on the precise detection of thermal radiation sources in long-wave infrared band, combined with the smoke penetration ability of short-wave infrared, it provides image support in emergency management work such as forest search and rescue, fire point monitoring and so on.
Camouflage identifïcation
Short wave infrared (SWIR) has the ability to penetrate fog and smoke, and has high sensitivity to spectral reflection of different materials, supplemented by multi-spectral, long wave infrared and other multi-source remote sensing bands, it can identify sensitive targets such as camouflage camouflage.
