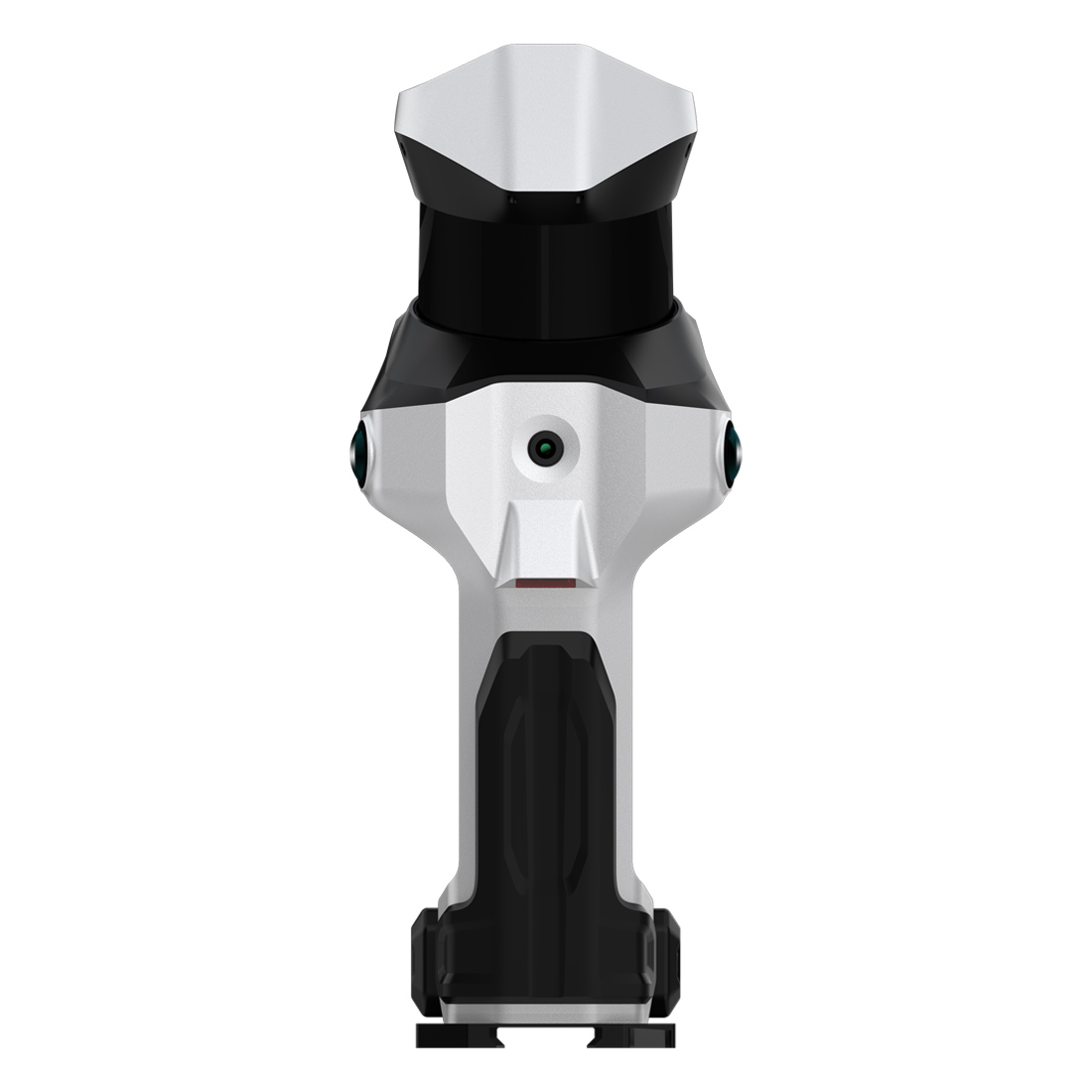

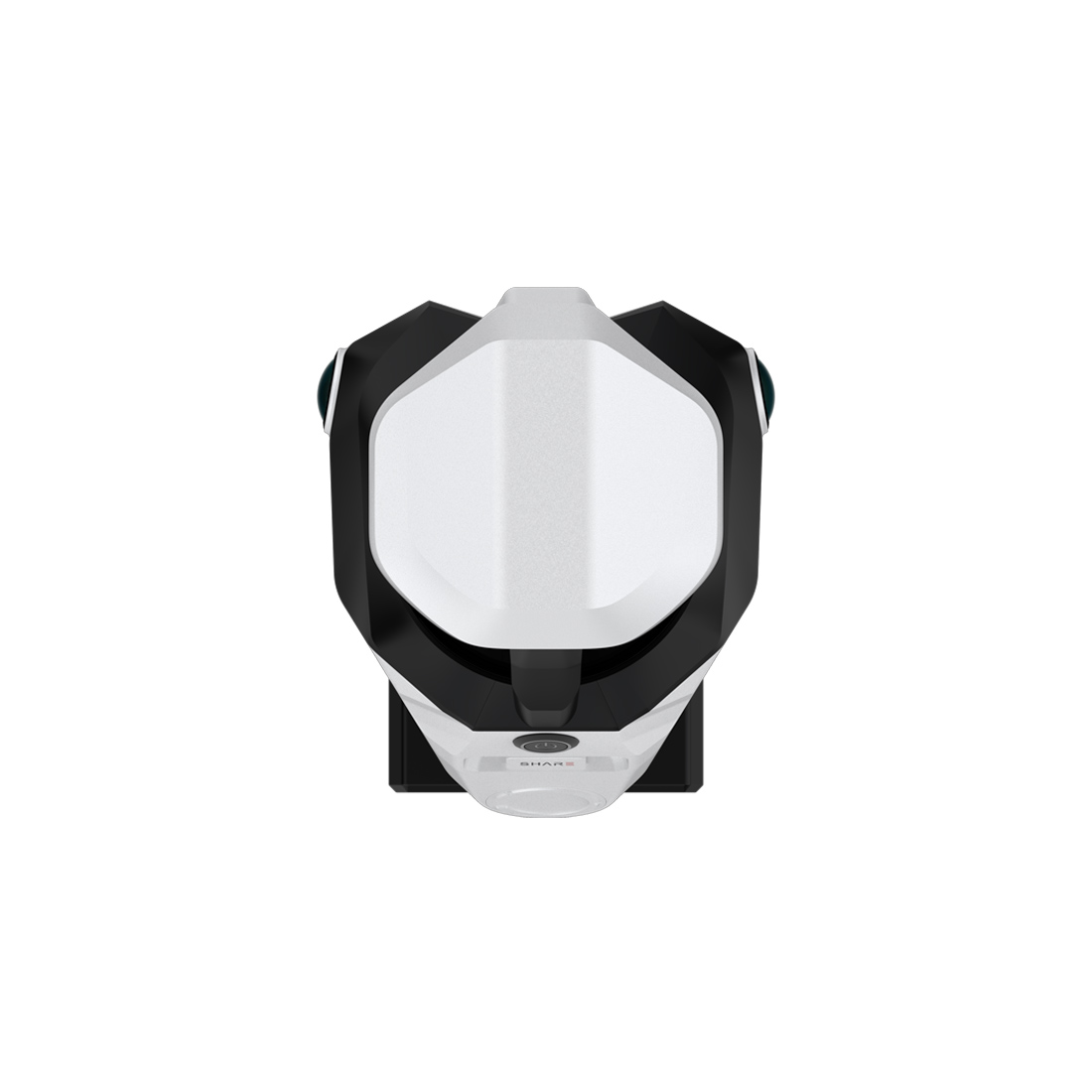

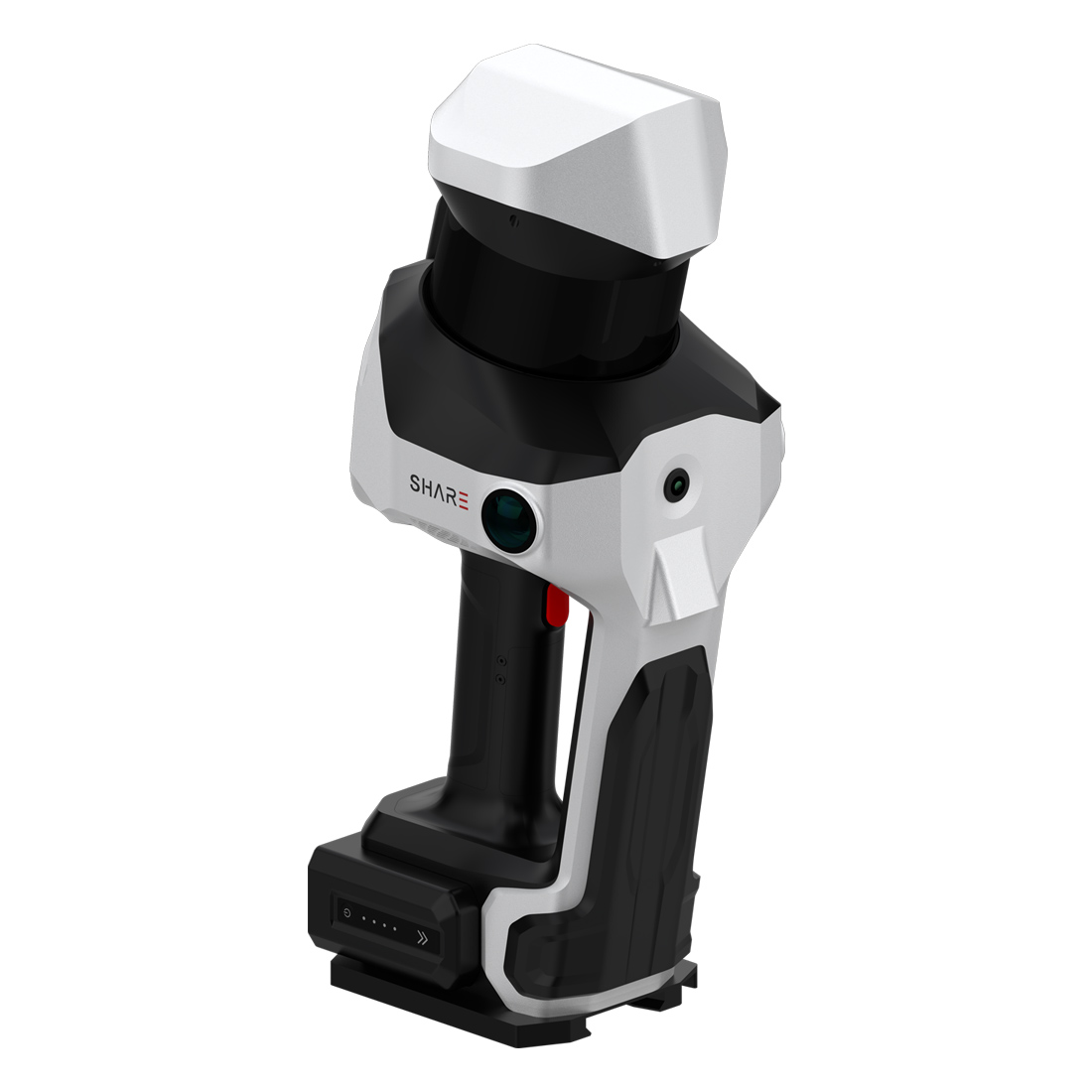

SHARE SLAM S100 3D Handheld Imaging LiDAR Scanner

SLAM100 Handheld LiDAR Scanner has a 360°rotating head, which can form a 270°x360° point cloud coverage. Combined with the industry-level SLAM algorithm, it can obtain high-precision three-dimensional point cloud data of the surrounding environment even without light and GPS signal.

Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Download brochure
    Features
    Specs

    Features

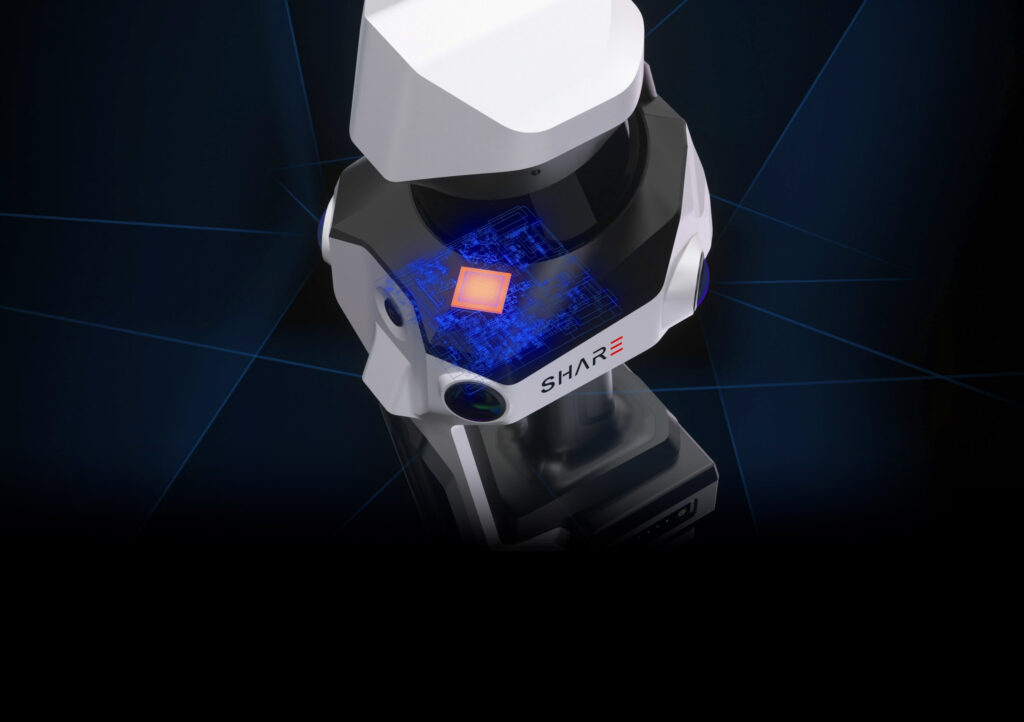

    High-Precision LiDAR

    Equipped with a 16-channel or 32-channel mechanical rotating LiDAR, delivering point rates of up to 640,000 points per second①. Powered by SHARE’s proprietary SLAM algorithms, it generates dense, high‑accuracy point‑cloud data with thickness under 5 mm and relative accuracy better than 1 cm.

    ①SHARE SLAM S100-32, SHARE SLAM S100-32 PRO

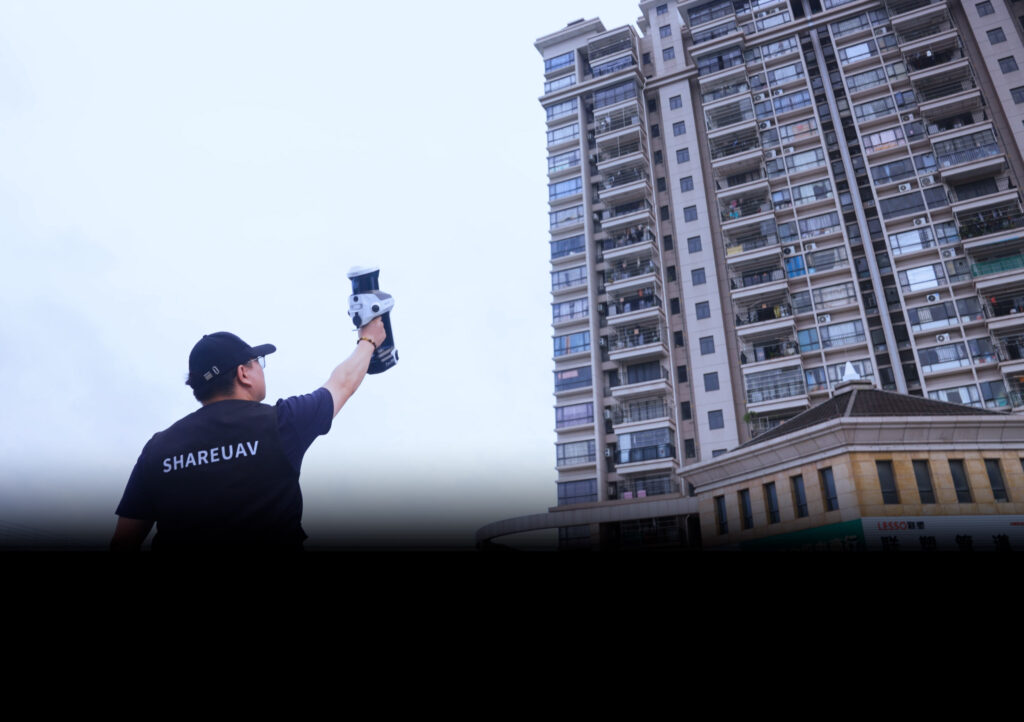

    Ultra‑Long Measurement Range of up to 300 Meters

    With exceptional long‑distance sensing capability, it supports an ultra-long measurement range of up to 300 meters②, delivering detailed point clouds for both nearby details and distant structures, thereby enhancing both scanning efficiency and model quality.

    ②SHARE SLAM S100-32 PRO

    Ultra‑HD Imaging, Enhanced Point‑Clouds

    Featuring a built‑in 1‑inch mechanical‑shutter mapping wide‑angle camera, it rapidly captures ultra‑high‑definition true‑color images for precise point cloud colorization. The S100‑32 PRO further enhances capabilities with four 20-megapixel wide-angle cameras and an independent 5 nm ISP imaging platform, delivering a broader field of view and finer texture details—faithfully reproducing the real world down to the millimeter.

    Next-Generation RTK for Precise Positioning

    The new RTK module features an integrated professional‑grade surveying antenna design, delivering enhanced phase‑center stability, superior anti‑interference and anti-multipath capabilities, along with improved satellite signal tracking—providing more reliable centimeter-level accuracy.

    3‑Hour Extended Operation

    To meet the demands of continuous data capture in large‑scale environments, the S100 Series adopts a dual‑battery redundant design, delivering up to 3 hours of runtime. The batteries support hot‑swap functionality, enabling uninterrupted operation.

    Supports PPK Post‑Processing Operations

    The device supports PPK post‑processing mode, compatible with both self‑built base stations and cloud‑based PPK. Even in RTK-denied environments such as mountains or deserts, it reliably delivers results with precise geospatial information.

    Ergonomically Designed Load-Bearing System

    The S100 Series features an ergonomically designed load‑bearing system that significantly enhances operational comfort and mobility. It reduces physical strain during long-term operation, making fieldwork more efficient and effortless.

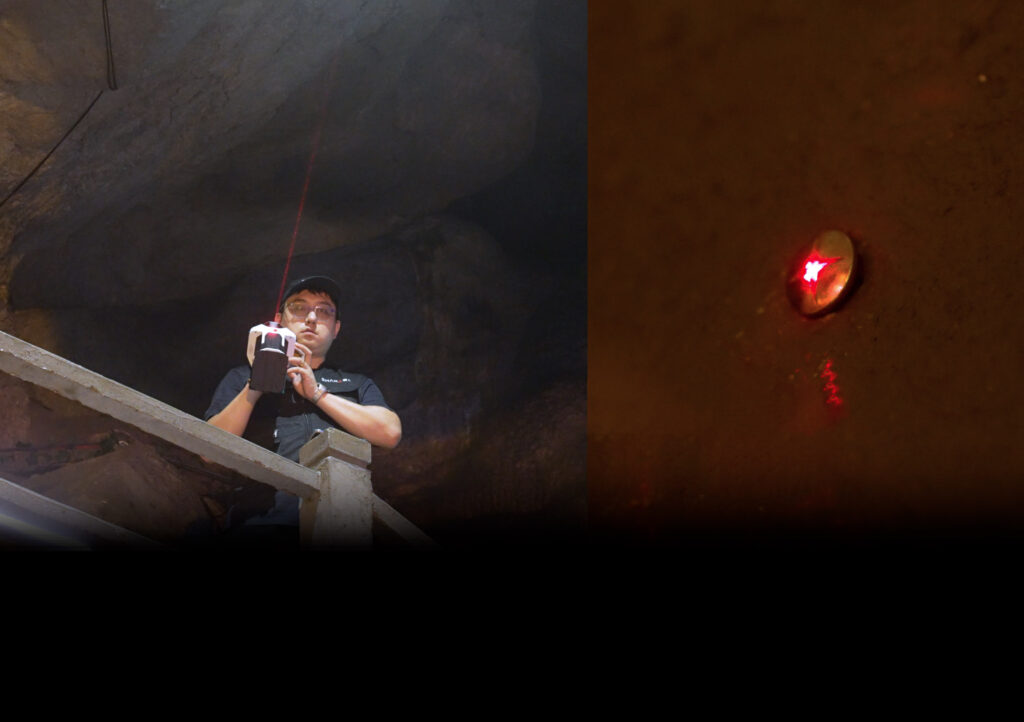

    Visual Laser-Based GCP Acquisition

    The S100 Series innovatively adopts a visual laser-based Ground Control Point (GCP) acquisition method. Even in challenging, uneven terrains such as mining areas and caves, it enables precise and convenient control point placement.

    Massive Data, Effortlessly Managed

    Equipped with a standard 1 TB high‑capacity, high‑speed SSD, it meets the storage demands of large‑scale operations. With data transfer speeds exceeding 1 GB/s, it streamlines post‑processing for greater efficiency.

    Specs

    Specification SHARE SLAM S100-16 SHARE SLAM S100-32 SHARE SLAM S100-32 PRO
    LiDAR Channels 16 32 32
    Point Cloud Number 320,000 points/s 640,000 points/s 640,000 points/s
    Scanning Range 0.05 ~ 120 m 0.05 ~ 120 m 0.5 ~ 300 m
    Number of Cameras 2 2 4
    Sensor Size 1-inch (13.13 × 8.76 mm); Pixel Size: 2.4 μm 1-inch (13.13 × 8.76 mm); Pixel Size: 2.4 μm 1-inch (13.13 × 8.76 mm); Pixel Size: 2.4 μm
    Effective Pixels 16 MP 16 MP 20 MP
    Dimensions (L×W×H) 386.8 × 152.7 × 174.4 mm 386.8 × 152.7 × 174.4 mm 386.8 × 152.7 × 174.4 mm
    Weight 2438 g 2438 g 2328 g
    Wi-Fi Wi-Fi 6, supports 2.4 GHz / 5 GHz, 20 m Wi-Fi 6, supports 2.4 GHz / 5 GHz, 20 m Wi-Fi 6, supports 2.4 GHz / 5 GHz, 20 m
    Storage Capacity 1 TB SSD 1 TB SSD 1 TB SSD
    RTK Accuracy Horizontal: 0.8 cm + 1 ppm; Vertical: 1.5 cm + 1 ppm Same Same
    Load-Bearing System Standard Multi-Functional Ergonomic Load-Bearing System Same Same
    Battery Capacity 49.436 Wh (3400 mAh) × 2 pcs Same Same
    Runtime Approx. 180 minutes Approx. 180 minutes Approx. 180 minutes
    Point Cloud Thickness ≤ 5 mm ≤ 5 mm ≤ 5 mm
    Relative Accuracy ≤ 1 cm ≤ 1 cm ≤ 1 cm
    Absolute Accuracy ≤ 5 cm ≤ 5 cm ≤ 5 cm
