OFIL DayCor® UV EyeScope

In the world of critical electrical systems, the growing demand for power, aging infrastructure, and overloading of grids are leading to an increasing number of failures. The need for reliable solutions to ensure uninterrupted power supply and to efficiently manage the health of the electrical grid has never been more critical. Spotting the Invisible: The Role of Corona Partial Discharge (PD) and Arcing Detection Identifying corona PD and arcing is crucial in preventing power system failures. Early detection enables timely interventions to avoid costly and disruptive outages, maintaining system stability and performance.

Features

In the world of critical electrical systems, the growing demand for power, aging infrastructure, and overloading of grids are leading to an increasing number of failures. The need for reliable solutions to ensure uninterrupted power supply and to efficiently manage the health of the electrical grid has never been more critical.

Spotting the Invisible: The Role of Corona Partial Discharge (PD) and Arcing Detection Identifying corona PD and arcing is crucial in preventing power system failures. Early detection enables timely interventions to avoid costly and disruptive outages, maintaining system stability and performance.

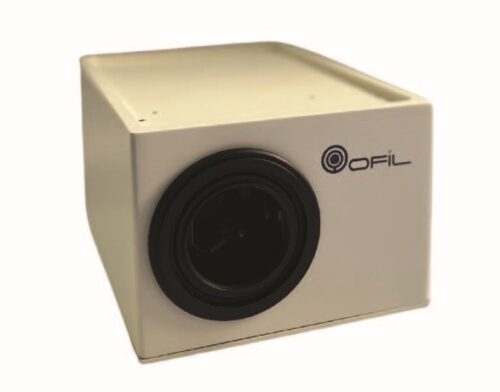

DayCor® UV EyeScope HD

Solar Blind UV Camera is a camera core for OEM integration, specifically designed to detect and pinpoint corona PD – a major but often unseen hazard to electrical equipment.

It’s compact, lightweight, has a wide field of view, precise fault pinpointing, high-definition imaging and powerful zoom for precise corona PD detection.

The camera has an IP65 environmental protection rating, ensuring it delivers optimal performance even in challenging weather conditions. It is easy to integrate via its API.

DayCor® Technology Inside

Experience unmatched clarity and performance with OFIL’s proprietary DayCor® technology. This camera sees the unseen by detecting corona PD and arcing, utilizing solar blind UV technology that operates in full daylight, unaffected by solar radiation. It captures a spectral range of UVC 240-280nm, ensuring superior detection capabilities.

Product Key Features

Sensitivity:

Sensitivity to PD detection at 1pC @ 8m, certified by Eurotest lab.

Environmental Protection IP65:

Offers robust protection against dust ingress and low-pressure water jets.

Precise Pinpointing:

Ensures accurate fault localization.

HD Resolution:

720p video for detailed imaging.

Easy to Integrate:

Quickly connect and control through API, ONVIF support, customizable UV thresholds for setting alerts.

Pan & Tilt Compatibility:

Supports versatile positioning options for optimal coverage and fault detection.

Non-Destructive Testing:

Allows for safe inspections from a distance of up to 40 meters

Interface:

Ethernet.

DayCor Inside:

Embedded with proprietary DayCor technology for superior performance.

Integrated Precision, Unmatched Clarity.

Applications

Continuous Monitoring of Substations & HV Components

Robot-Mounted Installations | Fixed Installations | PTZ Systems

Integration in OEM systems

Product Accessories

Specs

UV – OPTICAL PROPERTIES
Minimum Discharge Detection 1pC @ 8 m Tested & certified by Innogy SE-Eurotest Germany: IEC 60270:2000
Minimum UV Sensitivity 7.8 x 10-18 watt/cm²
Field of View H: 20° V: 11.25°
Focus Auto focus
UV Zoom 3x digital continuous zoom; UV & Visible channels sync
Spectral Range 240-280nm
VISIBLE – OPTICAL PROPERTIES
Video Standard HD, 720p ,1280 X 720px
Field of View H: 20° V: 11.25°
Focus Range 5m to infinity, automatic & manual
Visible Zoom 3x optical
DATA OUTPUT
Video Out Standard HD 720p
Streaming Format Real Time Streaming Protocol — RTSP
Video Compression Standard H.264
I/O & CONTROLS
I/O Interfaces 1GB Ethernet bi-directional
ENVIRONMENTAL
Storage and Operation Temp -20°C up to +55°C | -4°F up to +131°F, fan less
IP Rating IP 65
PHYSICAL CHARACTERISTICS & POWER SOURCE
Weight 1.6 Kg | 3.5 lb
Dimensions L21.8 x W14.1 x H10.1cm | 8.58” x 5.55” x 3.96”
Nominal Power Consumption 12V DC, 36W
Mounting Interface Standard M5 (x4) screw fixture, on the bottom cover
ACCESSORIES
Connect – Remote Control Desktop Software
