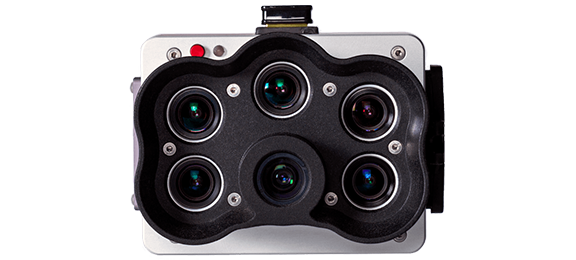

JOUAV MicaSense RedEdge-P Multispectral Camera

A robust, high-quality, powerful multispectral sensor, the RedEdge-P integrates specially designed optics, an industrial image sensor, and narrow-band scientific grade filters to achieve pixel-aligned output at previously unattainable resolutions while maintaining the RedEdge’s traditional efficiency and reliability.

Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Features

    5.1 Megapixel Panchromatic Sensor
    5.1 Megapixel Panchromatic Sensor

    Its pansharpened resolution down to 2cm (0.8″) at a flight height of 60m (197ft)

    Optimised for Plant-level Detail
    Optimised for Plant-level Detail

    Provide solutions for industries such as environmental monitoring and research

    Addition of CFexpress Memory Card
    Addition of CFexpress Memory Card

    Allow faster capture speeds of 2-3 images per second

    Synchronized Capture of RGB and Multispectral
    Synchronized Capture of RGB and Multispectral

    Capture calibrated high-resolution multispectral and RGB imagery with an all-in-one imaging solution.

    Data Results

    Rededge-P can simultaneously capture up to six bands, enabling multiple high-resolution outputs such as RGB, crop vigor indices (NDVI, NDRE, etc), and high resolution panchromatic.

    NDVI
    NDVI

    NDRE
    NDRE

    Technical Specifications

    Specifications
    Weight
    363 g (12.8 oz.) (RedEdge-P + Wi-Fi + CF Express Card + DLS2 & Cables)
    Dimensions
    8.9 x 7.0 x 6.7 cm (3.5in x 2.8in x 2.6in)
    External Power
    7.0 V – 25.2 V
    Power Input
    5.5/7.0/10W (standby, average, peak)
    Sensor Resolution
    1456 x 1088 (1.6MP per MS band) 2464 x 2056 (5.1MP panchromatic band)
    Spectral Bands
    Blue, green, red, red edge, near-IR (global shutter, narrowband)
    Wavelength (nm)
    Blue (475 nm center, 32 nm bandwidth), green (560 nm center, 27 nm bandwidth), red (668 nm center, 14 nm bandwidth), red edge (717 nm center, 12 nm bandwidth), near-IR (842 nm center, 57 nm bandwidth)
    RGB Color Output
    5.1 MP (global shutter, aligned with all bands) *with appropriate post-processing
    Ground Sample Distance (GSD)
    7.7 cm per pixel (per MS band) at 120m (~400 ft) AGL 3.98 cm per pixel (panchromatic band) at 120m (~400 ft) AGL
    Capture Rate
    Up to 3 captures per second raw DNG
    Interfaces
    3 configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CF Express for storage
    Field of View
    50° HFOV x 38° VFOV (MS) 44° HFOV x 38° VFOV (PAN)
    Storage
    CFexpress Card
