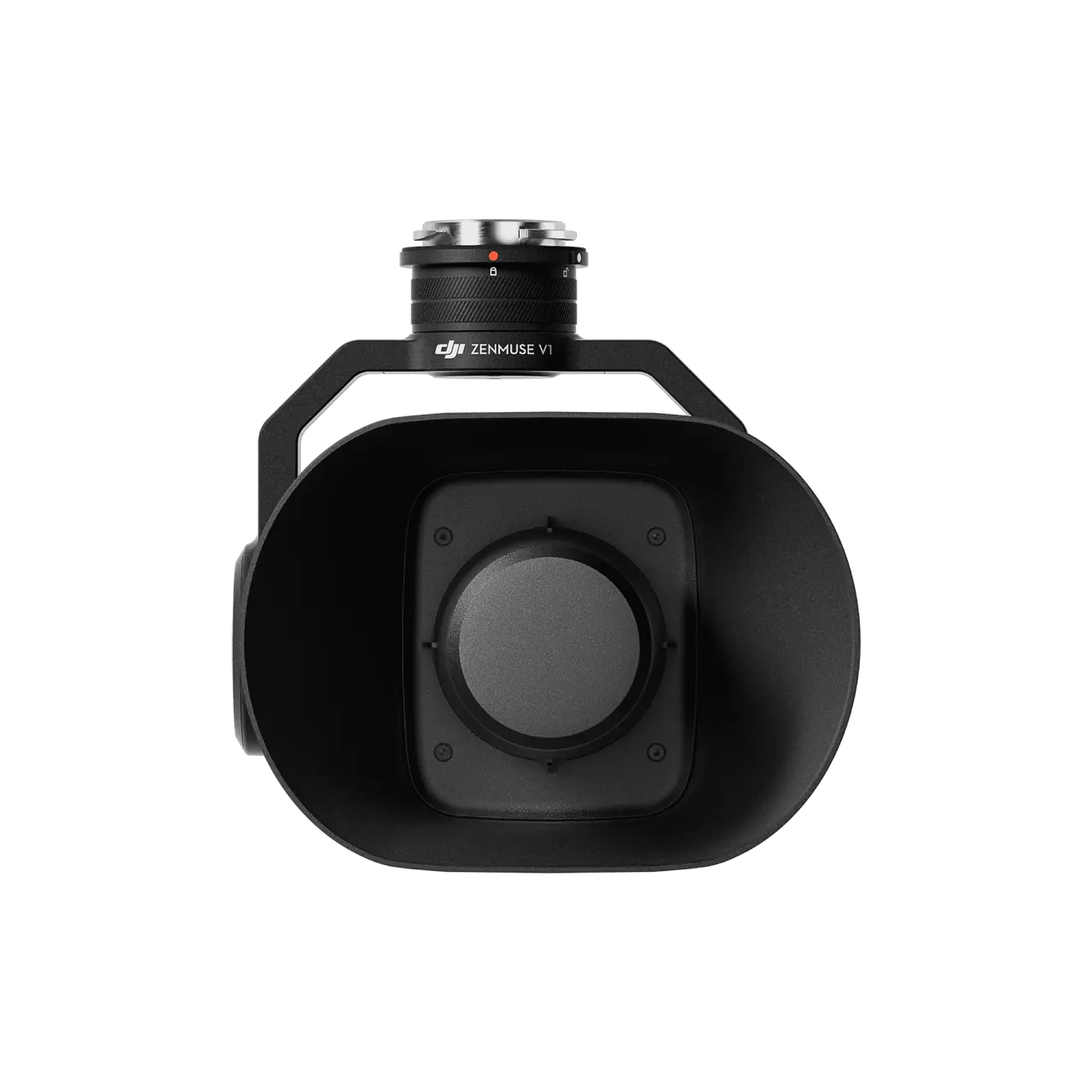

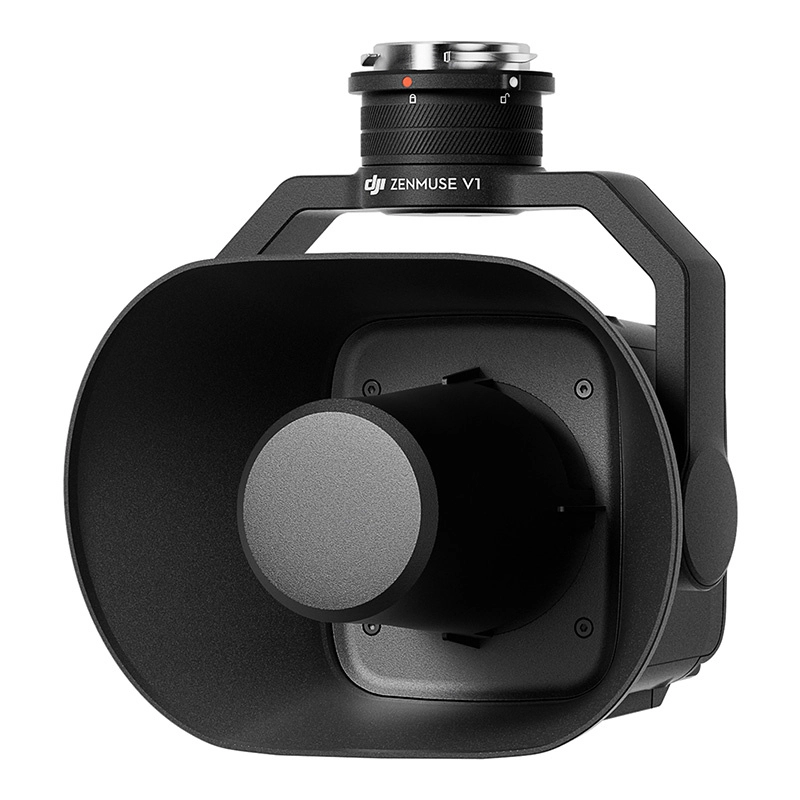

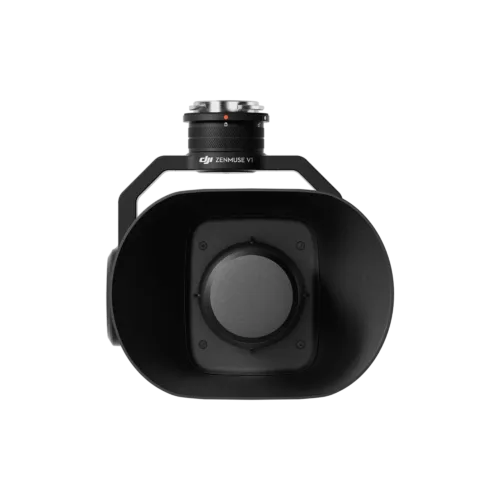

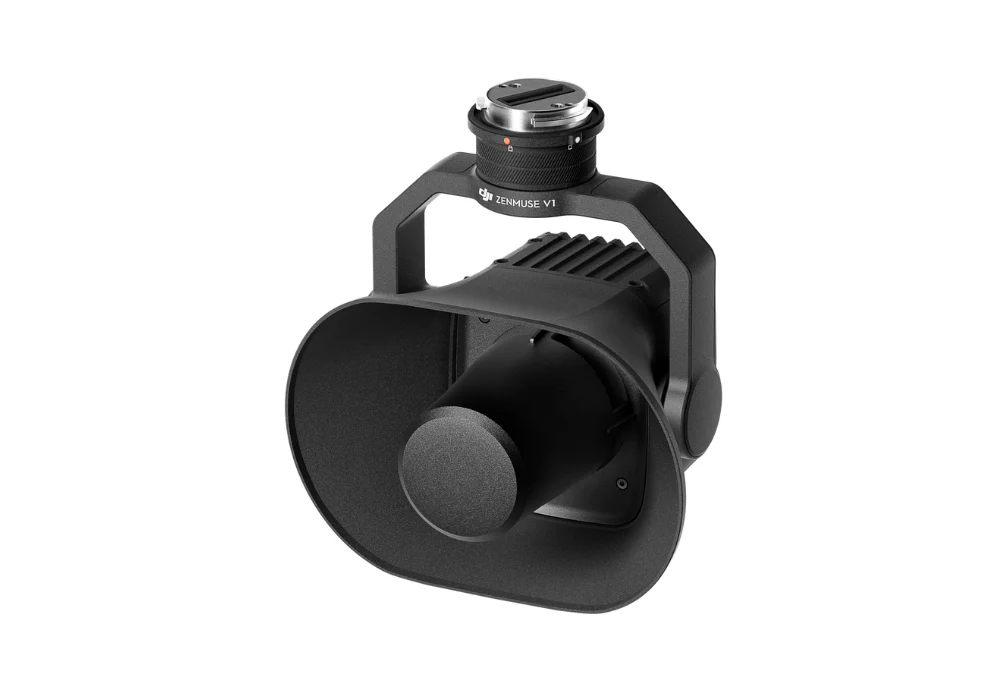

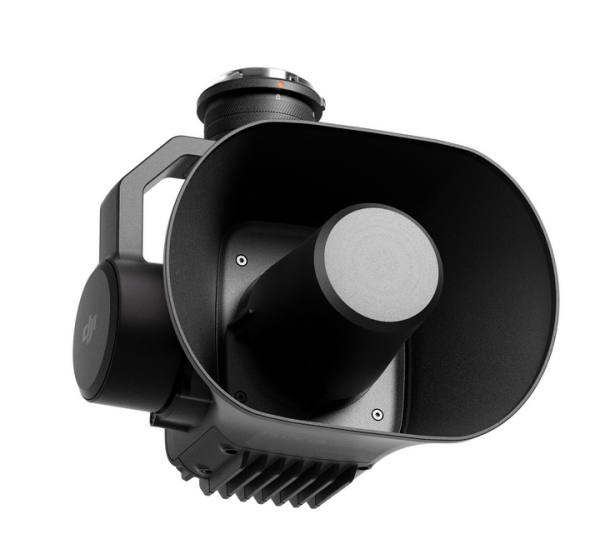

DJI Zenmuse V1

Zenmuse V1 is DJI’s first speaker designed for multi-payload drone platforms, compatible with Matrice 350 RTK and Matrice 300 RTK. It boasts high volume and long broadcast distance, and supports multiple broadcast modes, making it ideal for scenarios like public safety, emergency rescue, and more.

Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Features


    Zenmuse V1 is DJI’s first speaker designed for multi-payload drone platforms, compatible with Matrice 350 RTK and Matrice 300 RTK. It boasts high volume and long broadcast distance, and supports multiple broadcast modes, making it ideal for scenarios like public safety, emergency rescue, and more.

    Multiple Broadcast Modes

    Record & Broadcast

    Record and transmit messages to the speaker using the DJI Pilot 2 app. This feature includes local playback and recording storage. Recording a broadcast is instant and convenient, enabling rapid communication of important information in emergent scenarios without complex operations.

    Text-to-Speech

    Input text can be converted to speech via the DJI Pilot 2 app and transmitted to the speaker. This mode supports adjustments to tone and speech rate, as well as loop playback, ensuring that information is conveyed clearly and flexibly to the target audience.

    Audio File Playback

    The DJI Pilot 2 app supports the import of local audio files, which can then be transmitted to the speaker for playback. This allows for the quick dissemination of preset content during operations, enhancing efficiency and smoothness.



    Powerful Sound, Extended Reach

    At 1 meter, Zenmuse V1’s maximum loudness can reach 127 decibels [1], on par with the sound level of a jet taking off. Powerful volume ensures clear communication. With an effective broadcast distance of up to 500 meters, [1] it ensures coverage even in vast areas.

    Clear, Directional Recording

    During recording, DJI RC Plus can directionally capture voices directly above the microphone. Combined with environmental noise cancelling technology, it effectively minimizes surrounding noise interference, ensuring clearer recordings.



    Precise Control, Targeted Broadcast

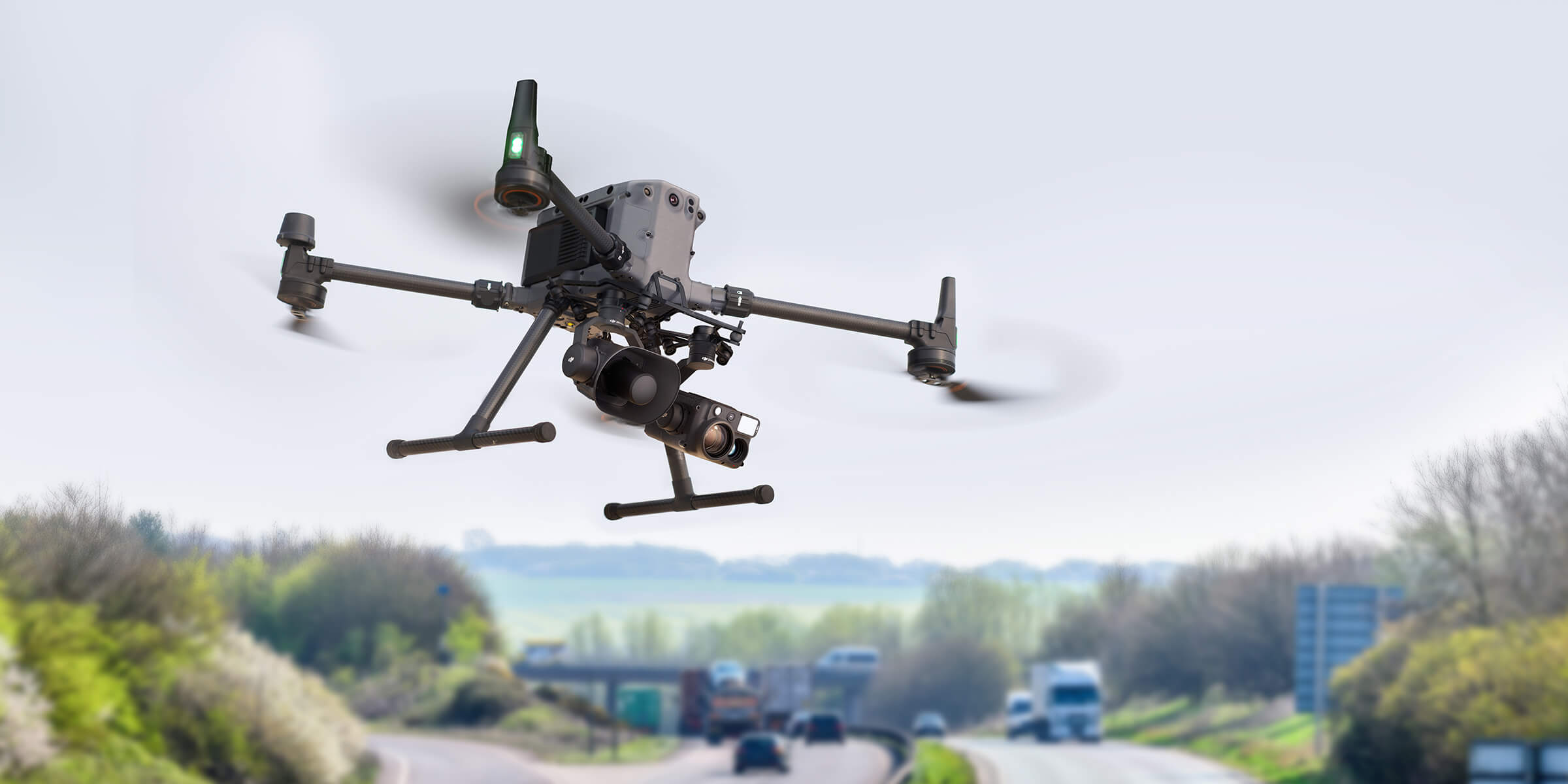

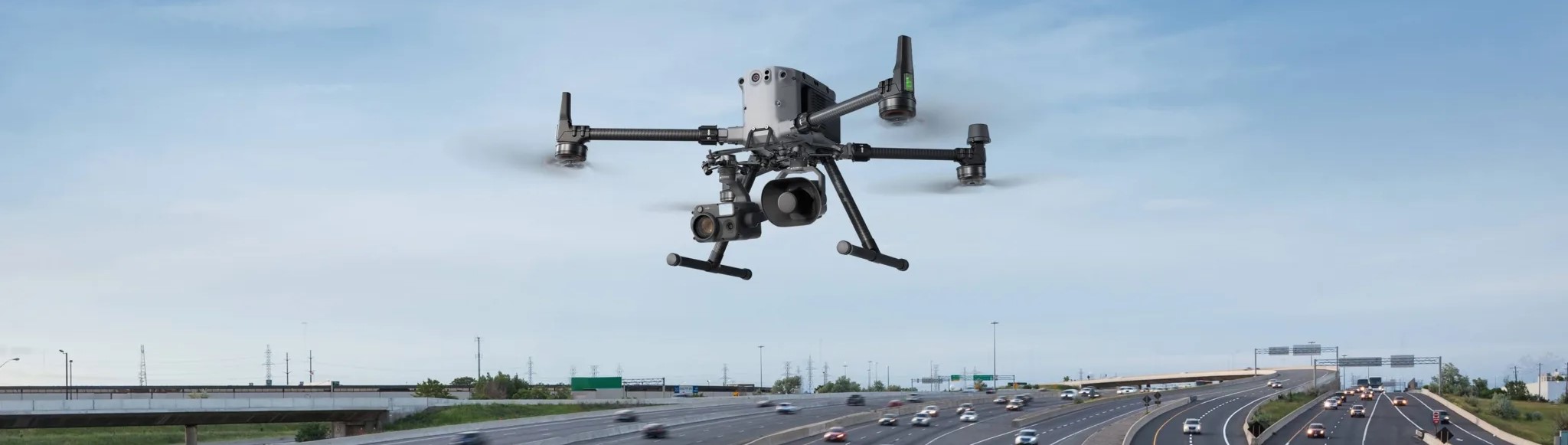

    Zenmuse V1 can synchronize with other gimbal-equipped payloads to achieve coordinated tilt angles, ensuring that the sound is directed precisely towards the intended direction, thereby enhancing the broadcast efficiency.

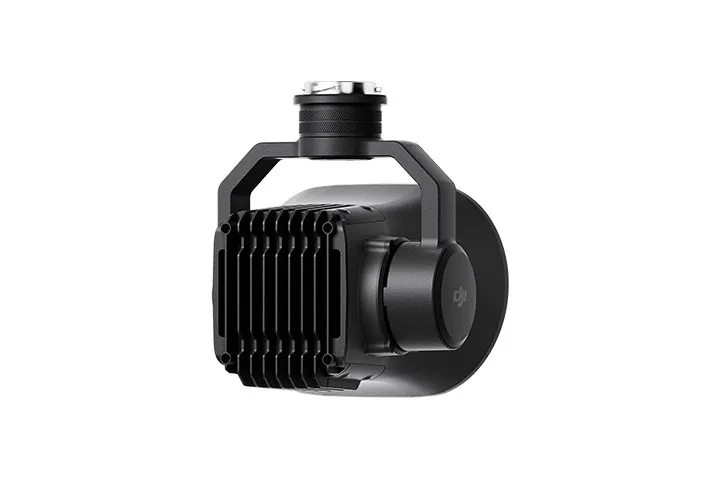

    Flexible Mounting, Lightweight Build

    Zenmuse V1 can be mounted to any gimbal connector of the single downward gimbal, dual downward gimbals, or the single upward gimbal, accommodating various operational needs. Weighing only 0.69 kg, [3] it is compact and easy to carry.

    Specification

    General

    Product Name Zenmuse V1
    Weight 690±10 g
    Dimensions 134×119×140 mm (L×W×H)
    Rated Power 30 W
    Supported Aircraft
    • Matrice 300 RTK (requires DJI RC Plus)
    • Matrice 350 RTK
    Shell Temperature <50° C (122° F, plastic shell)Masured in a laboratory environment with the speaker installed on the aircraft at an ambient temperature of 25° C (77° F).
    Ingress Protection Rating IP54Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.

    Environment

    Operating Temperature -20° to 50° C (-4° to 122° F)
    Storage Temperature -20° to 60° C (-4° to 140° F)

    Gimbal

    Stabilization System Single-axis (tilt)
    Angular Vibration Range
    • Hover: ±0.01°
    • Flight: ±0.02°
    Mounting Detachable DJI SKYPORT
    Mechanical Range Tilt: -125° to +25°Structural limit, not controllable range.
    Controllable Range Tilt: -120° to +20°
    Operation Mode Follow / Free / Re-center

    Speaker

    Impedance 4 Ω
    Nominal Power 25 W
    Effective Broadcast Distance 500 mMeasured in a laboratory environment at 25° (77° F) . Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use..
    Max Sound Pressure Level 127 dB @1 mMeasured in a laboratory environment at 25° (77° F) . Actual conditions may vary slightly due to software version, audio source, specific environment, and other factors. The final effect is subject to actual use.
    Effective Bandwidth 800 Hz to 8 kHz

    Basic Features

    Record & Broadcast Record & broadcast, local playback, and storage
    Text-to-Speech Text-to-speech and storage (supports English and Mandarin Chinese)
    Audio File Playback Supports importing local files in MP3, AAC, and WAV formats
    Playback Control Start / Stop recording / Loop playback / Volume adjustment
    Remote Controller Button Can set one button to press once to start recording, and press again to stop and play the recording.
    Gimbal Synchronization Supports synchronized control with other gimbal-equipped payloads

    Special Features

    Directional Audio Recording The remote controller supports directional audio pickup and environmental noise reduction
    Payload Protection Speaker temperature protection, overcurrent protection, and power protection to prevent damage.
