DJI Zenmuse S1 Spotlight

  • Low Beam Mode
  • HIGH Beam Mood
  • Both on Mood
  • Strobe Mode
Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Features

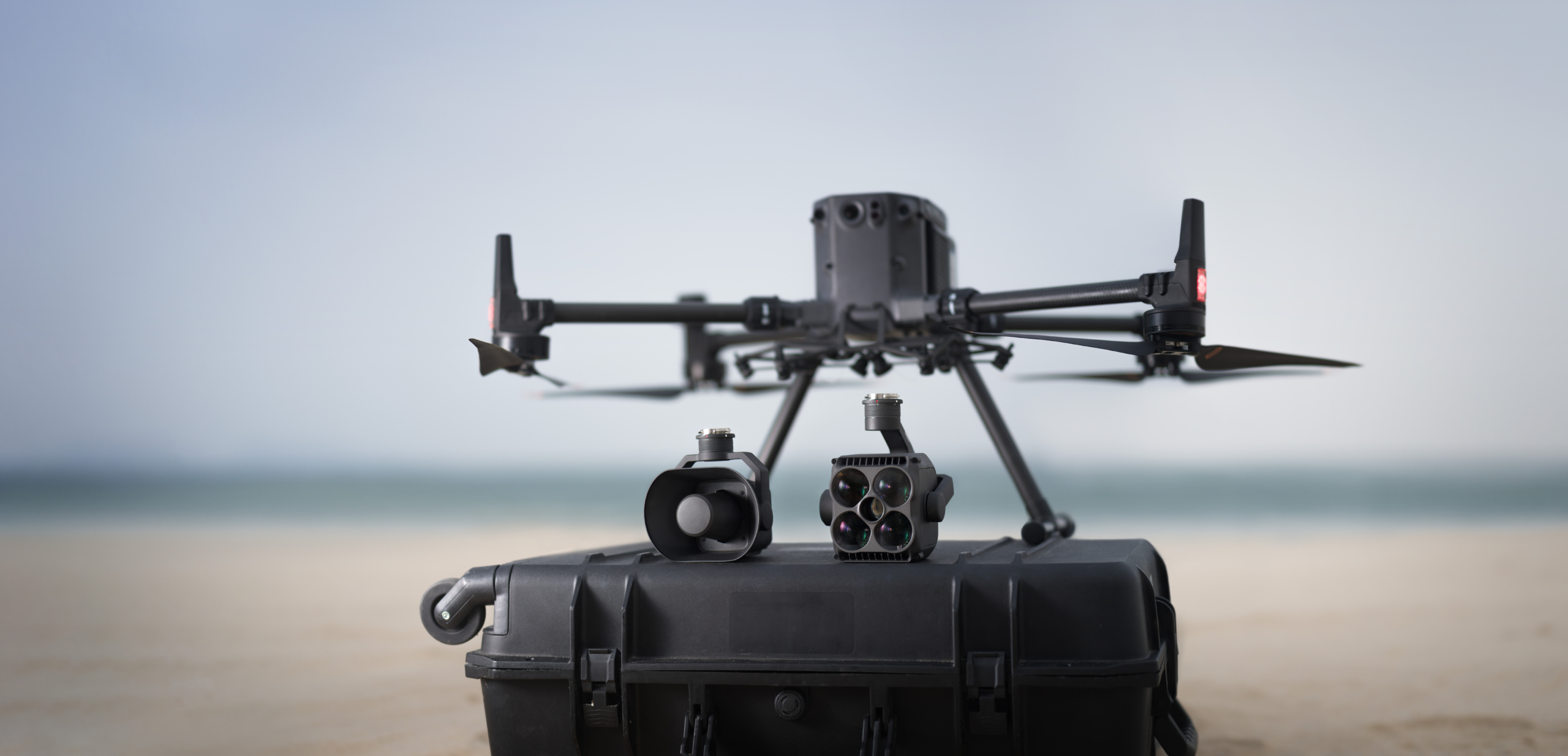

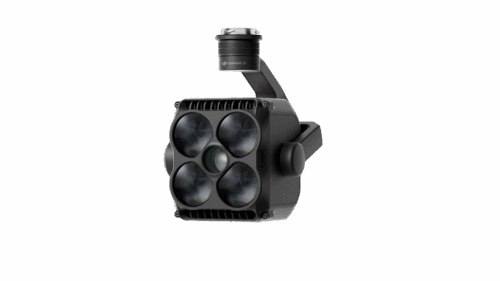

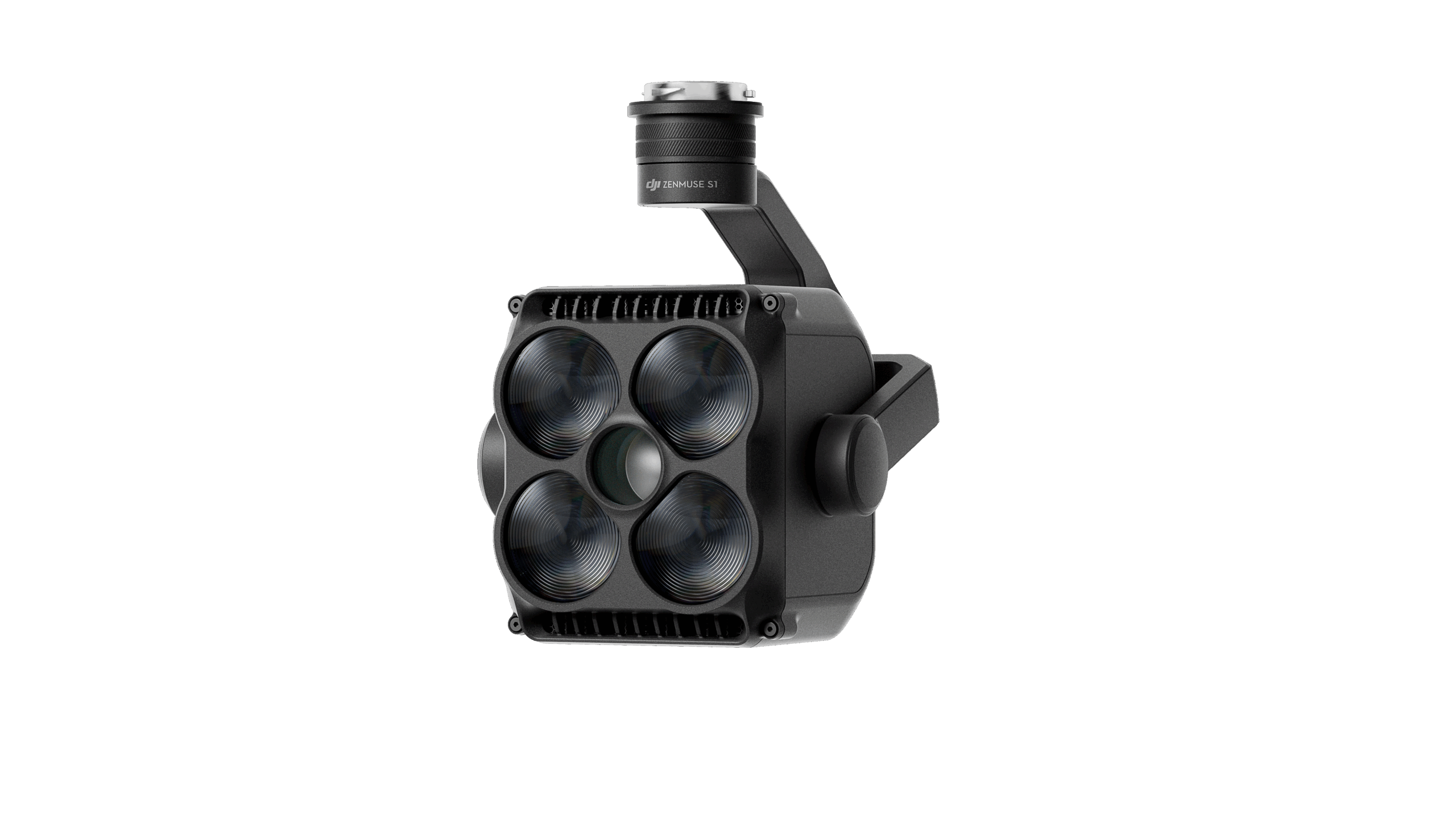

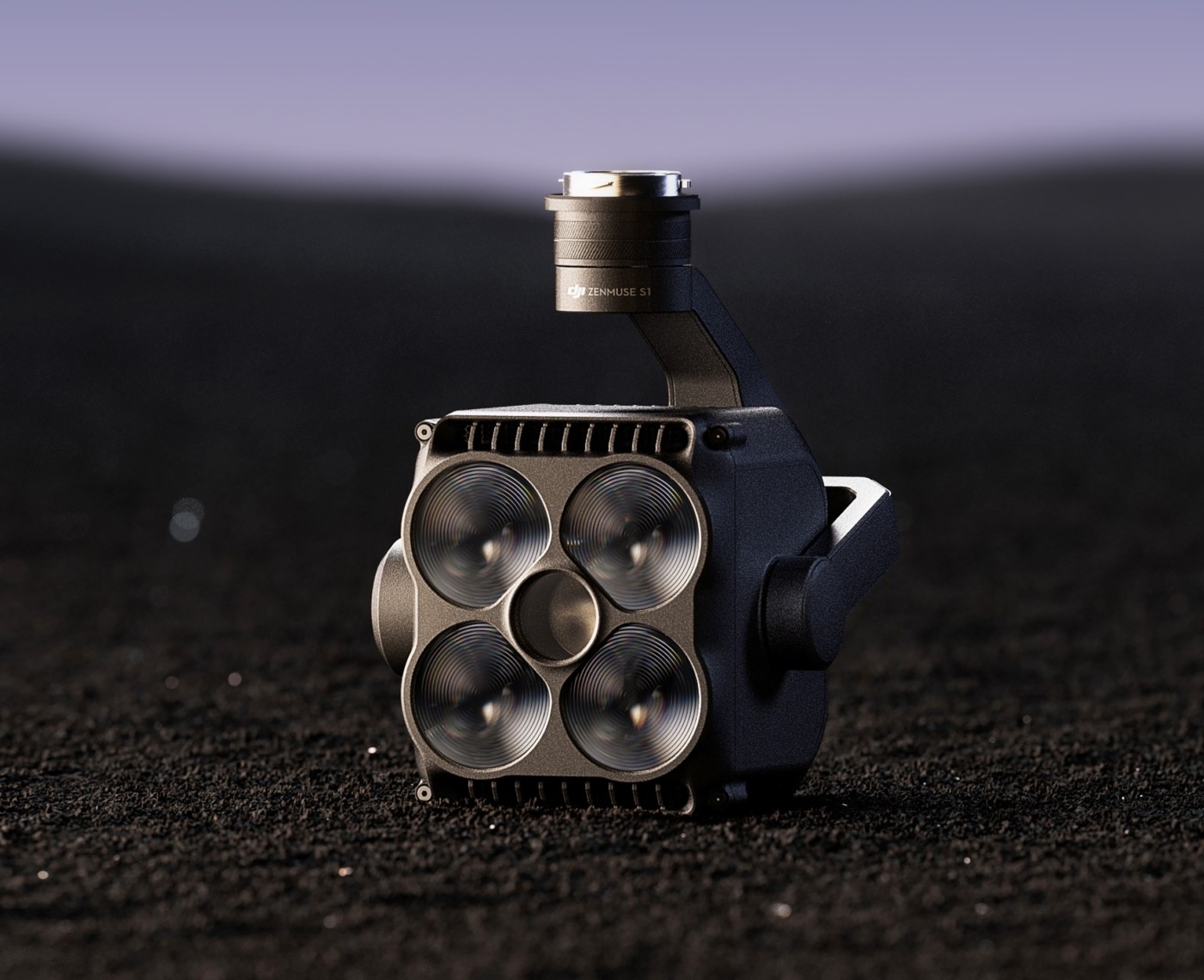

    Zenmuse S1 is DJI’s first spotlight designed for multi-payload drone platforms, compatible with Matrice 350 RTK and Matrice 300 RTK. Utilizing the LEP technology, it offers high brightness and long illumination distance and supports multiple lighting modes. This makes it ideal for public safety, emergency rescue, inspection, and other nighttime operations. providing ample lighting in dark environments to clearly distinguish details of the subjects.

    Multiple Lighting Modes:

    • Low Beam Mode: Provides a 15° field of view (FOV) within 150 meters, covering the illumination range of a camera at 5x zoom or above. [This mode is suitable for most short-distance search and inspection needs.
    • HIGH Beam Mood: High Beam Mode on drones means the drone’s LED lights (front lights or spotlight) are set to maximum brightness. Flying at night or in low-light conditions, helping cameras record clearer images or video in the dark and lighting up the ground or objects for better visibility.
    • Both on Mood: This mode uses both low and high beams together, giving brighter light and a wider view. It keeps the wide angle of low beams but can light up to 500 meters ahead, making it perfect for full area visibility.
    • Strobe Mode: The Zenmuse S1 can flash its lights quickly to grab attention, making it great for rescue missions and public safety alerts.

    Specification

    General

    Product Name Zenmuse S1
    Weight 760±10 g
    Dimensions 125×152×171 mm (L×W×H)
    Rated Power 68 W
    Supported Aircraft
    • Matrice 300 RTK (requires DJI RC Plus)
    • Matrice 350 RTK
    Eye Safety Class IEC 62471: Risk Group 1
    Shell Temperature <50° C (122° F, plastic shell)Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.
    Ingress Protection Rating IP54Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.

    Environment

    Operating Temperature -20° to 40° C (-4° to 104° F)
    Storage Temperature -20° to 60° C (-4° to 140° F)

    Gimbal

    Stabilization System 3-axis (tilt, roll, pan)
    Angular Vibration Range
    • Hover: ±0.01°
    • Flight: ±0.02°
    Mounting Detachable DJI SKYPORT
    Mechanical Range
    • Tilt: -129° to +73°
    • Roll: ±55.8°
    • Pan: ±327°

    Structural limit, not controllable range.

    Controllable Range
    • Tilt: -120° to +60°
    • Pan: ±320°
    Operation Mode Follow / Free / Re-center

    Illuminance

    Maximum Central Illuminance 35 lux @100 m (Both On mode)Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.
    Low Beam Central Illuminance 13 lux @100 m (Low Beam mode)Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft.
    High Beam Central Illuminance 30 lux @100 m (High Beam mode)Measured in a laboratory environment at an ambient temperature of 25° C (77° F) with the Zenmuse S1 installed on the aircraft
    Effective Illumination Angle
    • 15±1° (10% relative illuminance, Low Beam mode and Both On mode)
    • 4±0.5° (10% relative illuminance, High Beam mode)
    Typical Color Temperature
    • 6500K typical value (Low Beam mode)
    • 7500K typical value (High Beam mode)

    Measured in a laboratory environment at an ambient temperature of 25° C (77° F) using an integrating sphere. Actual results may vary slightly due to different experimental conditions, and the final effect is subject to actual use.

    Dimming Mode Analog dimming
    Effective Illumination Distance 500 m (Both On mode)Measured in a laboratory environment at an ambient temperature of 25° C (77° F). Actual conditions may vary slightly due to specific environmental humidity, weather conditions, and other factors. The final effect is subject to actual use.

    Basic Features

    Lighting Control Turning light on/off, brightness adjustment
    Strobe Mode 5 Hz strobe
    Lighting Mode Low Beam mode, High Beam mode, Both On mode
    Remote Controller Buttons Can be set for turning the light on/off, brightness adjustment, or lighting mode changes
    Gimbal Synchronization Supports synchronized control with other gimbal-equipped payloads

    Special Features

    Eye Protection Automatically limits brightness to 40% when not in flight
    Payload Protection LED, LEP temperature protection, overcurrent protection, and power protection to prevent damage.
