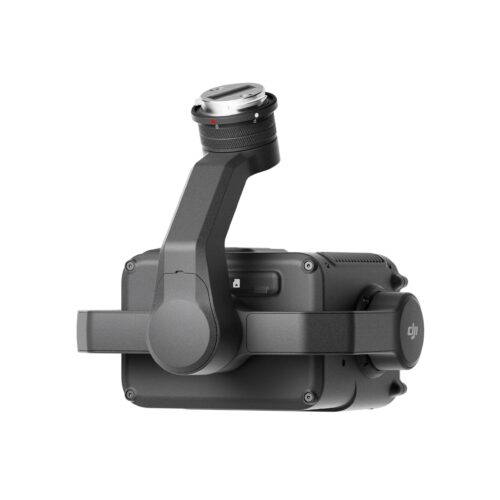

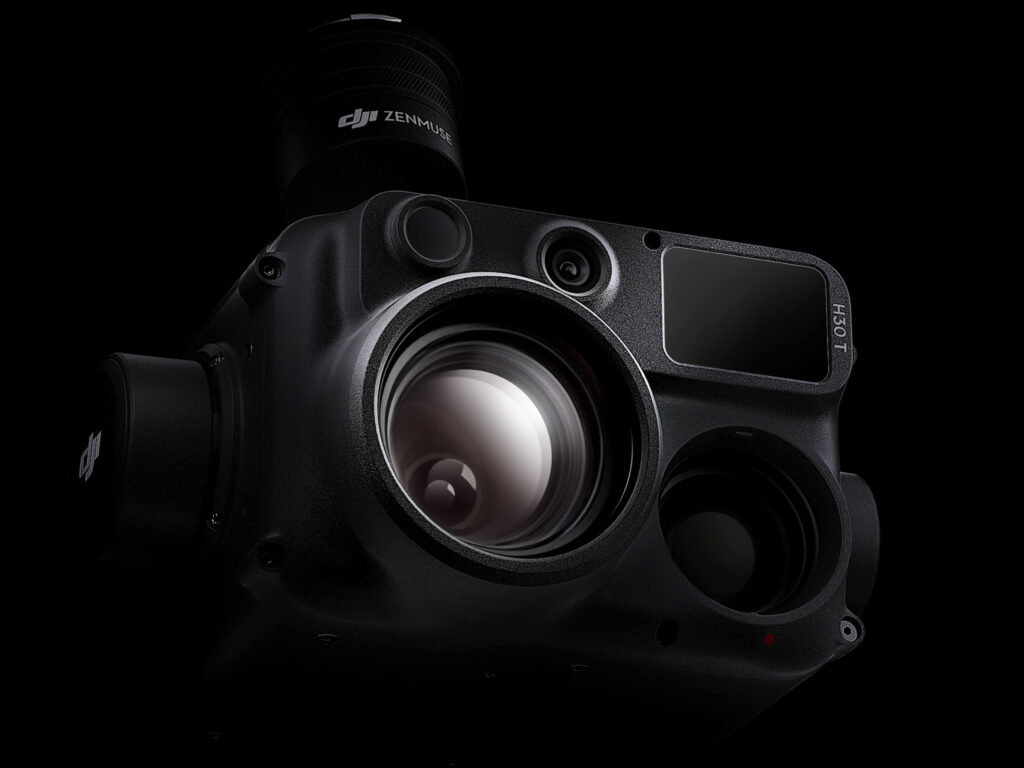

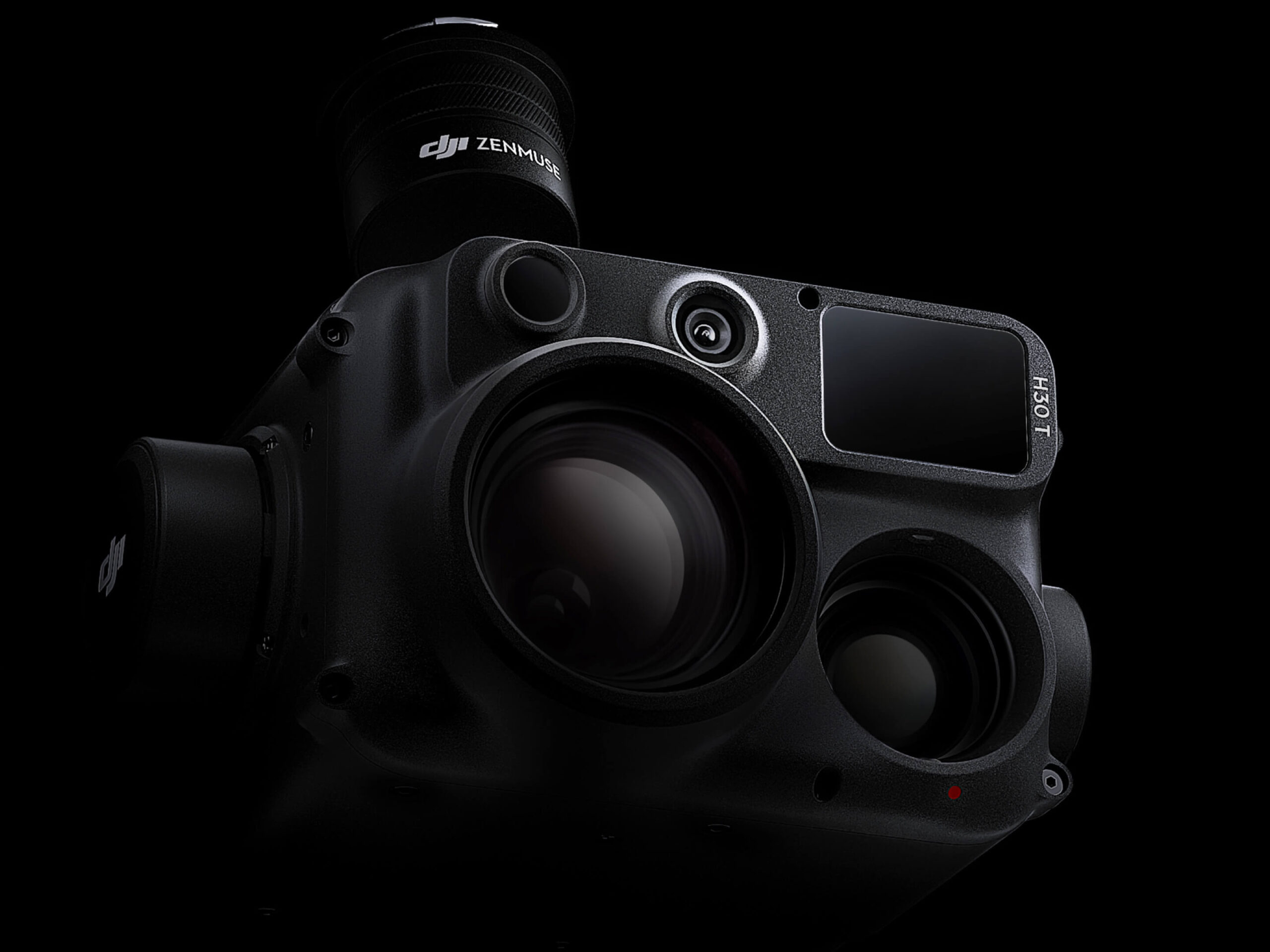

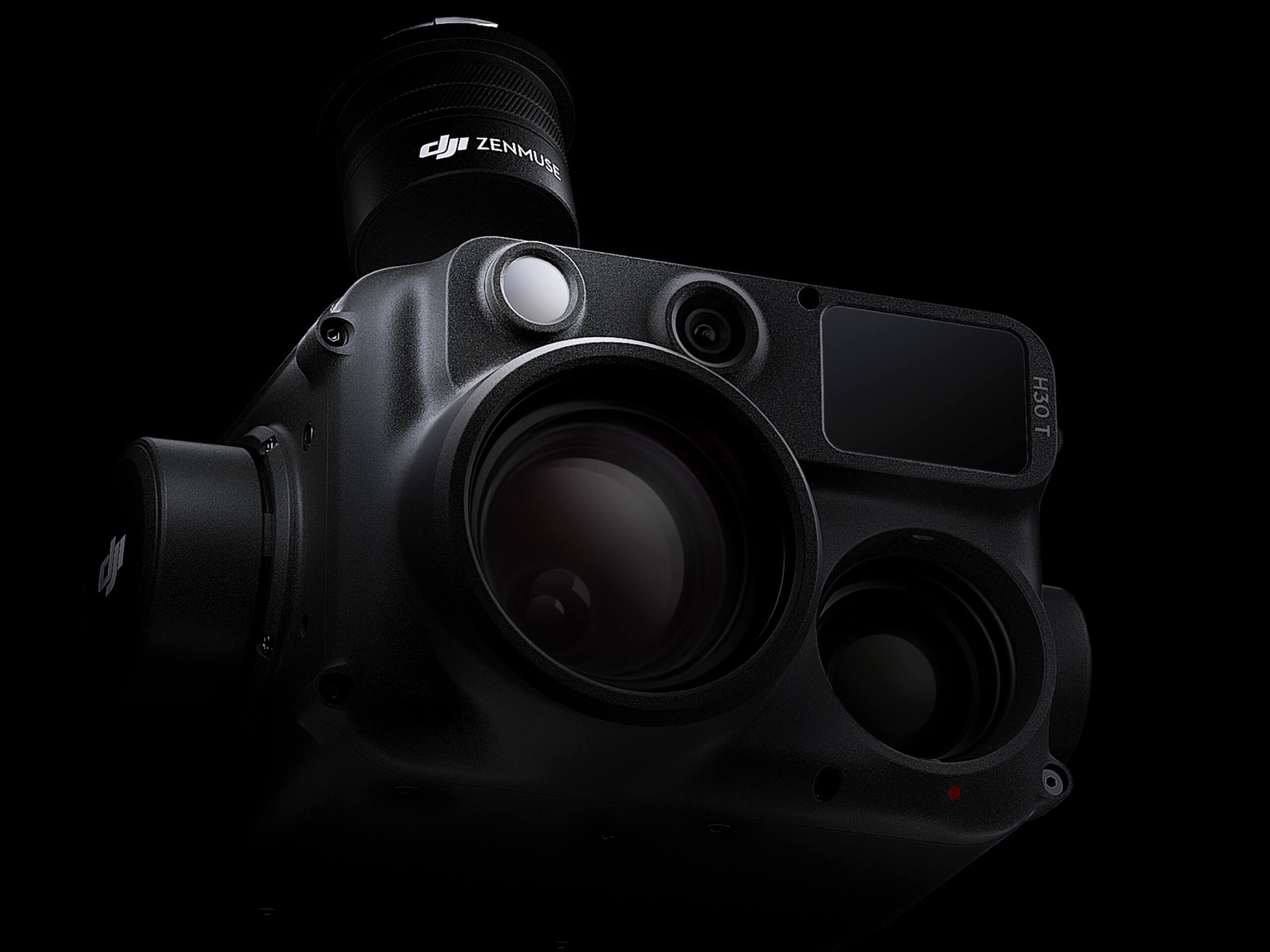

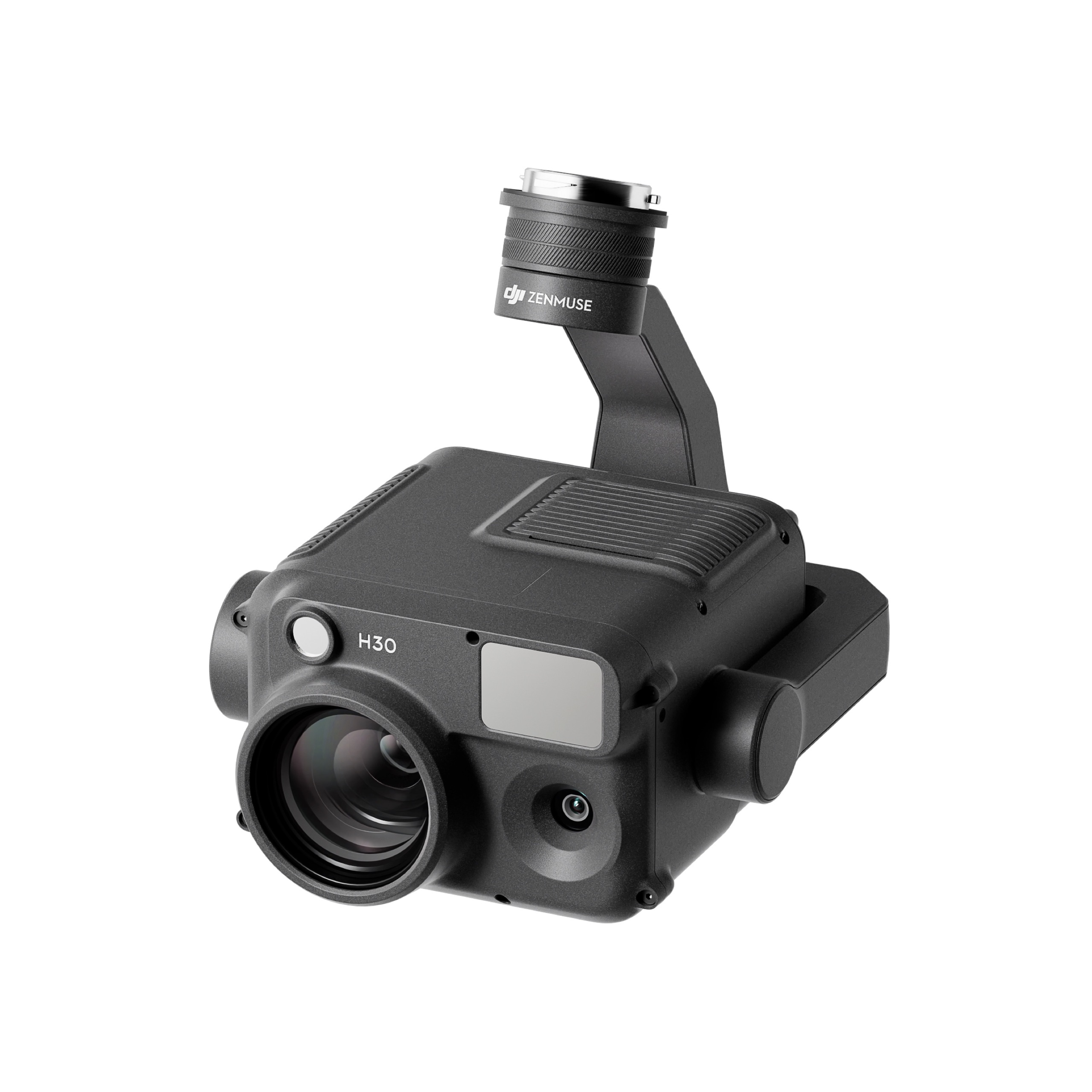

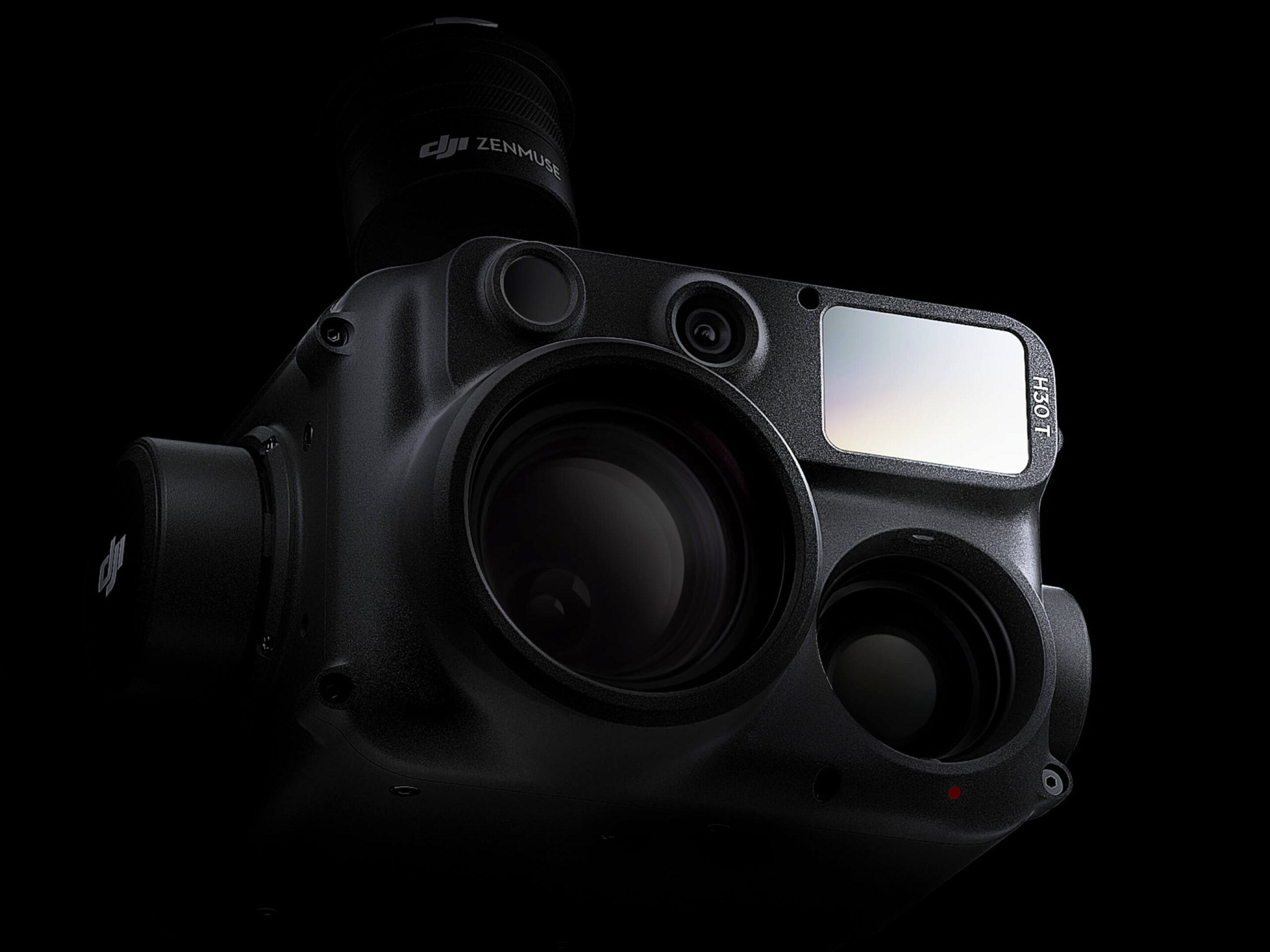

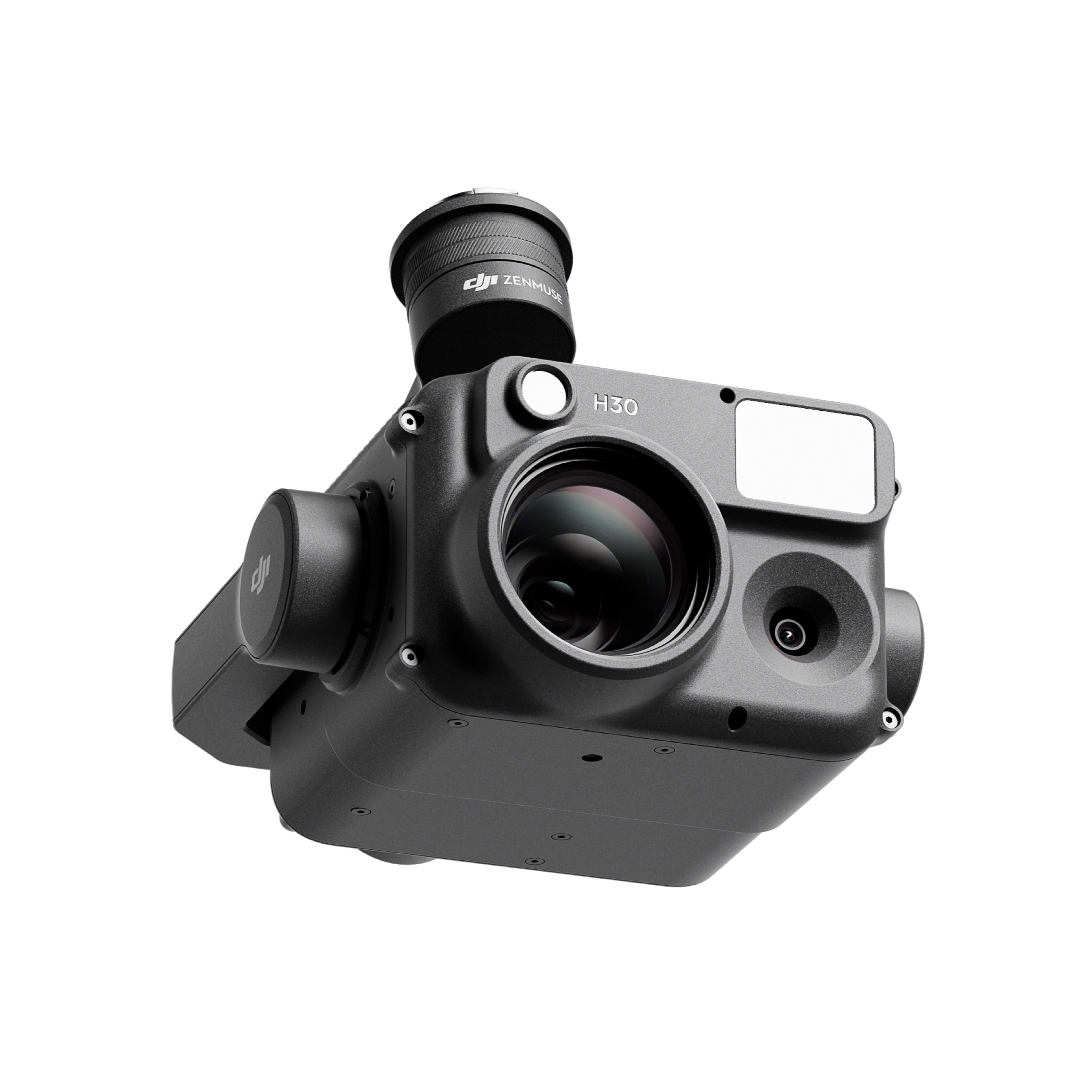

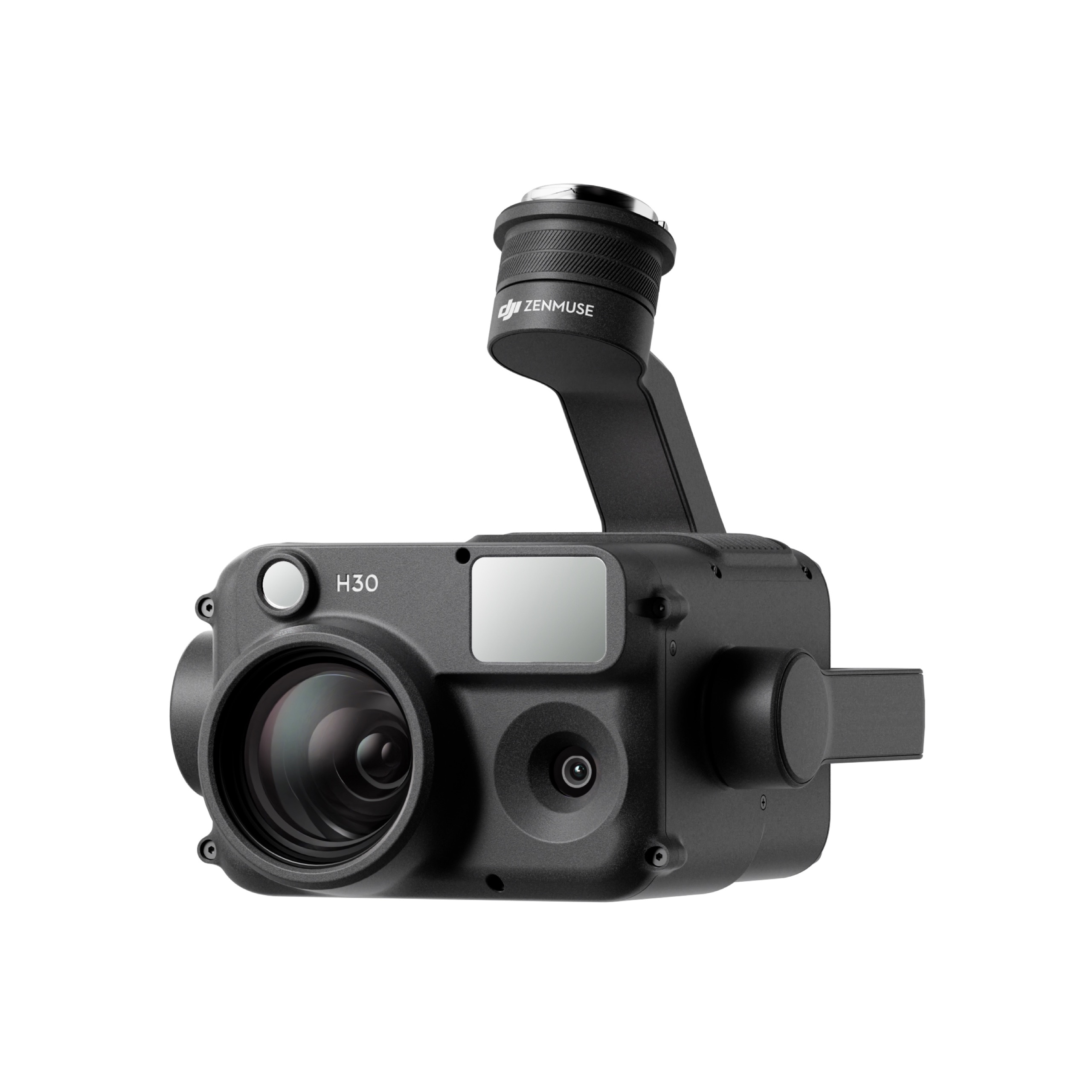

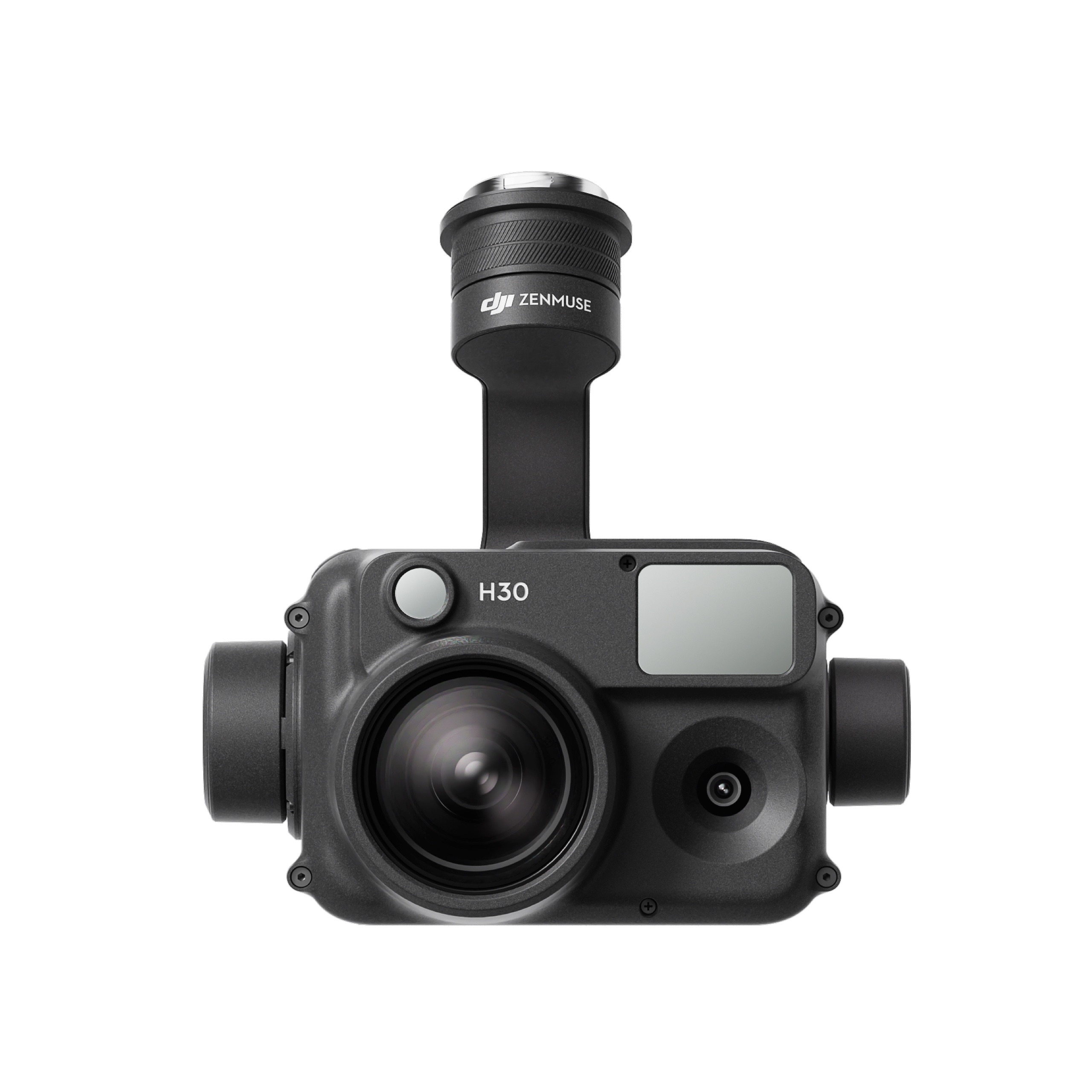

The all-weather, multi-sensor flagship Zenmuse H30 Series integrates five major modules—a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations, including public safety, energy inspection, water conservation, and forestry.
Inquire Now
|
 |
|
 |
|
 |
|
 |
In Smart Capture mode, the Zenmuse H30 Series zoom and wide-angle cameras automatically assess the brightness of ambient light and the dynamic range, and apply intelligent image algorithms. This ensures the output of photos with natural transitions between light and dark and rich details, even in environments with high dynamics, strong light, or low light.
In conditions such as smog or high atmospheric humidity, the Zenmuse H30 Series zoom camera employs a new Electronic Dehazing function [11] to enhance image clarity. It offers low and high dehazing levels to suit different operational environments and requirements.
All cameras of the Zenmuse H30 Series, including the zoom, wide-angle, and infrared thermal cameras, support pre-recording. They can retain footage from 10, 15, or 30 seconds before the formal recording starts, ensuring a more complete record and capturing key information that may otherwise be quickly lost.

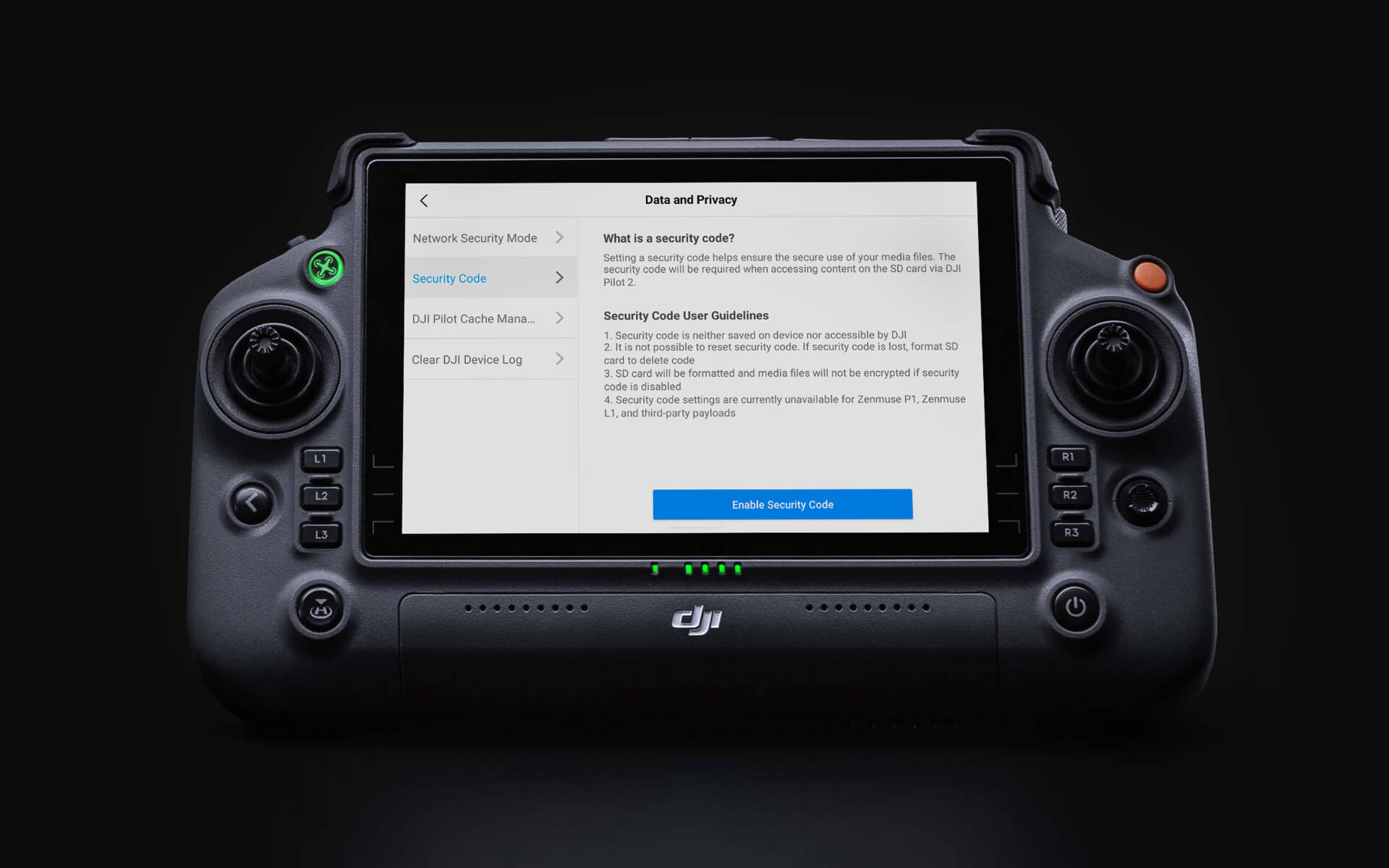

The Security Code function allows for the encryption of microSD cards, fully protecting your files. AES-256 encryption technology ensures the security of data transmission between the remote controller and the aircraft. Additionally, it supports one-click log clearance to prevent information leaks.
Operators can check live views from the Zenmuse H30 Series through the cloud platform on DJI FlightHub 2 to stay up to date with on-site dynamics. This enables rapid remote command and facilitates coordinated air-to-ground operations.
| Product Name | Zenmuse H30 Series |
| Dimensions | 170×145×165 mm (L×W×H) |
| Weight | 920±5 g |
| Power | H30: 26 W |
| Ingress Protection Rating | IP54Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear. |
| Supported Aircraft | Matrice 300 RTK (requires DJI RC Plus) Matrice 350 RTK |
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Stabilization System | 3-axis (tilt, roll, pan) |
| Angular Vibration Range | Hover: ±0.002° Flight: ±0.004° |
| Mounting | Detachable DJI SKYPORT |
| Mechanical Range | Tilt: -132.5° to +73° Roll: ±60° Pan: ±328° (Structural limit, not controllable range) |
| Controllable Range | Tilt: -120° to +60° Pan: ±320° |
| Operation Mode | Follow/Free/Re-center |
| Sensor | 1/1.8-inch CMOS, Effective Pixels: 40 MP |
| Lens | Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm) Aperture: f/1.6-f/5.2 DFOV: 66.7°-2.9° |
| Focus Mode | MF, AFC, AFS |
| Exposure Mode | Manual, Auto |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Spot Metering, Average Metering |
| AE Lock | Supported |
| Electronic Shutter Speed | 1/8000-2 s |
| ISO Range | Single Shot: 100-25600 Night Scene: 100-819200 |
| Video Resolution | Single Shot: 3840×2160@30fps, 1920×1080@30fps Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Video Codec and Bit Rate Strategy | H.264, H.265 CBR, VBR |
| Max Photo Size | 7328×5496, 3664×2748 |
| Photo Format | JPG |
| Sensor | 1/1.3-inch CMOS, Effective Pixels: 48 MP |
| Lens | Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm) Aperture: f/1.7 DFOV: 82.1° |
| Focus Mode | MF, AFC, AFS |
| Exposure Mode | Manual, Auto |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Spot Metering, Average Metering |
| AE Lock | Supported |
| Electronic Shutter Speed | 1/8000-2 s |
| ISO Range | Single Shot: 100-25600 Night Scene: 100-409600 |
| Video Resolution | Single Shot: 3840×2160@30fps, 1920×1080@30fps Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Video Codec and Bit Rate Strategy | H.264, H.265 CBR, VBR |
| Max Photo Size | 8064×6048, 4032×3024 |
| Photo Format | JPG |
| Wavelength | 905 nm |
| Measurement Range | 3-3000 m Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m*The measurement range may vary based on the material and shape of the tested object as well as the impact of gimbal angle, environmental light, and weather conditions such as rain or fog. If a laser pulse hits multiple targets, its energy is dispersed, which may reduce the measurable distance. * Test conditions: Flat surface subject, subject size exceeding the laser beam diameter, atmospheric visibility of 23 km (shorter range in clear conditions compared with overcast), laser impinges at an oblique angle (with an angle of incidence of approx. 0.2 radians). |
| Measurement Accuracy | ≤ 500 m: ±(0.2 m+measurement distance×0.15%) > 500 m: ±1.0 m |
| Laser Spot Size | @100 m: approx. 50×450 mm @1000 m: approx. 450×4500 mm |
| Safety Regulation Level | Class 1 |
| Accessible Emission Limit (AEL) | 260 nJ |
| Reference Aperture | 18 mm |
| Max Laser Pulse Emission Power Within 5 Nanoseconds | 52 W |
| Wavelength | 850 nm |
| FOV | 4.6±0.6° (Round) |
| Safety Regulation Level | Class 1 |
| Illumination Range | @100 m: Approx. 8m diameter circle |
| Hybrid Optical Zoom | 34× |
| Max Zoom | 400× |
| Link Zoom | Supported |
| Click to Aim | Supported |
| High-Res Grid Photo | Supported |
| Night Scene | Supported |
| Timestamp | Supported |
| Smart Capture | Supported |
| Video Pre-Recording | Supported |
| UHR Infrared Image | Supported |
| Supported microSD Cards | U3/Class10/V30 or above is required, or use a memory card from the recommended list. |
| Supported File System | exFAT |
| Recommended microSD Cards | SanDisk Extreme Pro V30 A1 32GB microSDHC Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXCZenmuse H30 supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content. |
| Mapping Software | DJI Terra, DJI FlightHub 2 |
| Infrared Analysis Software | DJI Thermal Analysis Tool 3 |
