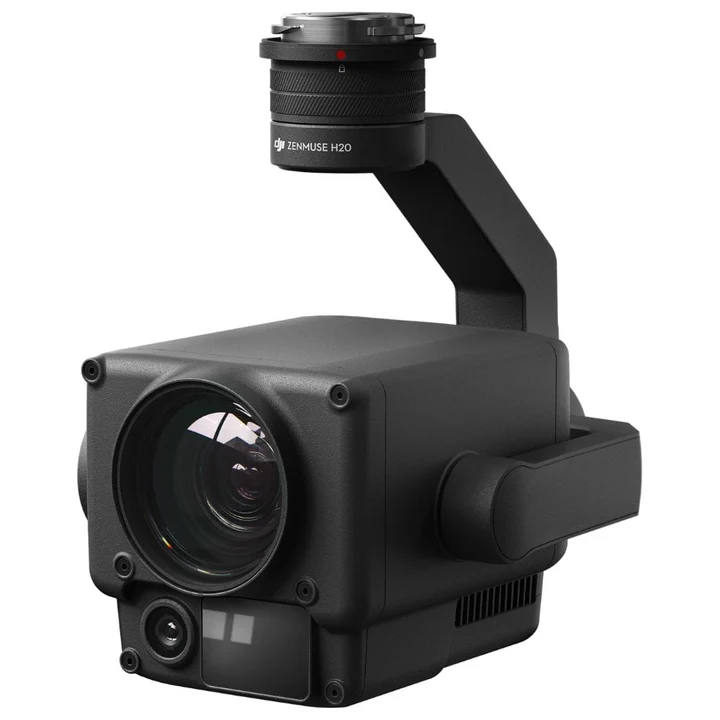

Name: DJI Zenmuse H20 - gnss.ae
Price: 10392.00 AED
Availability: InStock

Features

Tripple-Sensor Solution: The H20 integrates a 20 MP zoom camera, a 12 MP wide camera, and a 1200 m Laser Range Finder into a single, powerful payload.
Advanced Measurement: Features an integrated laser rangefinder (LRF) with a range of up to 1200 m for precise distance measurement.
Versatile Capabilities: Captures detailed images and video in true living colour or thermal, providing comprehensive situational awareness.
Enhanced Efficiency: Designed for DJI’s industrial drone platforms, offering advanced intelligent capabilities for various applications, from asset inspection to emergency response.

All-in-One Solution: The H20 Series is a truly all-in-one solution, helping you see the full picture without missing any details.
One Click Capture: With one click, you can save the video or picture of three cameras (zoom, wide, and thermal camera) simultaneously.
Point to Aim: Double-click on the wide/thermal camera view, and then the system will automatically move the gimbal to focus on the point of interest.
High-Res Grid Photo: Frame an area of interest in a wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
Hybrid Optical Zoom: 23x
Maximum Zoom: 200x
Night Scene: Supported (zoom camera).
Timestamp: Including GPS, date and time.

Intelligent Mission Features: The H20 Series enhances drone missions with smart capabilities for fast, accurate, and reliable data collection.
All-in-One User Interface: Allows quick switching between wide-angle, zoom, and thermal imaging and provides a preview of the zoom FOV while viewing through wide or thermal cameras.
AI Spot-Check : This function allows you to automate routine inspections and capture accurate data time after time. Hone in on a subject of interest, and the onboard AI recognises this in subsequent missions to ensure consistent framing and enable you to monitor a specific subject over a period of time.
PinPoint : Mark an object in view with a quick tap and immediately find out its coordinates.
Smart Track: Locate and follow moving subjects with the auto-zoom function while acquiring your target’s dynamic location.

Specs

Weight	Zenmuse H20: 678±5 g Zenmuse H20T: 828±5 g
Dimensions	Zenmuse H20: 150×114×151 mm Zenmuse H20T: 167×135×161 mm
Ingress Protection Rating	IP44
Operating Temperature	-20° to 50° C (Temperature Measurement is only available between -10° to 50° C)
Storage Temperature	-20° to 60° C
Laser Safety	Class 1M (IEC 60825-1:2014)
Supported Aircraft	Matrice 300 RTK

Sensor	1/1.7″ CMOS, 20 MP
Lens	DFOV: 66.6°-4° Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm) Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene) Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)
Focus Mode	MF/AF-C/AF-S
Exposure Mode	Auto, Manual
Exposure Compensation	±3.0 (1/3 increments)
Metering Mode	Spot metering, Center-weighted metering
AE LOCK	Supported
Electronic Shutter Speed	1 ~ 1/8000 s
ISO Range	Video: 100 – 25600 Photo: 100 – 25600
Video Resolution	3840×2160@30fps, 1920×1080@30fps
Video Format	MP4
Video subtitles	Supported
Photo Size	5184 × 3888
Photo Format	JPEG

Sensor	1/2.3″ CMOS, 12 MP
Lens	DFOV: 82.9° Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to ∞
Exposure Mode	Auto
Exposure Compensation	±3.0 (1/3 increments)
Metering Mode	Spot metering, Center-weighted metering
AE LOCK	Supported
Shutter Speed	1 ~ 1/8000
ISO Range	Video: 100 – 25600 Photo: 100 – 25600
Video Resolution	1920×1080@30fps
Video Format	MP4
Video subtitles	Supported
Photo Size	4056 x 3040
Photo Format	JPEG

Sensor	Uncooled VOx Microbolometer
Lens	DFOV: 40.6° Focal length: 13.5 mm (equivalent: 58 mm) Aperture: f/1.0 Focus: 5 m to ∞
Digital Zoom	1x, 2x, 4x, 8x
Video Resolution	640×512 @ 30 Hz
Video Format	MP4
Image Resolution	640×512
Image Format	R-JPEG (16 bit)
Pixel Pitch	12 μm
Spectral Band	8-14 μm
Noise Equivalent Temperature Difference (NETD)	≤50 mK @ f/1.0
Temperature Measurement Method	Spot Meter, Area Measurement
Scene Range	-40 °C to 150 °C (High Gain) -40 °C to 550 °C (Low Gain)
Temperature alert	Supported
FFC	Auto/ manual
Palette	White hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Wave length	905 nm
Measurement range	3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)
Measurement accuracy	± (0.2 m + D×0.15%) D is the distance to a vertical surface
Safety Regulation Level	Class 1M
Accessible Emission Limit (AEL)	327.84 nJ
Reference Aperture	18mm length, 18mm width (20.3mm diameter if equivalent to circular)
Max Laser Pulse Emission Power Within 5 Nanoseconds	65.6 W

Hybrid Optical Zoom	23×（DFOV：4°，EQV：556.2mm）
Max. Zoom	200×（DFOV：0.5°，EQV：4800mm）
One Click Capture	One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously
Point to Aim	Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest
High-Res Grid Photo	Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.
Night Scene	Supported (zoom camera)
Timestamp	Including GPS, date, and time

Supported SD Card	MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)
Supported File Systems	FAT32 (≤ 32 GB), exFAT (> 32 GB)
Recommended Micro SD Cards	TOSHIBA EXCERIA PRO 32GB micro SD HC II SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I TOSHIBA EXCERIA PRO 64GB micro SD XC II SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I SAMSUNG_EVO_128GB_micro SD 3 XC I TOSHIBA EXCERIA M303E 32GB micro SD HC I TOSHIBA EXCERIA M303E 64GB micro SD XC I TOSHIBA EXCERIA M303E 64GB micro SD XC I TOSHIBA EXCERIA M303 128GB micro SD XC I SAMSUNG_EVO_64GB_micro SD 3 XC I
