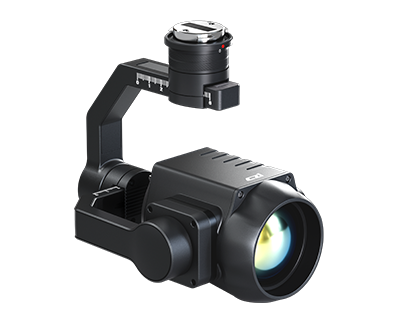

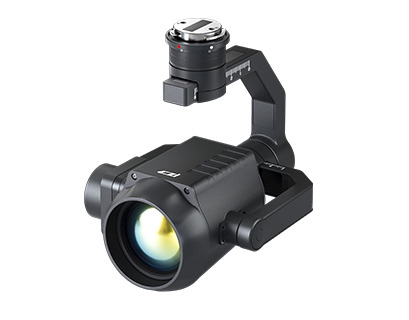

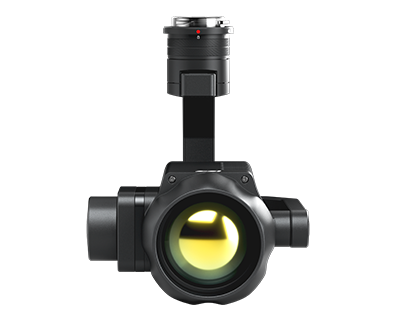

CZI Thermal Camera DT1K

The DT1K Thermal camera is compatible with DJI M300 / M350 RTK drones, and can be compatible with any PSDK interface of drones using a detachable gimbal interface. The thermal imaging movement of up to 1 K is paired with a telephoto lens with a focal length of 55 mm, which can quickly search for targets at ultra-long distances and achieve fast and large-area mapping and modeling.

Equipped with 6 Tops computing power and a variety of AI image algorithms, high-precision three-axis gimbals, and compatible with CZI Pilot and DJI Pilot 2 apps, it brings more possibilities for industrial applications.

Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Features

    High Resolution
    Ultra-clear imaging

    Telephoto Lens
    Long-range precision

    AI Image
    Intelligent recognition

    Infrared Modeling
    Thermal precision

    Key Highlights

    High-Resolution Movement

    1280 × 1024 resolution
    55mm infrared camera
    Infrared processing chip
    Core master control chip
    AI processing chip

    Core Components Localization

    Fully localized supply chain

    Infrared 3D Modeling & Panorama

    Compatible with mainstream modeling software
    One-key infrared panorama shooting

    AI Image Computing

    Human, vehicle and vessel target detection
    Automatic target tracking

    Specs

    General

    Weight
    742 ± 10g
    Size
    165 × 129 × 164mm
    Supported Models
    Matrice 300/350 RTK
    Computing Power
    6 Tops

    Gimbal Parameters

    Gimbal Jitter
    ±0.01°
    Installation Method
    Detachable type
    Controllable Range
    Heading: ±320° / Pitch: -125° ~ +40°

    Telephoto IR Camera

    Thermal Imaging Sensor
    Uncooled VOx infrared focal plane detector
    DFOV
    20.1°
    Focal Length
    55mm (equiv. ≈121mm)
    Aperture
    f/1.1
    Focusing Distance
    100m to infinity
    Digital Zoom
    1× ~ 8×
    Video Resolution
    1280 × 1024 @30fps
    Video Format
    MP4
    Photo Resolution
    1280 × 1024
    Photo Format
    JPEG
    Pixel Pitch
    12µm
    Wavelength Range
    8–14µm
    Sensitivity (NETD)
    <50mK @ f/1.0
    Temperature Measurement
    Area temperature measurement
    Temperature Range
    -20°C ~ +150°C
    Color Palettes

    White heat
    Lava
    Iron red
    Hot iron
    Medical
    North
    Rainbow 1
    Rainbow 2
    Scarlet
    Black heat

    Memory

    Memory Card Type
    MicroSD up to 128GB, UHS-I Speed Grade 3
    Storage File System
    exFAT
