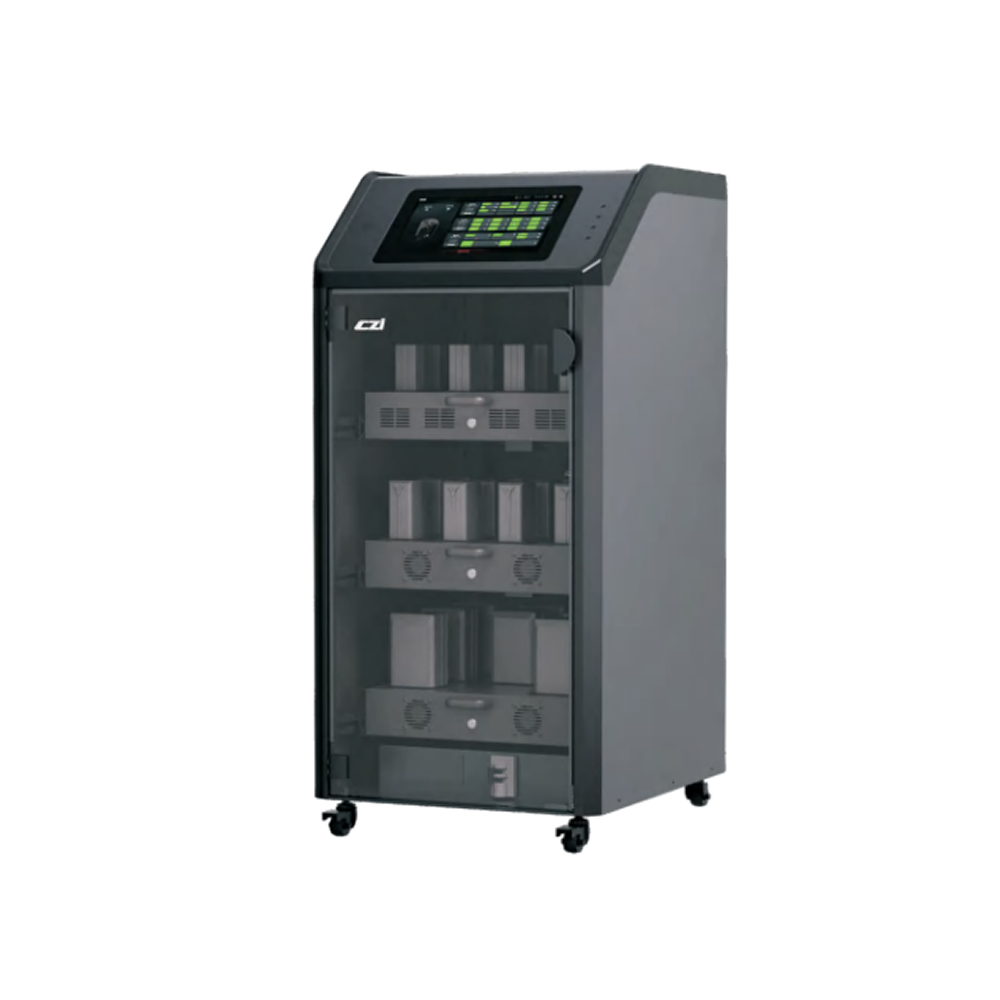

CZI Drone Battery Charging Cabinet BS16

CZI Drone Battery Charging Cabinet BS16

The CZI BS16 Drone Battery Charging Cabinet integrates high-capacity storage, efficient charging, multi-layer protection, flexible compatibility, and digital management into one intelligent solution. Designed for enterprise-level drone operations, it offers three charging modes: Standard, Storage, and Emergency, to meet diverse application needs. A digital display screen provides real-time battery information and efficient charging management. With five-layer safety protection, including airflow cooling, smoke detection, automatic fire suppression, over-temperature/voltage/current protection, and intelligent power-off alarms, the BS16 ensures safe 24/7 battery charging and storage.

Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Download brochure
    Features
    Specs

    Features

    High Capacity
    48 battery slots

    Multi-Model
    Compatibility

    Smart Charging
    Intelligent management

    Cabinet Cascading
    Scalable system

    Key Highlights

    Centralized High-Capacity Management

    Supports up to 48 drone batteries simultaneously
    Automatically matches optimal charging strategies
    Supports hot-swappable batteries

    Intelligent Safety Protection

    Built-in triple automatic fire suppression systems
    Integrated LED lighting with auto-on in low light
    Real-time monitoring: temperature, voltage, battery status
    Automatic alarm and power cutoff

    Broad Compatibility

    Supports DJI M3, M30, M300, M350, M4 batteries
    Intelligent charging management
    Optional WB37 remote controller battery charging
    4×100W Type-C output ports

    Multi-Cabinet Expansion

    Supports cascading via Ethernet
    Open API access for integration with local management systems

    Specs

    BS16

    Dimensions
    W567 × H1200 × D670mm
    Weight
    70kg ±3%
    Input Voltage
    AC 90–220V
    Total Power
    2200W
    Max Charging Power/Layer
    800W
    Charging Layers
    3 layers
    Operating Temperature
    -35°C ~ +65°C
    Storage Temperature
    -40°C ~ +85°C
    Supported Batteries

    M4
    M3
    M30
    M300
    M350

    Battery Data

    SN
    Voltage
    Current
    Cycle count
    Capacity
    Temperature

    Charging Modes

    Standard
    Storage
    Emergency

    Replaceable Modules
    P4/M3 2-in-1, M300/M350 2-in-1, M30 charging module
    Electrical Interfaces

    4×100W Type-C
    1×Gigabit Ethernet
    2×12V/DC2.5 OTG

    Touchscreen

    Size
    13.3 inches
    Brightness
    250cd/m²
    Resolution
    1920 × 1080 (16:9)
    Touch Points
    Up to 10-point capacitive touch
