CZI Delivery System FS35

CZI Delivery System FS35

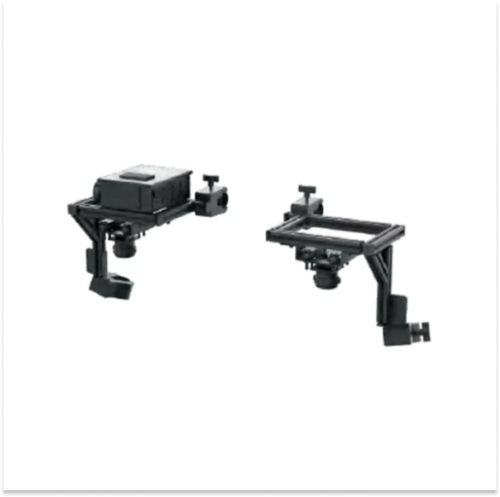

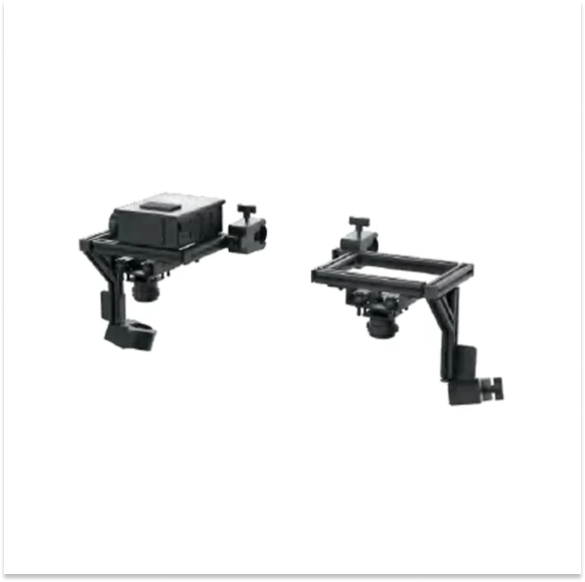

The CZI FS35 Delivery System is a new-generation integrated payload platform developed specifically for the DJI FlyCart 100. Designed for multi-mission operations, the FS35 combines payload control, modular expandability, and quick-release flexibility into one unified platform.

With support for CZI broadcasting systems, gimbal searchlights, delivery payloads, and high-pressure water system capabilities, the FS35 allows operators to configure the FlyCart 100 for a wide range of operational scenarios. Whether used for aerial delivery, lighting, broadcasting, or emergency response support, the FS35 provides a flexible payload solution for demanding field operations.

Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Download brochure
    Features
    Specs

    Features

    • Integrated payload platform for the DJI FlyCart 100
    • Supports broadcasting, lighting, delivery, and firefighting configurations
    • Payload control through the DJI FlyCart 100 remote controller
    • Quick-release design for rapid mission changeover
    • Compatible with multiple CZI standard payloads
    • Supports third-party payload integration
    • Unified control system for multi-mission operations
    • Built for flexible deployment across different operational scenarios
    • Equipped with a 2-inch LCD screen
    • Supports PSDK + 4G communication link
    01

    Payload Control via DJI FC100 Remote Controller
    Full integration with native DJI control system

    02

    WeChat Mini Program Control
    Convenient payload management (not supported outside Mainland China)

    03

    Quick-Release Design
    Rapid mission changeover between payloads

    04

    Supported CZI Payloads

    • Broadcasting Systems: MP135, MP130 Pro
    • Gimbal Searchlights: GL310, GL60 Plus
    • Delivery System: TH6
    • Electronic Launcher: ES638

    05

    Third-Party Payload Integration
    Supports external payload expansion

    Specs

    FS35

    Control Box Dimensions
    158 × 137 × 61mm
    Materials
    Aluminum alloy sheet metal, CNC aluminum, silicone, aluminum profile
    Mounting Method
    Pipe-clamp quick release, adapter-ring quick release
    Total Weight (Excl. Payload)
    3.5kg ±5%
    Communication Link
    PSDK + 4G
    Total Input Power
    750W ±10%
    Input Voltage
    42–60V
    Total Output Power
    500W@48V + 200W@17V ±10%
    Output Voltage
    48 / 17V
    Display
    2-inch LCD screen
    IP Rating
    Daily-use water resistance
    Operating Temperature
    -20°C ~ +50°C
    Operating Humidity
    15% ~ 93%
    Storage Temperature
    -20°C ~ +85°C
    Storage Humidity
    15% ~ 93%
    Supported Payloads

    MP135
    MP130 Pro
    GL310
    GL60 Plus
    TH6
    High-Pressure Water System
