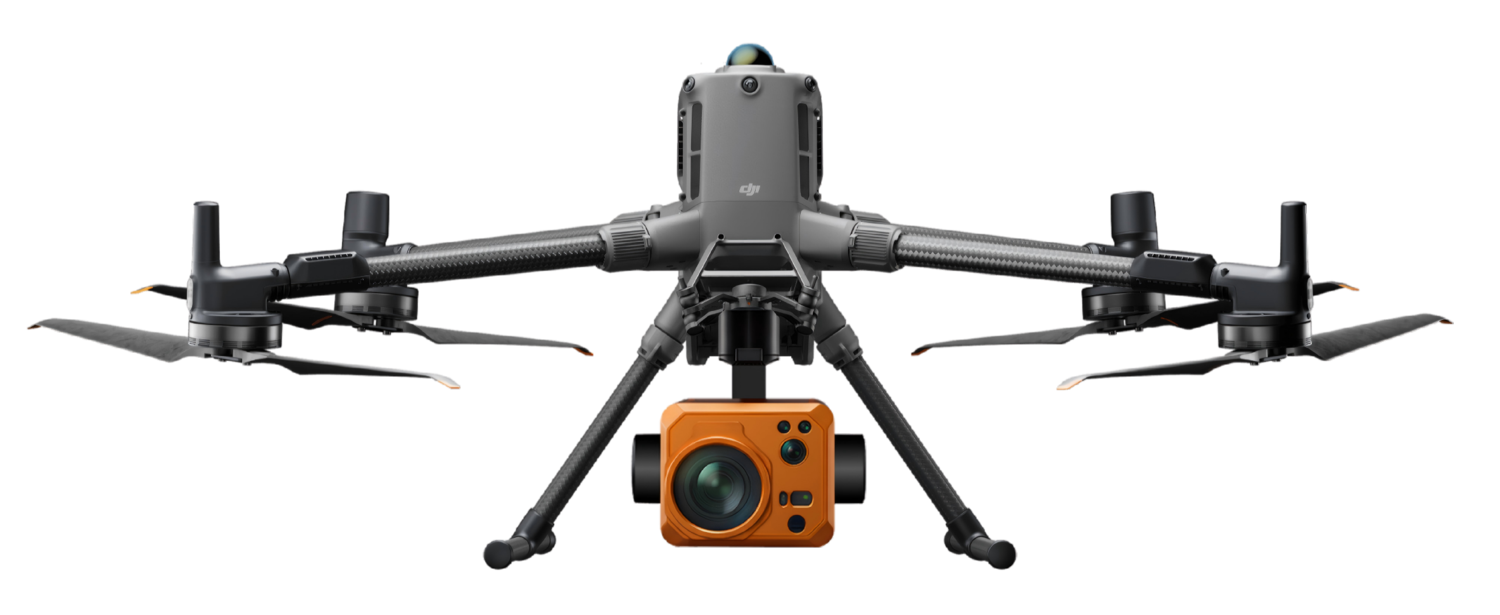

GasVision-TD1 is a dual-technology gas detection sensor that combines OGI (Optical Gas Imaging)and TDLAS (Tunable Diode Laser Absorption Spectroscopy), and this fusion enables both “see the gas” + “measure the gas” in one system. It is seamlessly integrated with DJI Matrice 400, and the key advantages are supporting dual-mode detection, remote & safe inspection with high sensitivity while covering a large area.
GasVision-TD1 is a dual-technology gas detection sensor that combines OGI (Optical Gas Imaging)and TDLAS (Tunable Diode Laser Absorption Spectroscopy), and this fusion enables both “see the gas” + “measure the gas” in one system. It is seamlessly integrated with DJI Matrice 400, and the key advantages are supporting dual-mode detection, remote & safe inspection with high sensitivity while covering a large area.
IP55
1200 m
1900 g
13 MP
| General | |
|---|---|
| Product Name | GasVision-TD1 |
| Product Type | OGI + TDLAS Gas Detector |
| Compatible Platform | DJI Matrice 400 |
| IP Rating | IP55 |
| Laser Ranging | 1200 m |
| Weight | 1900 g |
| RGB Camera | 13 MP |
| OGI Sensor | |
| Detector Type | High Operating Temperature MWIR |
| Resolution | 320 × 256 |
| Pixel Pitch | 30 μm |
| Response Band | 3.2–3.4 μm |
| NETD | ≤12 mK @ 25°C |
| Lens | 50 mm |
| F-number | F1.2 |
| Frame Rate | 50 Hz |
| Digital Zoom | 8× |
| Image Controls & Processing | Auto / Manual |
| Color Palettes | 8 selectable palettes |
| Gimbal Type | DJI X-Port |
| Analog Video Output | PAL |
| Digital Video Output | Camera Link |
| Refrigeration Time | ≤3.5 min @ 25°C |
| Working Temperature | -40°C to 60°C |
| Power Supply Range | DC 12V ± 0.5V |
| Power Consumption @ 25°C | Stable power consumption ≤8 W; maximum power consumption ≤14 W |
| Lens MTTF | 20,000 h @ 25°C |
| TDLAS Sensor | |
| Detection Target | CH₄ |
| Sensitivity | 5 ppm·m |
| Concentration Range | 1–99,999 ppm·m |
| Detection Distance | 0–70 m, depending on conditions and reflection |
| Infrared Detection Laser | Class 3R; avoid direct laser exposure to eyes |
| Wavelength | 1.65 μm, <25 mW |
| Discrepancy | ±10% for concentration range of 100–50,000 ppm·m |
