Micasense Rededge-P Multispectral Kit with DJI Skyport and DJI Matrice 350 RTK drone

  • Plant counting
  • Phenotyping
  • Plant health mapping
  • Fertilizer management
  • Disease identification
  • High-res 3D point clouds

Inquire Now

      I agree* with the privacy policy and the processing of personal data


    * - required fields

    Features

    MicaSense series

    High-resolution multispectral and RGB sensor

    RedEdge-P features a high-resolution panchromatic band for pan-sharpened output resolutions of 2 cm / 0.8 in at 60 m / 200 ft.

    Its five narrow multispectral bands with scientific-grade filters make it the perfect camera for calculating multiple vegetation indices and composites.

    Meet the RedEdge-P

    Compatible drones

    Industry standard for data quality and repeatability

    High resolution panchromatic sensor
    With a high-resolution panchromatic imager, RedEdge-P enables higher-resolution RGB and multispectral outputs – 2 cm per pixel / 0.78 in per pixel resolution when flying at 60 m / 200 ft . With sharper imagery, you can spot smaller problems or features sooner and make more reliable management decisions across a variety of use cases.

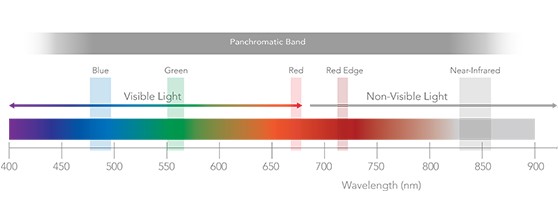

    Five multispectral bands at 1.6 MP each

    • Blue (475 nm center, 32 nm bandwidth)
    • Green (560 nm center, 27 nm bandwidth)
    • Red (668 nm center, 14 nm bandwidth)
    • Red edge (717 nm center, 12 nm bandwidth)
    • Near-IR (842 nm center, 57 nm bandwidth)

    Fast capture rate

    RedEdge-P leverages CFexpress, a 2 TB removable storage that enables up to three captures per second*, immediate turnaround time between flights by swapping cards, and fast card-to-computer upload speeds for more efficient data management.

    *depending on user configuration settings

    Global shutter

    The global shutter of RedEdge-P allows for distortion-free image captures.

    Why RedEdge-P

    Increase data accuracy and repeatability

    Calibrated multispectral imagery

    Each RedEdge-P camera kit comes with a Reflectance Panel for on-the-ground calibration as well as a DLS2 light sensor for irradiance and sun angle measurements. These radiometric calibration tools account for different weather and light conditions, providing more accurate, reliable data that enable time series analysis and comparability of outputs over time.

    Powerful AI capabilities

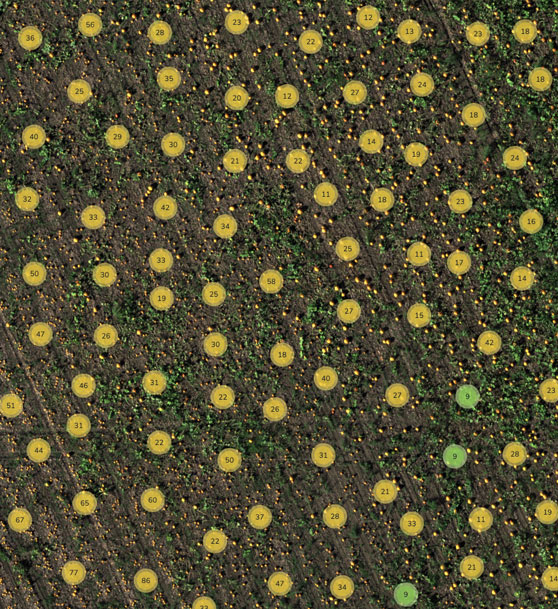

    Thanks to the panchromatic band, RedEdge-P enables high-resolution RGB and multispectral imagery for machine learning applications such as plant counting and advanced vegetation research applications.

    Compatible with a wide range of drones and processing software

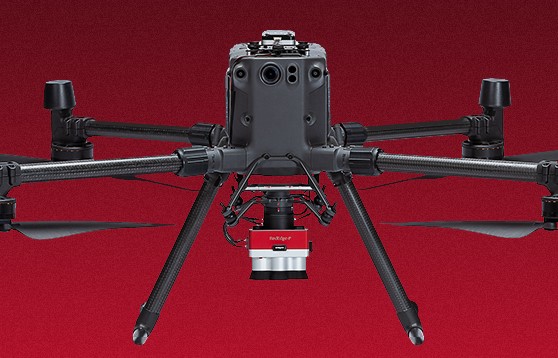

    The RedEdge-P SkyPort ensures perfect compatibility with DJI’s M300/M350 RTK drones. The camera also features an open API interface for easy integration with many popular drone and software platforms.

    Synchronized capture of high-res RGB and multispectral

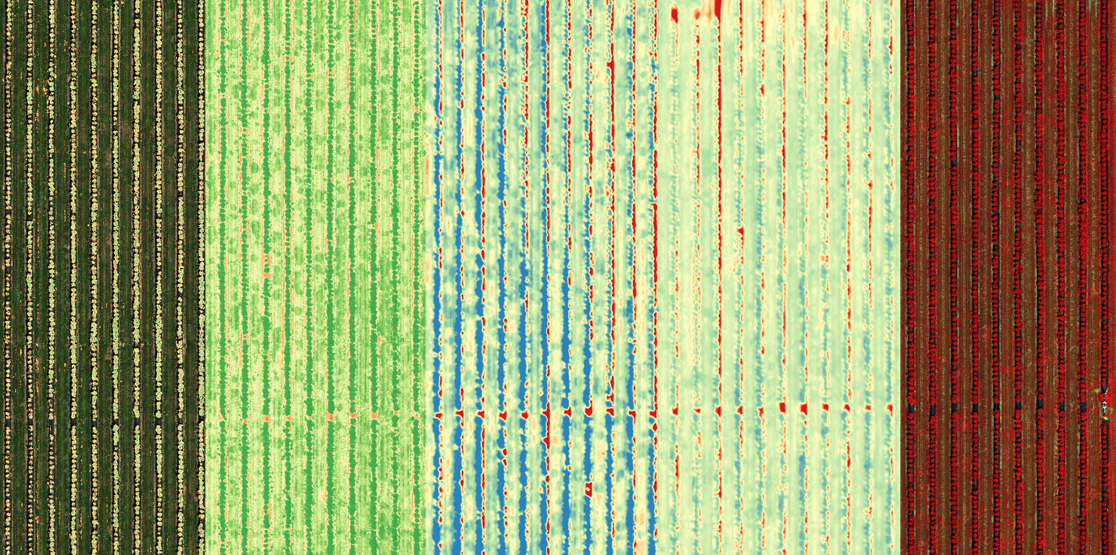

    Simultaneous capture of up to six bands, enabling multiple high-resolution outputs such as RGB, crop vigor indices and composites (NDVI, NDRE, CIR), and high-resolution panchromatic.

    User-driven design

    Our products are designed upon customer feedback. The RedEdge-P features twice the spatial resolution of previous RedEdge models, a faster capture rate and RTK support for DJI M300 drones.

    NDAA compliant

    All MicaSense series sensors are NDAA compliant, designed, manufactured, and engineered in the USA.

    Use cases and applications

    Designed specifically for UAV and vegetation mapping

    • Plant counting
    • Phenotyping
    • Plant health mapping
    • Fertilizer management
    • Disease identification
    • Species differentiation
    • Advanced crop scouting

    High-res 3D point clouds

    RedEdge-P’s 5.1 megapixel panchromatic band provides over twice the ground resolution of the industry-standard RedEdge-MX, resulting in 3D point clouds with up to 4 times the point density.

    Specification

    • Blue (475 nm center, 32 nm bandwidth)
    • Green (560 nm center, 27 nm bandwidth)
    • Red (668 nm center, 14 nm bandwidth)
    • Red edge (717 nm center, 12 nm bandwidth)
    • Near-IR (842 nm center, 57 nm bandwidth)
