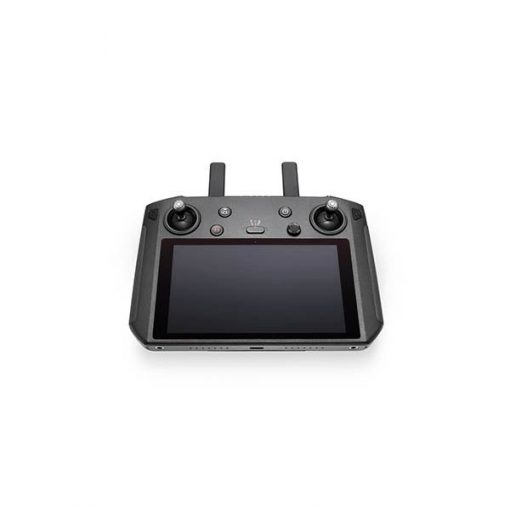

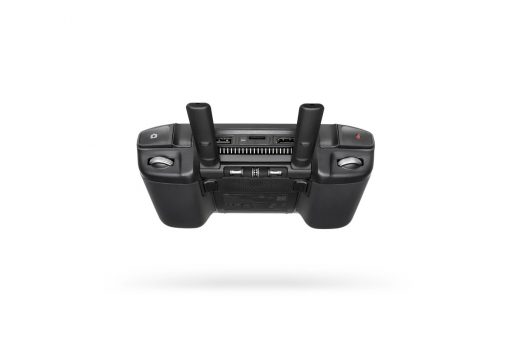

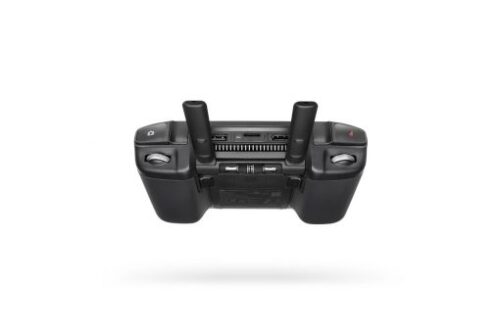

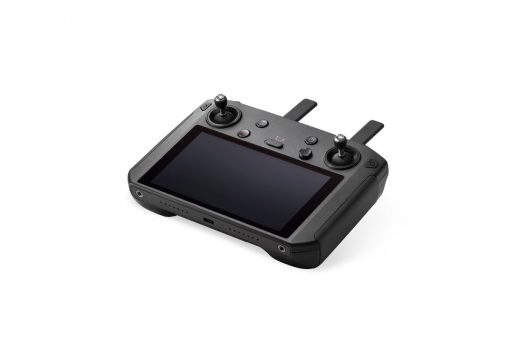

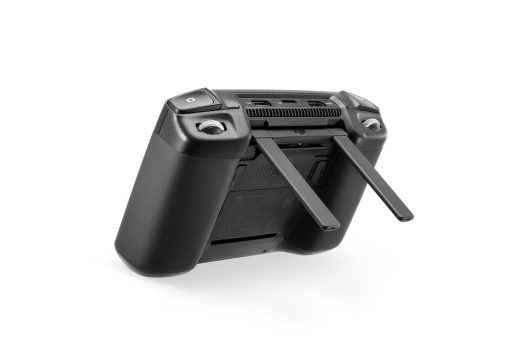

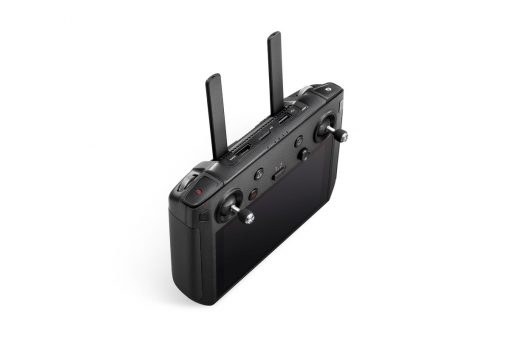

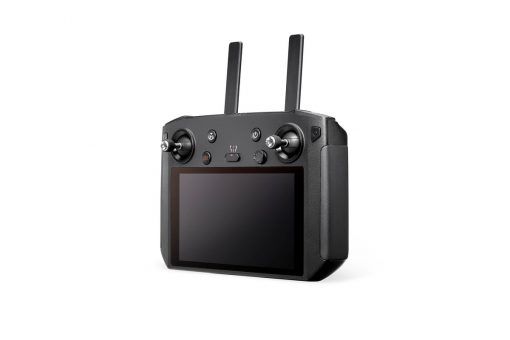

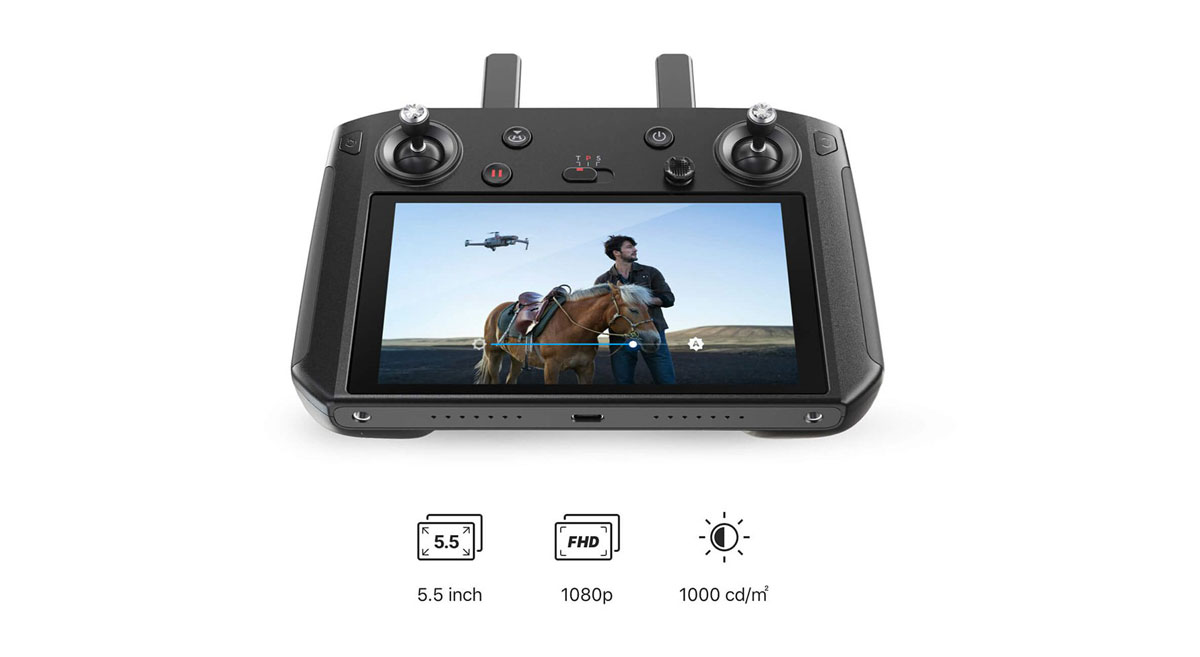

DJI Smart Controller

  • 5.5-inch 1080p screen
  • OcuSync 2.0
  • Temperature from -20° C to 40° C
  • Custom Android system
  • DJI Go Share
  • Supports Third Party Apps
Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Features

    The DJI Smart remote controller is designed to maximize your outdoor flying experience with the DJI Mavic 2 or other drones equipped with OcuSync 2.0. An integrated 5.5-inch screen shows clear, bright images, even under difficult conditions. Intuitive controls and pre-installed features like SkyTalk and the DJI GO 4 app make you faster, clearer and more comfortable than ever before.

    Ultra-bright display

    The DJI Smart remote controller features a built-in 5.5-inch 1080p screen, which offers an ultra-bright display to keep live feeds easily visible, even in direct sunlight. At 1000 cd/m2, the display is about twice as bright as conventional smart device screens.

    Full-HD OcuSync 2.0 video transmission

    Equipped with Full-HD OcuSync 2.0 video transmission technology, the DJI Smart remote controller supports automatic switching between 2.4 GHz and 5.8 GHz, reducing the influence of environmental interference on drones’ operation and image quality. This also guarantees reliable long-range transmission over distances of up to 8 km.

    Efficient and portable

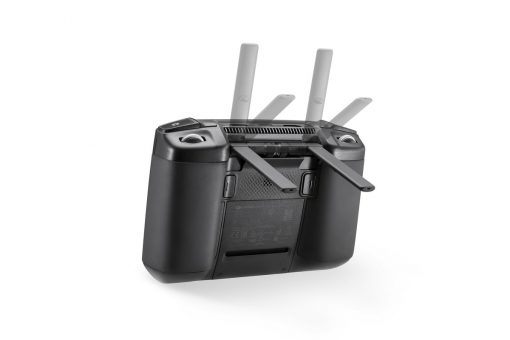

    The DJI Smart remote controller connects to your drones as soon as they are turned on, so you can take off quickly and never miss a moment of the action. With an integrated design with removable control sticks, the DJI Smart Controller is also portable enough to take with you anywhere.


    Reliable in multiple environments

    The DJI Smart remote control is able to operate stably at temperatures between -20° C and 40° C, offering a reliable HD connection to your drone in multiple places.

    DJI Go Share

    Easily transfer your photos and videos from the sky from the DJI Smart Controller to your mobile device using the new Go Share feature in the DJI GO 4 app.

    Customized system

    DJI Smart Controller’s custom Android system and optimized DJI GO 4 app give you freedom from the restrictions of conventional mobile devices for faster, more targeted aerial creation. The Smart Controller also supports third-party apps for a variety of additional sharing and editing options.

    Excellent audio and video performance

    The DJI Smart Controller features a built-in microphone and speaker for extended options such as livestreaming. It can also play video through the HDMI port at 4K 60fps with H.264 and H.265.

    Other features

    • SkyTalk. The new SkyTalk feature is a great way to bring others into your aerial experience. Use it to send the camera view of your drone directly to social media platforms such as Facebook and Instagram in livestream. It also allows you to create and share short videos instantly.
    • Long-life battery. The 5000 mAh battery supports fast charging and can operate continuously for up to 2.5 hours.

    Specification

    OcuSync 2.0

    Operation Frequency Range
    • 2.400-2.4835 GHz,
    • 5.725-5.850 GHz[1]
    Max Transmission Distance (unobstructed, free of interference) 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)
    Transmitter Power (EIRP) 2.400-2.4835 GHz:

    • 25.5 dBm (FCC),
    • 18.5 dBm (CE),
    • 19 dBm (SRRC),
    • 18.5 dBm (MIC)

    5.725-5.850 GHz:

    • 25.5 dBm (FCC),
    • 12.5 dBm (CE),
    • 18.5 dBm (SRRC)

    Wi-Fi

    Protocol Wi-Fi Direct, Wireless Display, 802.11a/g/n/ac, Wi-Fi with 2×2 MIMO is supported
    Operation Frequency Range
    • 2.400-2.4835 GHz,
    • 5.150-5.250 GHz
    • 5.725-5.850 GHz
    Transmitter Power (EIRP) 2.400-2.4835 GHz:

    • 21.5 dBm (FCC), 18.5 dBm (CE)
    • 18.5 dBm (SRRC), 20.5 dBm (MIC)

    5.150-5.250 GHz:

    • 19 dBm (FCC), 19 dBm (CE)
    • 19 dBm (SRRC), 19 dBm (MIC)

    5.725-5.850 GHz:

    • 21 dBm (FCC), 13 dBm (CE), 21 dBm (SRRC)

    Bluetooth

    Protocol Bluetooth 4.2
    Operation Frequency Range 2.400-2.4835 GHz
    Transmitter Power (EIRP) 4 dBm (FCC), 4 dBm (CE), 4 dBm (SRRC), 4 dBm (MIC)

    General

    Battery 18650 Li-ion (5000 mAh @ 7.2 V)
    Charge Type Supports USB power adapters rated 12 V/2 A
    Rated Power 15 W
    Storage Capacity ROM 16 GB + scalable (microSD)
    Charging Time 2 hours (using a USB power adapter rated 12 V/2 A)
    Working Time 2.5 hours
    Video Output Port HDMI Port
    Power Supply Current / Voltage (USB-A port) 5 V/ 900 mA
    Operation Temperature Range -4° to 104° F (-20° to 40° C)
    Storage Temperature Range
    • <1 month: -22° to 140° F (-30° to 60° C)
    • 1-3 months: -22° to 113° F (-30° to 45° C)
    • 3-6 months: -22° to 95° F (-30° to 35° C)
    • >6 months: -22° to 77° F (-30° to 25° C)
    Charging Temperature Range 41° to 104° F (5° to 40° C)
    Supported Aircraft Models[2] Please visit the official website for the latest information.
    GNSS GPS+GLONASS
    Dimensions
    • 177.5 x 121.3 x 40 mm (antennas folded, and the control sticks unmounted)
    • 177.5 x 181 x 60 mm (antennas unfolded, and the control sticks mounted)
    Weight Approx. 630 g
    Model RM500

    Supported SD Cards

    Supported SD Cards microSD™
    Supports microSD cards with a capacity of up to 128 GB and R/W speed up to UHS-I Speed Grade 3

    Footnotes

    Footnotes
    1. Local regulations in some countries prohibit the use of the 5.8 GHz and 5.2 GHz frequencies. In some regions, the 5.2 GHz frequency band is only allowed for indoor use.
    2. The Smart Controller will support more DJI aircraft models in the future. Please visit the official website for the latest information.
