DJI CSM Radar For Matrice 300 Series

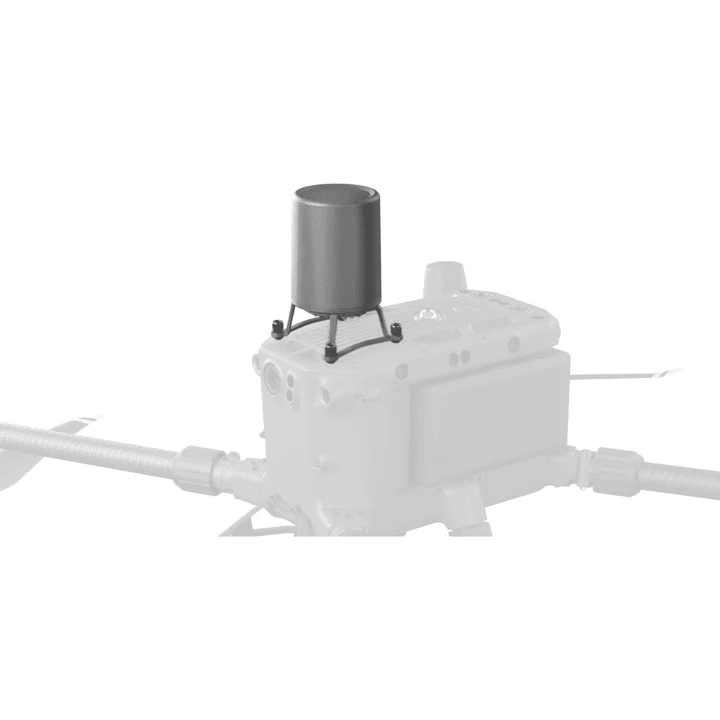

The CSM Radar is a bolt-on object detection system for the DJI M300 RTK and DJI M350 RTK. It can be used at night and can detect objects such as wires and branches, and offers 360° horizontal detection to further enhance flight safety and situational awareness.

Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Download brochure
    Features
    Specs

    Features

    Enhanced Situational Awareness

    • Detect Thin Obstacles: Use the radar to detect obstacles like wires, powerlines, and branches.
    • Enhance Situational Awareness: The CSM Radar augments the six collision detection sensors on the DJI M350 RTK and M300 RTK, covering their blind spots.
    • Comprehensive Coverage: The CSM Radar has a detection distance of 1.5 to 30 metres (5 – 98 feet). It offers the following directional coverage: 360° horizontal, 60° vertical, 45° upper.
    • Braking and Warning System: Pre-set the obstacle braking distance to stop the drone when it comes close to an object. The warning system with a slow-beeping function adds another layer of safety.
    • Nighttime Operations: Can be used at night when the drone’s built-in vision system is not functional.
    • Robust System: IP45 Rating.

    Specs

    Specification Value
    Model RD2424R
    Dimensions 75×75×105.4 mm
    Weight (without mounting bracket and cables) 336 g
    IP Rating IP45
    Operating Temperature -20° to 50°C (-4° to 122° F)
    Operating Frequency 24.05-24.25 GHz
    Power Consumption 12 W
    Transmitter Power (EIRP) SRRC: <13 dBm NCC/MIC/KCC/CE/FCC: <20 dBm
