Features

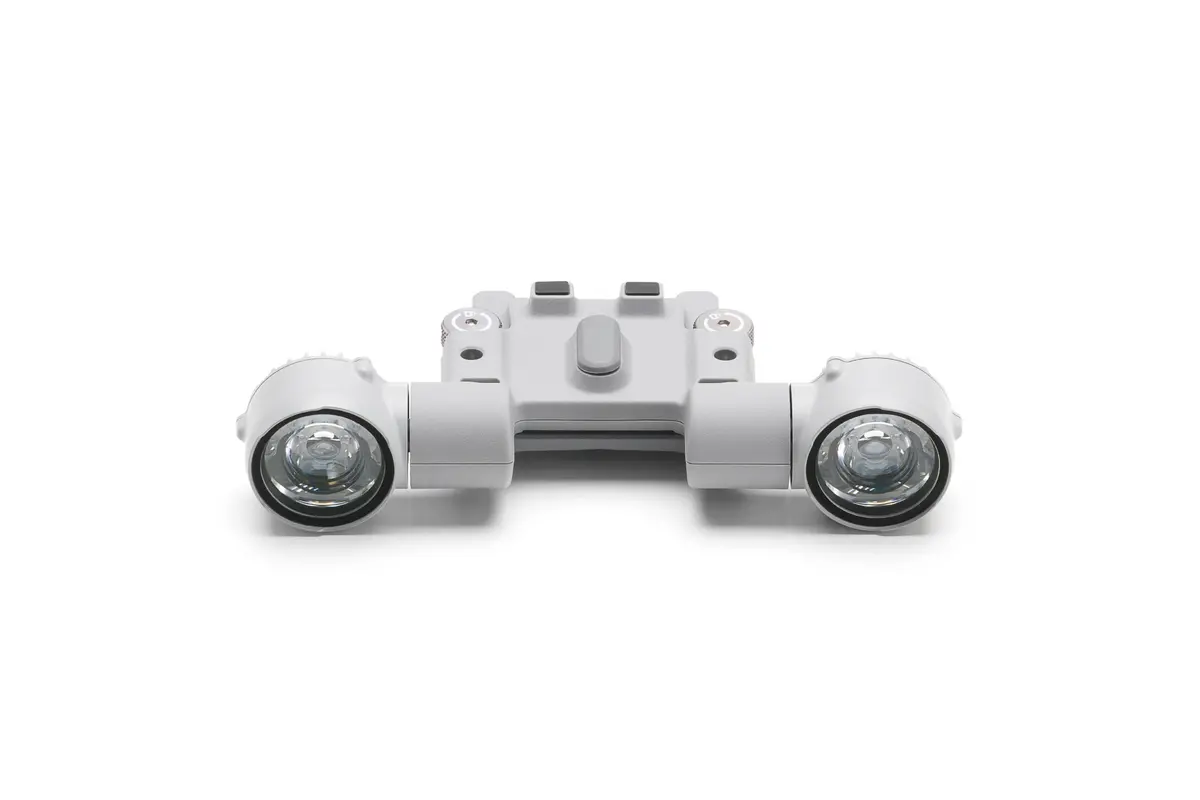

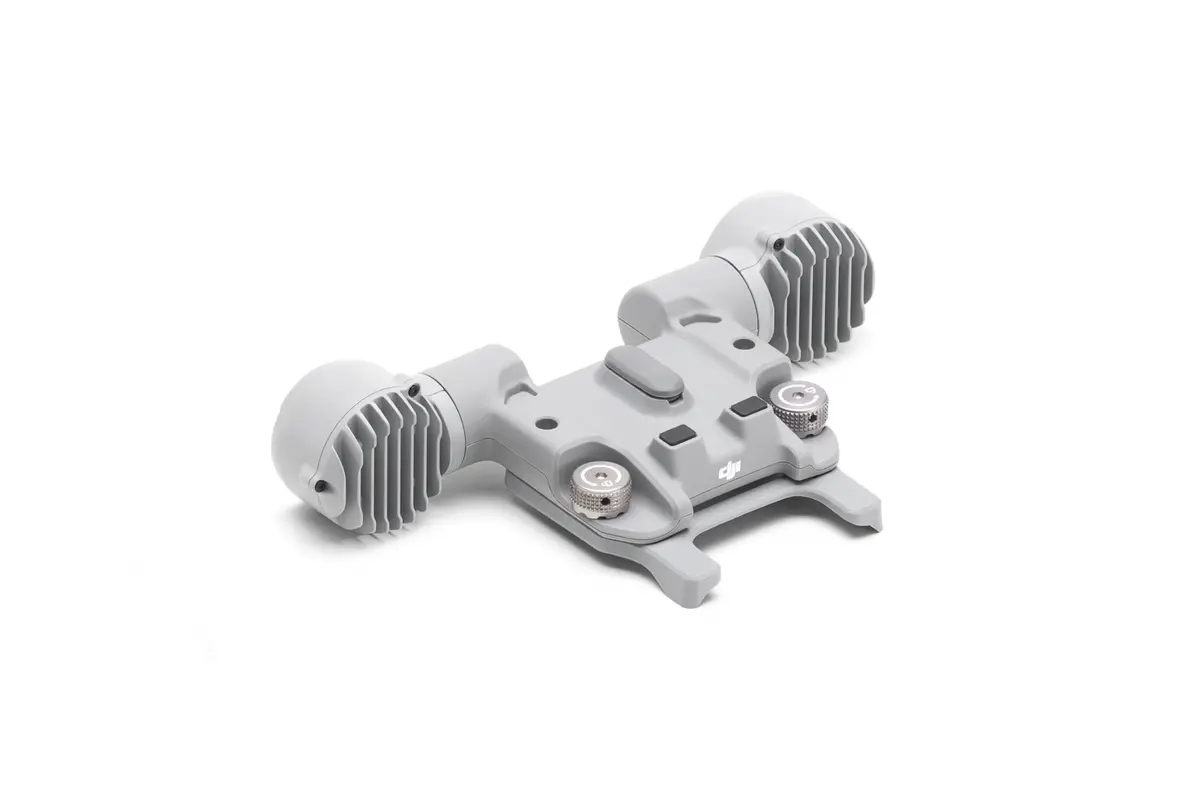

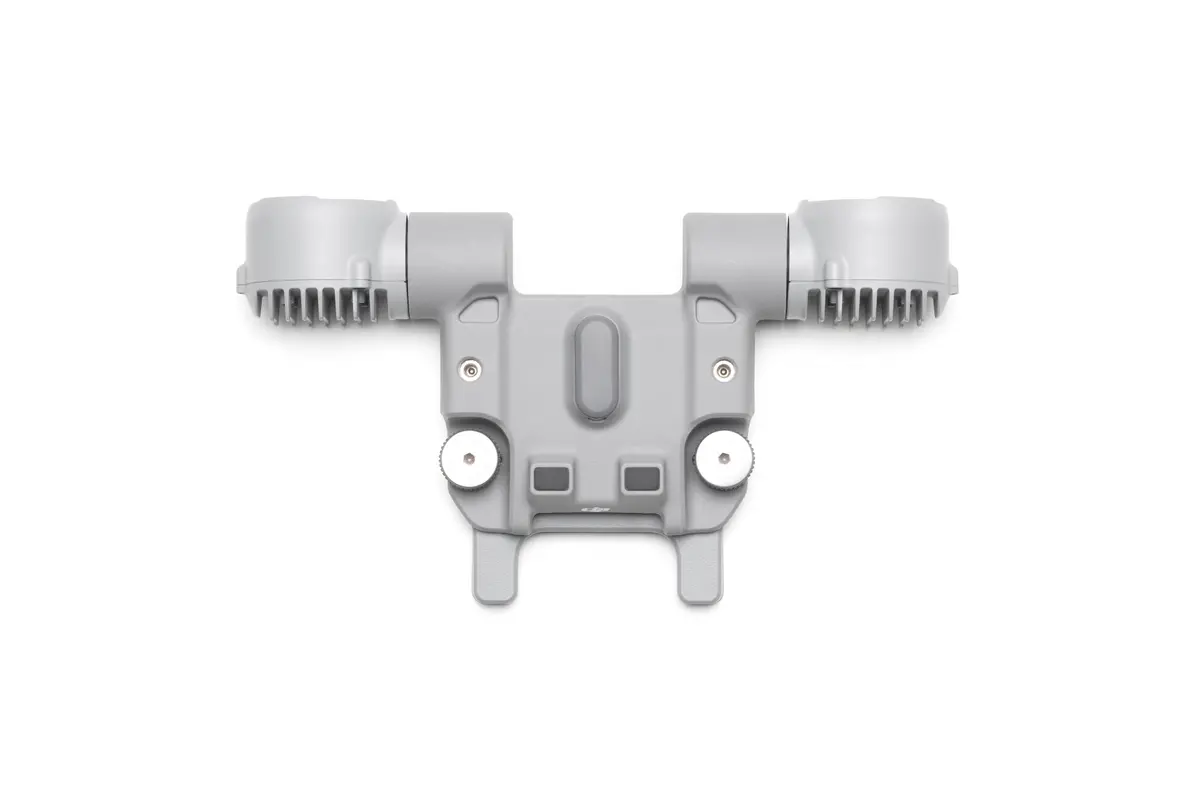

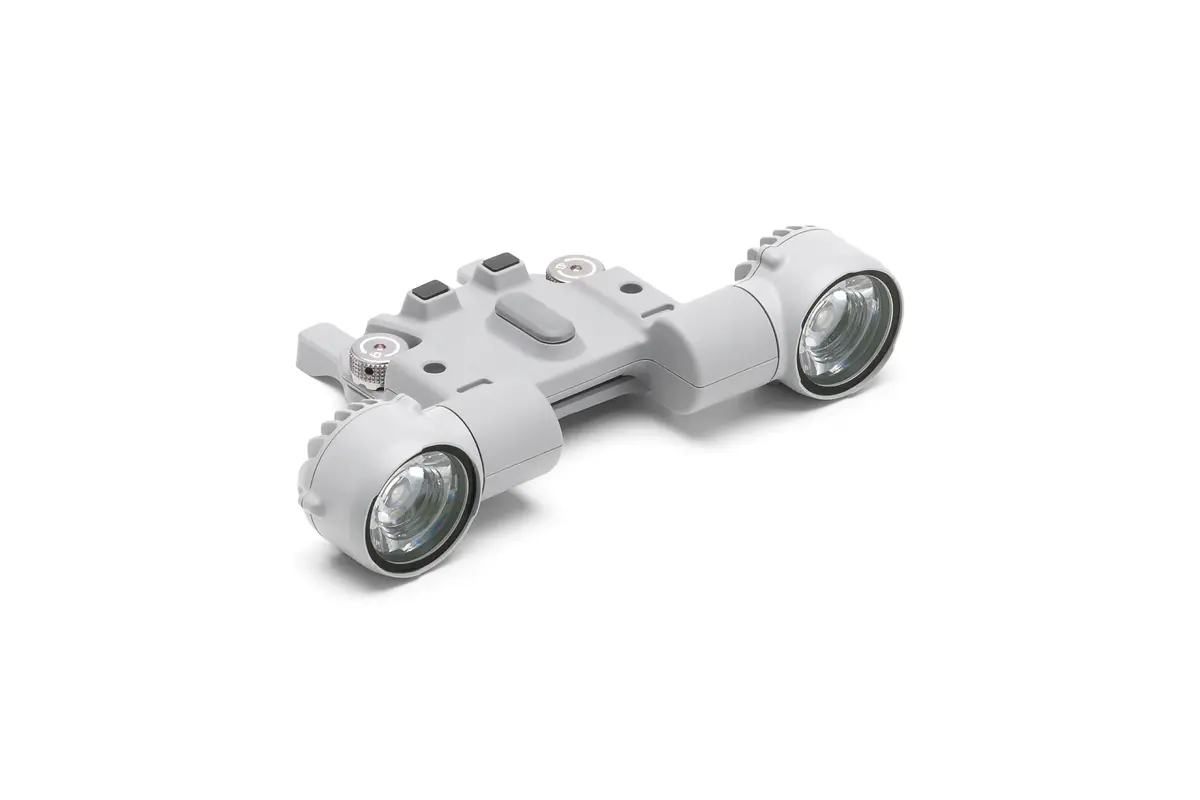

The DJI AL1 Spotlight supports two modes: always-on and strobe. It can clearly illuminate subjects even from a distance of 100 meters. [1] Additionally, it can intelligently link with the gimbal, following the camera’s movements to ensure the illuminated area matches the camera’s view. It also offers a wide fov lighting mode, which can light up a broader area when in wide-angle mode. The spotlight and speaker can be used independently or in combination, meeting the needs of more operational scenarios.
Highlights
The spotlight supports two modes: always-on and strobe, providing clear illumination of subjects. It also links with the gimbal.
- When installing the spotlight on drones, tighten the screws and ensure proper sealing of the interface. When using for long-term or with DJI Dock, use the included hex key to tighten the screws again.
- When installed on Matrice 4D Series drones, please remove the adapter bracket at the bottom.
- After installation, connect to the internet to activate the spotlight as instructed. If there is a firmware update notification, update to the latest firmware promptly.
- After installing the spotlight, the obstacle avoidance performance on the left and right sides of Matrice 4 Series drones will be reduced, and the upward obstacle avoidance of Matrice 4D Series drones will be disabled. Additionally, the drones’ power performance will be affected. Please ensure flight safety.
- When the spotlight is turned on, the obstacle avoidance function will deactivate automatically. Please ensure flight safety.
- DO NOT point the spotlight directly at people’s eyes.
- The spotlight may become hot after prolonged operation. Please be careful to avoid burns.
In The Box
- Spotlight × 1
- Spare Screw × 2
- Hex Key × 1
Compatibility
Support for use with DJI Matrice 4 Series aircraft.
Specs
- Weight: 91 g (excluding bracket)
- Dimensions: 79×164×28 mm (L×W×H, excluding bracket)
- Maximum Power: 32 W
- Illuminance: 4.3±0.2 lux @ 100 meters, 17±0.2 lux @ 50 meters*
- Effective Illumination Angle: 23°(10% relative illuminance)
- Effective Illumination Area: 1,300 square meters @ 100 meters (10% relative illuminance, Normal Mode)
- 2,200 square meters @ 100 meters (10% relative illuminance, Wide FOV Mode)
- Modes: Always-on and strobe
- Gimbal Mechanical Range (Tilt): -140° to 50°
- Gimbal Controllable Range (Tilt): -90° to 35°
- Max Control Speed (tilt): 120°/s
- Gimbal Alignment Accuracy: ±0.1°
- Operating Temperature:-20° to 50° C (-4° to 122° F)
- Mounting Method: Quick-release hand-tightened screws
- Protection Rating: IP55 (with Matrice 4D Series)
* The data was measured in a laboratory environment with the spotlight installed separately on the aircraft at an ambient temperature of 25°C (77° F).
- This effect is based on a distance of 100 meters from the subject and is for reference only.
