DJI Matrice 4TD for Dock 3

  • 47-min flight at 15 m/s for extended coverage
  • IP55 rating ensures mission durability

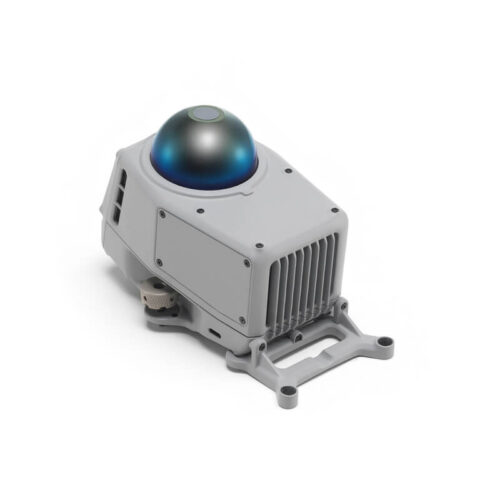

  • Rotating LiDAR + mm-wave radar for 12mm cable avoidance
  • 48 MP tele camera plus 80° upward tilt
  • Thermal imaging with 1280 × 1024 UHR mode
  • Onboard relay for increased range in remote terrains
  • Care Enterprise Plus coverage
3Dsurvey Software

Price on request

Agisoft Metashape professional version

Price on request

DJI Terra

Price on request

Drone Aerial Photogrammetric Survey Specialist

Price on request

Drone Data Process and Modeling Specialist

Price on request

M300 Commercial Drone Flight Specialist

Price on request

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.


    * - required fields

    Features

    Redefine Aerial Efficiency with the DJI Matrice 4TD

    Engineered for professional operations, the DJI Matrice 4TD boasts an extended 47-minute flight time at 15 m/s, robust IP55 protection, and high-precision obstacle sensing. This platform is perfect for tasks in low-light or demanding environments, offering advanced imaging solutions like a 48 MP tele camera with 80° upward tilt and a powerful UHR infrared thermal camera. Whether you’re mapping terrain in remote locations or monitoring critical infrastructure, the Matrice 4TD stands out with its onboard relay function-one drone can serve as a signal relay while another conducts the mission, ensuring uninterrupted communication.

    Key Features

    • Elevated Flight Performance: 47-minute flight endurance and 18 minutes at 10 km distance meet the needs of long-range missions.
    • IP55 Durability: Ready for dust, rain, and tough weather conditions to keep crucial tasks in motion.
    • Advanced LiDAR & Radar Sensing: Detects cables as thin as 12mm at speeds of 15 m/s, enhancing safety during powerline or substation work.
    • Enhanced Tele Camera: Zoom in on structural details from up to 250 m; tilt upwards to inspect bridge undersides with clarity.
    • Thermal & Night Vision: Leverage Night Scene mode, NIR auxiliary light, and UHR Infrared Image mode (1280 × 1024) for round-the-clock operations.
    • Onboard Relay Mechanism: A second drone can hover high to extend the signal range, supporting remote missions without 4G coverage.

    Applications

    • Powerline & Substation Inspections: Safely navigate wires and complex layouts with high-precision obstacle avoidance.
    • Disaster Response & SAR: Locate and rescue in dark or rugged terrains, using the thermal camera and onboard relay to maintain connectivity.
    • Orthophoto & Oblique Mapping: Acquire accurate topography and structural data with real-time terrain following and advanced route planning.
    • Infrastructure Maintenance: Capture critical details on bridges, buildings, and other public works for efficient, informed decision-making.

    Why Buy from Dronefly

    • Expert Guidance: Our seasoned team aids in selecting the right payloads and accessories for your industry.
    • Vast Product Selection: Find everything from drones to specialized sensors and software under one roof.
    • Reliable Customer Service: Get prompt assistance before, during, and after your purchase.
    • Fair, Transparent Pricing: Acquire industry-leading tech with best-value options tailored to your needs.

    Specification

    Aircraft – General

    Weight1850 gThis value includes the weight of the battery, propellers, and a microSD card, but does not include third-party payloads. The actual weight may vary due to differences in batch materials and external factors.
    Max Takeoff Weight2090 g
    Dimensions377.7×416.2×212.5 mm (L×W×H, without propellers)
    Wheelbase
    • Diagonal Wheelbase: 498.5 mm
    • Front Motor Left-Right Wheelbase: 383.0 mm
    • Rear Motor Left-Right Wheelbase: 343.0 mm
    • Front-Rear Wheelbase: 341.6 mm
    Max Ascent Speed
    • 6 m/s (Normal Mode)
    • 10 m/s (Sport mode)
    Max Descent Speed
    • 6 m/s (Normal Mode)
    • 8 m/s (Sport mode)
    Max Horizontal Speed (at sea level, no wind)
    • Normal Mode, With Obstacle Sensing Enabled: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways
    • Sport Mode: 21 m/s flying forward, 19 m/s flying backward, 15 m/s flying sideways

    When used with DJI Dock, only Normal mode is supported.

    Max Wind Speed Resistance
    • During Operation: 12 m/s
    • During Takeoff/Landing: 12 m/s
    Max Takeoff Altitude6500 m
    Max Flight Time54 minutesMeasured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 12 m/s in a windless laboratory environment at 20 meters above sea level, in photo mode (without photo-taking operation during flight), with Obstacle Avoidance Action set to Off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
    Max Hovering Time47 minutesMeasured with the DJI Matrice 4D Series drones hovering in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
    Max Operating Radius10 kmMeasured in an environment of approximately 25° C (77° F) with a safe battery level of 15%, windless environment, round-trip flight speed of approximately 15 m/s, and hovering operation of 18 minutes. Results may vary depending on the environment, actual use, and firmware version.
    Max Flight Distance43 kmMeasured with Matrice 4D/4TD flying at a constant speed of 16 m/s in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version.
    Max Pitch Angle
    • 25° (Normal Mode)
    • 30° (Sport Mode)
    Max Angular Velocity200°/s
    Global Navigation Satellite SystemGPS + BeiDou + Galileo + QZSS + GLONASS (QZSS and GLONASS are supported only when the RTK module is enabled.)
    Hovering Accuracy Range (windless or breezy)Vertical:

    • ±0.1 m (with vision positioning)
    • ±0.5 m (with GNSS positioning)
    • ±0.1 m (with RTK positioning)

    Horizontal:

    • ±0.3 m (with vision positioning)
    • ±0.5 m (with GNSS positioning)
    • ±0.1 m (with RTK positioning)
    Operating Temperature-20° to 50° C (-4° to 122° F)
    Ingress Protection RatingIP55
    Motor Model2611

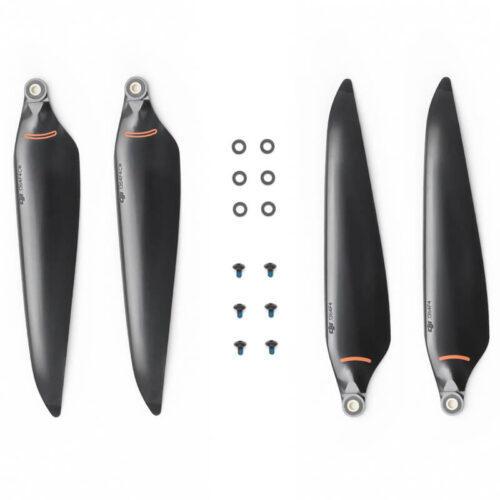

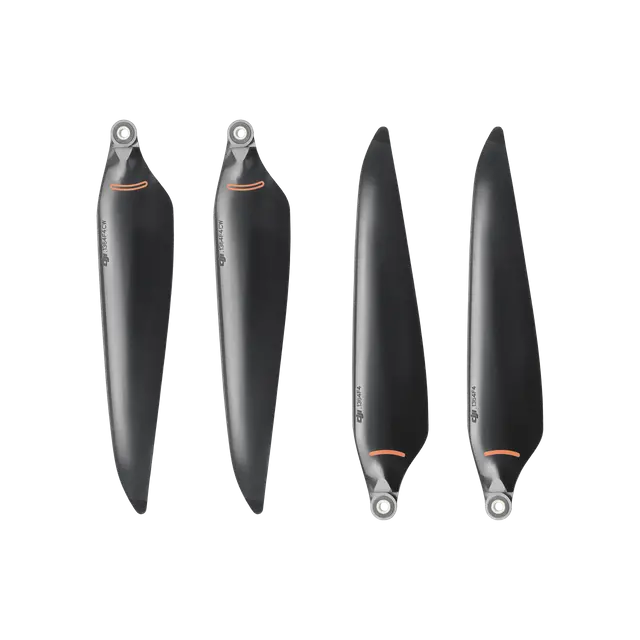

    Propeller Model1364F foldable low-noise anti-ice propellers
    RTK ModuleIntegrated on the aircraft
    BeaconIntegrated on the aircraft

    Aircraft – Cameras

    Image Sensor
    • Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
    • Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
    • Tele Camera: 1/1.5-inch CMOS, Effective Pixels: 48 MP
    LensWide-Angle Camera

    • FOV: 82°
    • Format Equivalent: 24 mm
    • Aperture: f/1.7
    • Focus: 1 m to ∞

    Medium Tele Camera

    • FOV: 35°
    • Format Equivalent: 70 mm
    • Aperture: f/2.8
    • Focus: 3 m to ∞

    Tele Camera

    • FOV: 15°
    • Format Equivalent: 168 mm
    • Aperture: f/2.8
    • Focus: 3 m to ∞
    Lens DefoggingDJI Matrice 4D and DJI Matrice 4TD: Wide-angle, medium tele, and tele cameras all support lens defogging
    ISO RangeNormal Mode: ISO 100-25600Night Scene Mode:

    • Wide-Angle Camera: ISO 100-409600
    • Medium Tele Camera: ISO 100-409600
    • Tele Camera: ISO 100-819200
    Shutter Speed
    • 2-1/8000 s
    Max Image Size
    • Wide-Angle Camera: 8064×6048
    • Medium Tele Camera: 8064×6048
    • Tele Camera: 8192×6144
    Minimum Photo Interval 0.7 s
    Still Photography Modes
    • Wide-Angle Camera:
      • Single: 12 MP/48 MP
      • Timed: 12 MP/48 MP
      • JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
      • Smart Capture: 12 MP
      • Panorama: 12 MP (raw image); 100 MP (stitched image)
    • Medium Tele Camera:
      • Single: 12 MP/48 MP
      • Timed: 12 MP/48 MP
      • JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
      • Smart Capture: 12 MP
    • Tele Camera:
      • Single: 12 MP/48 MP
      • Timed: 12 MP/48 MP
      • JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
      • Smart Capture:12MP
    Video Codec and Resolution
    • Video Codec: H.264, H.265
    • Encoding Strategy: CBR, VBR
    • Resolution:
      • 4K: 3840×2160@30fps
      • FHD: 1920×1080@30fps
    Video Bitrate
    • H264: 60 Mbps
    • H265: 40 Mbps
    Supported File SystemexFAT
    Photo FormatJPEG
    Video FormatMP4 (MPEG-4 AVC/H.264)
    Digital ZoomTele Camera: 16x (112x hybrid zoom)
