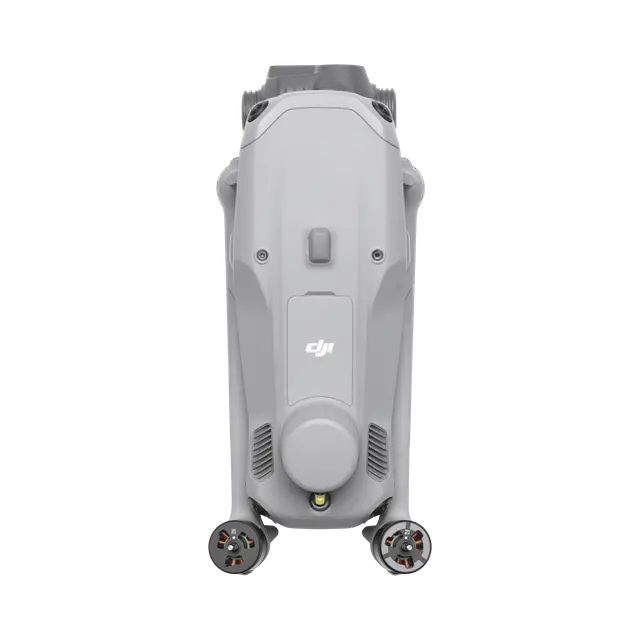

DJI Matrice 4 E
Introducing the DJI Matrice 4 Series, a new compact and intelligent multi-sensor flagship drone series for enterprise industries. The series includes Matrice 4T and Matrice 4E, each equipped with advanced features such as smart detection and measurement with laser range finder. Flight operations are now safer and more reliable with significantly enhanced sensing capabilities. The accessories for the Matrice 4 series have also been significantly upgraded. The Matrice 4T is suitable for a wide range of industries, including electricity, emergency response, public safety, and forestry conservation. The Matrice 4E is designed for geospatial applications such as surveying and mapping, construction, and mining. A new era in intelligent aerial operations begins now.
Wide-Angle Camera
- 4/3 CMOS,
- 20MP Effective Pixels ,
- f/2.8-f/11,
- Format Equivalent: 24 mm,
- Mechanical Shutter
Medium Tele Camera
- 1/1.3″ CMOS,
- 48MP Effective Pixels,
- f/2.8,
- Format Equivalent: 70 mm
Tele Camera
- 1/1.5″ CMOS,
- 48MP Effective Pixels,
- f/2.8,
- Format Equivalent: 168 mm
Laser Range Finder
- Measurement Range: 1800 m (1 Hz);
- Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz)
- Blind Zone: 1 m;
- Range Accuracy (m): ± (0.2 + 0.0015 × D) [1]
Intelligent Operations
Smarter Operations
Laser Range Finder, Precise Measurement
The laser range finder enables real-time precise measurement. Through simple operations such as pin point, line drawing, and area calculation, it can complete tasks like marking target locations for inspection purposes or calculating the area of a wildfire. Additionally, users can share info via the DJI Pilot QR code or FlightHub 2 with relevant personnel to enhance collaboration and workflow efficiency.
Observation Range Recording
DJI Pilot 2 can highlight the center position of the camera frame and ground area observed. It can display the surveyed area on the map, making it especially useful for patrols, and rescue operations in mountainous terrain without clear landmarks.
Crystal Clear Vision: Unveil the Details
Capture Every Detail at A Distance
Enhanced Medium Telephoto
The Matrice 4 series is equipped with a medium tele camera, expanding its capabilities for medium-range inspection tasks. During power line or bridge inspections, it can detect screws and cracks from a distance of 10 meters and clearly read instrument data at substations. [6]
Super Resolution Telephoto
The tele camera of the Matrice 4 series has significantly improved clarity, featuring 48 MP resolution, capable of capturing incredibly details from signs up to 250 meters away. [7] Additionally, the Matrice 4T is equipped with an IR-Cut Filter, ensuring 24/7 operations.
Foreground Stabilization for Telephoto Imagery
The upgraded telephoto stabilization makes foreground subjects stable and clear during telephoto shooting at 10x zoom or higher. In scenarios such as public safety and inspections, subject details are clearly visible.
Electronic Dehazing, Clear as Ever
In conditions such as smog or atmospheric humidity, Electronic Dehazing supports three modes (Low, Medium, High) to improve the imaging clarity of the Matrice 4 series to match different operational environments and requirements.
Precision Mapping, Time-Saving and Effortless
Rapid 0.5-Second Interval Shooting
Multi-Directional Capture, Efficiency Multiplied
5-Directional Oblique Capture
The Matrice 4 series supports a new 5-directional oblique capture. The gimbal can intelligently rotate and shoot at multiple angles based on the survey area, achieving the effect of multiple shots in a single flight compared to previous models, [9] significantly enhancing the efficiency of small drone oblique photography.
3-Directional Ortho Capture
Matrice 4E supports 3-directional ortho capture, enabling lateral capturing while performing ortho collection tasks, which reduces lateral overlap. A single flight can complete mapping operations for an area of 2.8 square kilometers. [11] No additional elevation optimization flight route is required to achieve better elevation accuracy. Combined with new DJI Terra capabilities, it further enhances reconstruction efficiency while ensuring quality.
Smart 3D Capture, Precision Modeling
Distortion Correction 2.0 provides high-precision in-camera distortion correction with residual distortion less than 2 pixels. [12] Each Matrice 4E’s wide-angle camera is calibrated before leaving the factory, when used with DJI Terra, it significantly improves reconstruction accuracy.
Upon completion of an operation, DJI Pilot 2 can automatically generate a survey quality report. This report provides comprehensive access to key information such as photo points, RTK status, and photo parameters. If there are any anomalies, additional photos can be taken on-site to avoid repeated trips.
Safe Flight, Worry-Free Operation
Fusion Positioning, Safe Return-to-Home
The Matrice 4 series comes with an integrated DJI RTK module which supports the extended L5 frequency band and features GNSS+Vision Fusion Positioning and Navigation System. It allows for the return-to-home point to be updated through visual positioning, allowing for rapid takeoff within 15 seconds. Even without GNSS signals, it can complete the return-to-home process, effectively overcoming signal obstructions and interference commonly found in urban environments.
Intelligent Guidance, Unobstructed Flight
When the DJI RC Plus 2 Enterprise remote controller is connected to the internet, it can load terrain elevation maps and preload detailed maps. This enables automatic path planning for obstacle avoidance, effectively managing scenarios such as flying at night or through mountainous areas, ensuring the safety of flight operations. The drone has a 5-directional vision assist view system along with downward vision, which aids in providing comprehensive visibility for enhanced protection.
Achieve New Heights in Video Transmission
The O4 Enterprise video transmission system sets a new industry standard for challenging environments. Thanks to the 8-antenna system in the Matrice 4 Series and the high-gain antenna in the remote controller, you can achieve up to 25 kilometers in transmission range. [13] Furthermore, the system improves image transmission with a download bandwidth of 20MB/s, more than double the bitrate of the Mavic 3 Enterprise Series, ensuring more precise and stable images of route uploads and material downloads. [13]
The Matrice 4 series supports an optional DJI Cellular Dongle 2. [14] By utilizing 4G image transmission in conjunction with the aircraft’s antennas, signal stability is further enhanced.
Accessory Upgrades, Performance Leap
Gimbal-Following Spotlight
The DJI AL1 SpotLight can illuminate subjects up to 100 meters away, [16] and features two modes, Always-On and Strobe. It can connect with the gimbal, enabling it to follow the camera’s movements to ensure the illuminated area aligns with the camera’s view. Additionally, the spotlights can focus on a single object or offer a wide field of view (FOV) which illuminates up larger areas.
Real-Time Voice Speaker
The DJI AS1 Speaker offers impressive sound power and extensive range. It has a broadcast range of up to 300 meters and can produce a volume of up to 114 decibels at a distance of 1 meter. [17] It supports recorded messages, media imports, and text-to-speech conversion. [18] Additionally, it features real-time broadcasting and echo suppression, [19] enhancing the efficiency and flexibility of emergency search-and-rescue operations.

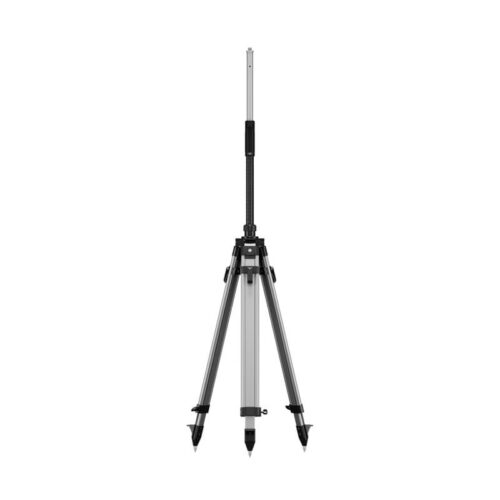

High-Precision D-RTK 3 Multifunctional Station
The D-RTK 3 Multifunctional Station can serve as a base station to provide centimeter-level positioning for multiple drones simultaneously or extend the operational range of drones in relay station mode*. Additionally, the new Rover Station Mode, combined with the DJI Enterprise app and DJI Terra, provides a comprehensive solution for high-precision aerial surveying applications, ensuring a secure and accurate operation.

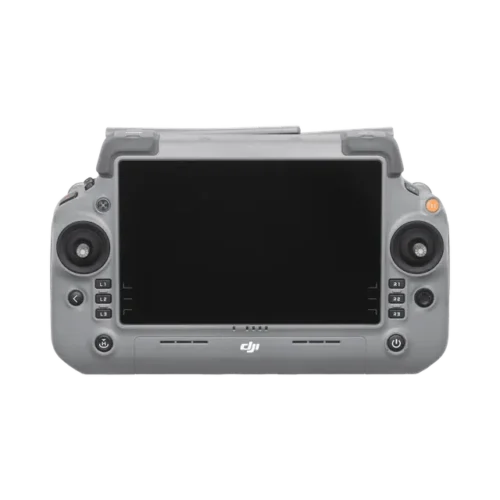

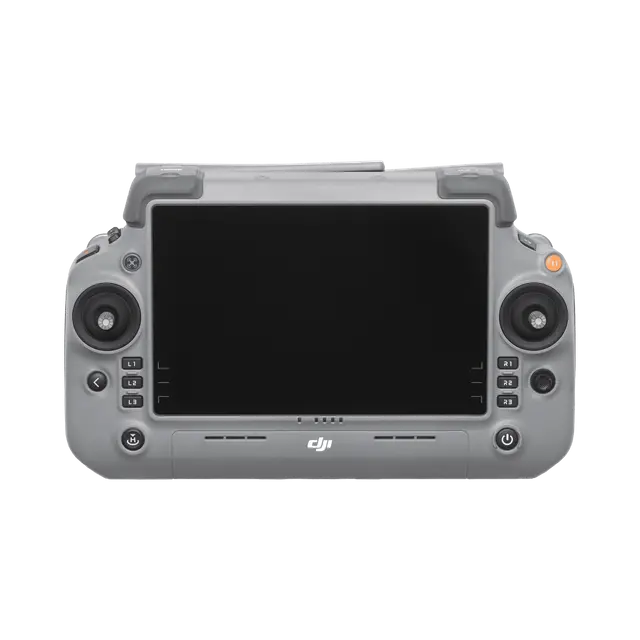

DJI RC Plus 2 Enterprise
DJI RC Plus 2 Enterprise remote controller features a new high-brightness screen that remains clearly visible even in direct sunlight. It has an IP54 protection rating and can operate in temperatures ranging from -4°F to 122°F (-20°C to 50°C). Using the O4 Enterprise video transmission system, it features a built-in high-gain antenna array, providing strong performance. It also supports O4 Enterprise and 4G hybrid transmission solutions, ensuring stable and smooth video transmission in urban high-rise areas and mountainous environments.
DJI Power 1000
DJI Power 1000 can provide up to 200W fast charging for Matrice 4 Series intelligent batteries, [20] fully charging one battery in 48 minutes. [21] It also offers 2200W AC output, ensuring a reliable and stable power supply for outdoor operations. Additionally, it can be paired with the DJI Power 1kW car charger, allowing for 1kW fast charging, supporting outdoor operations with continuous power and uninterrupted journeys.
