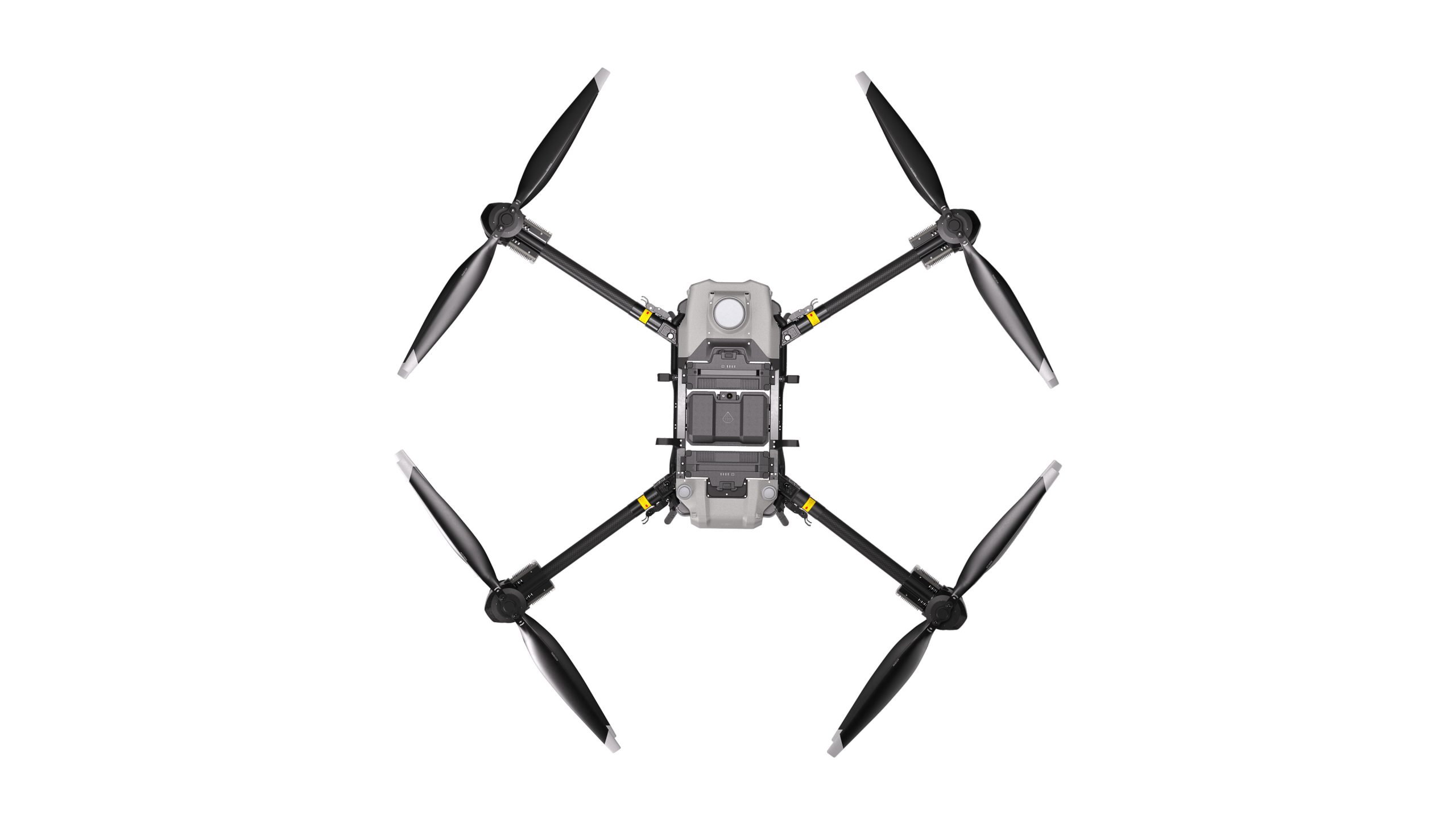

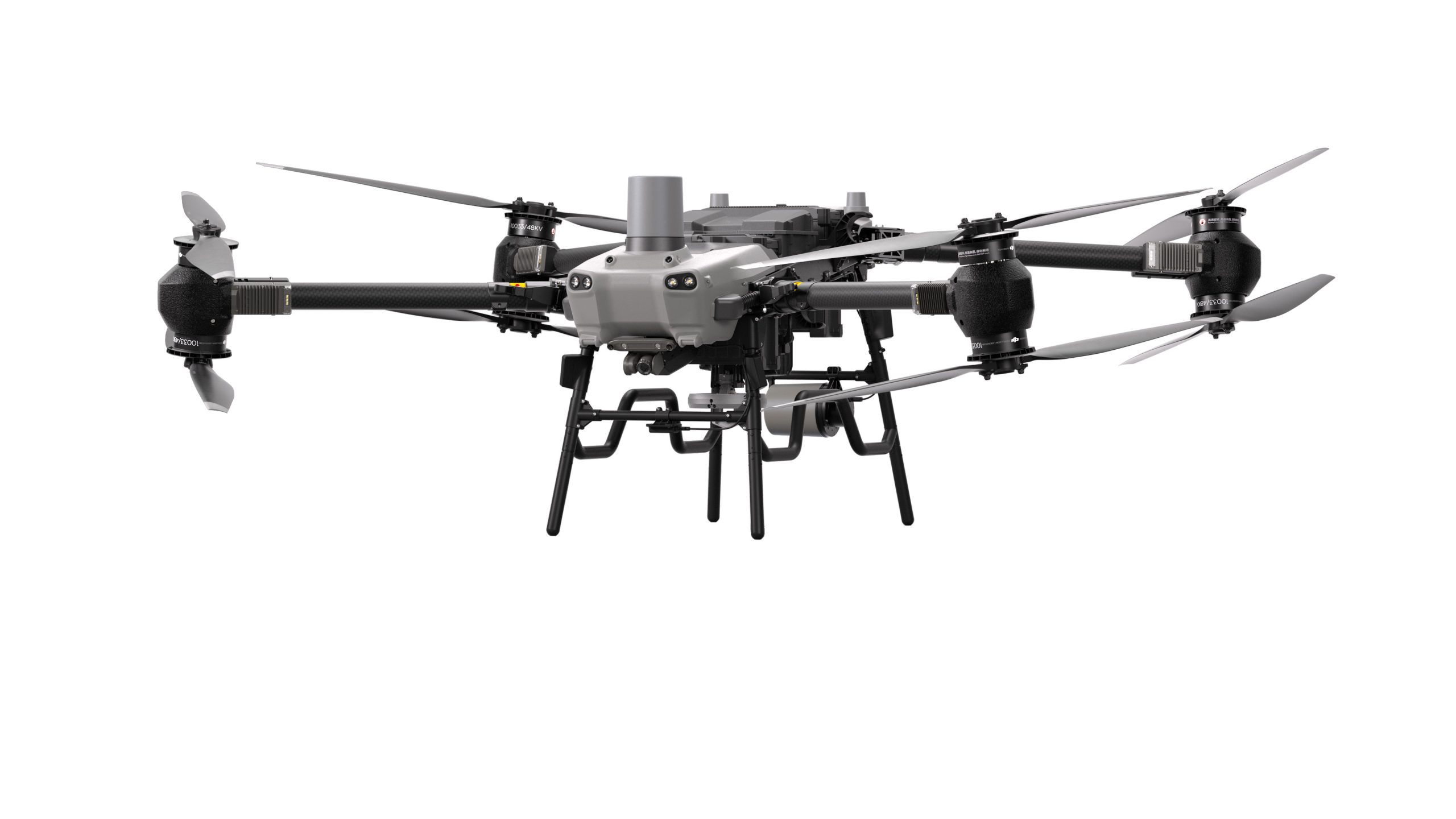

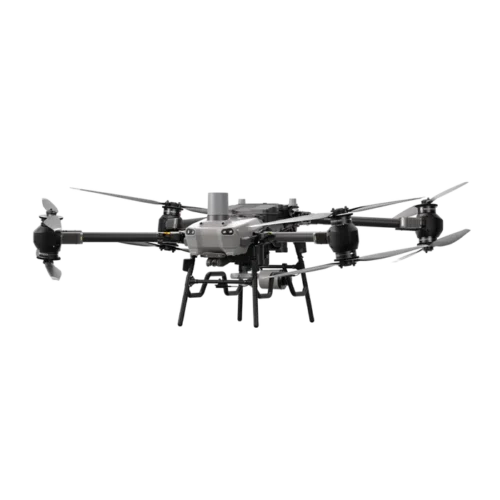

Introducing DJI FlyCart 30, the ultimate heavy lifter that goes above and beyond traditional limits. With its powerful signal and intelligent features, this long-distance wonder is designed to deliver goods with ease.
Deliver the goods with DJI FlyCart 30, a game-changing new RPAS delivery solution that redefines delivery and transportation. DJI FlyCart 30 eliminates the traditional limitations of land-based transportation with a safe, efficient, and economical alternative that’s easy to deploy and intuitive to operate.
FlyCart 30 can be configured to meet your needs with multiple operating modes and a slew of user-optimised features including dual controller support, RTK positioning, advanced safety management and extended transmission range. No matter what you deliver, do it with FlyCart 30.
Representing the culmination of countless industry-leading technologies, the DJI FlyCart 30 reimagines aerial delivery with a versatile, powerful delivery solution in a portable, foldable form factor.
FlyCart 30 sports a maximum payload capacity of 40 kg with a single battery and can fly up to 16 km with a full payload, making it suitable for countless delivery applications.

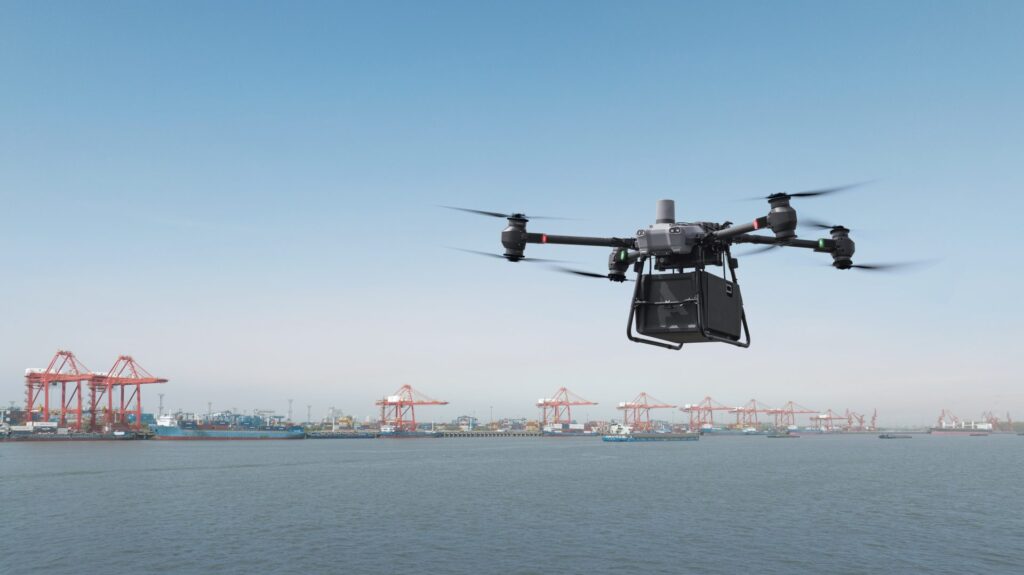

One of two operating modes, Cargo Mode is designed to facilitate aerial deliveries to hard-to-reach locales.

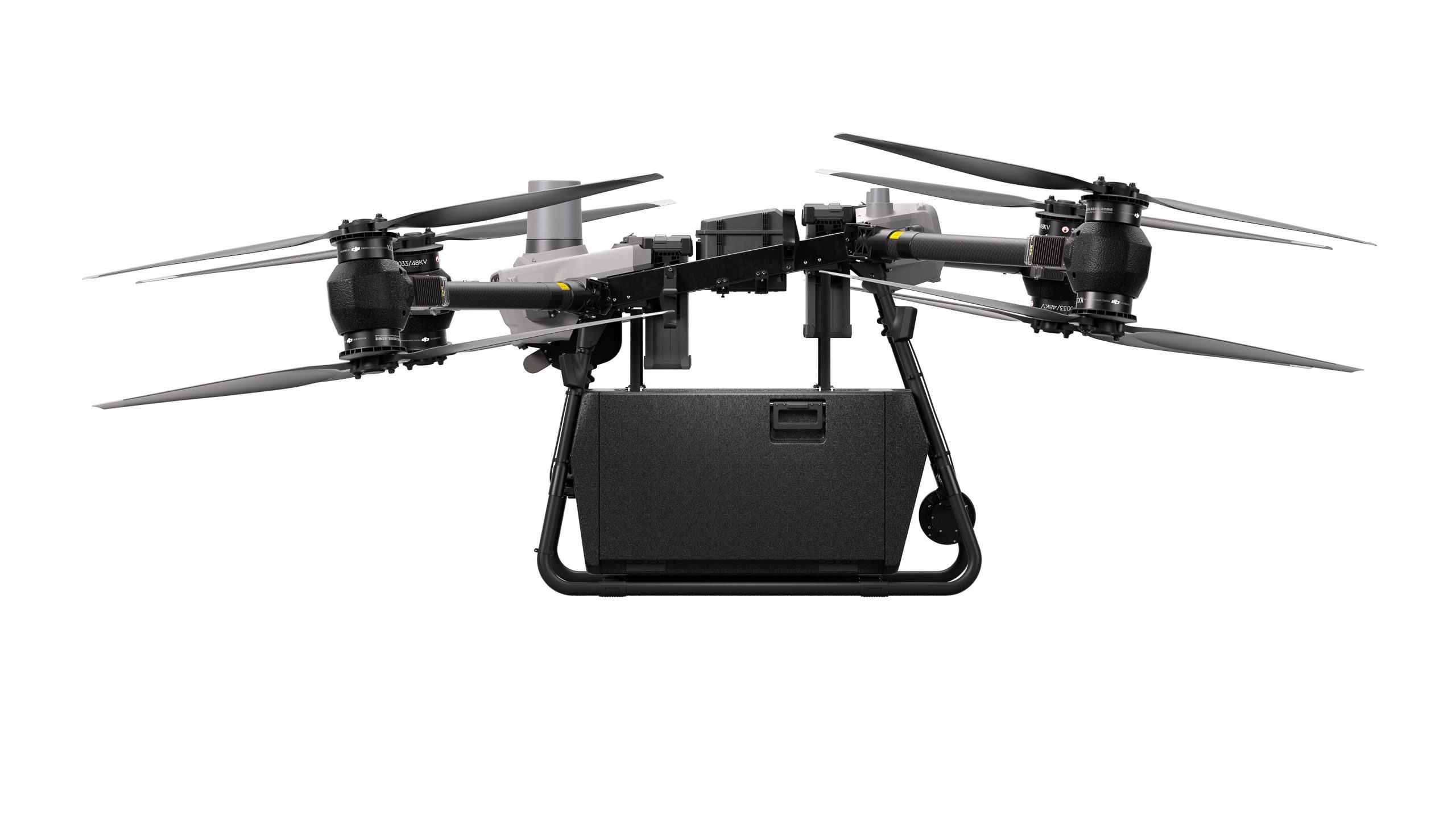

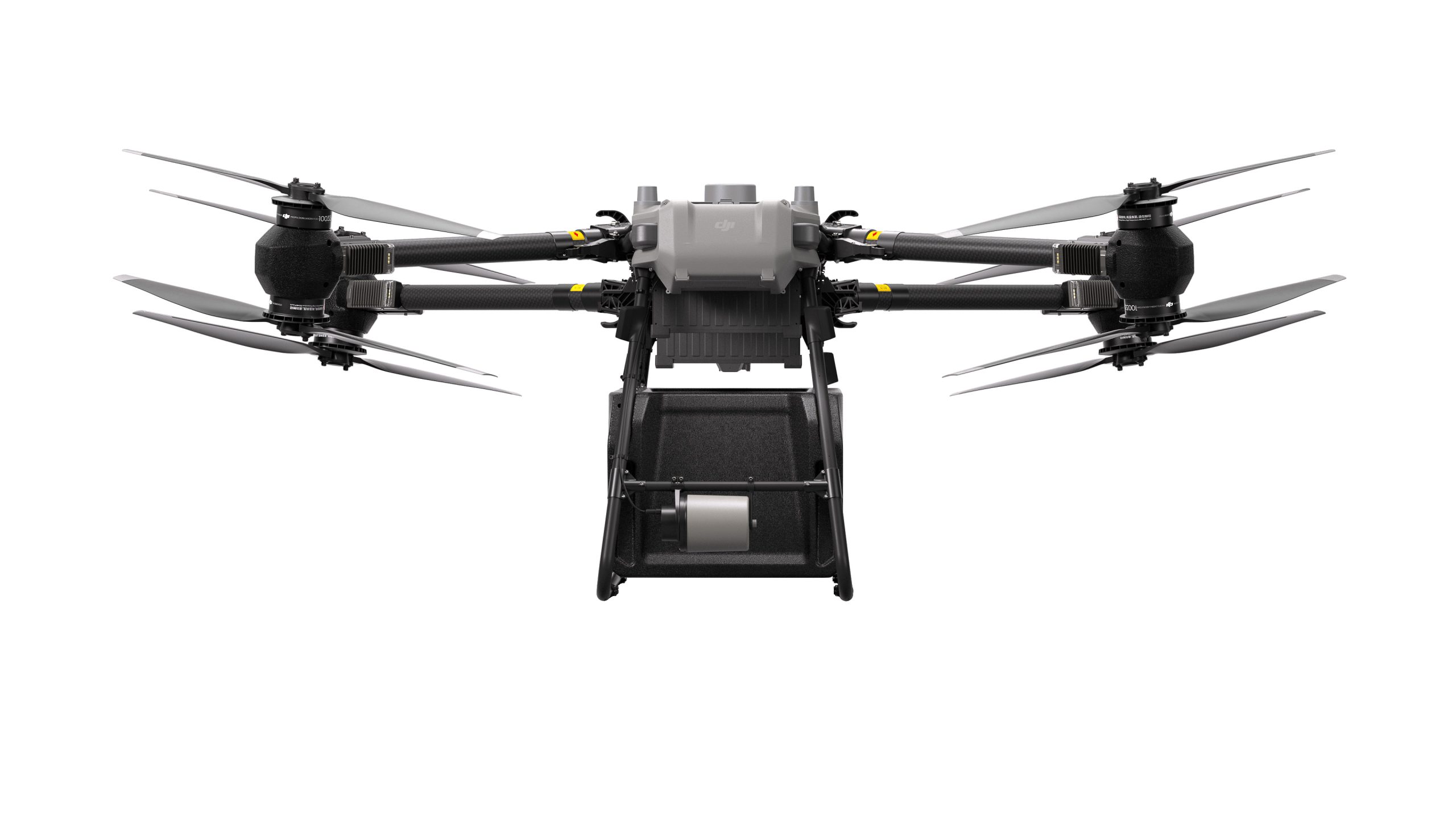

FlyCart’s large attachable EPP cargo case features a 70 L capacity, ideal for cargo of different shapes and sizes. With cargo mode engaged, FC30 supports a 30 kg maximum payload with dual batteries and an increased 40 kg payload support with a single battery.

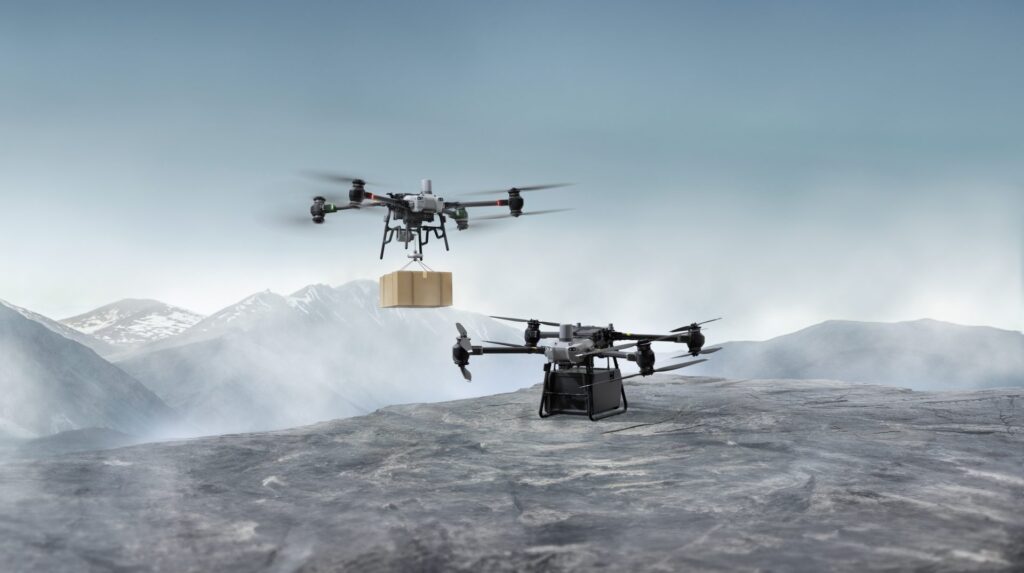

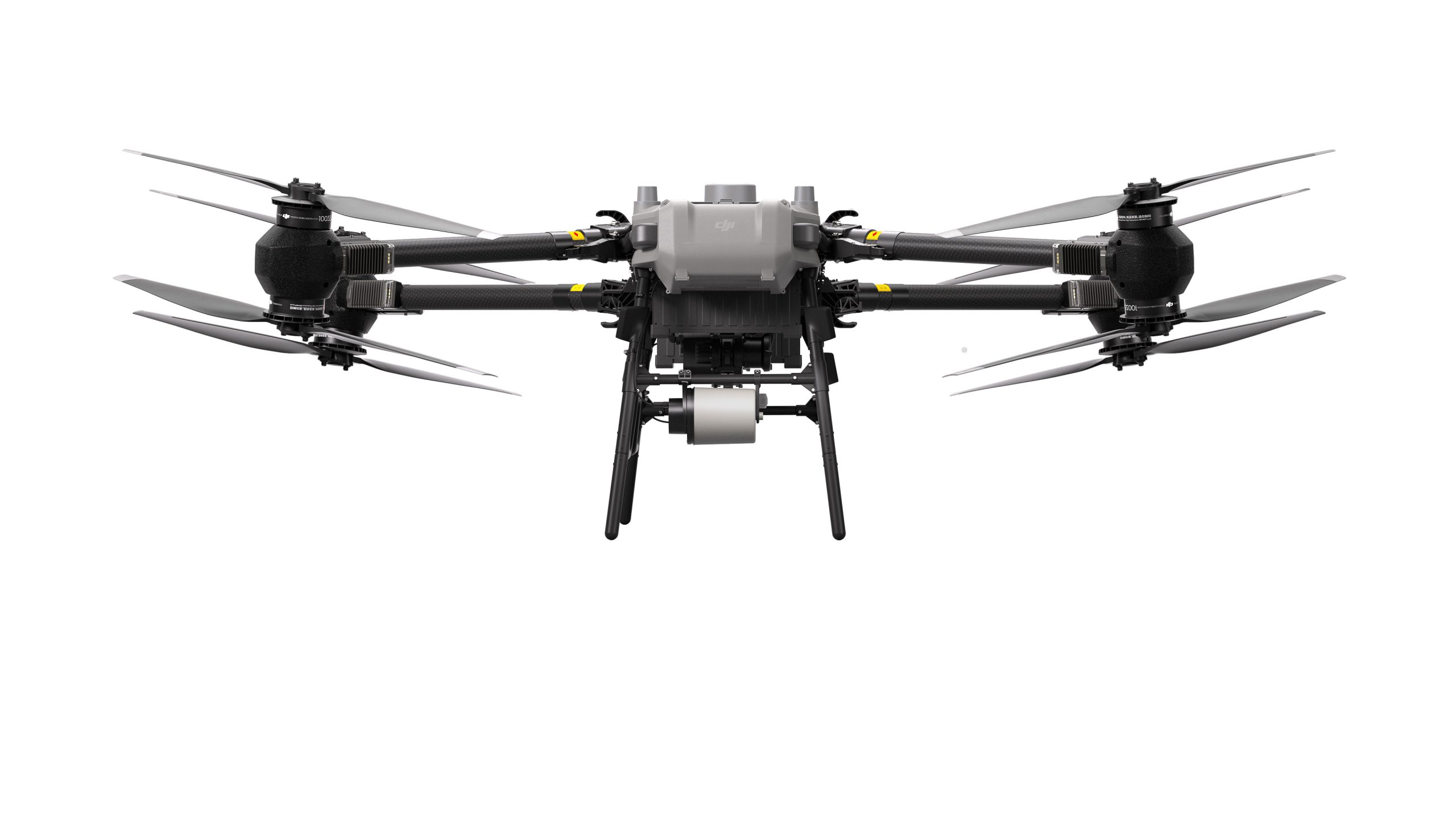

Deploy the FlyCart 30 Winch System to deliver winched cargo via a retractable 20m cable. Control the cable retraction manually or use intelligent automatic delivery and detachment for maximum safety.
Winch Mode is ideal for delivering larger and awkwardly-shaped payloads including solar panels, equipment and more.
FlyCart 30 is built to perform, whether rain or shine. With an operating temperature of -20° to 45° C and maximum wind resistance of 12 m/s, FlyCart 30 can handle practically anything the weather throws at it.
Plus, an IP55 protection rationing ensures that FlyCart remains fully functional, even in the rain.
DJI FlyCart 30 features a best-in-class maximum video transmission range of 20 km. Powered by the DJI O3 video transmission protocol, FC30 achieves stable long-range transmission with a four-antenna transceiver system that can be further supported with the DJI Cellular Dongle.
FlyCart supports a maximum flight distance of 28 km using dual batteries with a cruising speed of 15 m/s. Dual Operator Mode facilitates secure handover of controls for extended range missions.
With Front and Rear Phased Array Radars in addition to a dual Binocular Vision System, FlyCart 30 can detect obstacles from multiple directions to maintain safe flight.
Reliable Redundancies

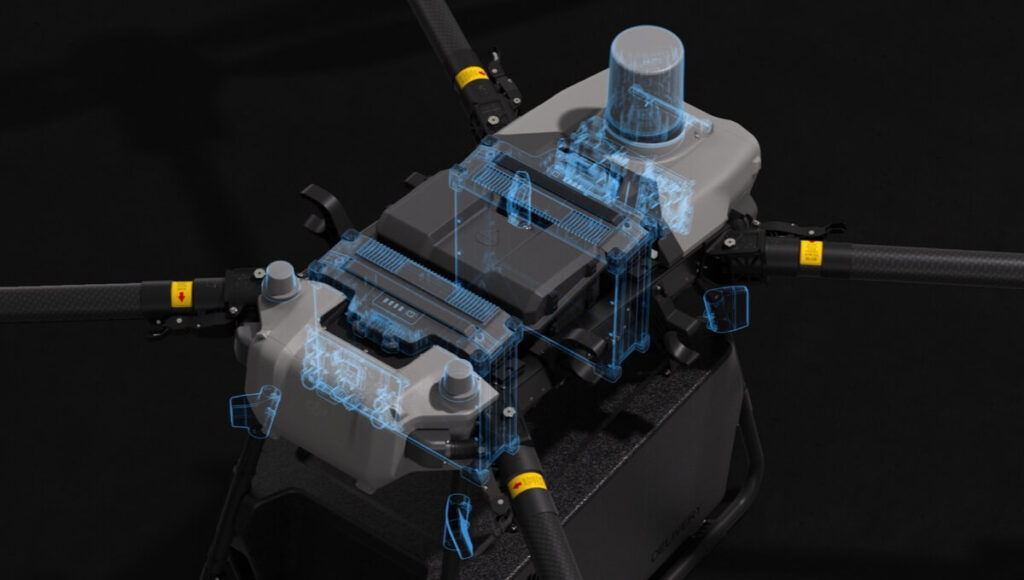

FC30 sports countless redundancy system with dual IMUs, barometers and batteries. Plus, a built-in parachute that deploys in emergency scenarios for safe landings.
Control FlyCart 30 with the DJI RC Plus, a powerful controller featuring a 7” high-bright screen, 6 hour battery life and IP54 protection.
With Dual Operator Mode controls can be seamlessly be handed off from one controller to another when needed.
It’s the best drone controller in the business, and fully optimised for FlyCart.
DJI Pilot 2 provides operators with key information, real-time status reporting and in-depth, intelligent flight controls for a smooth user experience with each flight.

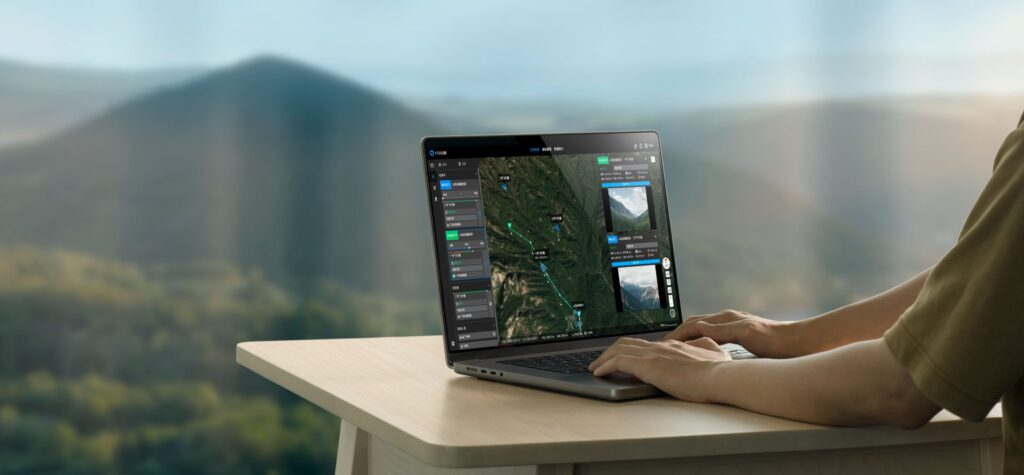

The new DJI DeliverHub software integrates seamlessly with FlyCart as an all-in-one delivery management platform. DeliveryHub facilitates centralised planning, status monitoring and resource management to ensure mission success.
The DJI C8000 Intelligent Battery Station supports concurrent charging for dual batteries and fast charging for a single battery. The charging voltage is adaptive to standard generators with a max charging power of up to 7200 W.
DJI FlyCart 30 comes with a brand-new dual-battery system. A single DJI DB2000 Intelligent Flight Battery has a capacity up to 38,000 mA and supports up to 1,500 charge cycles. It supports self-heating and hot-swapping to save time and ensure smooth operation.
The DJI FlyCart 30 Winch System Kit includes a winch, a counterweight, a transport landing gear, and an extension cable. The kit can quickly be installed on DJI FlyCart 30 and facilitates complex delivery operations with ease.
| Weight |
|
| Max Takeoff Weight | 95 kg (with cargo at sea level） |
| Max Diagonal Wheelbase | 2200 mm |
| Dimensions | 1590 x 1900 x 947 mm (LxWxH) (arms unfolded, propellers folded) 2800x3085x947 mm (LxWxH) (arms & propellers unfolded) 1115x760x1027 mm (LxWxH) (arms & propellers folded) |
| Folding Method | Towards body |
| Loadable Battery Quantity | 2 |
| Hovering Endurance (empty weight, with max battery capacity) |
*The data was collected in controlled conditions: zero altitude and a windless environment. For reference only. |
| Hovering Endurance (max weight, with max battery capacity) |
*The data was collected in controlled conditions: zero altitude and a windless environment. For reference only. |
| Max Flight Distance (empty weight, with max battery capacity) |
*The data was collected in controlled conditions: zero altitude and windless environment, at a constant speed of 15m/s. For reference only. |
| Max Flight Distance (max weight, with max battery capacity) |
*The data was collected in controlled conditions: zero altitude and windless environment, at a constant speed of 15 m/s. For reference only. |
| Max Flight Time (max weight, with max battery capacity) |
*The data was collected in controlled conditions: zero altitude and a windless environment, at a constant speed of 15 m/s. For reference only. |
| Operating Temperature | -20° to 45° C |
| Ingress Protection Rating | IP55 |
| Hovering Accuracy (with strong GNSS signal) | RTK positioning enabled:
RTK positioning disabled:
|
| RTK/GNSS Operating Frequency | RTK: GPS L1/L2, Galileo F1/F2, BeiDou B1I/B2I/B3I, Galieo E1/E5b, QZSS L1/L2 GNSS: GPS L1, BeiDou B1I, Galileo F1, Galieo E1, QZSS L1 |
| Max Pitch Angle | 30° |
| Max Ascent Speed | 5 m/s*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only. |
| Max Descent Speed |
*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only. |
| Max Horizontal Speed | 20 m/s*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload, for reference only. |
| Max Flight Altitude | 6000 m (without payload) |
| Max Wind Speed Resistance | 12 m/s*The data was collected in controlled conditions: zero altitude and a windless environment, with a 30 kg payload. For reference only. |
| Stator Size | 100×33 mm |
| Motor KV Value | 48 rpm/V |
| Max Motor Power | 4000 W/rotor |
| Propellers Material | Carbon fiber composite |
| Propellers Diameter | 54 inch |
| Propellers Type | Foldable double-blade propellers |
| Main-rotor Diameter | 1375 mm |
| Rotor Quantity | 8 |
| Effective Illumination Distance | 10 m |
| Illumination Mode | 60 Hz, automatically switch on according to ambient light |
| Model | Pigeon (with DDR)-2T4R |
| Signal Effective Distance |
*Measured with FCC compliance in unobstructed environments with typical interference. Data is for reference only. The actual transmission distance may vary depending on the environment’s obstruction and interference conditions. Please pay attention to reminders in the app. |
| O3 Operating Frequency |
*Some countries or regions do not support the 5.8 GHz frequency band. Please refer to local flight laws and regulations for details. |
| EIRP | 2.400 GHz – 2.4835 GHz: <33 dBm（FCC） <20 dBm（CE/SRRC/MIC）5.725 GHz – 5.850 GHz： <33 dBm（FCC） <30 dBm（SRRC） <14 dBm（CE） |
| Data Security | AES-256 |
| ADS-B | Supported |
| Model Number |
|
| Altitude Detection | Fixed altitude range: 1.5-200 m |
| Rear Obstacle Avoidance | Sensible distance (rear): 1.5-50 m FOV Forward: 360° horizontal, ±45° vertical，±45°upward Backward: ±45° horizontal, 360° vertical Operating conditions: Available during takeoff, landing, and ascending when an obstacle is more than 1.5 m away from the aircraft Safe distance: 3.5 m (distance between the propeller tip and obstacle when the aircraft is hovering after braking) Sensing direction: multi-direction |
| FOV | Horizontal: 90; Vertical: 106° |
| Work Environment Requirements | Normal lighting with clearly textured surfaces |
| Resolution | 1920×1440 |
| DFOV | 149° |
| Frame Rate | 30fps |
| Type | Full HD FPV Single Axis Gimbal Camera |
| Fill Light | Supported |
| Dimension | 754x472x385 mm (LxWxH) |
| Inner Space | 573x416x305 mm (LxWxH) |
| Material | EPP plus aluminum alloy frame |
| Weighing Feature | Supported |
| Weight | Approx. 3 kg |
| Load Capacity | 0-40 kg |
| Max Payload | ≤ 95 kg |
| Dimension | 300x200x120 mm (LxWxH) |
| Weight | Approx. 2.1 kg |
| Automatic Reaction Time | Approx. 1000 ms |
| Descending Speed | ≤ 6 m/s (at sea level, no wind) |
| Parachute Shape | Square |
| Material | Nylon |
| Surface Area | Approx. 22 ㎡ |
| Minimum Opening Height | 60 m |
| Operating Temperature | -20° to 45° C |
| Ingress Protection Rating | IP55 |
| Mainboard Power-off Battery Life | ≥ 1 hour |
| Memory Card Capacity | Real-time record for 10 flights |
| Buzzar Alarm | Supported |
| Lighting Alarm | Supported |
| Manually Opening | Supported |
| Automatic Opening | Supported |
| Model | A2EWI-30A |
| Dimension | 252x195x193 mm (LxWxH) |
| Body Weight | 2.5 kg (without clump and couple) |
| Clump Weight | 1.9 kg |
| Couple Weight | 0.6 kg |
| Touchdown Release Feature | Supported |
| Payload Capacity | 5-30 kg (dual battery)5-40 kg (single battery) |
| Cable Length | 20 m |
| Max Retraction Speed | 0.8 m/s |
| Operating Temperature | -20° to 45° C |
| Ingress Protection Rating | IP55 |
| Weighing Function | Supported |
| Cut Cable Protection | Supported |
| Swing Control Feature | Supported |
| Manual Operation | Supported |
| Automatic Operation | Supported |
| Deceleration Protection | Supported |
| Model | DB2000 |
| Capacity | 38000 mAH |
| Nominal Voltage | 52.22 V |
| Type | 14S1P |
| Energy | 1984.4 Wh |
| Weight | Approx. 11.3 kg |
| Installation Method | Plug |
| Dimension | 316x152x279 mm (LxWxH) |
| Operating Temperature | -20° to 45° C |
| Charging Rate | 5 to 15° C: 1.0C15 to 45° C: 2.5C |
| Max Charging Power | 5700 W |
| Automatic Heating Feature | Supported (when the battery temperature is below 10° C, pressing and holding the button or turning on the drone will activate the self-heating function. When the battery temperature is below 20° C, connecting the charger to the battery will activate the self-heating function. Charging and discharging in a low-temperature environment may reduce the battery’s lifespan) |
| Model | CHX101-7000 |
| Input | 90-264 V AC |
| Output | 42-59.92 V DC |
| Max Output Power | 7200 W (Dual input)3600 W (Single input) |
| Output Channel Quantity | 2 |
| Protection Feature | The feature is designed to respond to issues including overheating, overvoltage, undervoltage, short circuits, fan stalls, etc. |
| Operating Temperature | -20° to 45° C |
| Charging Security | Connector protection feature available |
| Type | DJI RC Plus |
| APP | DJI Pilot 2 |
| Operating Frequency | 2.400-2.483 GHz 5.725-5.850 GHz |
| EIRP | 2.400-2.4835 GHz: <33 dBm（FCC） <20 dBm（CE/SRRC/MIC）5.725-5.850 GHz: <33 dBm（FCC） <23 dBm（SRRC） <14 dBm（CE） |
| Operating Temperature | -20° to 50° C |
| Charging Environment Temperature | 5° to 40° C |
| Built-in Battery Life | 3.3 hours |
| External Battery | 2.7 hours |
| Charging Method | Use a USB-C fast charging charger with a maximum power of no less than 65 W (maximum voltage of 20 V). A DJI portable charger is recommended. |
| Charging Time | 2 hours with built-in battery, 2.5 hours with built-in and external battery (shutdown status according to official charging method) |
| Ingress Protection Rating | IP54 |
| Video Output Interface | HDMI |
| Wi-Fi Protocol | Wi-Fi 6 |
| Wi-Fi Working Frequency |
|
| Bluetooth Protocol | Bluetooth 5.1 |
| Bluetooth Working Frequency | 2.4000 – 2.4835 GHz |
| EIRP | <10 dBm |
| GNSS | GPS+Galileo+BeiDou |
| Screen | 7.02 inch touch LCD display screen, resolution 1920*1200, brightness 1200 nits |
| Dual Operator Mode | Supported |
| Guaranteed software updates until | 2026/12/31 |
