Enterprise drone programs are changing quickly. Nowadays, inspection teams, emergency responders, surveyors, and utility operators are looking for more than just a drone that can fly farther or has a better camera. They need a platform that can work in difficult weather, stay in the air longer, automate repetitive missions, and deliver reliable data every time.
The DJI Matrice 4D Series was designed around these requirements. It features two aircraft models:
Compared with the standard Matrice 4 Series, the new 4D platforms are more rugged, offer longer flight times, and are ready for integration with DJI Dock 3.
For many organizations, the biggest limitation is not image quality — it is operational efficiency. Missions are delayed by poor weather, frequent battery changes, or the need to keep pilots on site.
The Matrice 4D Series addresses these issues with:
The result is a platform that can stay productive in conditions where smaller or less protected drones would struggle.
At first glance, the Matrice 4D and standard Matrice 4 aircraft may appear similar. In practice, they are built for different missions.
Feature | Matrice 4 Series | Matrice 4D / 4TD Series |
Protection Rating | No IP rating | IP55 |
Flight Time | Up to 49 min | Up to 54 min forward flight / 47 min hover |
Dock 3 Support | No | Yes |
Design | Foldable and lighter | Larger, more rugged airframe |
Charging Time | Approx. 78 min | Approx. 50 min |
Battery Life | Up to 200 cycles | Up to 400 cycles |
Best For | Quick deployment, lighter field work | Long-duration, all-weather, automated operations |
The standard Matrice 4 remains the better choice when portability and lower cost are the main priorities. The 4D Series is better suited to teams working in harsh environments or running larger, more complex operations.
The Matrice 4TD is positioned between the compact Matrice 4T and the heavier Matrice 30T. It combines the portability of the Matrice 4 platform with the durability and sensing features usually associated with larger enterprise drones.
Category | Matrice 4TD | Matrice 4T | Matrice 30T |
Protection Rating | IP55 | No rated protection | IP55 |
Max Flight Time | 54 min | 49 min | 41 min |
Weight | 1850 g | 1219 g | 3770 g |
Max Payload | 240 g | 200 g | 300 g |
Transmission Range | O4, up to 25 km | O4, up to 25 km | O3, up to 15 km |
Battery Charging | ~50 min | ~78 min | ~50 min |
Battery Life | 400 cycles | 200 cycles | 400 cycles |
Thermal Camera | 640×512, up to 1280×1024 | 640×512, up to 1280×1024 | 640×512, up to 1280×1024 |
Laser Range Finder | Yes | Yes | Yes |
NIR Auxiliary Light | Yes | Yes | No |
On-Board Relay | Yes | No | No |
Smart Detection | Yes | Yes | No |
Key Takeaways

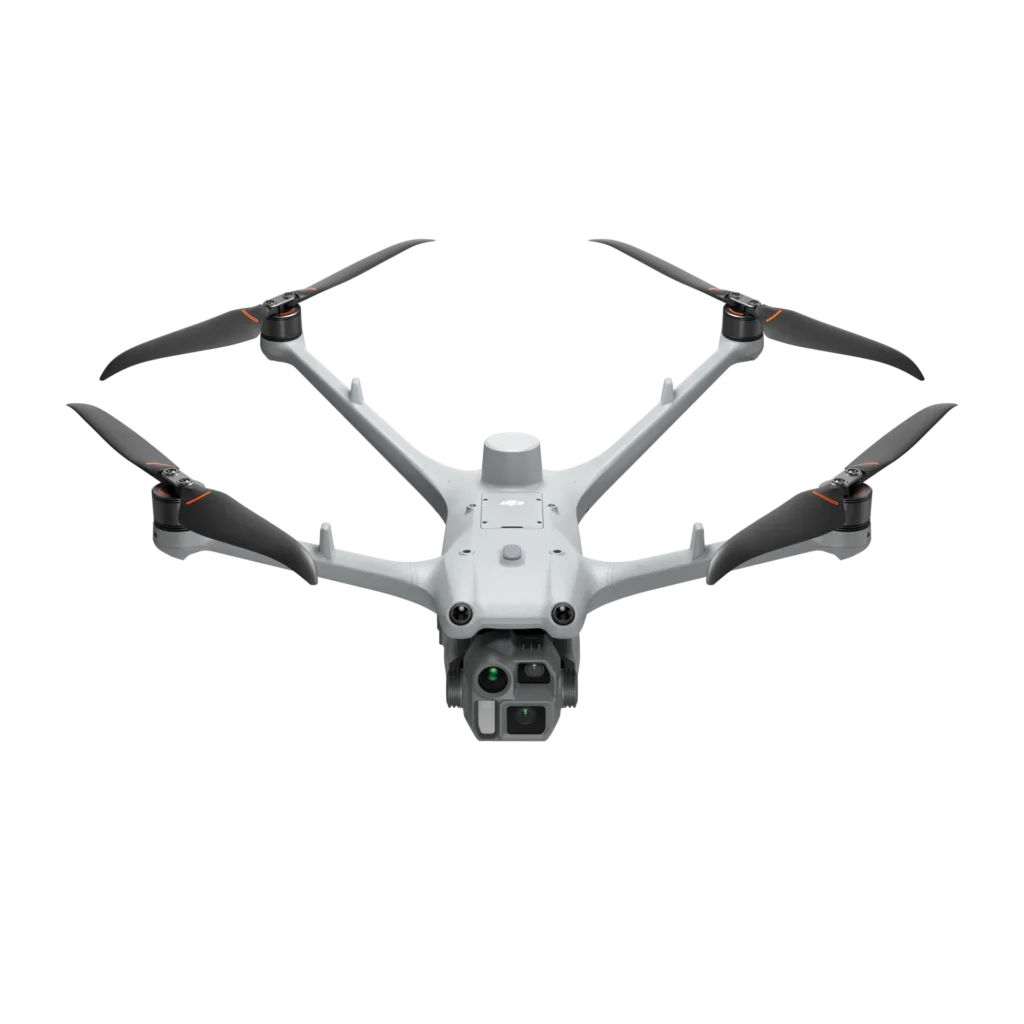

The Matrice 4D is designed primarily for mapping and visual inspection.
Its camera system includes:
24 mm equivalent wide-angle camera
The mechanical shutter is especially important for high-accuracy aerial surveys, as it eliminates image distortion caused by drone movement during flight. This results in sharper imagery and more reliable photogrammetry outputs. This topic is explored in more detail in our previous article “How Mechanical Shutters Improve Accuracy in Aerial Surveys.”
70 mm equivalent medium tele camera
168 mm equivalent tele camera
Laser range finder

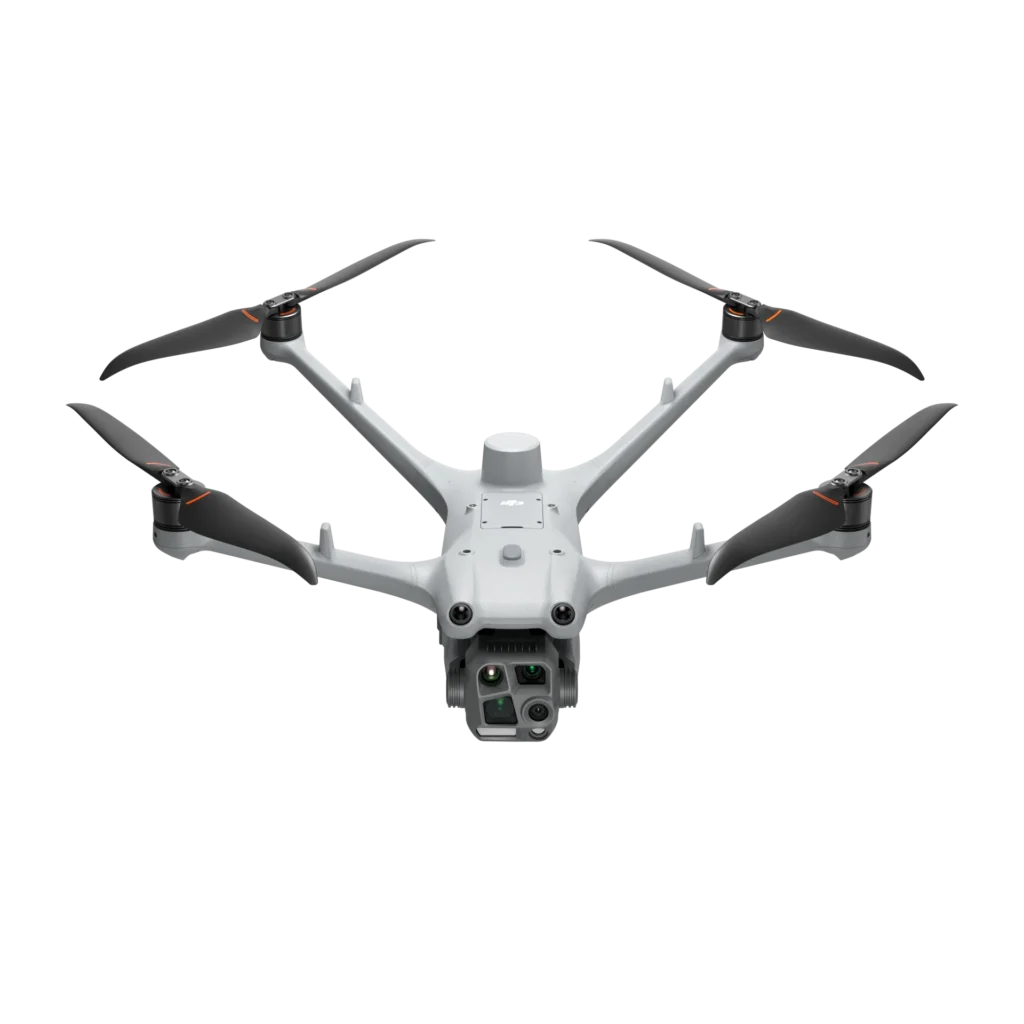

The Matrice 4TD uses the same zoom camera system, but adds thermal imaging and night capabilities.
Additional features include:
For firefighting, search-and-rescue, utility inspections, and security work, the Matrice 4TD is the stronger option.
One of the most important upgrades in the Matrice 4D Series is endurance.
Flight Performance | Matrice 4D / 4TD |
Maximum Forward Flight Time | 54 min |
Maximum Hover Time | 47 min |
Battery Charging Time | Approx. 50 min |
Battery Cycle Life | Up to 400 cycles |
Compared with previous DJI enterprise platforms, this means:
For large-scale corridor mapping, powerline inspections, or long-duration overwatch, these gains can significantly improve productivity.
The IP55 rating allows both aircraft to operate effectively in rain, dust, and challenging industrial settings. This is crucial in industries where operations can’t afford to pause for ideal weather conditions, such as:
Unlike the foldable Matrice 4, the 4D Series uses a larger, more robust airframe. The added size supports a bigger battery, stronger weather protection, and more advanced sensing systems.
An optional obstacle sensing module combines rotating LiDAR with millimeter-wave radar.
This system can detect wires as thin as 12 mm, even at flight speeds up to 15 m/s.
The module is particularly useful for:
For teams operating around cables, cranes, or dense infrastructure, this feature can reduce risk and increase confidence during flight.

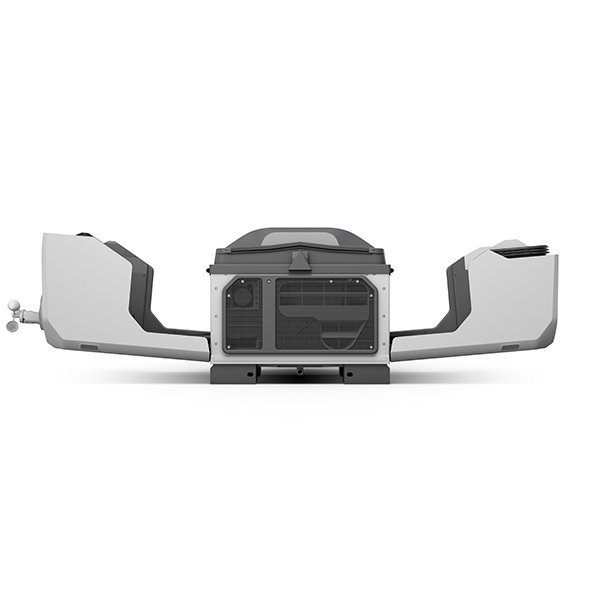

A major advantage of the Matrice 4D Series is full compatibility with DJI Dock 3.
With Dock 3, the aircraft can:
This opens the door to fully automated workflows for:
For organizations planning to scale their drone operations, the combination of Matrice 4D and Dock 3 offers a clear path toward long-term automation.
The Matrice 4D Series introduces an on-board relay mode.
With this setup, one drone can stay airborne and serve as a communication link for another drone that’s flying further away. This capability is particularly useful in challenging environments like:
For search-and-rescue teams and those managing infrastructure, this relay function can significantly boost the operational range, allowing missions to go well beyond what a standard direct connection would permit.
The Matrice 4D Series seamlessly integrates with DJI FlightHub 2, providing operators with a range of powerful features, including:
Thanks to its AI-driven object detection, the system can also identify:
This makes the system useful not only for collecting data, but also for quickly identifying what matters in the field.
The Matrice 4TD is particularly effective for:
Thermal imaging helps locate people, vehicles, and hotspots, while the NIR light and night modes improve visibility after dark. These capabilities are becoming increasingly important in modern public safety and industrial protection workflows, as we previously discussed in the article “Drones in Security Operations: A New Standard for Intelligent Protection.”
The Matrice 4D Series is well suited to:
The long flight time, weather resistance, and wire detection module make it especially valuable in these environments.
For mapping professionals, the Matrice 4D offers:
These capabilities support:
If You Need… | Best Choice |
Maximum portability and lower cost | Matrice 4 Series |
Thermal imaging and night operations | Matrice 4TD |
High-accuracy mapping and photogrammetry | Matrice 4D |
Harsh-weather operation | Matrice 4D or 4TD |
Automated missions with Dock 3 | Matrice 4D or 4TD |
Higher payload capacity | Matrice 30T |
The DJI Matrice 4D Series is more than an update to the Matrice 4 platform. It reflects a broader shift in enterprise drone operations toward longer missions, stronger automation, and greater reliability in the field.
The Matrice 4D is the better choice for mapping, surveying, and visual inspection work. The Matrice 4TD stands out when thermal imaging, night operations, and public safety are priorities.
For organizations looking to develop a more advanced and scalable drone program, the Matrice 4D Series offers a unique blend of endurance, durability, and smart automation that few other enterprise platforms can compete with.
