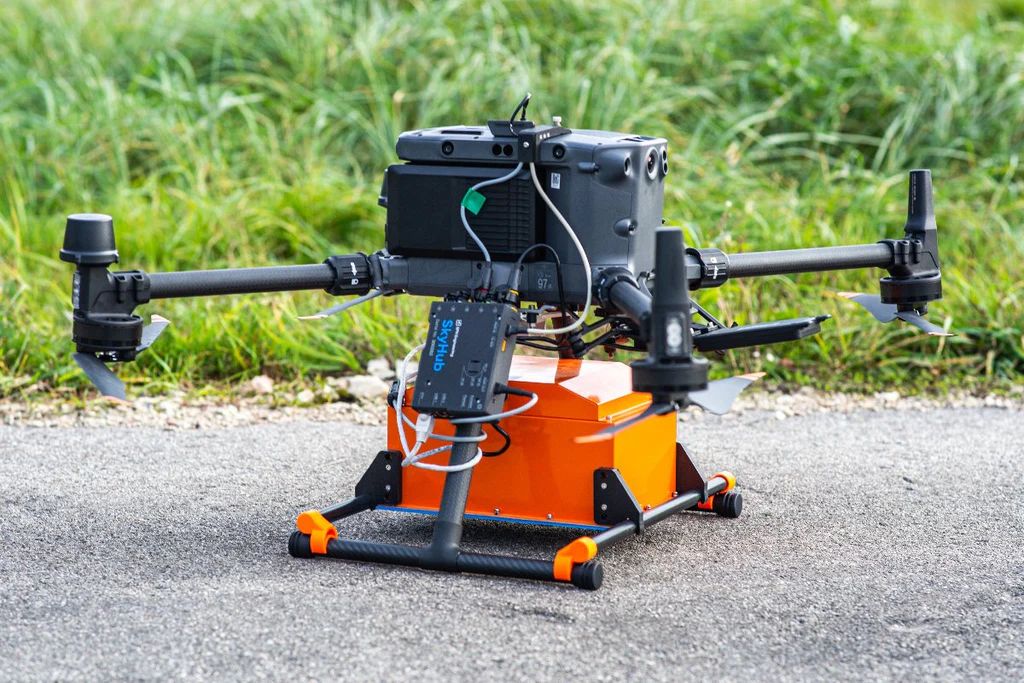

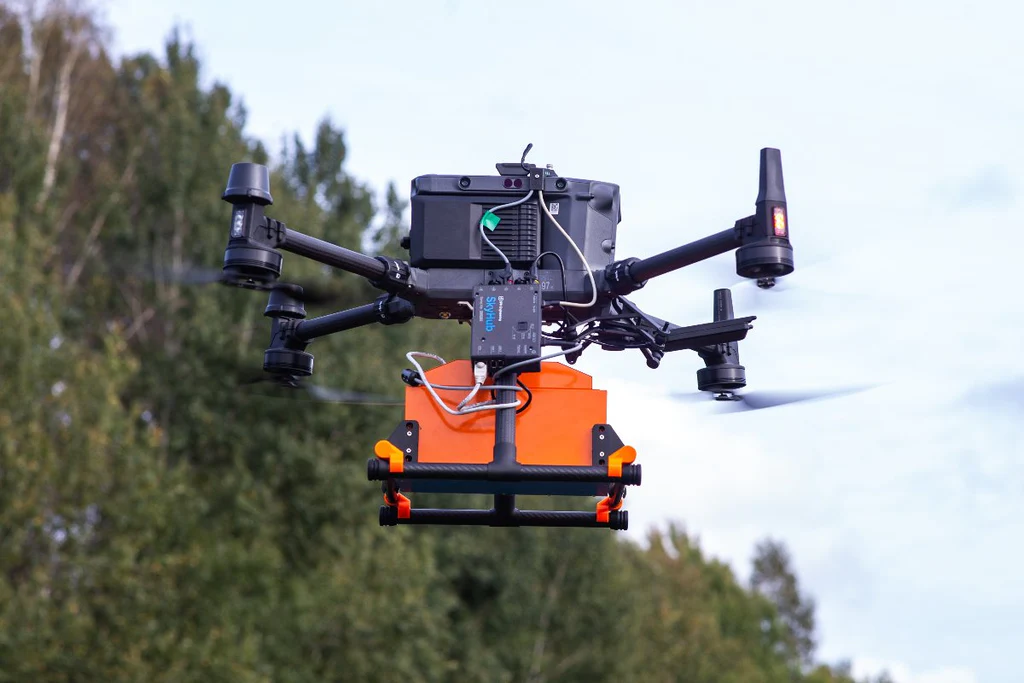

Zond Aero 1000 NG GPR

The Zond Aero 1000 NG GPR provides unparalleled deep subsurface detection through advanced airborne ground-penetrating radar technology. Designed for drone deployment, it allows professionals to survey extensive areas quickly and efficiently without ground disturbance. Moreover, it detects buried utilities, geological formations, voids, and archaeological features with exceptional clarity.

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Features

    Its powerful radar system provides enhanced depth penetration and detailed imaging even in difficult soil conditions. Additionally, its lightweight, rugged design ensures stable drone performance in diverse field environments. Overall, the Zond Aero 1000 NG GPR equips engineers, geophysicists, and researchers with a professional solution that combines depth, accuracy, and ease of use. Therefore, it is ideal for advanced geophysical surveys, infrastructure inspection, and environmental monitoring. Buy today Zond Aero 600 NG!

    The DJI Matrice 4 Enterprise + D-RTK3 + Tripod Kit Bundle combines the high-performance Matrice 4 Enterprise drone platform with the D-RTK 3 GNSS system and a professional tripod mounting kit. This package is created for surveying, inspection, mapping and enterprise operations where precise positioning, stability and aerial capability are essential.

    Key Features

    • Advanced airborne GPR for deep subsurface detection
    • Enhanced depth penetration and high-resolution imaging
    • Efficient aerial surveying over large areas
    • Ideal for utilities, geological, void, and archaeological surveys
    • Lightweight and rugged for stable drone performance
    • Suitable for engineers, geophysicists, and researchers

    Technical Specifications — Zond Aero 1000 NG GPR

    Type
    Single-channel with shielded antenna
    Central Frequency
    1000 MHz
    Operating Bandwidth
    600–1300 MHz (-6 dB)
    Sampling
    Real-Time Sampling (RTS) with high hardware stacking
    Samples per Scan
    256 / 512 / 1024 / 2048 / 4096 / 8192
    Sample Rate
    Up to 1,280,000
    Scan Rate
    Up to 2,500 scans/s
    Sample Output
    32-bit digital raw data
    Time Range per Sample
    71 ps / 125 ps / 179 ps / 250 ps / 500 ps / 625 ps / 714 ps / 1 ns
    Depth
    Up to 1m (ground) / 0.5m (0.5m elevation)
    Data Format
    SEGY (.sgy) with traces geotagging

    Environmental

    Temperature
    -20°C ~ +60°C (internal)
    Humidity
    96% non-condensing
    Ingress Protection
    IP68 (protective box) / IP52 (airborne)

    Mechanical

    Weight (Airborne)
    1.8kg
    Weight (Protective Case)
    7.0kg
    Size (Airborne)
    31 × 19 × 15cm
    Size (Protective Case)
    52 × 43 × 21cm

    Battery

    Airborne Variant
    Powered by drone’s main battery via payload socket
    Ground Surveys
    Integrated battery, up to 12h, 99 W/h Li-Ion
