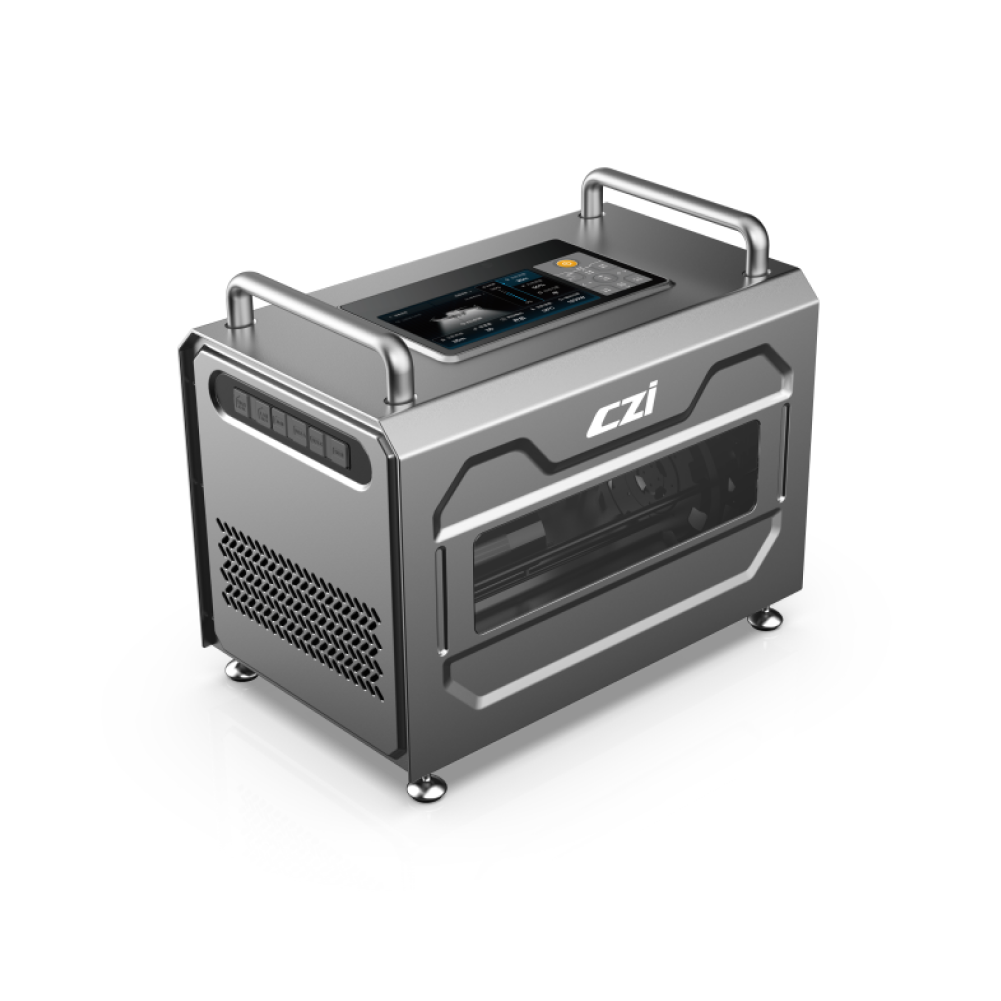

CZI Tethered Power System TK4

The TK4 Tethered Power System is a high-performance tethered solution designed for long-endurance drone operations. Utilizing advanced power conversion technology, it converts AC power into high-voltage DC and transmits it to the airborne unit via tether cable, providing continuous and stable power for both the drone propulsion system and mission payloads. Featuring a lightweight design, highdefinition display, and backup battery, the system adapts to harsh environments with excellent protection performance. It is ideal for emergency lighting, security monitoring, and other continuous-operation scenarios, ensuring true 24/7 uninterrupted aerial deployment for complex missions.

Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Features

    Wired Communication
    Reliable data link

    200m
    Cable Length High-Voltage

    800V
    Power Supply

    4kW
    Stable Output

    High-Voltage Power Supply

    50V airborne unit output
    4kW rated power
    Reduced line loss

    Anti-Interference

    Power line carrier communication
    Ground station supports HDMI and Ethernet video output
    Resistant to radio interference

    Safe & Portable

    Total weight ≤ 13kg
    Automatic power-off alarm
    Intelligent fault alert system
    Grounding rod included

    Strong Expandability

    Built-in Bluetooth & Wi-Fi
    Up to 1500W lighting output
    Compatible with multiple drone payloads

    Specs

    Ground Station

    Dimensions
    ≤415 × 345 × 254mm
    Weight
    ≤13kg (incl. 110m cable)
    Input Voltage
    176–264VAC (50/60 Hz)
    Output Voltage
    800V
    Output Power
    4.5kW
    Communication Bandwidth
    100M
    Type-C Fast Charging
    Max 65W (PD3.0 / QC)
    Screen Size
    5.5 inches
    Screen Resolution
    1920 × 1080
    Backup Battery
    2600mAh, 22.2V
    Speaker Power
    10W
    Video Output Interfaces
    HDMI, Ethernet
    Max Operating Elevation
    4000m
    Operating Temperature
    -20°C ~ +50°C
    Storage Temperature
    -40°C ~ +70°C

    Cable Specifications

    Cable Length
    110m (optional up to 200m)
    Current Capacity
    5A
    Voltage Rating
    DC 2000V
    Cable Weight
    1.25kg/100m
    Tensile Strength
    >50kg

    Airborne Unit

    Dimensions
    ≤190 × 155 × 86mm
    Weight
    ≤2kg
    Output Power
    Rated 4000W
    Output Voltage
    50V
    Video Input Interface
    Type-C
    IP Rating
    IP55
    Max Operating Elevation
    4000m
    Operating Temperature
    -20°C ~ +50°C
    Storage Temperature
    -40°C ~ +70°C
