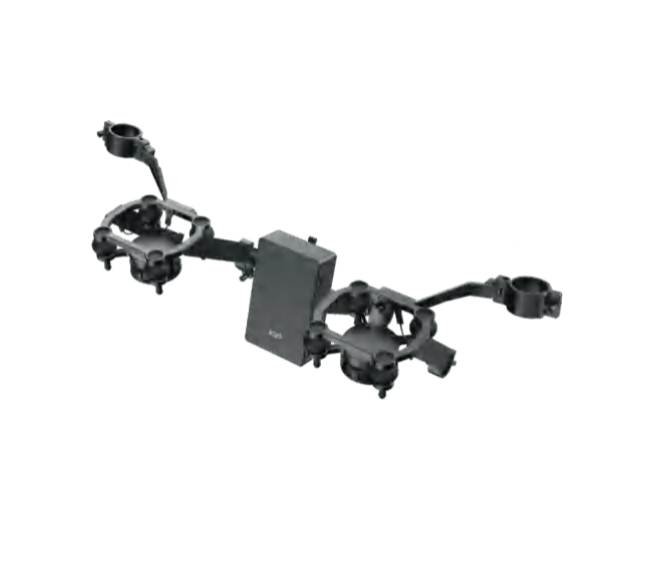

CZI Logistic Payload Kit FS32

CZI Logistic Payload Kit FS32

FS32 logistic payload kit, when paired with the DJI FC30 transport aircraft, enables the onboard adaptation of the MP130C, GL60CPlus, and TH4C. This setup provides the aircraft with functionalities such as broadcasting, emergency lighting, and throwing, making it suitable for emergency rescue operations, material delivery, and other related application scenarios.

Categories:
Applications: , , , , , ,

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Download brochure
    Features
    Specs

    Features

    01

    Versatility
    Broadcasting and lighting / throwing and lighting 2-in-1

    02

    Easy to Assemble / Disassemble
    Compatible with FC30, unique design for easy setup

    03

    Convenient Control
    No need for a third-party controller, automatic payload recognition by the Pilot

    04

    Excellent Performance
    Single hook can carry up to 10kg, effective broadcast range of 500m, effective searchlight distance of 150m

    Specs

    FS32 Control Box

    Size
    70 × 30 × 106 mm
    Installation Method
    Quick release
    Total Weight
    635g
    Control
    PSDK
    Rated Input Voltage
    52.22V – 59.92V
    Total Power
    400W

    GL60CPlus Searchlight

    Size
    126 × 131 × 167mm
    Weight
    750g
    FOV
    15°
    Total Power
    128W
    LED Power
    120W
    Luminous Flux
    13400lm ±3%

    MP130C Digital Voice Broadcasting System

    Size
    140 × 140 × 125mm
    Weight
    <570g
    Power
    25W
    Volume
    ≥130dB @20cm
    Effective Broadcasting Distance
    >500m

    TH4C Drop Kit

    Size
    76 × 76 × 98mm
    Weight
    310 ± 5g
    Rated Power
    10W
    Single Hook Capacity
    10kg
