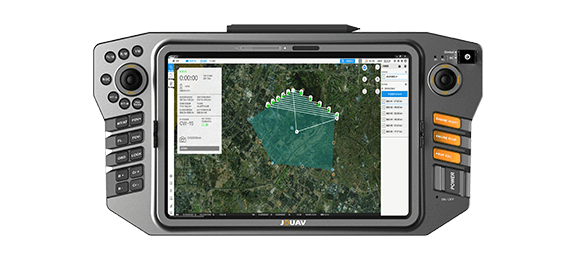

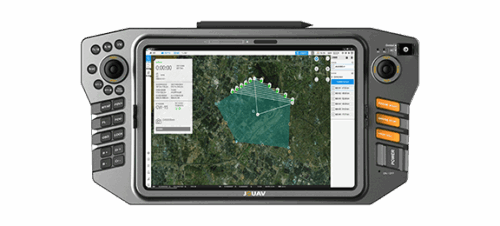

JOUAV TC-200 Handheld Ground Control Station

TC-200 ground control system is a compact and convenient solution for drones. Connected with GCS1000D through Wi-Fi, TC-200 has the functions of manual remote control, flight measurement and control, and payload control of UAVs.
TC-200 can perform the commands like route planning, take-off, auto-navigation, real-time flight status feedback, return, landing, etc. It features low latency, good anti-interference performance, and a long transmission range.

Categories:

Inquire Now

    By submitting this message, you agree with the privacy policy and the processing of personal data.




    * - required fields

    Features

    Small-sized and Portable
    Small-sized and Portable

    Enable safe operation and control for your drone

    Different Operational Modes
    Different Operational Modes

    Used for mission planning, payload control, and UAV monitoring

    One-touch Working Mode Switching
    One-touch Working Mode Switching

    Highly provides working effectiveness in professional fields

    Equipped with Foldable Light Shield
    Equipped with Foldable Light Shield

    The equipment ensures clear viewing in sunlight

    Two 3400mAh Lithium Batteries
    Two 3400mAh Lithium Batteries

    Provide up to 2 hours of operation time under remote control module

    Industrial Equipment Protection
    Industrial Equipment Protection

    Capable of working in the field from -20 degrees to 38 degrees

    Technical Specification

    Specifications
    External Dimension
    L x W x H: 430*224*100mm
    Weight
    3.0 Kg
    Charging Time
    2h
    Built-in Antenna
    2.4G high gain antenna
    Endurance Under Normal Temp (Gimbal Control Mode)
    ≥2h
    Endurance Under Normal Temp (UAV Control Mode)
    >6h
    Operating Temp Range
    -20℃~45℃
    Storage Temp
    -50℃~+55℃
    Optimum Storage Temp
    22℃
    Built-in Tablet PC
    Surface Pro7 i5 128GB+128GB/SD card
    Built-in Lithium Battery
    3400Ah/8.4V
    External Stylus
    Surface Stylus

    * All performance data in the foregoing pages are theoretical values obtained by JOUAV® internal laboratories through tests carried out under particular conditions. For more information on the specific testing conditions, refer to the aforementioned product details. Actual performance may vary owing to differences in individual product configuration, software versions, application conditions, and environmental factors. All data is subject to actual usage.
